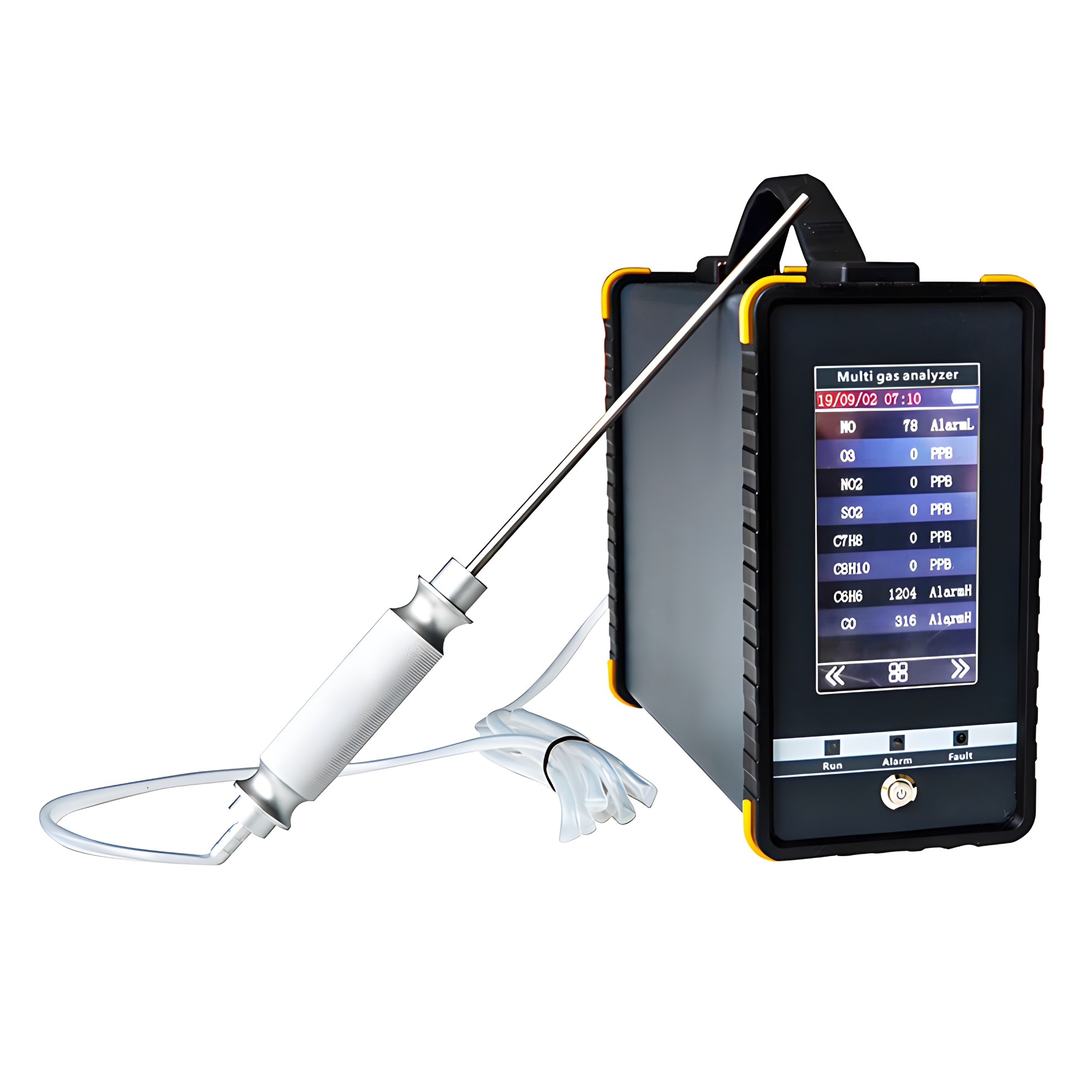

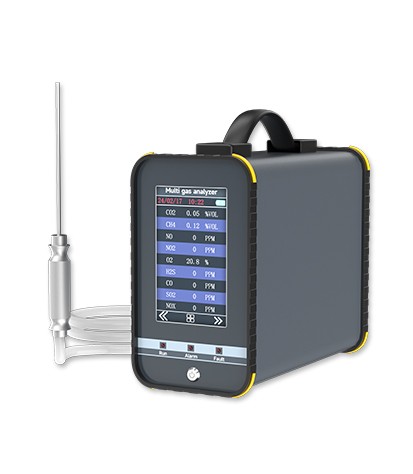

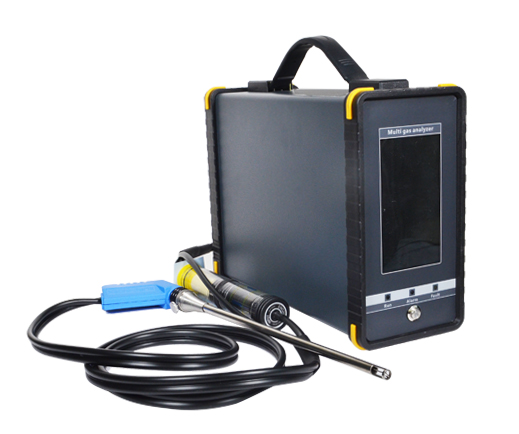

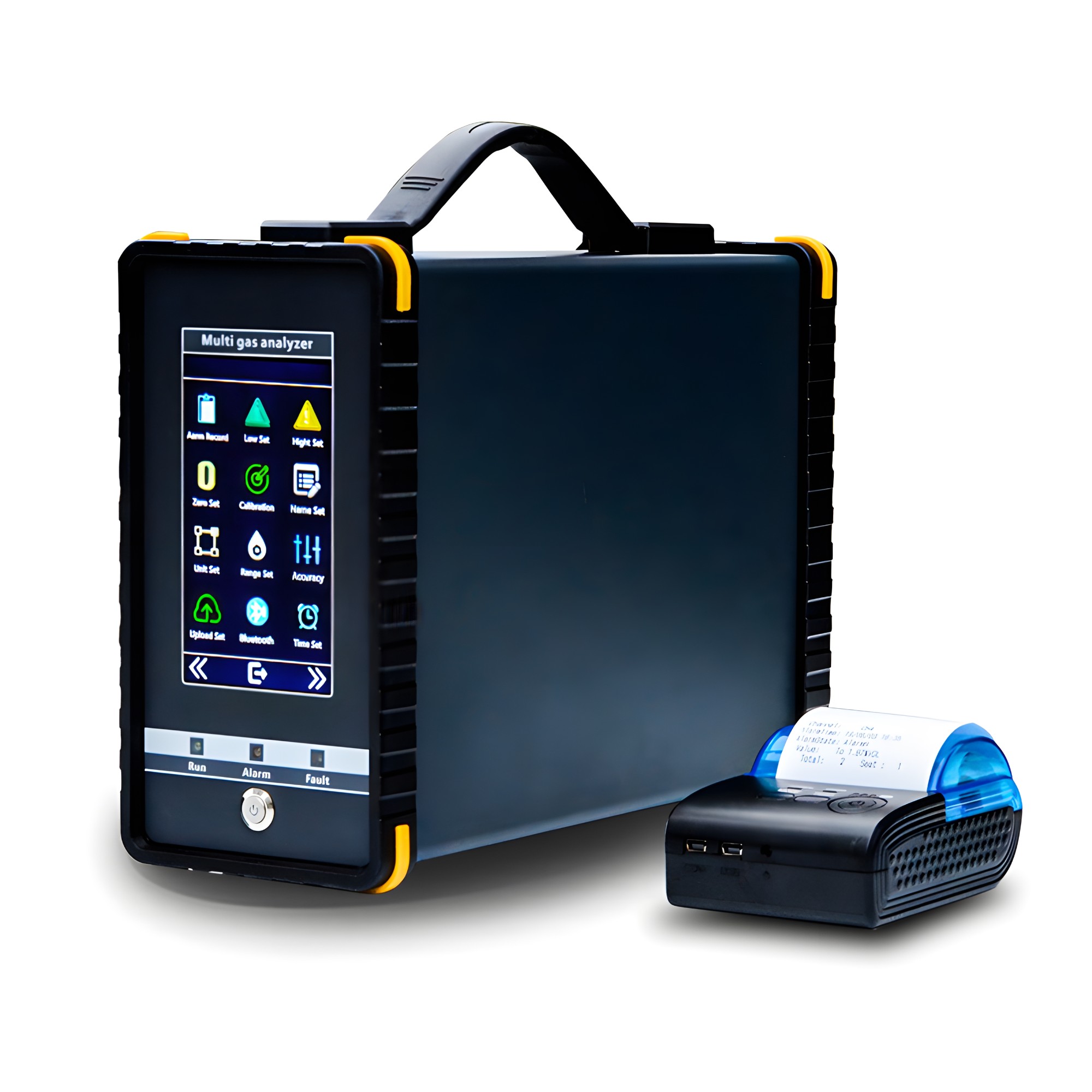

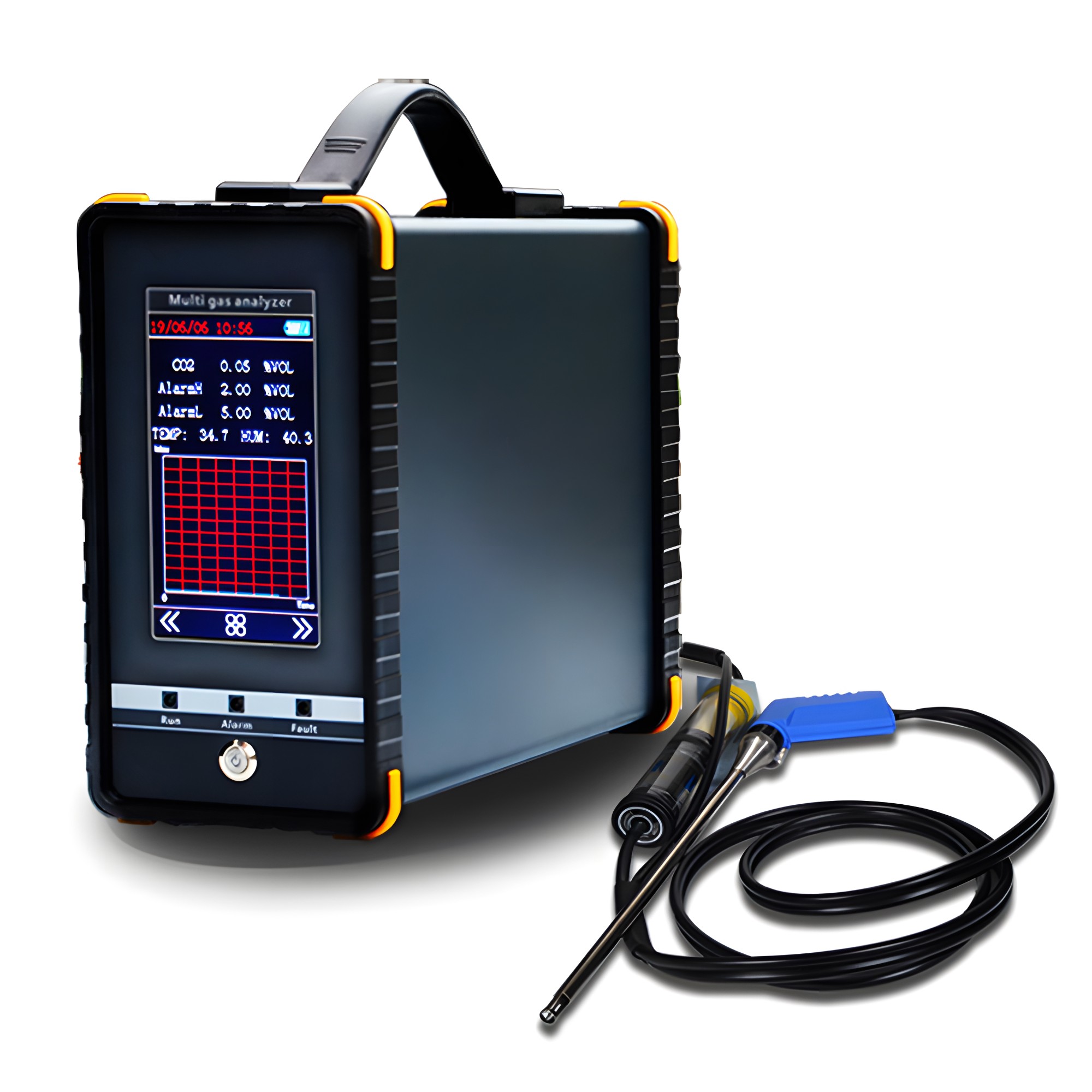

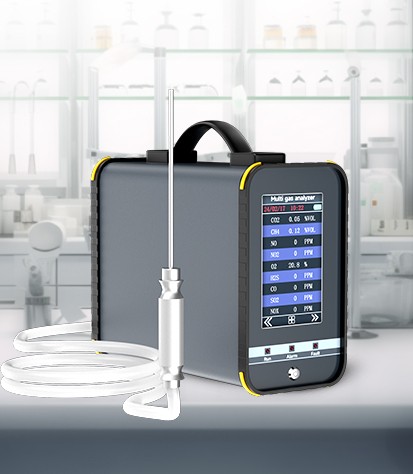

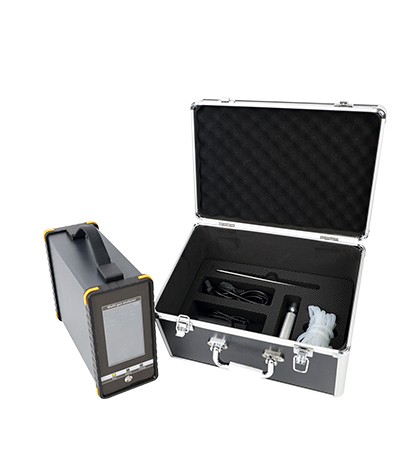

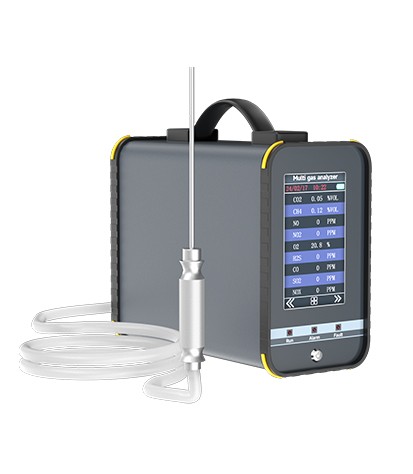

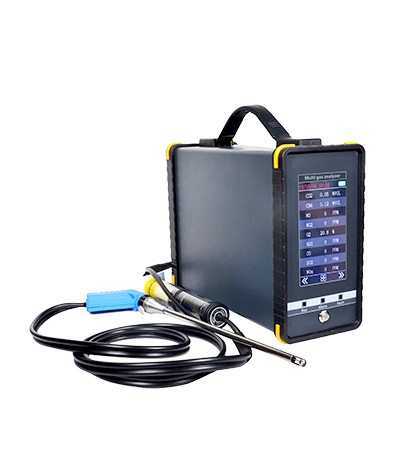

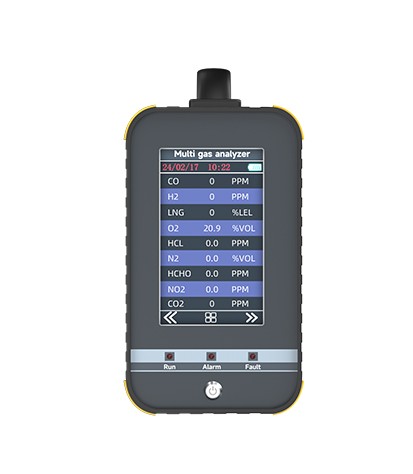

S360 portable multi gas analyzer
|
Product name |
multi gas analyzer |
|
Product model |
S360 |
|
Product specification |
according to the type of gas being measured |
|
Sampling mode: |
built-in pump |
We're here to help:Easy ways to get the answers you need.
Description

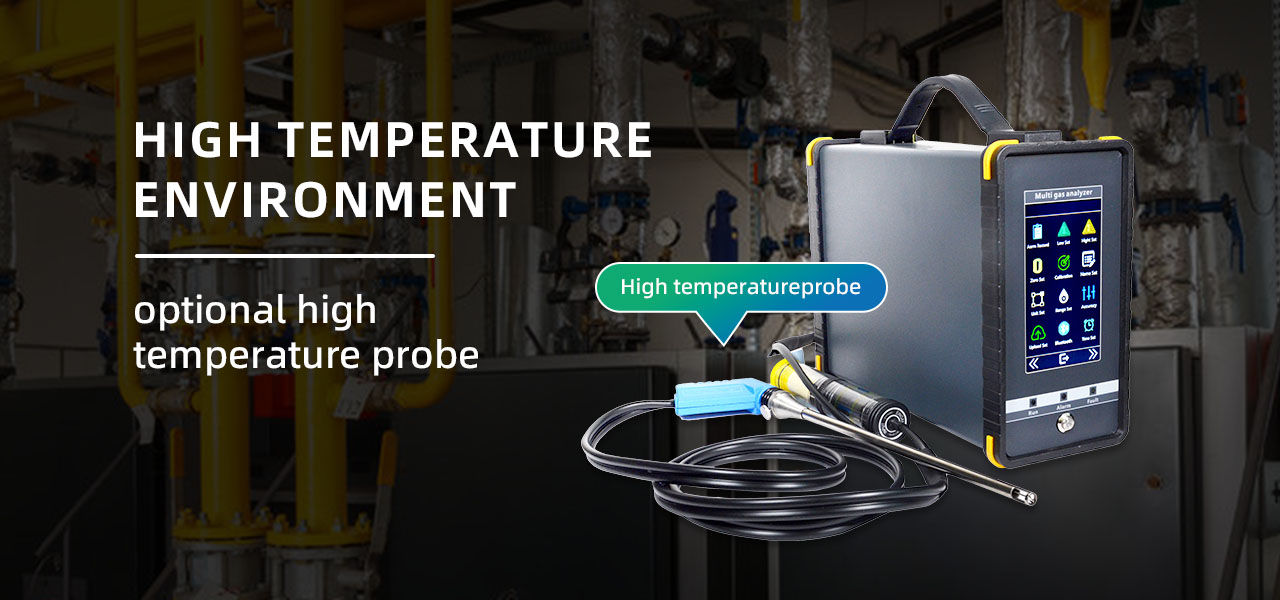

S360 series product is portable multi-gas detection instruments with high sensitivity for industrial use. They are suitable for gas leakage rescue, underground pipelines or mines, etc, and can effectively guarantee the safety of workers and production equipment from being damaged. It can detect different gases according to different types of sensors, with rich functions, simple operation, easy to carry and good shock resistance. This product USES the high resolution touch LCD technology, the display is more intuitive and clear, more convenient to operate. The product can be equipped with high temperature detector, suitable for high temperature gas occasions.
The below gases are available
|
Gas detected |
Measuring Range |
Optional Range |
Resolution Ratio |
Response Time |
|
LEL -combustible gas |
0-100%LEL |
0-100%VOL（Infrared or catalytic ） |
1%LEL/1%vol |
≤10s |
|
carbon monoxide |
0-1000PPm |
0-500/2000/5000PPm |
0.1/1PPm |
≤10s |
|
TVOC |
0-100PPM |
0-100PPM |
0.1PPm/1PPM |
≤15s |
|
hydrogen |
0-100%LEL |
0-1000PPM |
1%LEL/1PPM |
≤15s |
|
natural gas |
0-100%LEL |
0-100%LEL |
1%LEL |
≤10s |
|
Oxygen-O2 |
0-30%VOL |
0-30%、0-100%VOL |
0.1%vol |
≤10s |
|
ozone |
0-10PPm |
0-20、100PPm |
0.01PPm/0.1PPM |
≤15s |
|
hydrogen sulfide-H2S |
0-100PPm |
0-50、200、1000PPm |
1/0.1PPm |
≤10s |
|
Methane-CH4 |
0-100%LEL |
0-100%VOL |
1%LEL/1%vol |
≤10s |
|
fluorine |
0-10PM |
0-1、10PPM |
1/0.1PPm |
≤15s |
|
hydrogen chloride |
0-20PPm |
0-20/50PPm/100PPM |
0.01/0.1PPm |
≤15s |
|
Nitrogen-N2 |
0-30%VOL |
0-30%VOL、100%VOL |
0.1%LEL/1PPM |
≤10s |
|
hydrogen |
0-100%LEL |
0-1000PPm |
1%LEL/0.1PPm |
≤15s |
|
chlorine |
0-20PPm |
0-10、100PPm |
0.1PPm |
≤15s |
|
ammonia gas |
0-100PPm |
0-50、500、1000PPm |
1/0.1PPm |
≤15s |
|
oxynitride |
0-20PPm |
0-50、1000PPm |
0.1/1PPm |
Functions Features
-

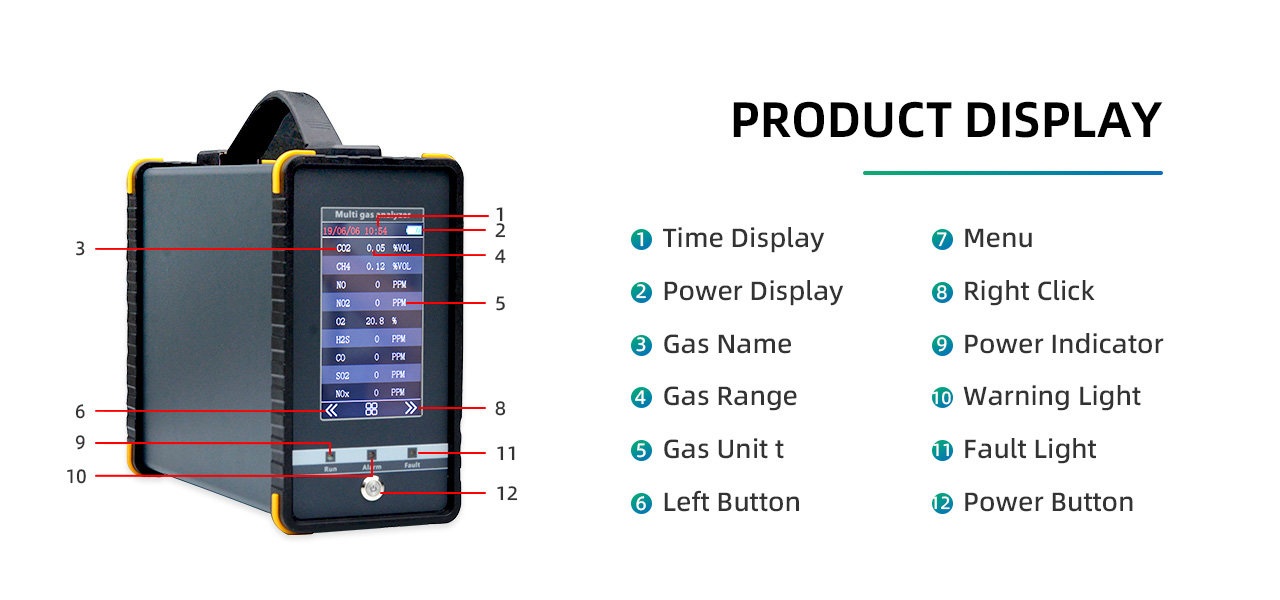

Large screen color Chinese menu operation
-

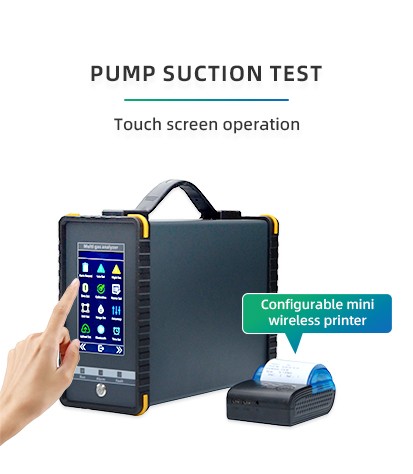

High-resolution touch LCD display
-
Quick detection of gas leak points
-
Adjustable range
-
quick preheating, quick response time
-
Sound vibration alarm signal
-
Convenient zero adjustment, convenient and quick

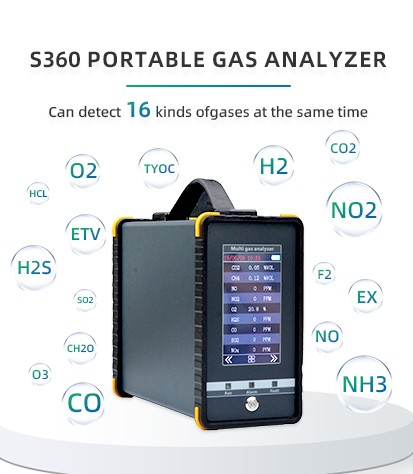

- It can detect up to 16 free combinations of gases
- High temperature gas analyzer
- Temperature and humidity gas analyzer
- Industrial waste gas analyzer
- Boiler, chimney, kiln, rotary furnace, cement kiln, kiln gas analyzer
Technical Parameters
|
Product name |
multi-gas analyzer |
|
Product model |
S360 |
|
Product specification |
according to the type of gas being measured |
|
Sampling mode: |
built-in pump suction type |
|
Response time |
≤30s |
|
Indication error |
≤3%FS |
|
Work environment |
temperature -10℃～55℃；Relativehumidity：≤93%(non condensing)
|
|
Storage environment |
Temperature: -10℃ ~ 55℃; Relative humidity: ≤93%(no condensation)
|
|
Preheating time |
≤90s |
|
Indication mode |
LCD color touch LCD display |
|
Charging time |
no less than 10 hours |
|
Continuous working time |
no less than 15 hours |
|
Battery specification: |
DC7.2 v-26ah lithium ion rechargeable battery |
|
Weight |
about 4.75kg |
|
Size |
293x110x210(mm)
|
