Detection type | natural diffusion or (external pump suction) |
Detection principle | electrochemical or catalytic, infrared |
Detection accuracy | 3% FS |
Interface Definition | U3 port (USB) |
Storage capacity | MAX3000 |

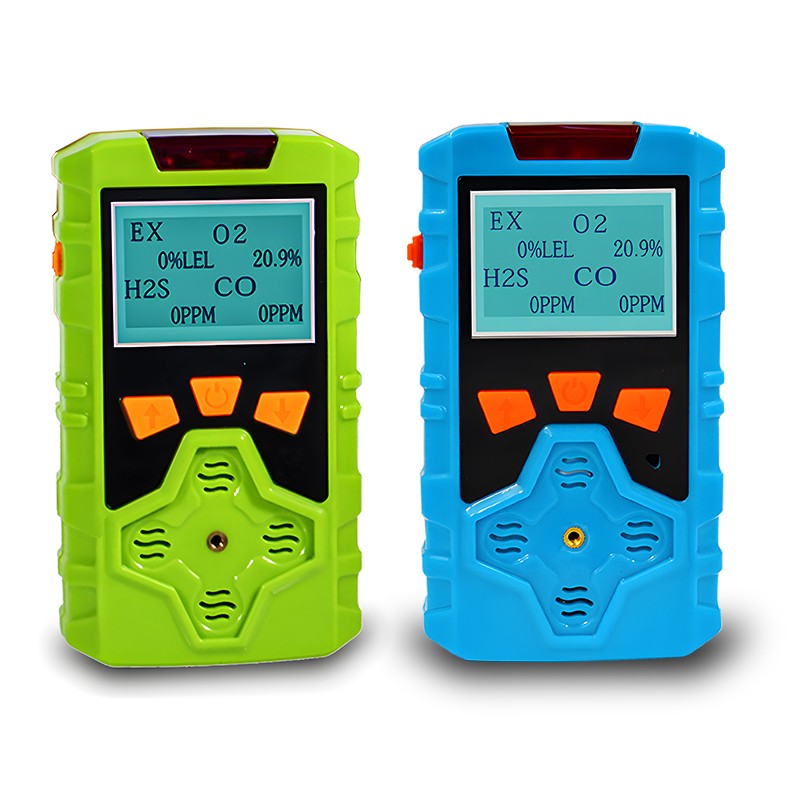

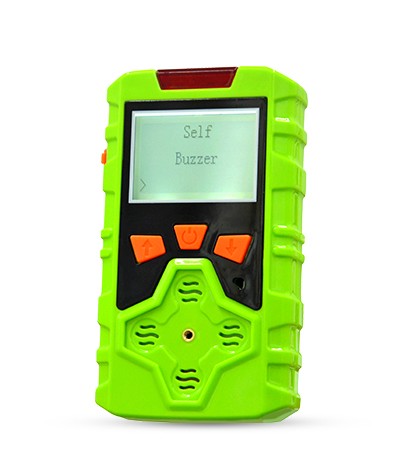

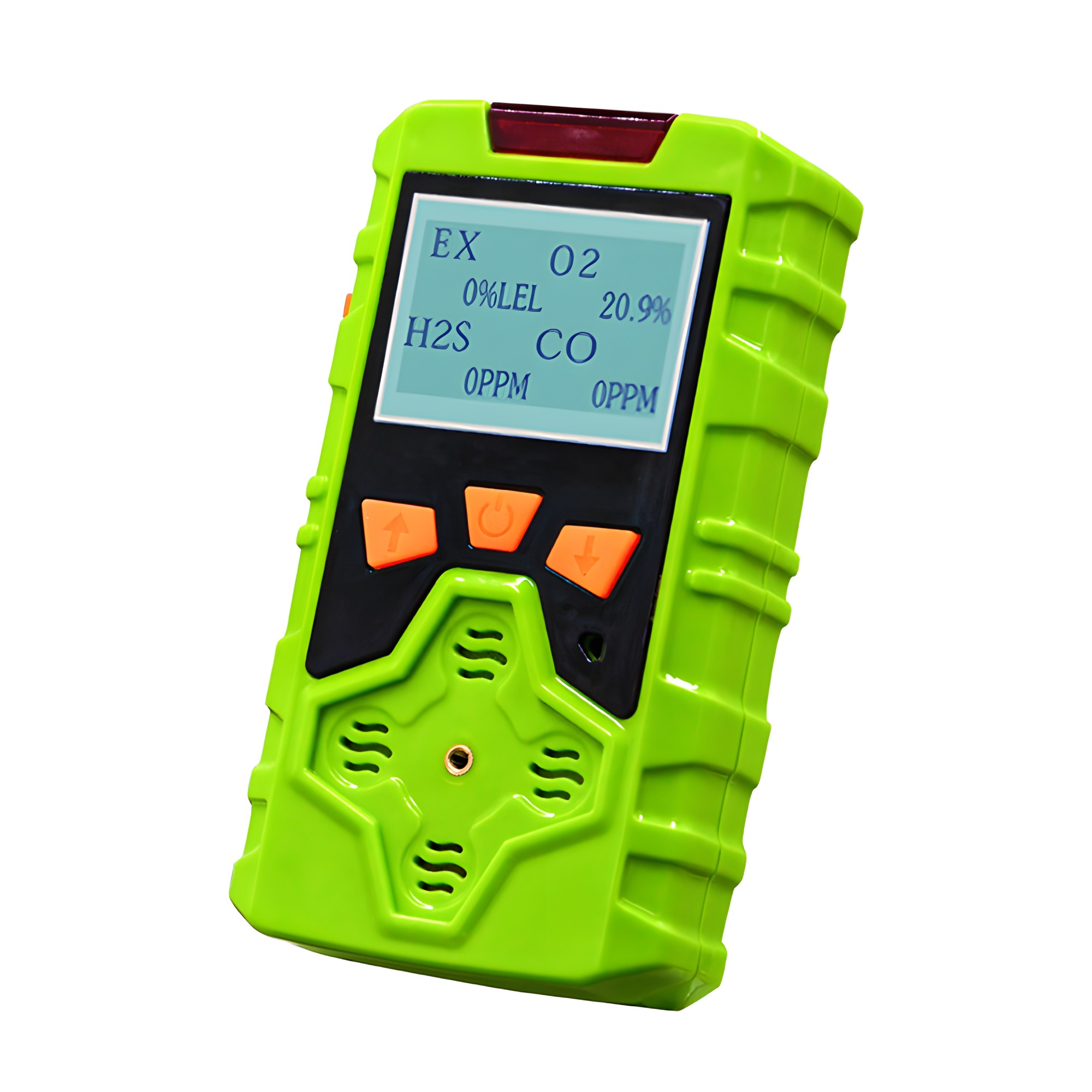

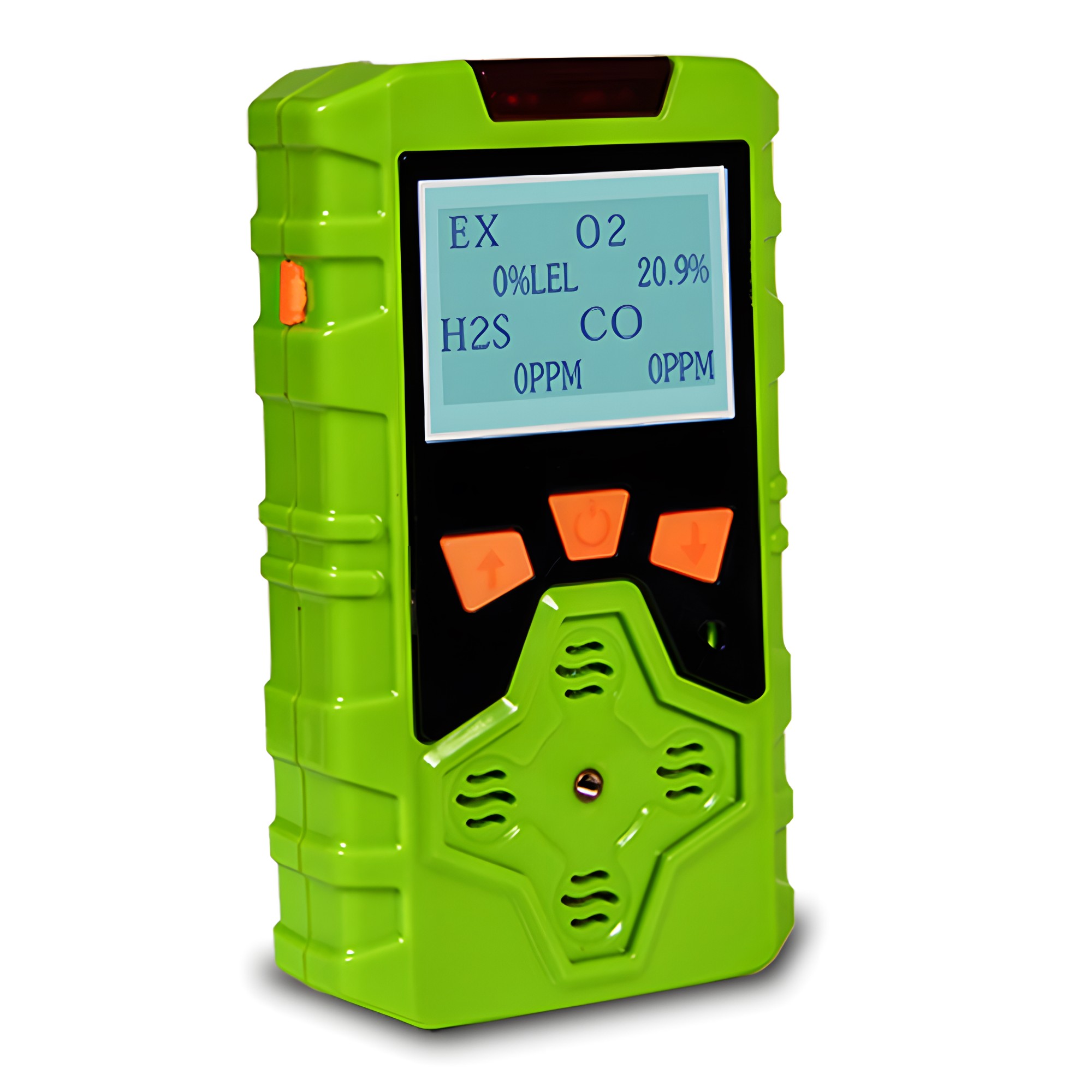

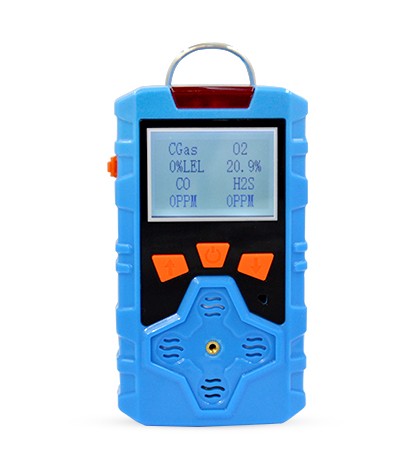

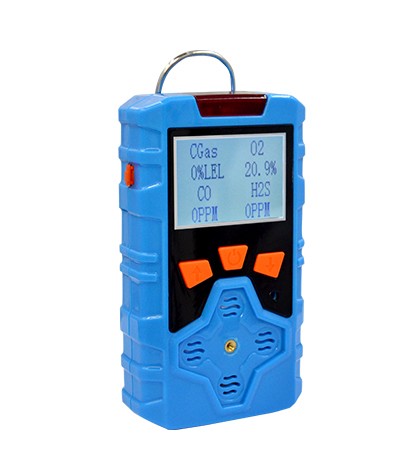

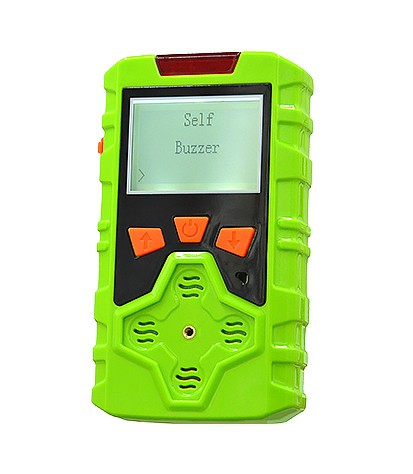

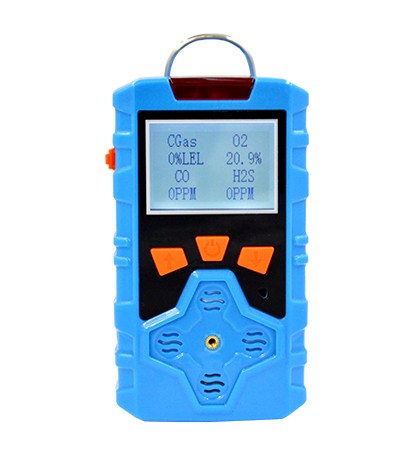

KP836 portable gas detector with dot matrix display technology can detect five kind of gases simultaneously such as combustible gas. O2, CO and H2S, NH3 or any other freely combination customized according to customer needs; Testing results are displayed on the screen, and users can begin manual operation at any time. The standard USB interface can be used for charging, data transfer and its inquiry alarm records. KP836 system adopts standard data recording mode, the internal memory function can store 3000 detecting records.
KP836 portable gas detector can be used for non-coal mining safety monitoring, gas leakage of chemical plant & pharmaceutical industry, electricity and municipal pipe safety testing operations, metallurgical steel mills hazardous gas safety testing. You can choose the gas that you need to detect from the below gas list;
The below gases are available
Gas detected |
Measuring Range |
Optional Range |
Resolution Ratio |
Response Time |
LEL -combustible gas |
0-100%LEL |
0-100%VOL(Infrared or catalytic ) |
1%LEL/1%vol |
≤10s |
carbon monoxide |
0-1000PPm |
0-500/2000/5000PPm |
0.1/1PPm |
≤10s |
TVOC |
0-100PPM |
0-100PPM |
0.1PPm/1PPM |
≤15s |
hydrogen |
0-100%LEL |
0-1000PPM |
1%LEL/1PPM |
≤15s |
natural gas |
0-100%LEL |
0-100%LEL |
1%LEL |
≤10s |
Oxygen-O2 |
0-30%VOL |
0-30%、0-100%VOL |
0.1%vol |
≤10s |
ozone |
0-10PPm |
0-20、100PPm |
0.01PPm/0.1PPM |
≤15s |
hydrogen sulfide-H2S |
0-100PPm |
0-50、200、1000PPm |
1/0.1PPm |
≤10s |
Methane-CH4 |
0-100%LEL |
0-100%VOL |
1%LEL/1%vol |
≤10s |
fluorine |
0-10PM |
0-1、10PPM |
1/0.1PPm |
≤15s |
hydrogen chloride |
0-20PPm |
0-20/50PPm/100PPM |
0.01/0.1PPm |
≤15s |
Nitrogen-N2 |
0-30%VOL |
0-30%VOL、100%VOL |
0.1%LEL/1PPM |
≤10s |
hydrogen |
0-100%LEL |
0-1000PPm |
1%LEL/0.1PPm |
≤15s |
chlorine |
0-20PPm |
0-10、100PPm |
0.1PPm |
≤15s |
ammonia gas |
0-100PPm |
0-50、500、1000PPm |
1/0.1PPm |
≤15s |
oxynitride |
0-20PPm |
0-50、1000PPm |
0.1/1PPm |
Detection |

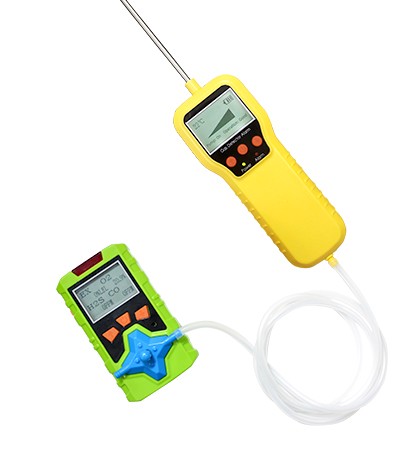

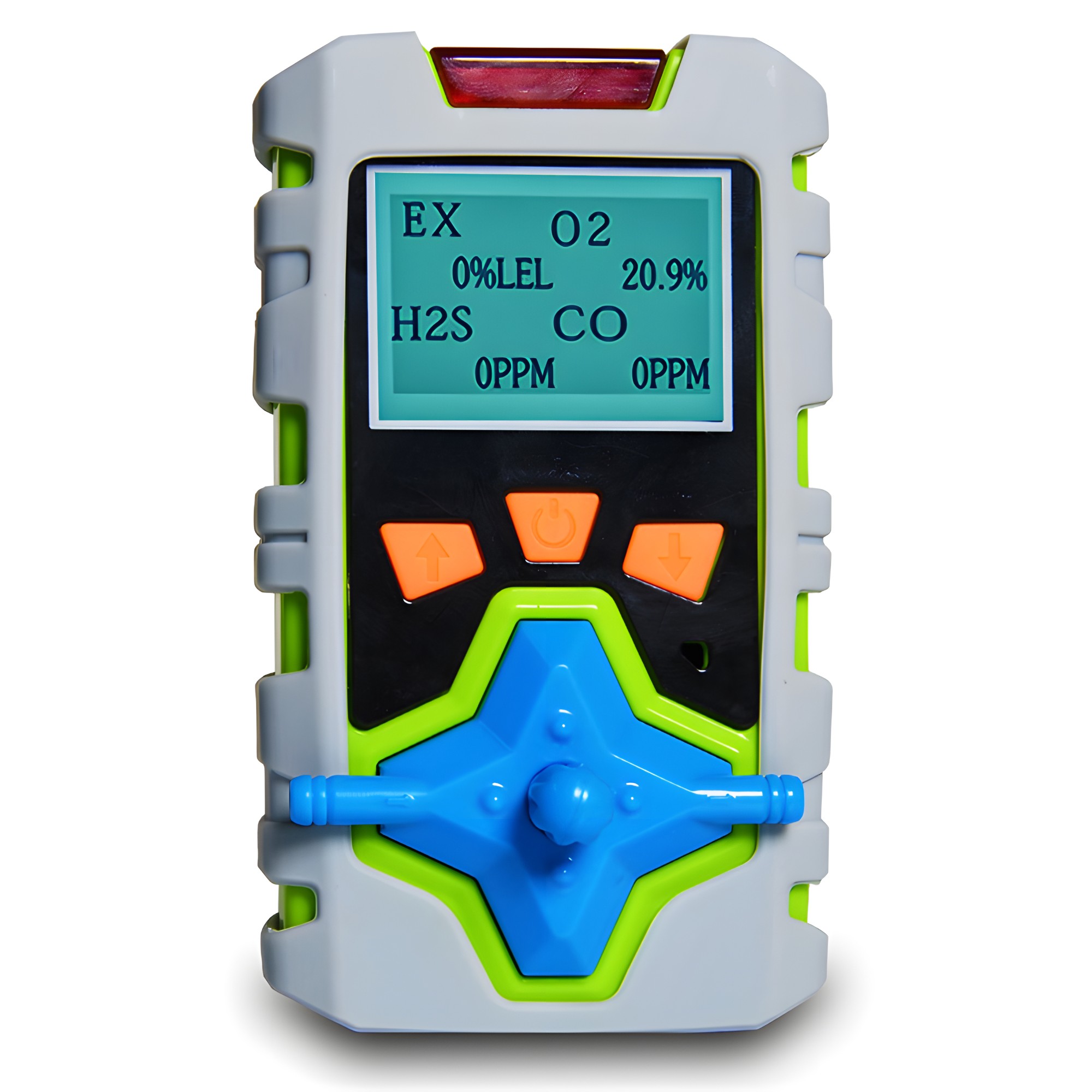

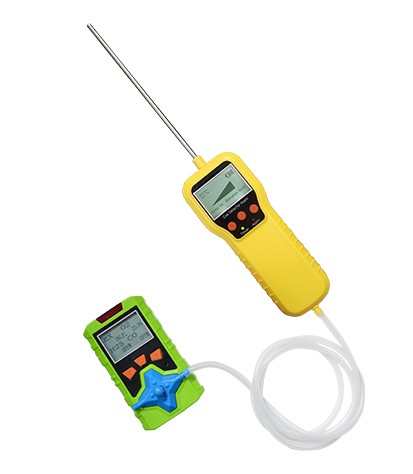

type: natural diffusion or (external pump suction) |
Detection principle |
electrochemical or catalytic, infrared |
Detection accuracy |
3% FS |
Interface Definition |
U3 port (USB) |
Storage capacity |
MAX3000 |
Dimensions |
(121 * 68 * 32) mm |
Suitable temperature |
-20 ℃-50 ℃ (-4 ℃F-122 ℃F) |
Humidity |
0-95% R.H non-condensing |
Sound |
LED flashing> 90 dB |
Display |
Backlight display |
Battery |
7000mA lithium battery rechargeable battery |
Continuous use |
> 14 hours (> 8 hours) |
Charging time |
<6 hours |
Shell |
Flame retardant plastic shell |
Drop test |
2meters |
Degree of protection |
IP67 |
Reaction Time (T90) |
LEL = 10 seconds O2 = 10 seconds CO = 10 seconds H2S = 10 seconds |
Certification mark |
Ex ib IIB T3 Gb |
Explosion-proof certificate number |
CNEx14.2943 |
Measurement certificate number |
Yu (system) 01000109 number |
Total weight |
about 240g (with charger) |
