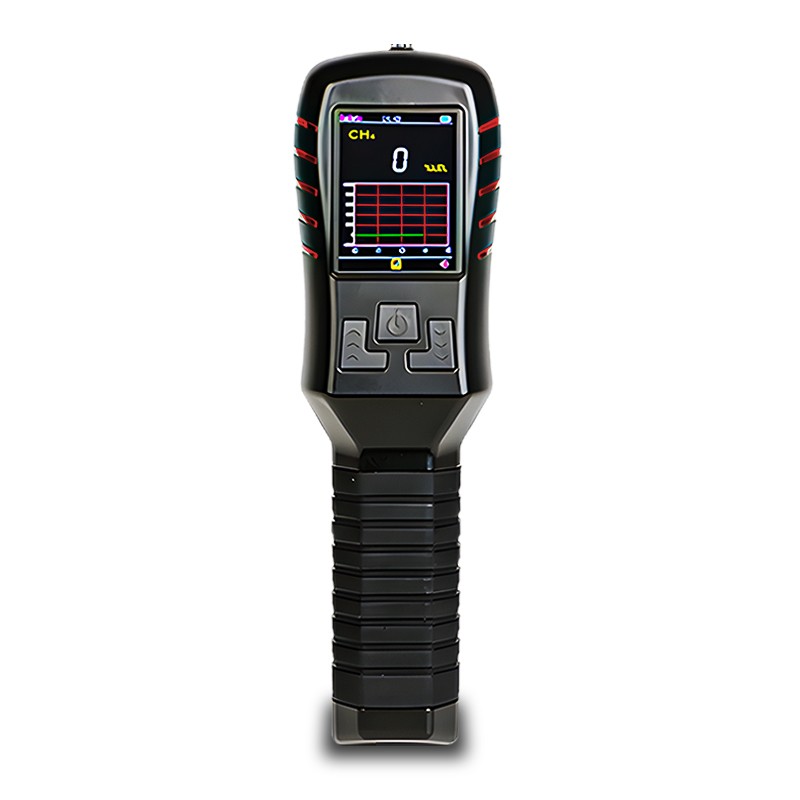

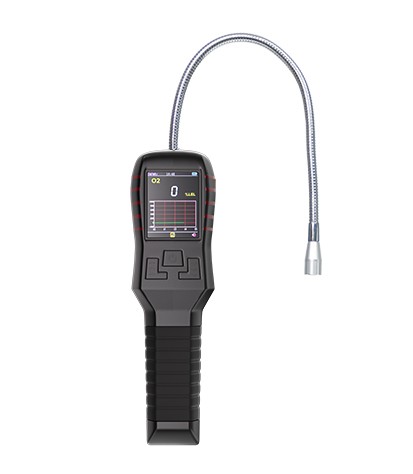

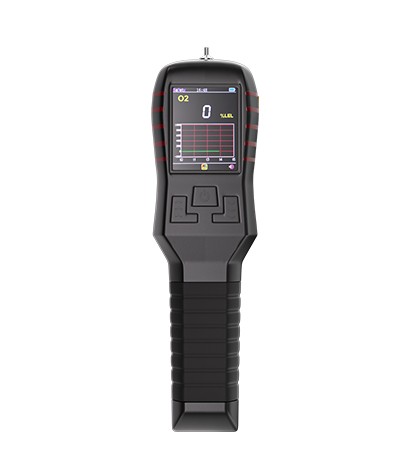

S311 Portable gas leak detector
|
Explosion-proof mark |
Ex ia IIC T4 Ga |
|
Charged battery |
3.7V-2000mAh lithium ion battery |
|
Weight |
380g |
|
Dimensions |
226mm * 68mm * 45mm |
Mobile/whatsapp: +86-13333857585
Email: [email protected]
We're here to help:Easy ways to get the answers you need.
Description

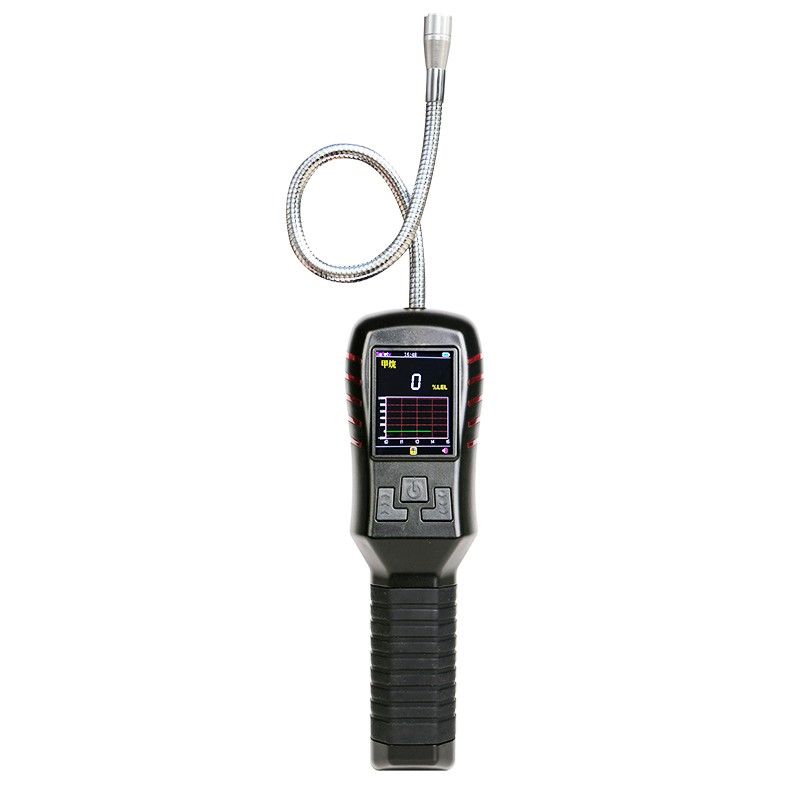

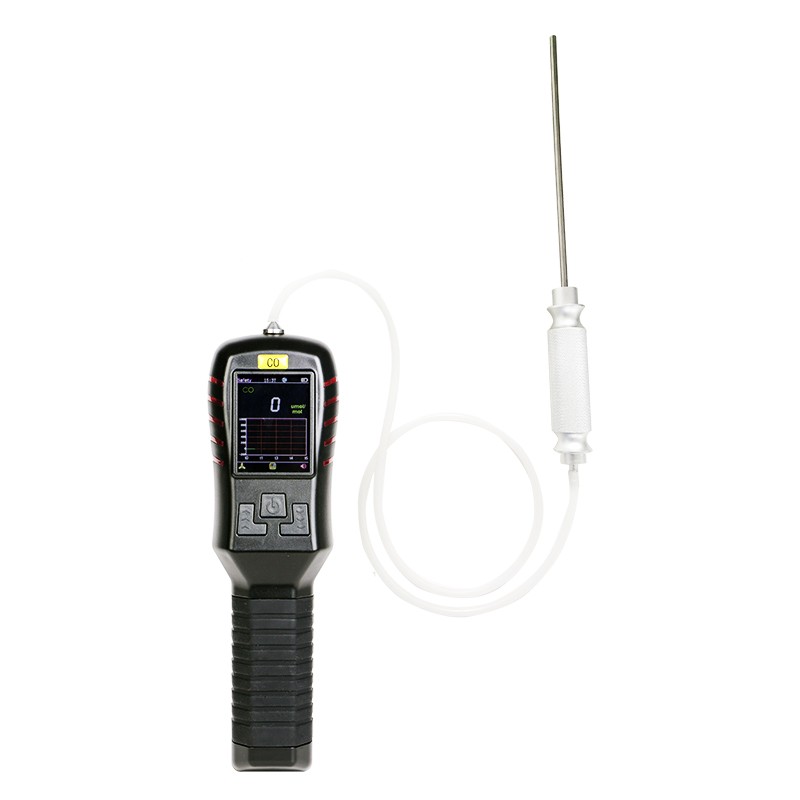

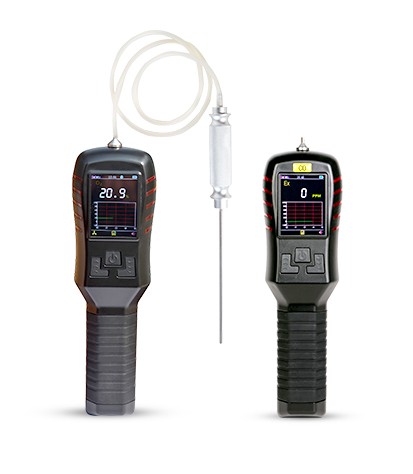

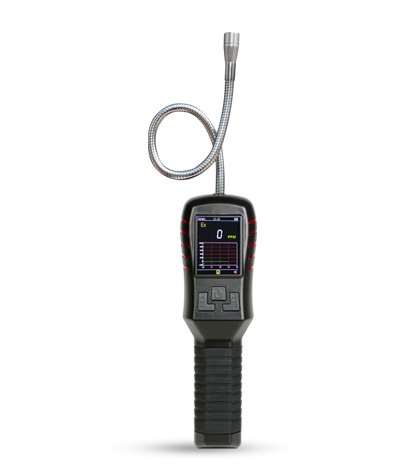

S311 Portable gas leak detector with high sensitivity.The detection principle of semiconductor or poisonous gas is adopted, which is more suitable to find and detect the location of leakage gas.Compact size, simple operation, easy to carry, can also be accompanied by flexible probe, hand feel comfortable.
Detection gas: methane, natural gas, ammonia gas, hydrogen gas, gas, propane, acetone, gasoline, coolant, ethanol, oxide, hydrogen sulfide, paint, thinner, industrial solvent, alcohol, gas fuel and other toxic and harmful gases.

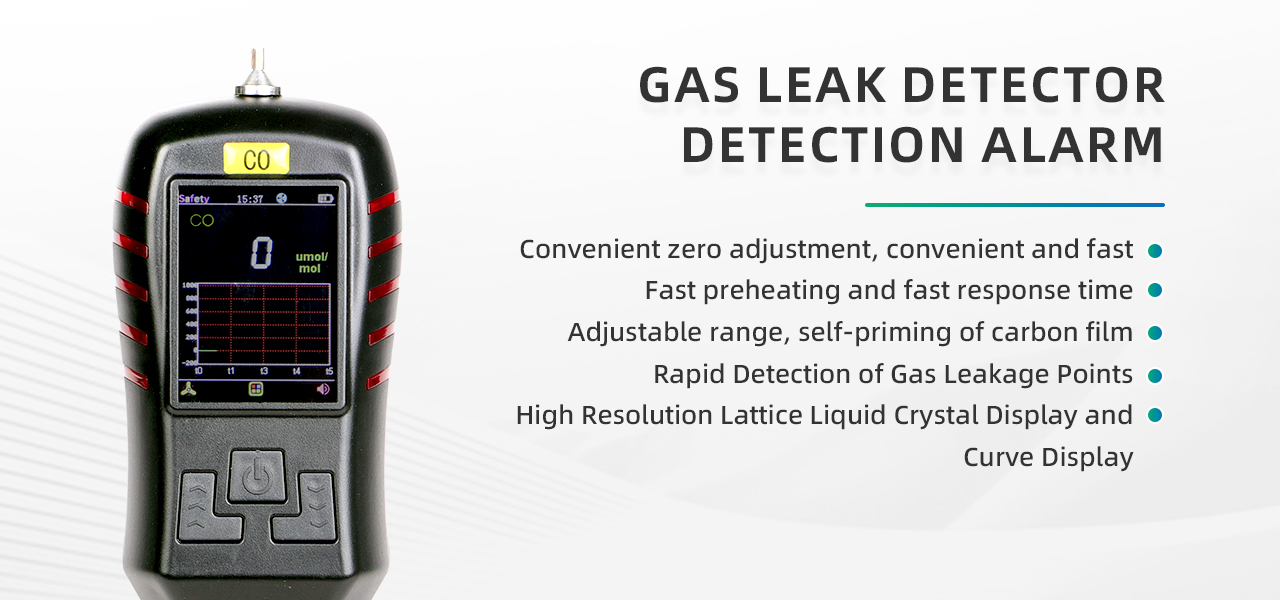

Functions Features
Technical Parameters
| Detection method | Natural diffusion |
|
Using the environment |
Temperature - 10 ℃ ~ 55 ℃; Humidity: no more than 95%RH(no condensation) |
| Display method | Color LCD |
|
Warmup time |
< 30s |
| Interface | U3 port |
|
Charged battery |
3.7V-2000mAh lithium ion battery |
|
Work time |
>8h (combustible), 300 hours (toxic) |
|
Weight |
300g |
|
Dimensions |
230mm * 68mm * 45mm(No probe)
|
|
Explosion proof number |
CLEx24.1020 |
| Explosion-proof mark | Ex ia IIC T4 Ga |
| Common Gas Parameter listing | ||||
| Gas detected | Measuring Range | Optional Range | Resolution Rat | Response Time |
|
LEL -combustible gas |
0-100%LEL |
0-100%VOL（Infrared or catalytic ） |
1%LEL/1%vol |
≤10s |
|
carbon monoxide |
0-1000PPm |
0-500/2000/5000PPm |
0.1/1PPm |
≤10s |
|
TVOC |
0-100PPM |
0-100PPM |
0.1PPm/1PPM |
≤15s |
|
hydrogen |
0-100%LEL |
0-1000PPM |
1%LEL/1PPM |
≤15s |
|
natural gas |
0-100%LEL |
0-100%LEL |
1%LEL |
≤10s |
|
Oxygen-O2 |
0-30%VOL |
0-30%、0-100%VOL |
0.1%vol |
≤10s |
|
ozone |
0-10PPm |
0-20、100PPm |
0.01PPm/0.1PPM |
≤15s |
|
hydrogen sulfide-H2S |
0-100PPm |
0-50、200、1000PPm |
1/0.1PPm |
≤10s |
|
Methane-CH4 |
0-100%LEL |
0-100%VOL |
1%LEL/1%vol |
≤10s |
|
fluorine |
0-10PM |
0-1、10PPM |
1/0.1PPm |
≤15s |
|
hydrogen chloride |
0-20PPm |
0-20/50PPm/100PPM |
0.01/0.1PPm |
≤15s |
|
Nitrogen-N2 |
0-30%VOL |
0-30%VOL、100%VOL |
0.1%LEL/1PPM |
≤10s |
|
hydrogen |
0-100%LEL |
0-1000PPm |
1%LEL/0.1PPm |
≤15s |
|
chlorine |
0-20PPm |
0-10、100PPm |
0.1PPm |
≤15s |
|
ammonia gas |
0-100PPm |
0-50、500、1000PPm |
1/0.1PPm |
≤15s |
|
oxynitride |
0-20PPm |
0-50、1000PPm |
0.1/1PPm |
≤15s |
|
methanal |
0-20PPm |
0-50、100PPm |
1/0.1PPm |
≤15s |
|
sulfur dioxide |
0-20PPm |
0-50、1000PPm |
0.1/1PPm |
≤15s |
|
nitric oxide |
0-250PPm |
0-500、1000PPm |
1PPm |
≤15s |
|
nitrogen dioxide |
0-20PPm |
0-50、1000PPm |
0.1/1PPm |
≤15s |
|
phosphine |
0-20PPm |
0-20、100PPm |
0.1PPm |
≤15s |
|
acrylonitrile |
0-100PPM |
0-100PPm |
0.1/1PPm |
≤15s |
|
carbon dioxide |
0-5000PPm |
0-1%/5%/10%VOL
(Infrared ) |
1PPM/0.01%VOL |
≤15s |
|
hydrogen fluoride |
0-10PPm |
0-1、10、50、100PPM |
0.01/0.1PPm |
≤15s |
|
Xylene/methylbenzene |
0-20PPm |
0-5、10、50、100PPm |
0.01/0.1PPm |
≤15s |
|
oxirane |
0-100PPm |
0-100PPm |
1/0.1PPm |
≤15s |
|
For other gases and measuring ranges, please contact us directly! |
||||
