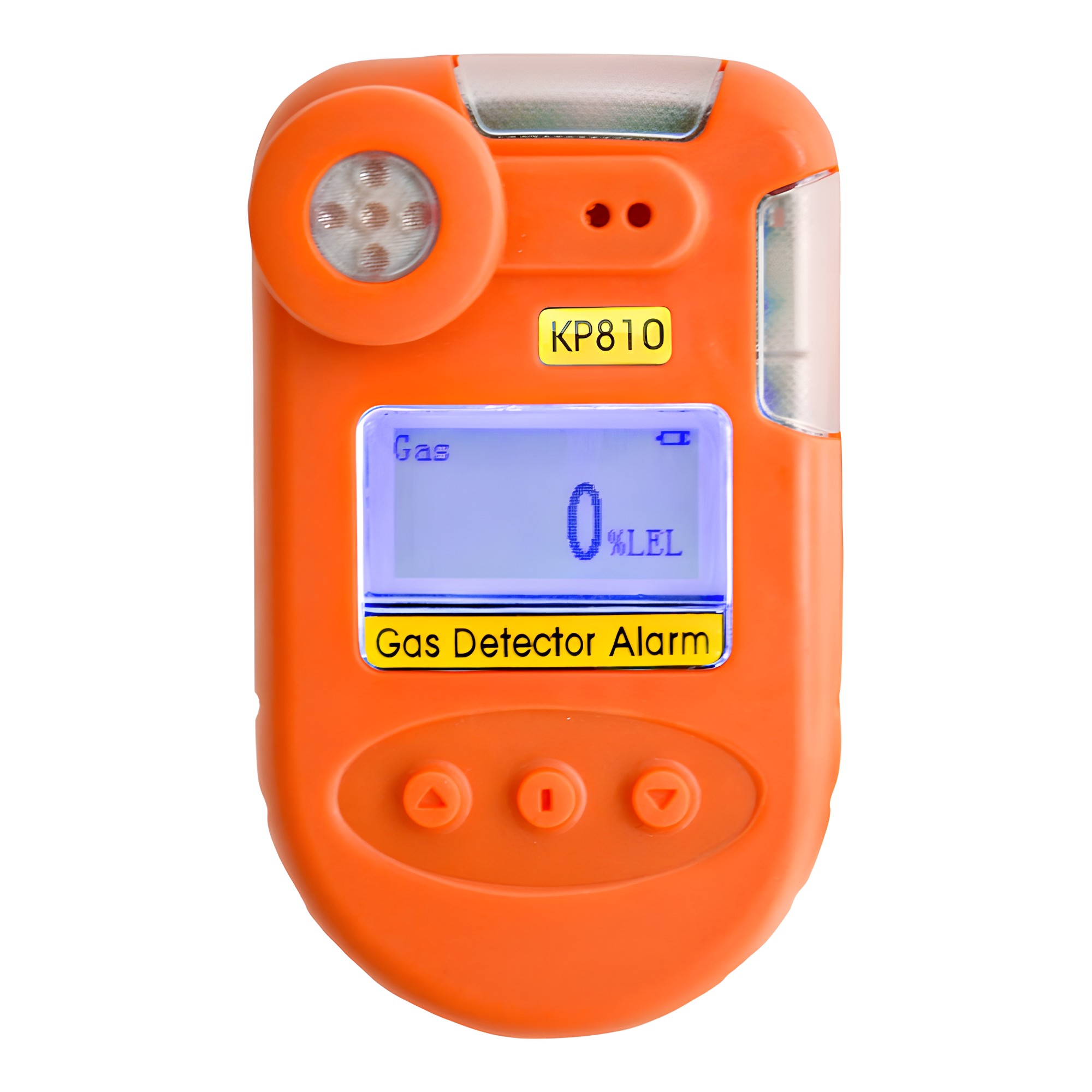

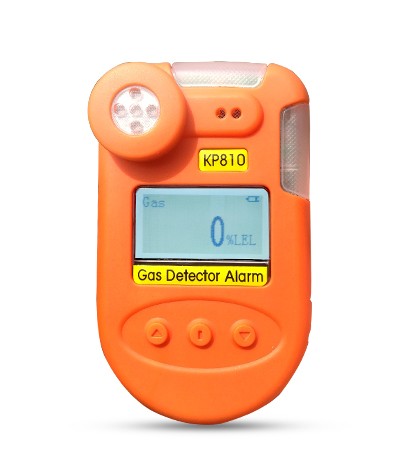

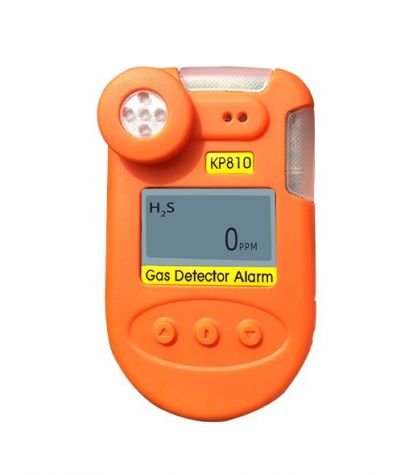

KP810 personal H2S monitor

Detecting gas	Combustible gases, toxic gases
Measuring range	Depending on sensor type
Detection mode	Natural diffusion
Power	3.7V 1700mA rechargeable lithium battery

Mobile/whatsapp: +86-13333857585

Email: [email protected]

TAG: personal H2S monito personal H2S detector h2s personal gas detector

We're here to help:Easy ways to get the answers you need.

Description Functions Features Technical Parameters Get In Touch

Description

KP810 features a user-friendly all-English operation interface. It is a high-cost-performance waterproof single gas detector meticulously designed for you by our company. This device employs internationally renowned sensors, boasting high sensitivity, stability, and reliability. The waterproof single gas detector is widely applicable in various settings where the concentration of toxic and harmful gases needs to be detected, including oil extraction, smelting, chemical industry, municipal services, sewage treatment, power generation, gas, mining, tunnel construction, firefighting, warehousing, papermaking, pharmaceuticals, brewing, and many others

TAG: personal H2S monito personal H2S detector h2s personal gas detector

Functions Features

Henan Zhong An Electronic Detection Technology CO.,LTD.

TAG: personal H2S monito personal H2S detector h2s personal gas detector

Technical Parameters

Detecting gas	Combustible and toxic gases
Detection mode	Natural diffusion
Detection principle	Semiconductor/catalysis/electrochemistry
scope of test	See Schedule
Display	LCD digital display of gas type /gas concentration/ status
Alarm indication	Light emitting diode, sound, vibration
Working environment temperature	-10℃～55℃，Humidity<93%RH no condensation
Power	3.7V 1700mA rechargeable lithium battery
Weight	Around 132g (including battery and accessories)

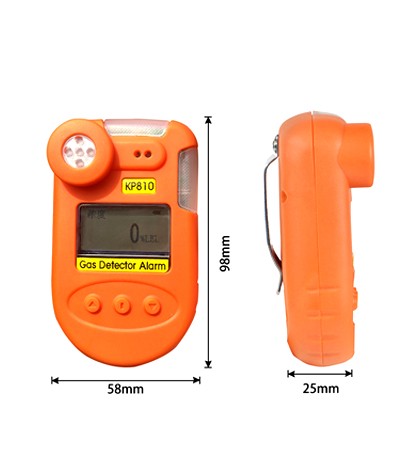

Size	100mm58mm30mm
Explosion-proof mark	Ex ia IIC T4 Ga
Explosion proof No	CLEx24.1020
Protection grade	IP65

Common Gas Parameter listing
Gas detected	Measuring Range	Optional Range	Resolution Rat	Response Time
LEL -combustible gas	0-100%LEL	0-100%VOL（Infrared or catalytic ）	1%LEL/1%vol	≤10s
carbon monoxide	0-1000PPm	0-500/2000/5000PPm	0.1/1PPm	≤10s
TVOC	0-100PPM	0-100PPM	0.1PPm/1PPM	≤15s
hydrogen	0-100%LEL	0-1000PPM	1%LEL/1PPM	≤15s
natural gas	0-100%LEL	0-100%LEL	1%LEL	≤10s
Oxygen-O2	0-30%VOL	0-30%、0-100%VOL	0.1%vol	≤10s
ozone	0-10PPm	0-20、100PPm	0.01PPm/0.1PPM	≤15s
hydrogen sulfide-H2S	0-100PPm	0-50、200、1000PPm	1/0.1PPm	≤10s
Methane-CH4	0-100%LEL	0-100%VOL	1%LEL/1%vol	≤10s
fluorine	0-10PM	0-1、10PPM	1/0.1PPm	≤15s
hydrogen chloride	0-20PPm	0-20/50PPm/100PPM	0.01/0.1PPm	≤15s
Nitrogen-N2	0-30%VOL	0-30%VOL、100%VOL	0.1%LEL/1PPM	≤10s
hydrogen	0-100%LEL	0-1000PPm	1%LEL/0.1PPm	≤15s
chlorine	0-20PPm	0-10、100PPm	0.1PPm	≤15s
ammonia gas	0-100PPm	0-50、500、1000PPm	1/0.1PPm	≤15s
oxynitride	0-20PPm	0-50、1000PPm	0.1/1PPm	≤15s
methanal	0-20PPm	0-50、100PPm	1/0.1PPm	≤15s
sulfur dioxide	0-20PPm	0-50、1000PPm	0.1/1PPm	≤15s
nitric oxide	0-250PPm	0-500、1000PPm	1PPm	≤15s
nitrogen dioxide	0-20PPm	0-50、1000PPm	0.1/1PPm	≤15s
phosphine	0-20PPm	0-20、100PPm	0.1PPm	≤15s
acrylonitrile	0-100PPM	0-100PPm	0.1/1PPm	≤15s
Carbon dioxide	0-5000PPm	0-1%/5%/10%VOL(Infrared )	1PPM/0.01%VOL	≤15s
hydrogen fluoride	0-10PPm	0-1、10、50、100PPM	0.01/0.1PPm	≤15s
Xylene/methylbenzene	0-20PPm	0-5、10、50、100PPm	0.01/0.1PPm	≤15s
oxirane	0-100PPm	0-100PPm	1/0.1PPm	≤15s
For other gases and measuring ranges, please contact us directly!
