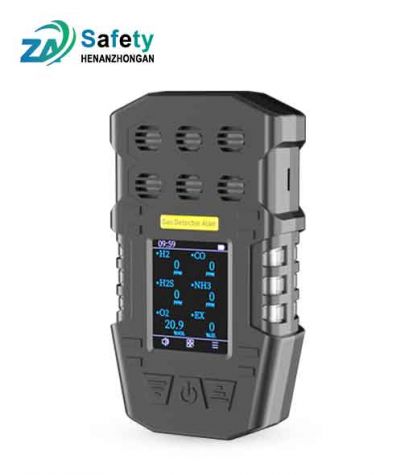

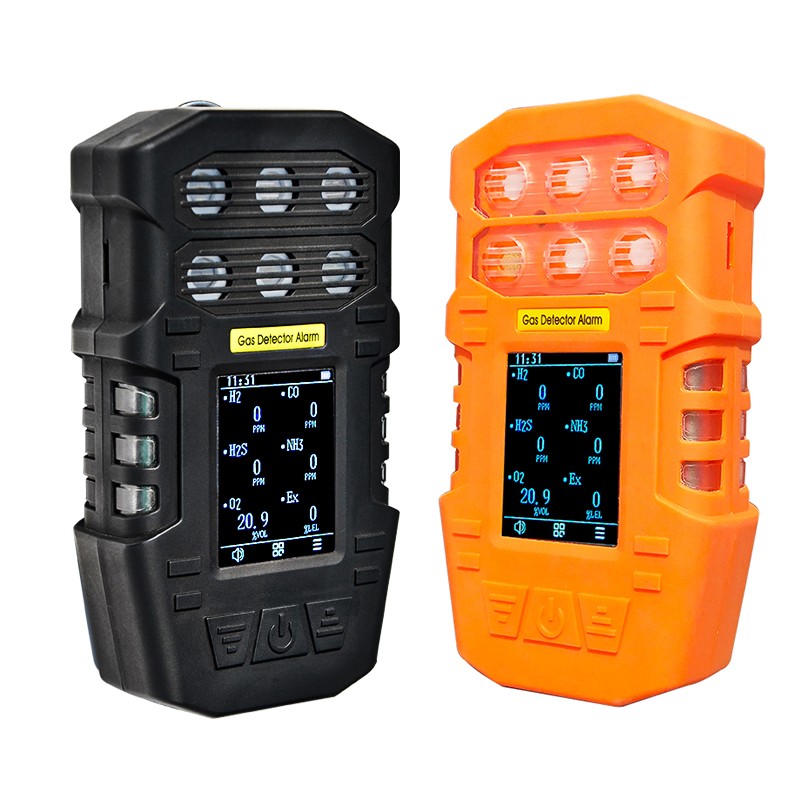

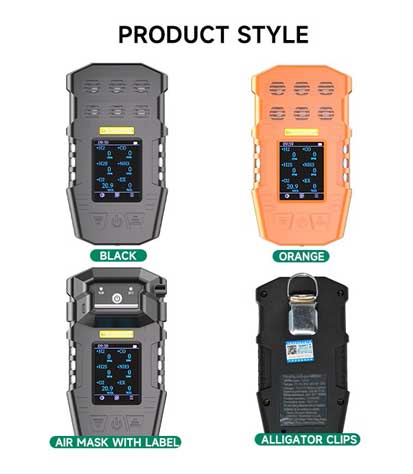

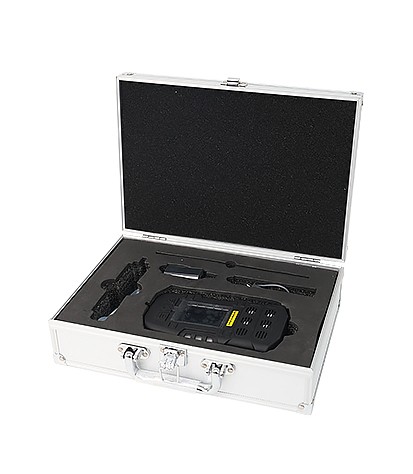

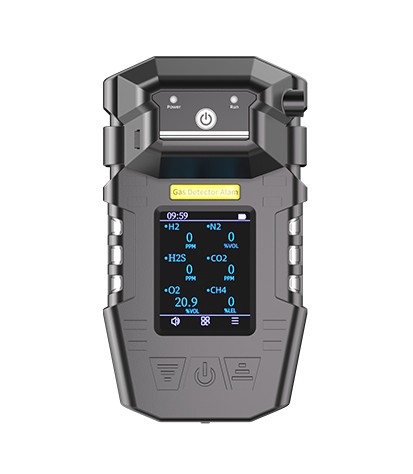

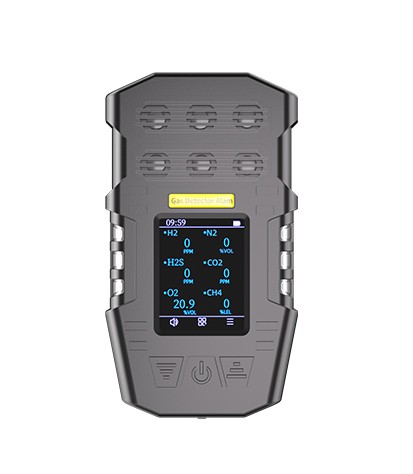

S318 Multi-gas detector

Detection Principle	Natural Diffusion or (Special Card Self-priming Pump)
Sensors	Electrochemistry/catalysis/thermal conductivity/infrared/PID
Instrument accuracy	3% FS
Interface Definition	U3 Port (USB)
Electricity Battery:	3.7V 3500mA Lithium Ion Rechargeable Battery

Mobile/whatsapp: +86-13333857585

Email: [email protected]

We're here to help:Easy ways to get the answers you need.

Description Functions Features Technical Parameters Get In Touch

Description

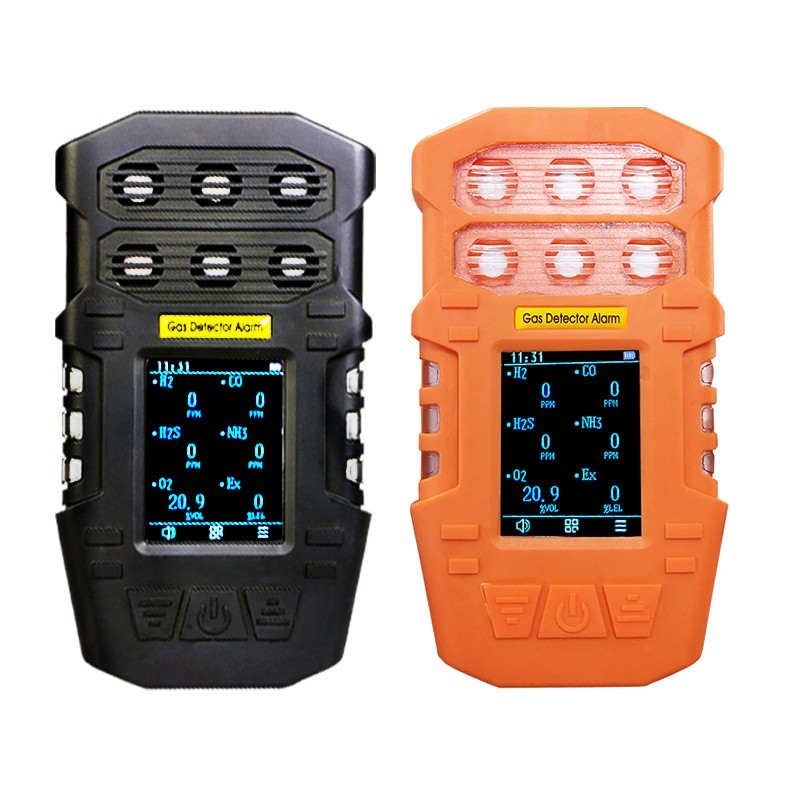

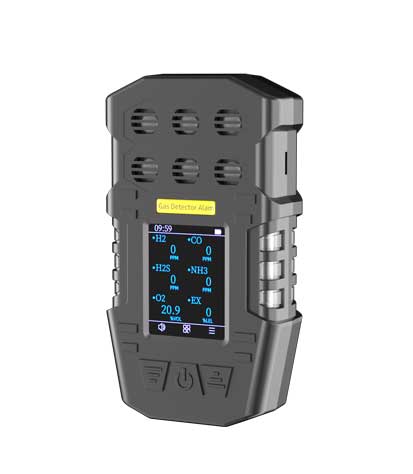

The S318 multi-gas alarm instrument adopts color liquid crystal display technology, and can detect 1 to 6 kinds of gases simultaneously. Different gas sensors can be configured for detection. The S318 multi-gas alarm instrument is equipped with audio, sound and light, and vibration alarm prompts, and the real-time concentration display can adapt to concentration detection in a more complex environment. This product is suitable for a variety of industrial manufacturing places such as chemical and pharmaceutical, municipal, water treatment, telecommunications, archaeology, laboratories, cold storage, brewing, steel, gas, etc.

The S318 multi-gas detector adopts a large-capacity rechargeable lithium-ion battery, and this machine can simultaneously and real-time display the concentrations of up to 6 gas types, which is an essential detection tool for work safety supervision and inspection.

Functions Features

2.4 inch high definition full-color view IPS industrial screen
Gas concentration values display

Can detect 6 channels gas or up to 7 gases at the same time
Data storage function
Dust-proof, explosion-proof and waterproof design
Intrinsically safe circuit design, antistatic and electromagnetic interference
Setting time and alarm function can be adjusted freely

Henan Zhong An Electronic Detection Technology CO.,LTD.

Technical Parameters

Detection principle	Electrochemistry/catalysis/thermal conductivity/infrared/PID

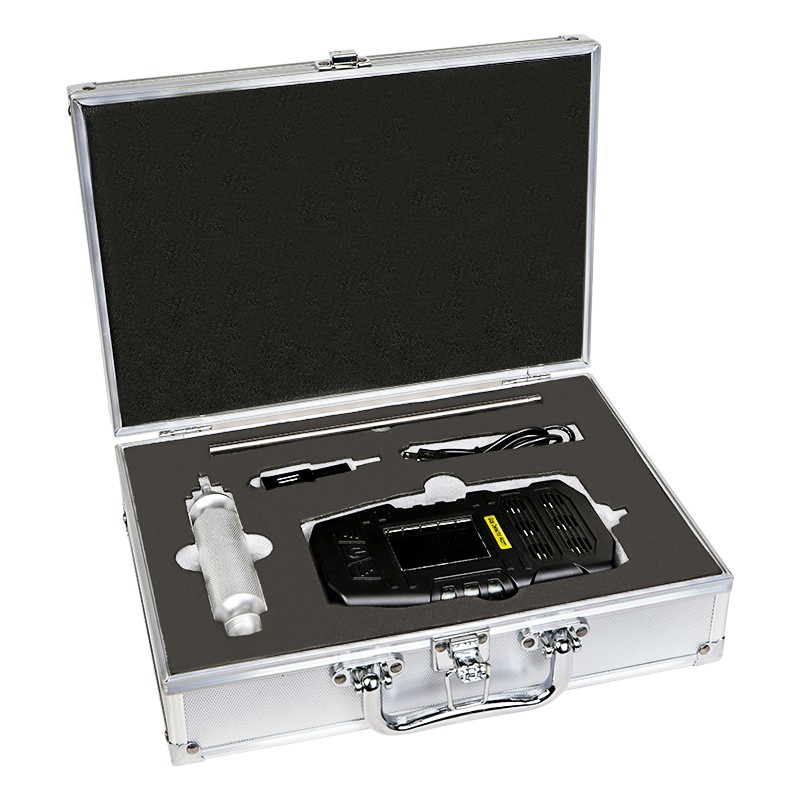

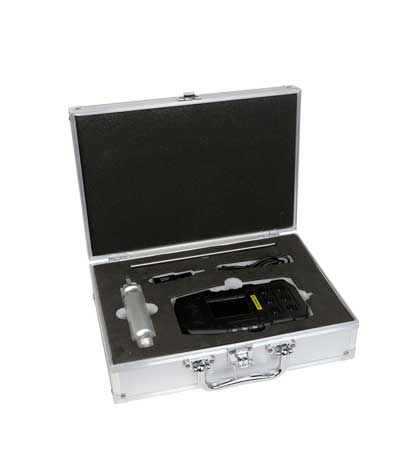

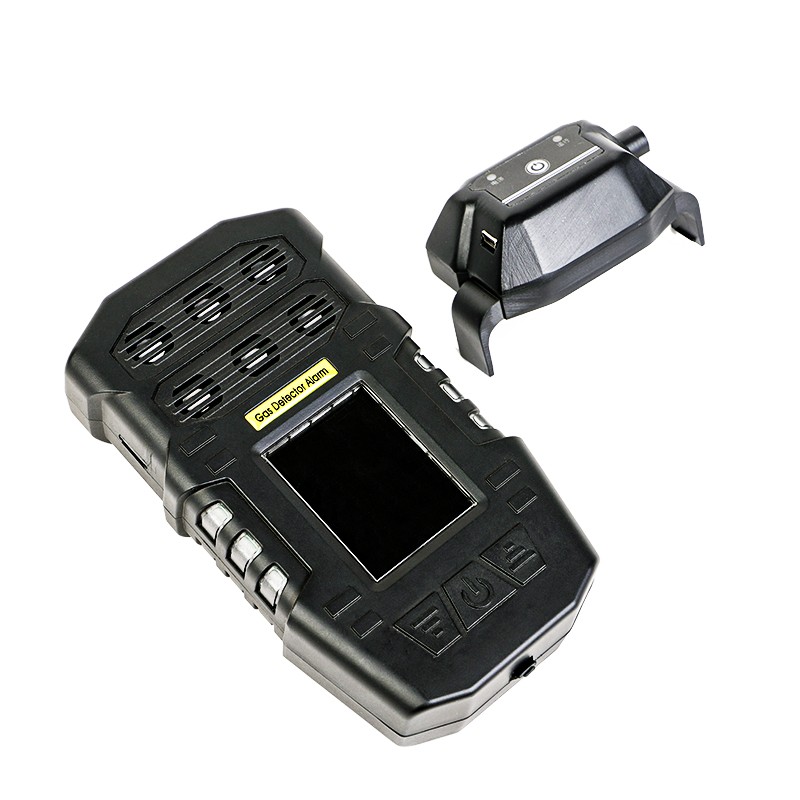

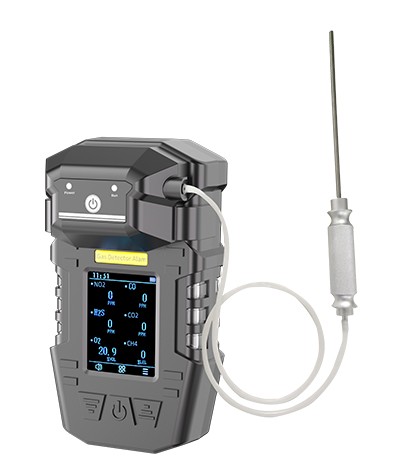

Sampling mode	Natural diffusion or optional(Special card self-priming pump)
Measurement error	≤3%FS
Interface definition	U3 port (USB)
Display	Color LCD
Alarm	Sound/light/vibration, three level alarm
Working time	> 8h
Environment temperature	(-10~55)℃
Environment humidity	≤93%RH
Power	3.7V 3500mA Lithium-ion rechargeable battery
Explosion proof grade	Ex ia IIC T4 Ga;Ex ib IIIC T130°C Db
Explosion proof number	CLEx24.1020
Ingress protection	IP65
Weight	400g
Size	(160×90×36)mm

The bellow gases are available

Common Gas Parameter listing
Gas detected	Measuring Range	Optional Range	Resolution Rat	Response Time
LEL -combustible gas	0-100%LEL	0-100%VOL（Infrared or catalytic ）	1%LEL/1%vol	≤10s
carbon monoxide	0-1000PPm	0-500/2000/5000PPm	0.1/1PPm	≤10s
TVOC	0-100PPM	0-100PPM	0.1PPm/1PPM	≤15s
hydrogen	0-100%LEL	0-1000PPM	1%LEL/1PPM	≤15s
natural gas	0-100%LEL	0-100%LEL	1%LEL	≤10s
Oxygen-O2	0-30%VOL	0-30%、0-100%VOL	0.1%vol	≤10s
ozone	0-10PPm	0-20、100PPm	0.01PPm/0.1PPM	≤15s
hydrogen sulfide-H2S	0-100PPm	0-50、200、1000PPm	1/0.1PPm	≤10s
Methane-CH4	0-100%LEL	0-100%VOL	1%LEL/1%vol	≤10s
fluorine	0-10PM	0-1、10PPM	1/0.1PPm	≤15s
hydrogen chloride	0-20PPm	0-20/50PPm/100PPM	0.01/0.1PPm	≤15s
Nitrogen-N2	0-30%VOL	0-30%VOL、100%VOL	0.1%LEL/1PPM	≤10s
hydrogen	0-100%LEL	0-1000PPm	1%LEL/0.1PPm	≤15s
chlorine	0-20PPm	0-10、100PPm	0.1PPm	≤15s
ammonia gas	0-100PPm	0-50、500、1000PPm	1/0.1PPm	≤15s
oxynitride	0-20PPm	0-50、1000PPm	0.1/1PPm	≤15s
methanal	0-20PPm	0-50、100PPm	1/0.1PPm	≤15s
sulfur dioxide	0-20PPm	0-50、1000PPm	0.1/1PPm	≤15s
nitric oxide	0-250PPm	0-500、1000PPm	1PPm	≤15s
nitrogen dioxide	0-20PPm	0-50、1000PPm	0.1/1PPm	≤15s
phosphine	0-20PPm	0-20、100PPm	0.1PPm	≤15s
acrylonitrile	0-100PPM	0-100PPm	0.1/1PPm	≤15s
carbon dioxide	0-5000PPm	0-1%/5%/10%VOL (Infrared )	1PPM/0.01%VOL	≤15s
hydrogen fluoride	0-10PPm	0-1、10、50、100PPM	0.01/0.1PPm	≤15s
Xylene/methylbenzene	0-20PPm	0-5、10、50、100PPm	0.01/0.1PPm	≤15s
oxirane	0-100PPm	0-100PPm	1/0.1PPm	≤15s
For other gases and measuring ranges, please contact us directly!
