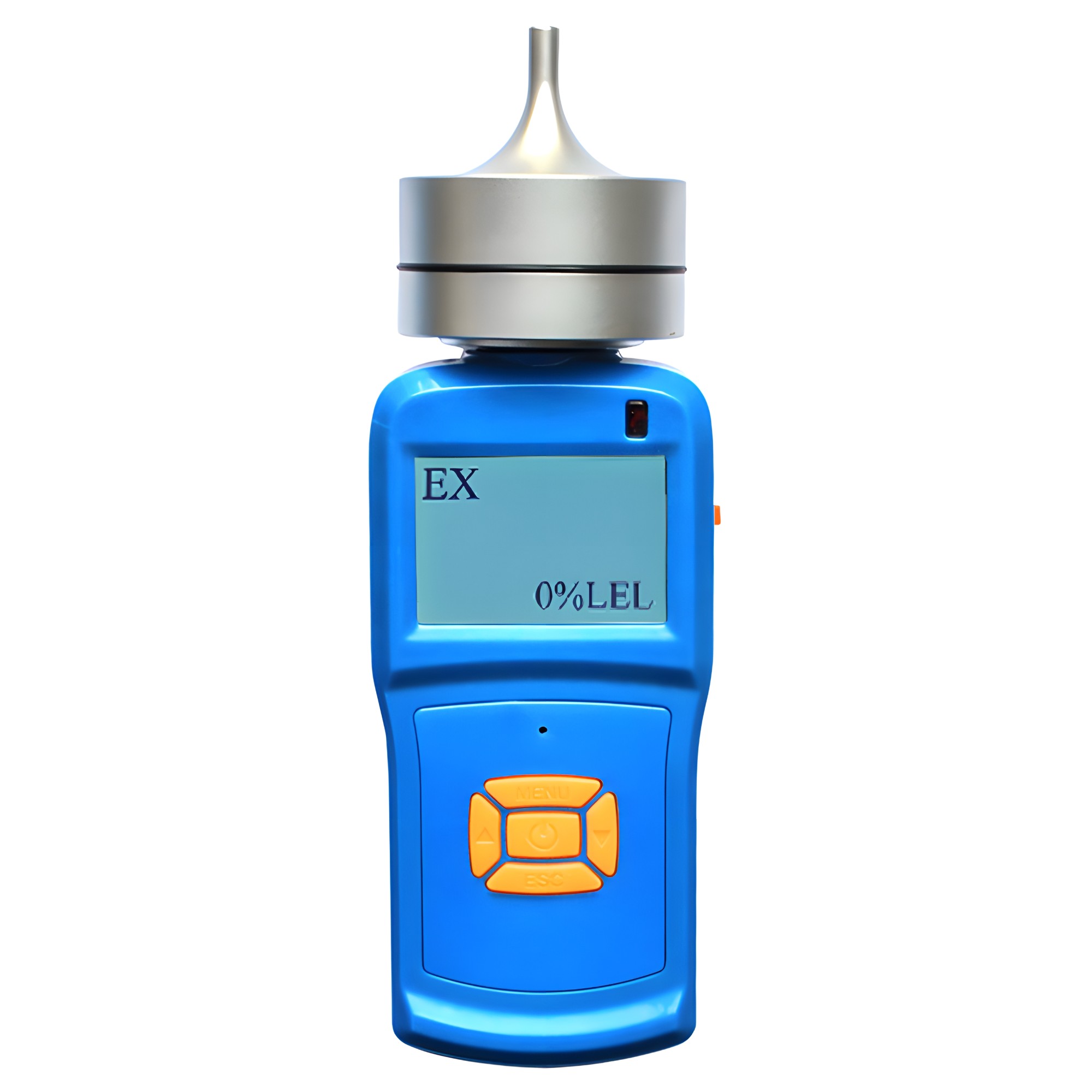

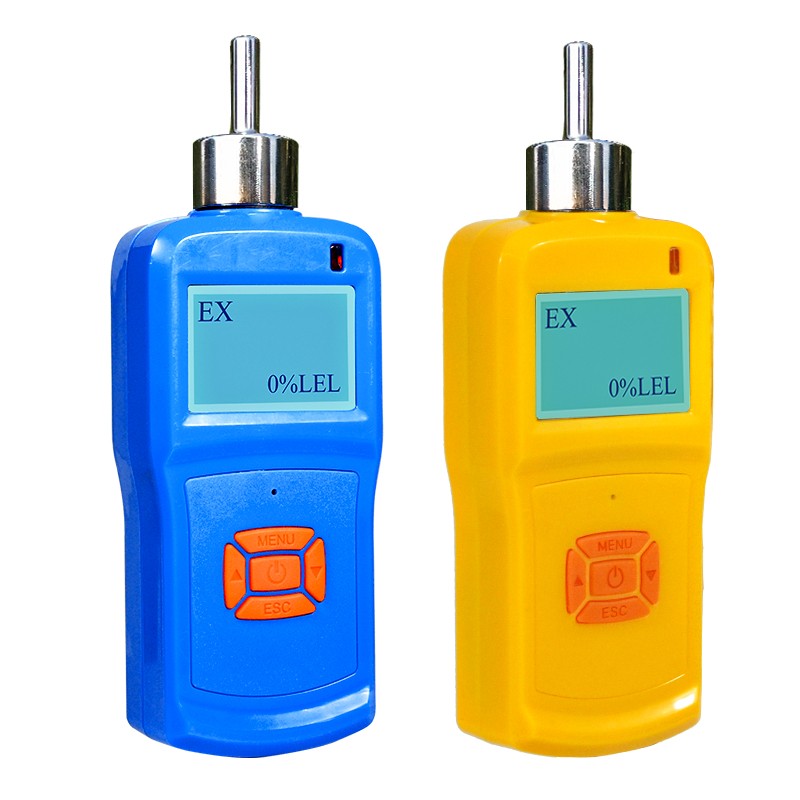

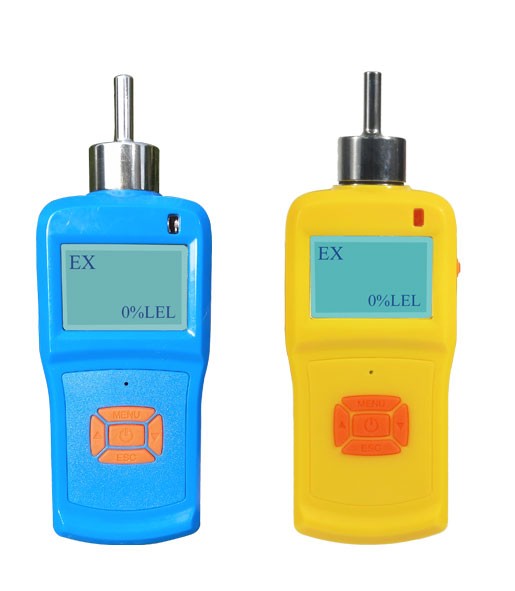

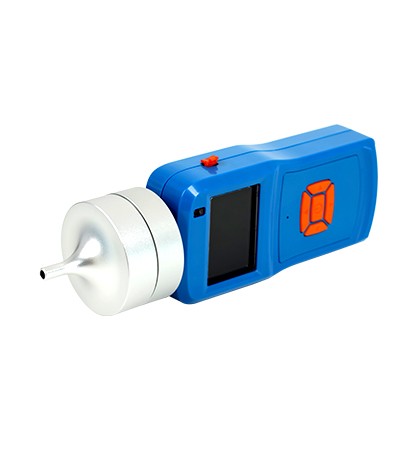

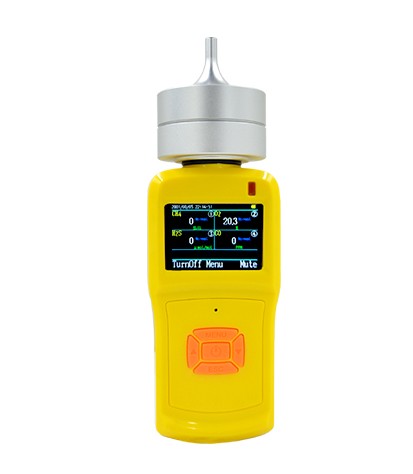

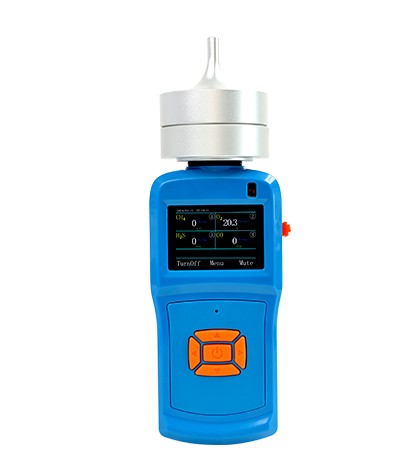

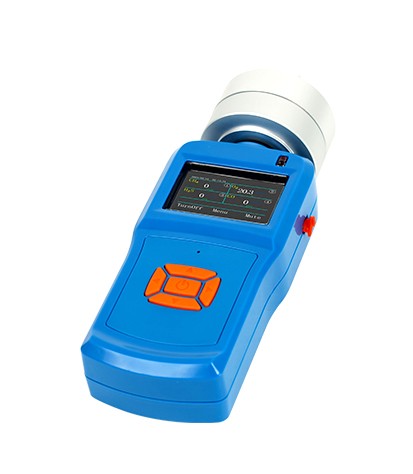

KP830 Pump Suction Type Single Gas Detector

Detecting gas	Combustible or toxic gases
Detection mode	pump suction type
Alarm mode	Sound and light vibration alarm
Battery	DC3.7V 2000mA large-capacity rechargeable lithium battery

Mobile/whatsapp: +86-13333857585

Email: [email protected]

We're here to help:Easy ways to get the answers you need.

Description Functions Features Technical Parameters Get In Touch

Description

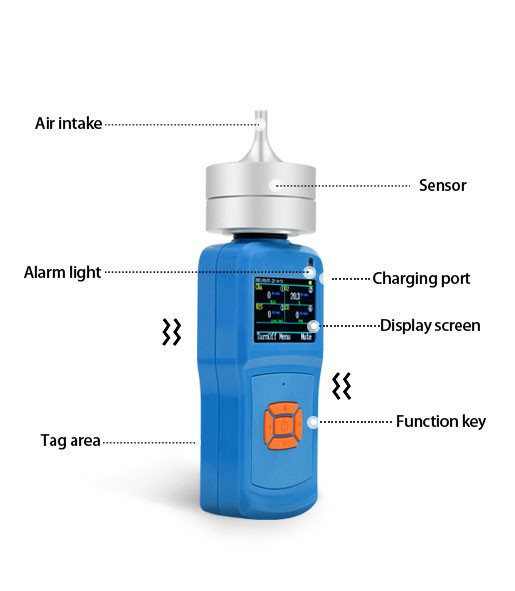

The KP830 is a portable gas detector with a built-in micro sampling pump. The instrument can be connected to a computer through a USB data interface to download printed data, and large-screen LCD dot matrix display technology. The shell is made of flame-retardant ABS plastic material, which makes it comfortable to feel and the testing data is stable and reliable. The instrument is widely used in flammable and explosive testing places that prevent poisoning/suffocation.

Functions Features

Upload to computer function (optional)
6000 alarm record inquiry function

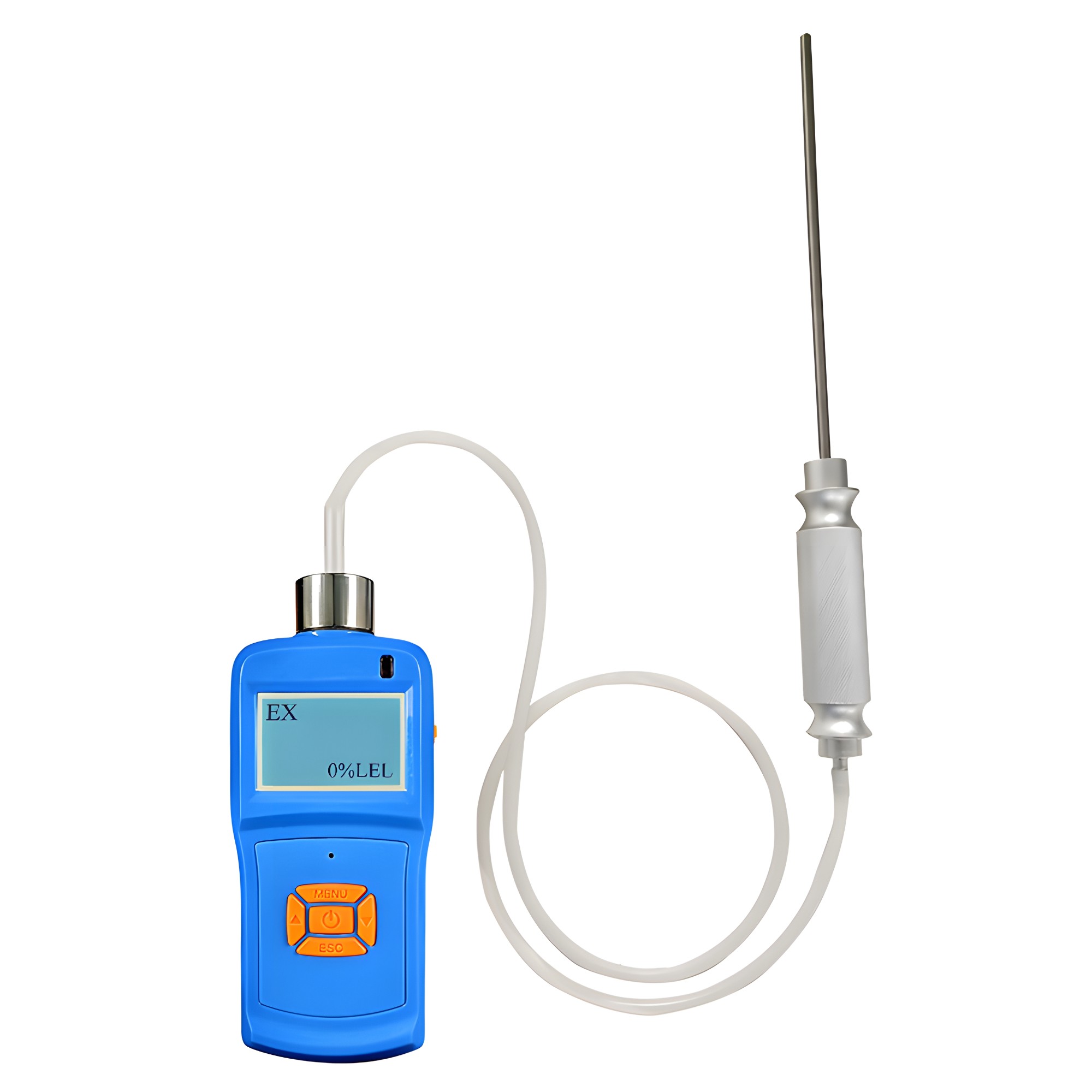

Built-in high-power suction pump
Manual calibration function
Simple user interface, large screen operation menu
Solid structure, flame retardant ABS plastic material
Simple operation, ergonomic design
Sound and light, visual and vibration alarm

Henan Zhong An Electronic Detection Technology CO.,LTD.

Technical Parameters

Detection gas	combustible/toxic gas
Detection mode	pump-suction type
Detection principle	Electrochemical / catalysis / thermal conductivity / infrared
Interface definition	U3 port (USB)
Charged battery	3.7V-2000mAh lithium ion battery
Alarm method	Sound, light and vibration alarm
Work temperature	- 20 ℃ ~ 50 ℃（Combustible）;
Sound	LED flashing> 90 dB
Lasting time	> 8 hours for continuous work
Charging time:	<6 hours
Size	(176 * 64 * 32)mm
Weight:	500g

Common Gas Parameter listing
Gas detected	Measuring Range	Optional Range	Resolution Rat	Response Time
LEL -combustible gas	0-100%LEL	0-100%VOL（Infrared or catalytic ）	1%LEL/1%vol	≤10s
carbon monoxide	0-1000PPm	0-500/2000/5000PPm	0.1/1PPm	≤10s
TVOC	0-100PPM	0-100PPM	0.1PPm/1PPM	≤15s
hydrogen	0-100%LEL	0-1000PPM	1%LEL/1PPM	≤15s
natural gas	0-100%LEL	0-100%LEL	1%LEL	≤10s
Oxygen-O2	0-30%VOL	0-30%、0-100%VOL	0.1%vol	≤10s
ozone	0-10PPm	0-20、100PPm	0.01PPm/0.1PPM	≤15s
hydrogen sulfide-H2S	0-100PPm	0-50、200、1000PPm	1/0.1PPm	≤10s
Methane-CH4	0-100%LEL	0-100%VOL	1%LEL/1%vol	≤10s
fluorine	0-10PM	0-1、10PPM	1/0.1PPm	≤15s
hydrogen chloride	0-20PPm	0-20/50PPm/100PPM	0.01/0.1PPm	≤15s
Nitrogen-N2	0-30%VOL	0-30%VOL、100%VOL	0.1%LEL/1PPM	≤10s
hydrogen	0-100%LEL	0-1000PPm	1%LEL/0.1PPm	≤15s
chlorine	0-20PPm	0-10、100PPm	0.1PPm	≤15s
ammonia gas	0-100PPm	0-50、500、1000PPm	1/0.1PPm	≤15s
oxynitride	0-20PPm	0-50、1000PPm	0.1/1PPm	≤15s
methanal	0-20PPm	0-50、100PPm	1/0.1PPm	≤15s
sulfur dioxide	0-20PPm	0-50、1000PPm	0.1/1PPm	≤15s
nitric oxide	0-250PPm	0-500、1000PPm	1PPm	≤15s
nitrogen dioxide	0-20PPm	0-50、1000PPm	0.1/1PPm	≤15s
phosphine	0-20PPm	0-20、100PPm	0.1PPm	≤15s
acrylonitrile	0-100PPM	0-100PPm	0.1/1PPm	≤15s
carbon dioxide	0-5000PPm	0-1%/5%/10%VOL (Infrared )	1PPM/0.01%VOL	≤15s
hydrogen fluoride	0-10PPm	0-1、10、50、100PPM	0.01/0.1PPm	≤15s
Xylene/methylbenzene	0-20PPm	0-5、10、50、100PPm	0.01/0.1PPm	≤15s
oxirane	0-100PPm	0-100PPm	1/0.1PPm	≤15s
For other gases and measuring ranges, please contact us directly!
