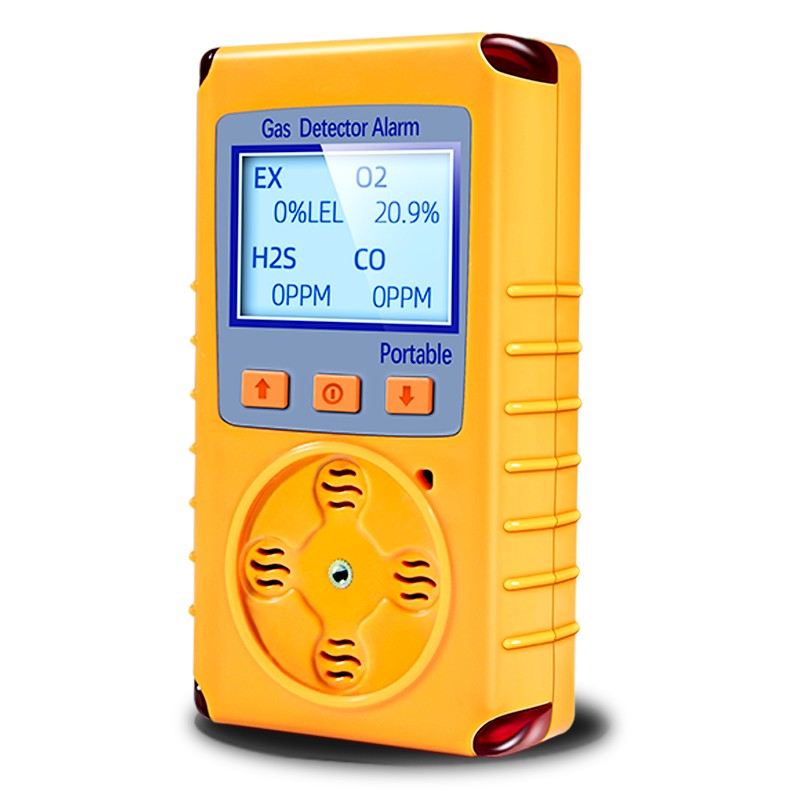

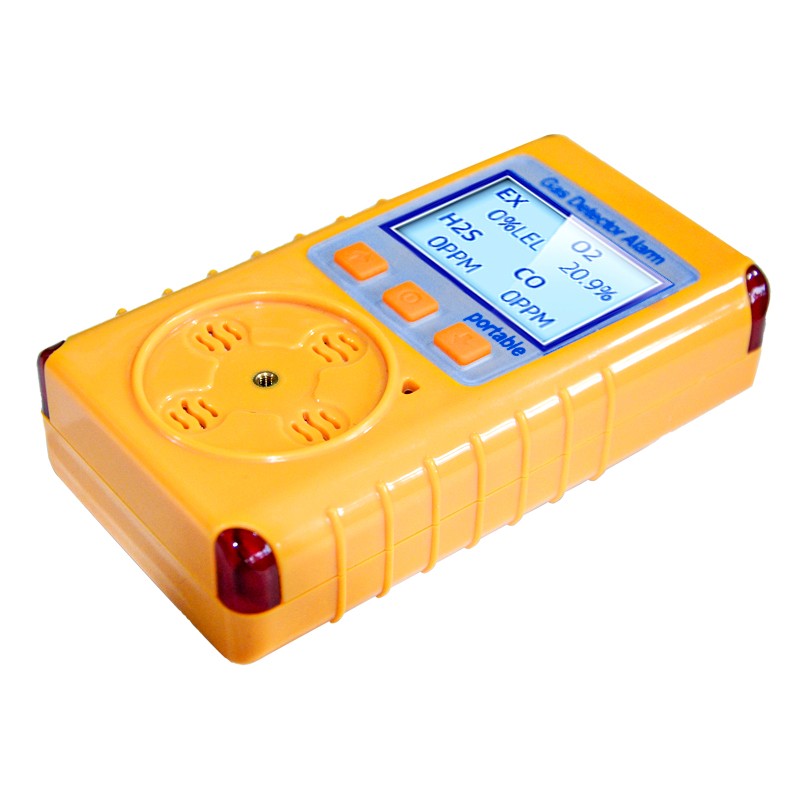

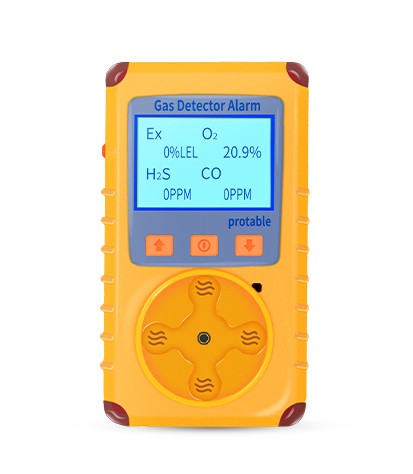

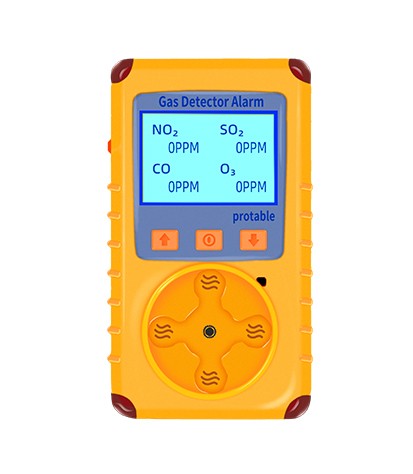

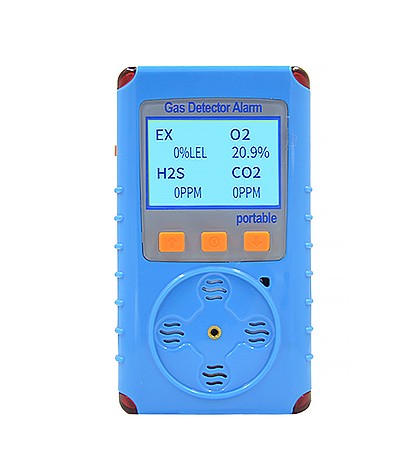

KP826 Portable Multi-gas Detector
| Detection principle | Natural diffusion or (external pump suction) |
| Sensors | Electrochemistry / Catalysis / Thermal Conductivity / Infrared |
| Instrument accuracy | 3% FS |
| Interface Definition | U3 port (USB) |
| Battery | 3.7V 2000mA lithium-ion rechargeable battery |
We're here to help:Easy ways to get the answers you need.
Description

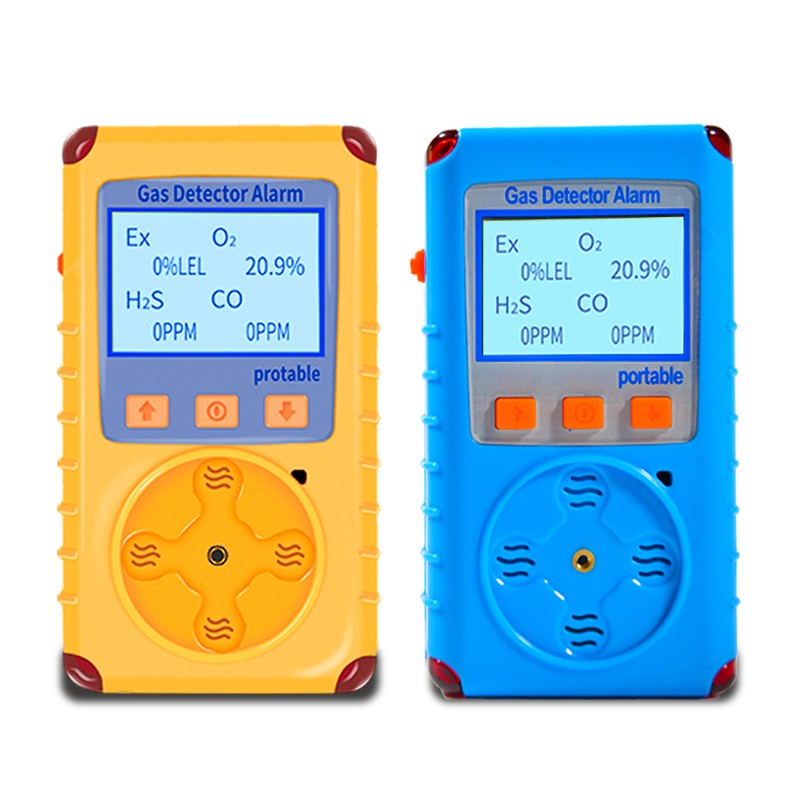

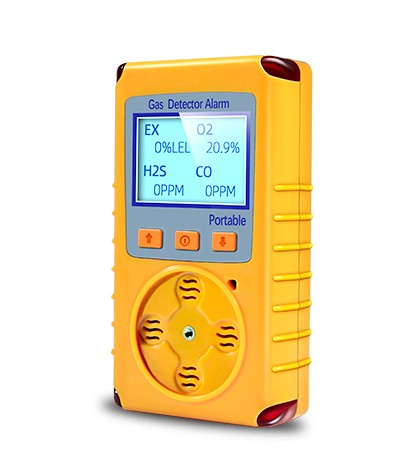

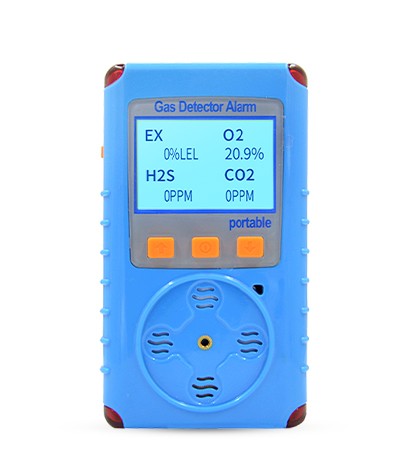

KP826 multi-gas detector, is a one gas detecting instrument which can be equipment with one kind gas sensor or several kinds gas sensor for detecting different gases simultaneously. It adopts dot matrix display technology and various toxic gas sensors. It can be configured with single, two in one, three in one, four in one, five in one or any other four kind toxic gas sensors for working.

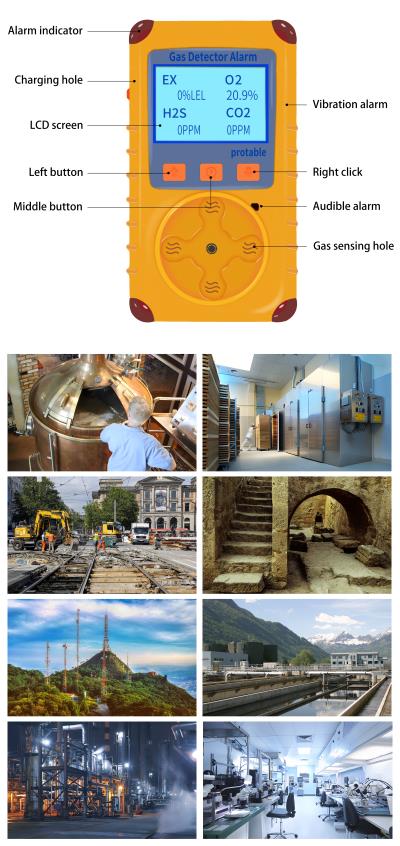

KP826 multi-gas detector with LCD display, has high sensitivity and fast response time. With audio sound&light alarm,it adapts to rather complex environment for concentration monitoring. The product is suitable for chemical, pharmaceutical, municipal, water treatment, telecommunications, archeology, laboratories, cold storage, wine and other places. You can choose the gas that you need to detect from the below gas list;
The below gases are available
|
Gas detected |
Measuring Range |
Optional Range |
Resolution Ratio |
Response Time |
|
LEL -combustible gas |
0-100%LEL |
0-100%VOL（Infrared or catalytic ） |
1%LEL/1%vol |
≤10s |
|
carbon monoxide |
0-1000PPm |
0-500/2000/5000PPm |
0.1/1PPm |
≤10s |
|
TVOC |
0-100PPM |
0-100PPM |
0.1PPm/1PPM |
≤15s |
|
hydrogen |
0-100%LEL |
0-1000PPM |
1%LEL/1PPM |
≤15s |
|
natural gas |
0-100%LEL |
0-100%LEL |
1%LEL |
≤10s |
|
Oxygen-O2 |
0-30%VOL |
0-30%、0-100%VOL |
0.1%vol |
≤10s |
|
ozone |
0-10PPm |
0-20、100PPm |
0.01PPm/0.1PPM |
≤15s |
|
hydrogen sulfide-H2S |
0-100PPm |
0-50、200、1000PPm |
1/0.1PPm |
≤10s |
|
Methane-CH4 |
0-100%LEL |
0-100%VOL |
1%LEL/1%vol |
≤10s |
|
fluorine |
0-10PM |
0-1、10PPM |
1/0.1PPm |
≤15s |
|
hydrogen chloride |
0-20PPm |
0-20/50PPm/100PPM |
0.01/0.1PPm |
≤15s |
|
Nitrogen-N2 |
0-30%VOL |
0-30%VOL、100%VOL |
0.1%LEL/1PPM |
≤10s |
|
hydrogen |
0-100%LEL |
0-1000PPm |
1%LEL/0.1PPm |
≤15s |
|
chlorine |
0-20PPm |
0-10、100PPm |
0.1PPm |
≤15s |
|
ammonia gas |
0-100PPm |
0-50、500、1000PPm |
1/0.1PPm |
≤15s |
|
oxynitride |
0-20PPm |
0-50、1000PPm |
0.1/1PPm |
Functions Features

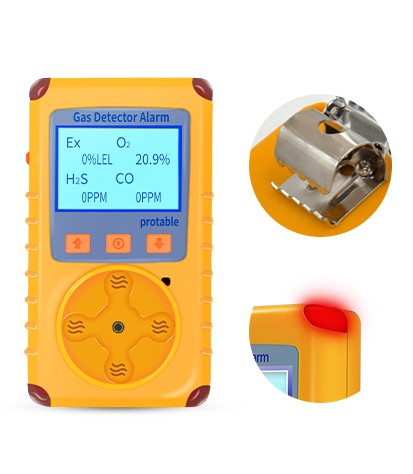

- Convenient to carry, sound, light, vibration alarm
- Large-screen digital display
- Sound and light vibration alarm when boot up, sensor self-test
- Safety tips: regular flashing, voice prompts
- Upload to computer function (optional)
- 3000 alarm record inquiry function
- Easy to use, simple operation
- Support 5 kinds of gas real-time detection (customized)
Technical Parameters
|
Detection principle |

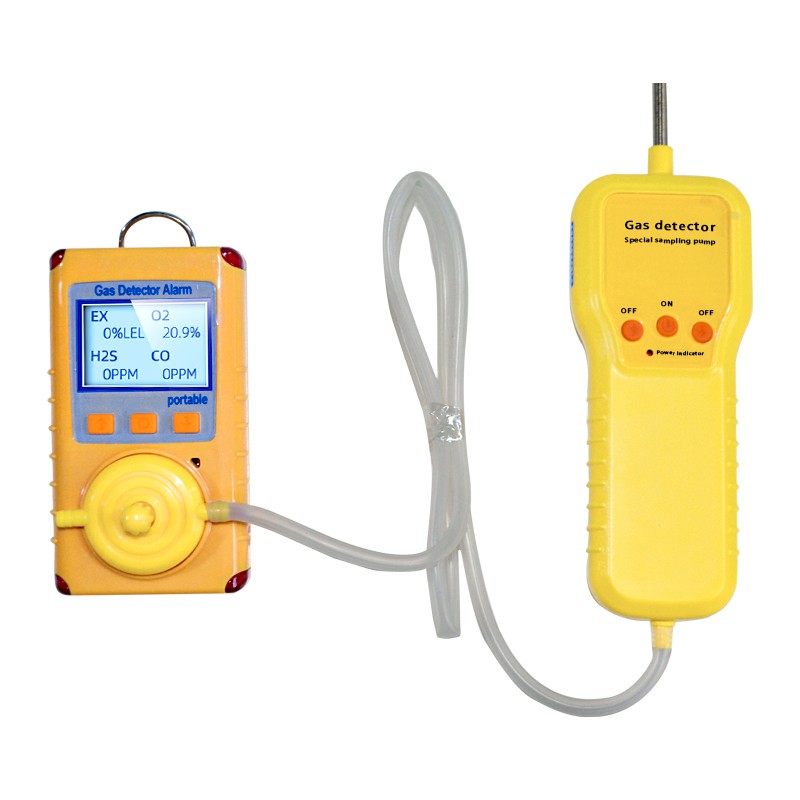

Natural diffusion or (external pump suction) |
|
Sensors: |
Electrochemistry / Catalysis / Thermal Conductivity / Infrared |
|
Instrument accuracy |
3% FS |
|
Interface Definition |
U3 port (USB) |
|
Battery |
3.7V 2000mA lithium-ion rechargeable battery |
|
Lasting time |
about 8 hours for flammable gas, about 200 hours toxic gas |
|
Display |
large screen LCD |
|
Alarm |
sound, light, vibration triple alarm |
|
Direct reading |
instantaneous value |
|
Explosion-proof mark |
Ex ib IIB T3 Gb |
|
Degree of protection |
IP67 |
|
Measurement Permit |
Yu No. 01000109 |
|
Explosion-proof certificate number |
CNEx12.3661x. |
|
Working temperature |
-20 ℃ - 60 ℃ |
|
Instrument size |
126mm * 66mm * 33mm |
|
Working humidity |
5-90% RH |
|
Instrument weight: |
210g |
|
Patent No |
200530041519.x |
|
Copyright Certificate |
No. 0958931 |
|
Domestic mark |
PA, MC, EX, IP, ISO |
Product list

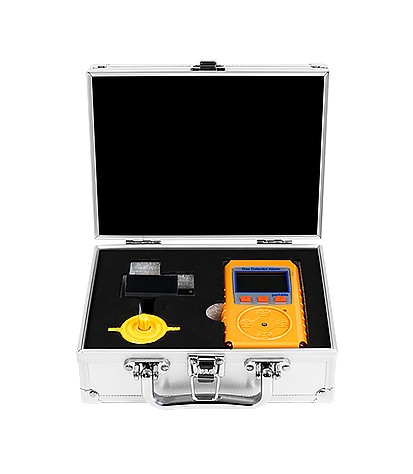

One detector, one set of charger & line, one calibration cover, one operation manual, one quality certificate, one piece of guarantee card, and factory inspection report.
