power |
AC220V |
communication interface |
GPRS |
Temperature sensor
|
Rang:-40~70℃ |
|
accuracy±0.2℃ |
Air humidity sensor
|
rang:0~100% |
|
accuracy:±3% |
Wind Speed Sensor
|
rang:0~60m/s |
|
accuracy:±0.3m/s |
Mobile/whatsapp: +86-13333857585
Email: [email protected]

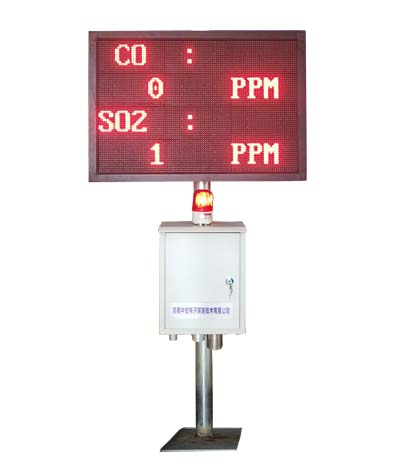

Noise dust monitoring station is a special monitoring equipment for projects under construction.The equipment has 1 channel louver box (temperature, humidity, noise, PM2.5, PM10, air pressure, lighting, TSP) collection、1 channel Wind speed acquisition、1 channel wind-direction 、2 channel Switching acquisition、2 channel 4-20mA analog acquisition 、2 channel relay output、1 way RS485 output from station;The device can upload data to the monitoring software platform through GPRS,At the same time, the host can connect the 1-way LED screen (54cm*102cm) to display the current numerical information in real time。
power |
AC220V |
communication interface |
GPRS |
Temperature sensor
|
Rang:-40~70℃ |
|
accuracy±0.2℃ |
Air humidity sensor |
rang:0~100% |
|
accuracy:±3% |
Wind Speed Sensor |
rang:0~60m/s |
|
accuracy:±0.3m/s |
wind transducer |
rang:8 orientation |
Noise sensor |
rang:30~130db |
|
accuracy:± 0.5%F·S |
PM |
rang:0~1000ug/m3 |
|
accuracy:±10%F·S |
LED screen |
54cm*102cm |
Relay output |
2 channel Connect the secondary relay to control the field spray gun firing |
