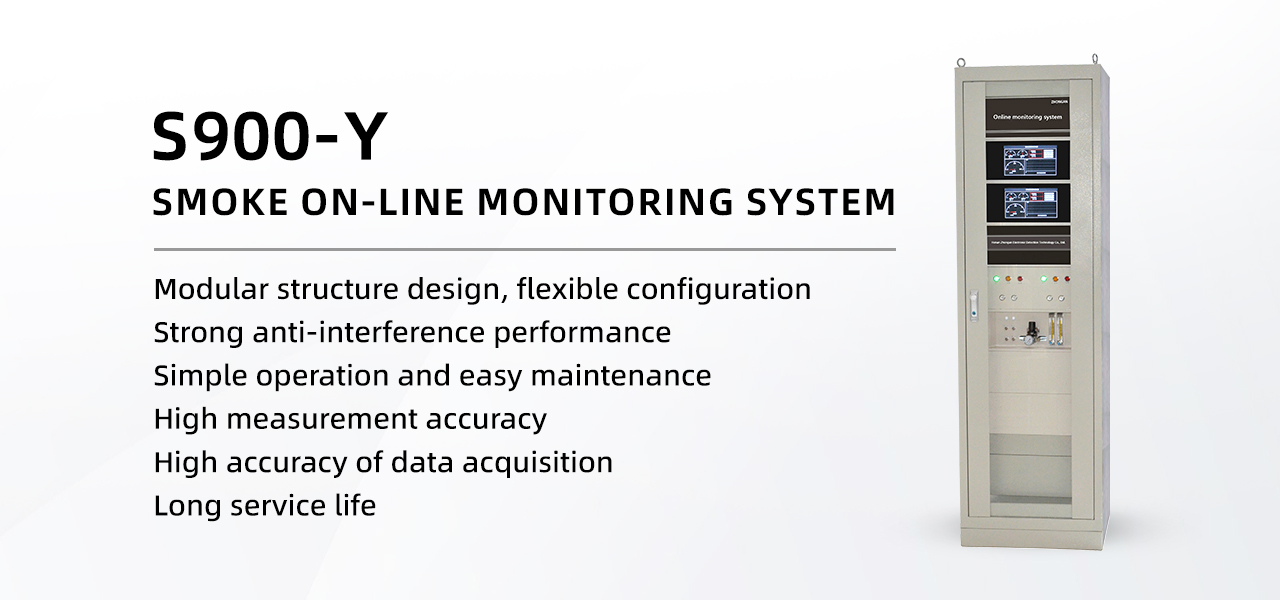

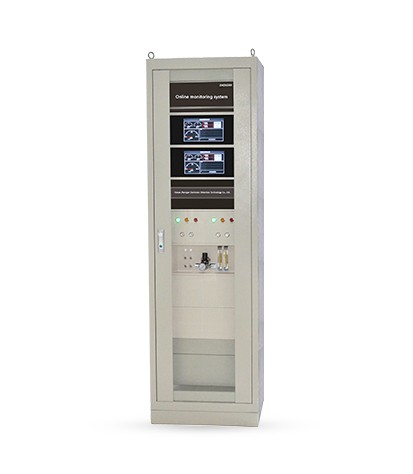

S900-Y Conventional Flue Gas Online Monitoring System

System composition	sampling unit sample gas pretreatment unit gas analysis unit three parts composition
Detection parameters	SO2, NOX, O2, CH4, CO, CO2 and other gas types
Operating voltage	220VAC, 50HZ
Sampling temperature	- 40 ℃ ~ 600 ℃ (standard), matching: - 40 ℃ ~ 800 ℃ and 40 ℃ ~ 1300 ℃

Mobile/whatsapp: +86-13333857585

Email: [email protected]

We're here to help:Easy ways to get the answers you need.

Description Functions Features Technical Parameters Get In Touch

Description

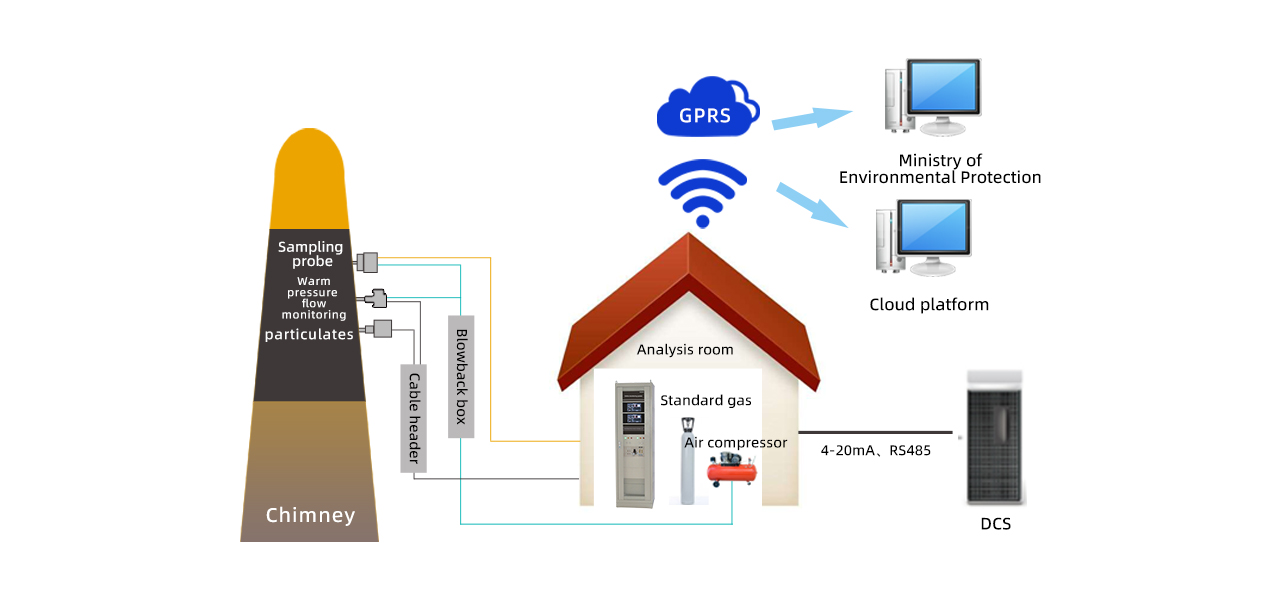

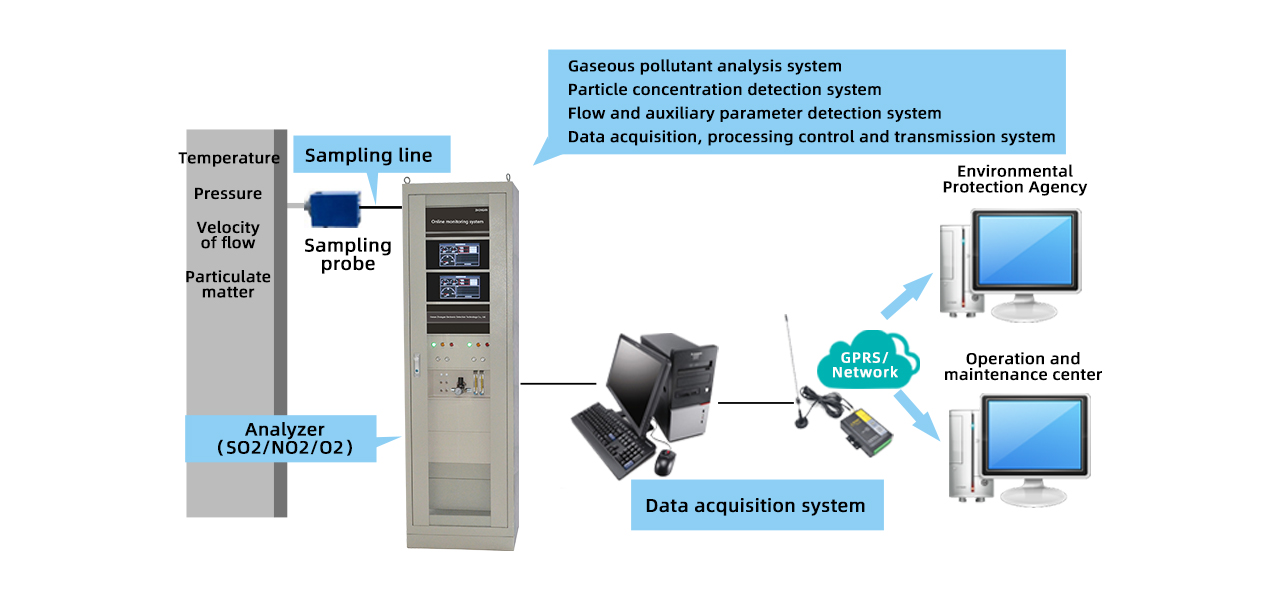

S900-Y continuous flue gas monitoring system is a combination of the world's advanced online analysis technology and environmental monitoring technology, through our company's many years of experience in the field of industrial process carefully built. The system conforms to the Environmental protection industry standard HJ/T76-2007 of the People's Republic of China. The system is applied to the online monitoring of gaseous pollutants (SO2, NOX, CO, CO2, 02) and solid pollutants dust, as well as temperature, pressure, humidity, and flow, and generates maps and environmental reports through the data acquisition and processing system, which can transmit data to environmental protection departments at all levels.

Functions Features

Henan Zhong An Electronic Detection Technology CO.,LTD.

Technical Parameters

Monitoring items	Measuring method	Measurement range	Zero drift	range drift	Response time (T90)	linear error	Output signal
SO2	Infrared or ultraviolet	0～100～2000PPm	±1%FS/7d	±1%FS/7d	≤12	≤±1%FS	RS-3082/485 4～20mA
NOx	Infrared or ultraviolet	0～100～2000PPm	±1%FS/7d	±1%FS/7d	≤12		RS-3082/485 4～20mA
CO	Nondispersive infrared absorption	0～100～2000PPm	±1%FS/7d	±1%FS/7d	≤12		RS-3082/485 4～20mA
O2	Electrochemical or Magnetic pressure type	0～25%	±1%FS/7d	±1%FS/7d	≤10		RS-3082/485 4～20mA
Particulate matter (dust)	Optical method or laser	0～100～2000mg/m3	±2%FS/7d	±2%FS/7d	≤1	≤±3%FS	4～20mA
flow rate	Pressure differential sensing	0～40m/S	±5%FS/7d	±5%FS/7d	≤15	≤±1%FS	4～20mA
Pressure	压差传感法Pressure differential sensing	-20～130KPa	±2%FS/7d	±2%FS/7d		≤±1%FS	4～20mA
temperature	thermal resistance	0～250℃	±1%FS/7d	±1%FS/7d		≤±1%FS	4～20mA
humidity	capacitance method	0～100%	±2%FS/7d	±2%FS/7d	≤10	≤±1.5%FS	4～20mA

For Continuous monitoring system for ultra-low emission of flue gas,please contact our sales staff.

Get In Touch

Please feel free to submit your inquiry information to us! our sales manager will contact with you as soon as possible.

S320 Integrated Air Quality Monitor

Detection principleHigh Precision PID PhotoionGas detectedVOCS gasSampling modePump-suction measurementDetection range0～10、200、2000、10000ppm，can be customizedResolution ratio0

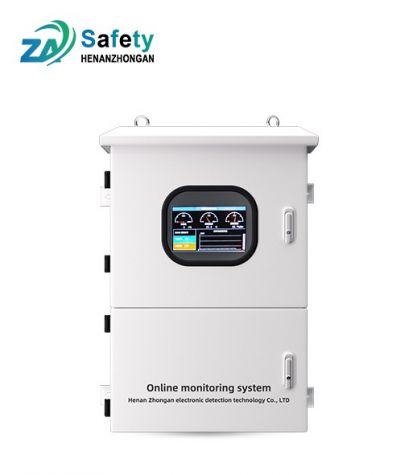

S400-T Online monitoring system (explosion-proof type)
