Detection principle

High Precision PID Photoion

Gas detected

Volatile organic compound gases

Sampling mode

Pump-suction measurement

Detection range

Resolution ratio

0.1%VOL

Response time

T90≤30S

Environment temperature

(-10-55)℃, Pretreatment system need to be customized or selected for higher temperature environments

Power

AC220V±10% 50Hz

Output signal

4~20mA, Bus RS485-RTU (can be uploaded to environmental protection department for communication with digitizer)

Relative humidity

≤95%RH(Non-condensation place), Pretreatment system need to be customized or selected for use in higher humidity environments

Explosive proof mode

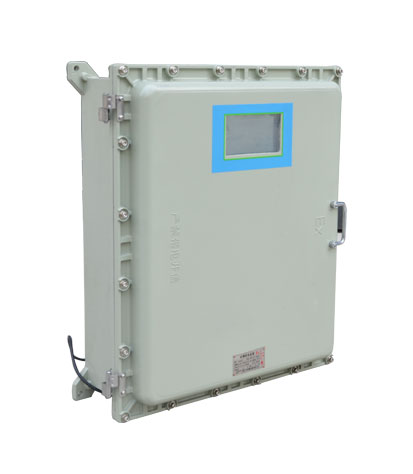

Flameproof (customized)

Ingress protection

IP65

Alarm mode

Sound and light alarm, alarm point can be set
