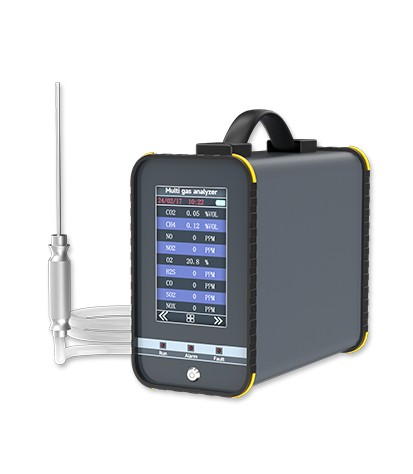

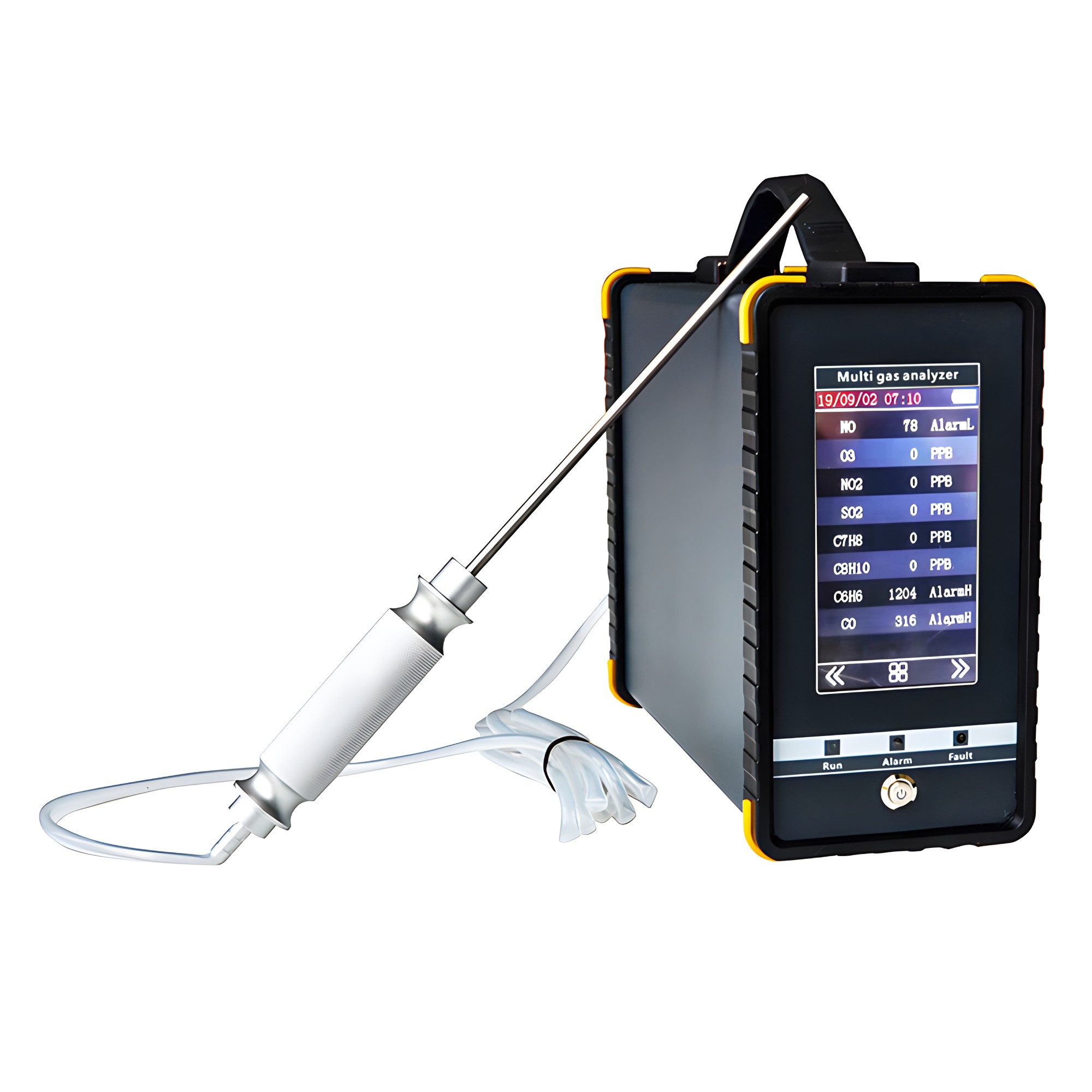

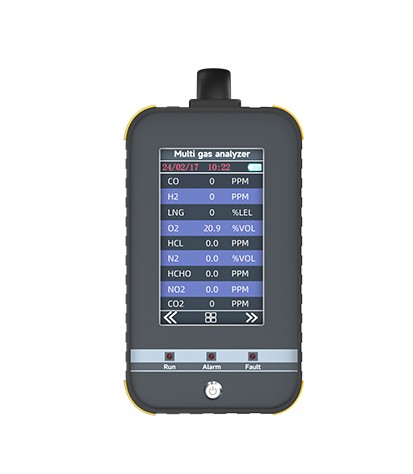

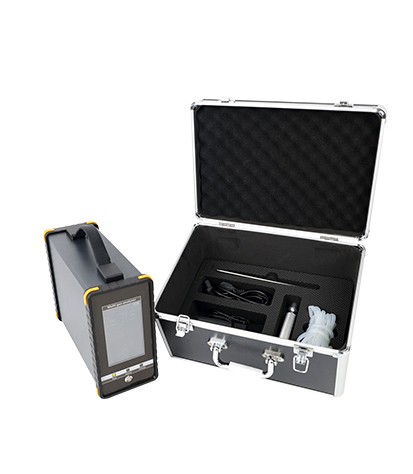

S360 portable multi gas analyzer

Product name	multi gas analyzer
Product model	S360
Product specification	according to the type of gas being measured

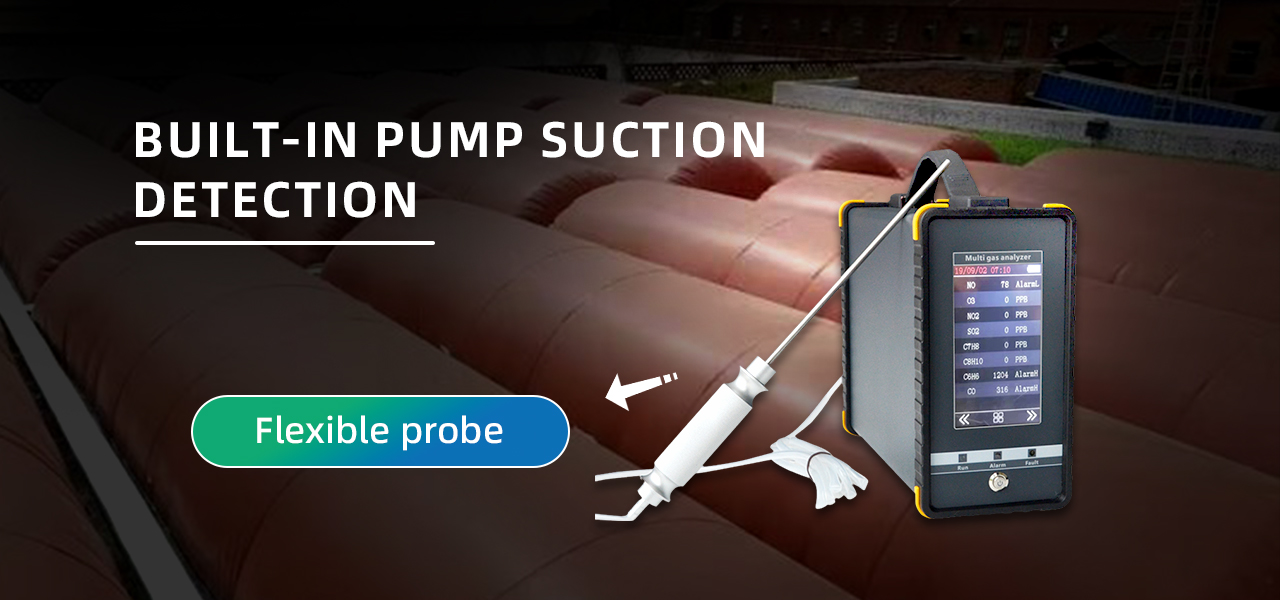

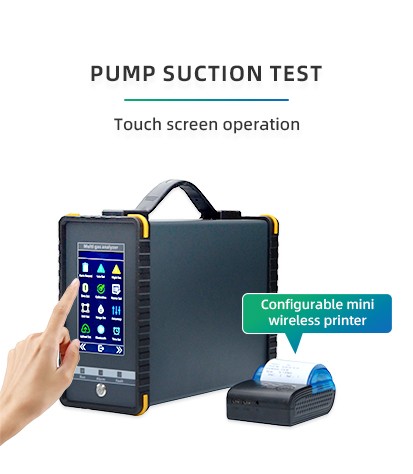

Sampling mode:	built-in pump suction type

We're here to help:Easy ways to get the answers you need.

Description Functions Features Technical Parameters Get In Touch

Description

S360 series product is portable multi-gas detection instruments with high sensitivity for industrial use. They are suitable for gas leakage rescue, underground pipelines or mines, etc., and can effectively guarantee the safety of workers and production equipment from being damaged. It can detect different gases according to different types of sensors, with rich functions, simple operation, easy to carry and good shock resistance. This product USES the high resolution touch LCD technology, the display is more intuitive and clear, more convenient to operate.

The bellow gases are available

Gas detected

Measuring Range

Optional Range

Resolution Ratio

Response Time

LEL -combustible gas

0-100%LEL

0-100%VOL（Infrared or catalytic ）

1%LEL/1%vol

≤10s

carbon monoxide

0-1000PPm

0-500/2000/5000PPm

0.1/1PPm

≤10s

TVOC

0-100PPM

0.1PPm/1PPM

≤15s

hydrogen

0-100%LEL

0-1000PPM

1%LEL/1PPM

≤15s

natural gas

0-100%LEL

1%LEL

≤10s

Oxygen-O2

0-30%VOL

0-30%、0-100%VOL

0.1%vol

≤10s

ozone

0-10PPm

0-20、100PPm

0.01PPm/0.1PPM

≤15s

hydrogen sulfide-H2S

0-100PPm

0-50、200、1000PPm

1/0.1PPm

≤10s

Methane-CH4

0-100%LEL

0-100%VOL

1%LEL/1%vol

≤10s

fluorine

0-10PM

0-1、10PPM

1/0.1PPm

≤15s

hydrogen chloride

0-20PPm

0-20/50PPm/100PPM

0.01/0.1PPm

≤15s

Nitrogen-N2

0-30%VOL

0-30%VOL、100%VOL

0.1%LEL/1PPM

≤10s

hydrogen

0-100%LEL

0-1000PPm

1%LEL/0.1PPm

≤15s

chlorine

0-20PPm

0-10、100PPm

0.1PPm

≤15s

ammonia gas

0-100PPm

0-50、500、1000PPm

1/0.1PPm

≤15s

oxynitride

0-20PPm

0-50、1000PPm

0.1/1PPm

Functions Features

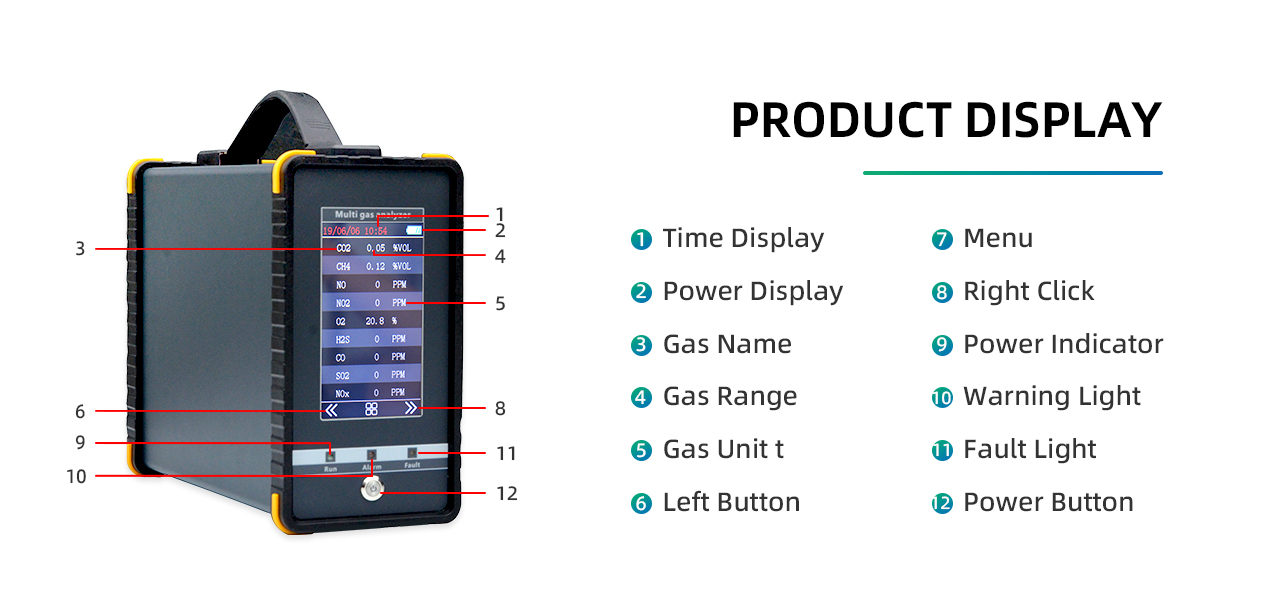

Large screen color Chinese menu operation
High-resolution touch LCD display
Quick detection of gas leak points
Adjustable range
quick preheating, quick response time
Sound vibration alarm signal
Convenient zero adjustment, convenient and quick

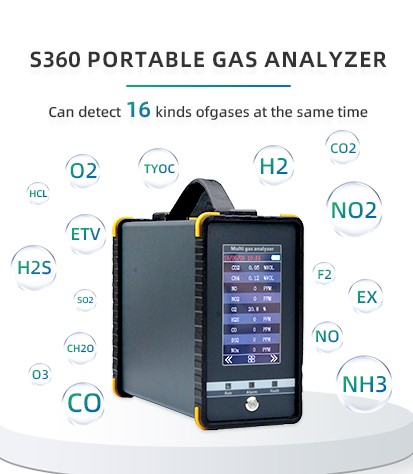

It can detect up to 16 free combinations of gases

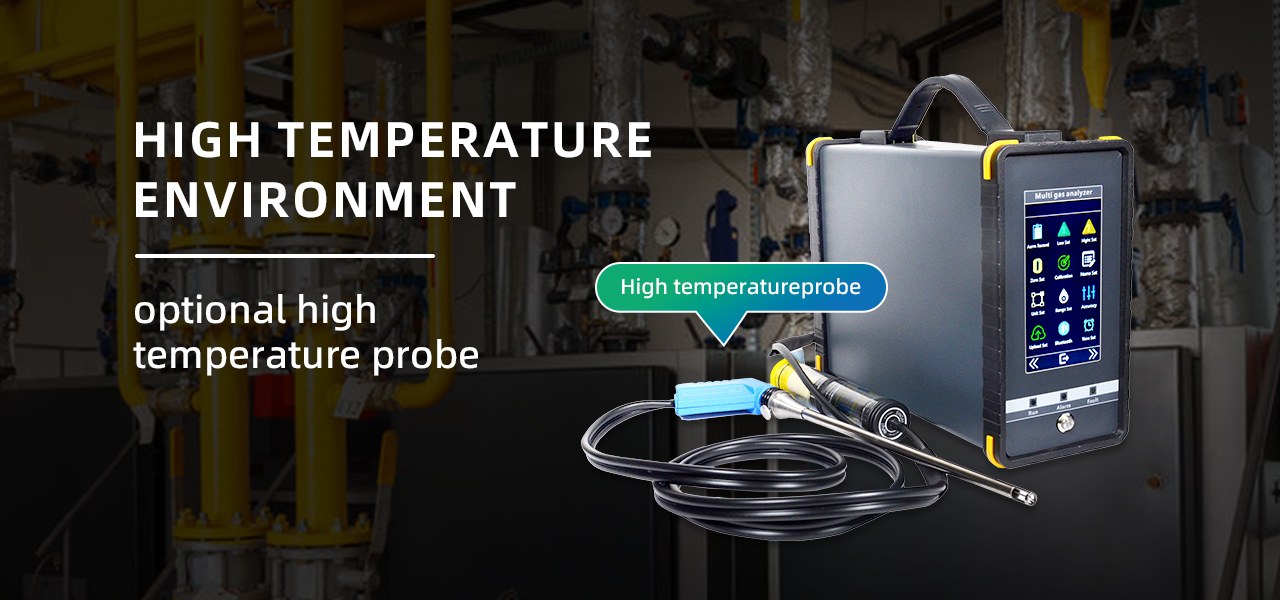

High temperature gas analyzer
Temperature and humidity gas analyzer

Henan Zhong An Electronic Detection Technology CO.,LTD.

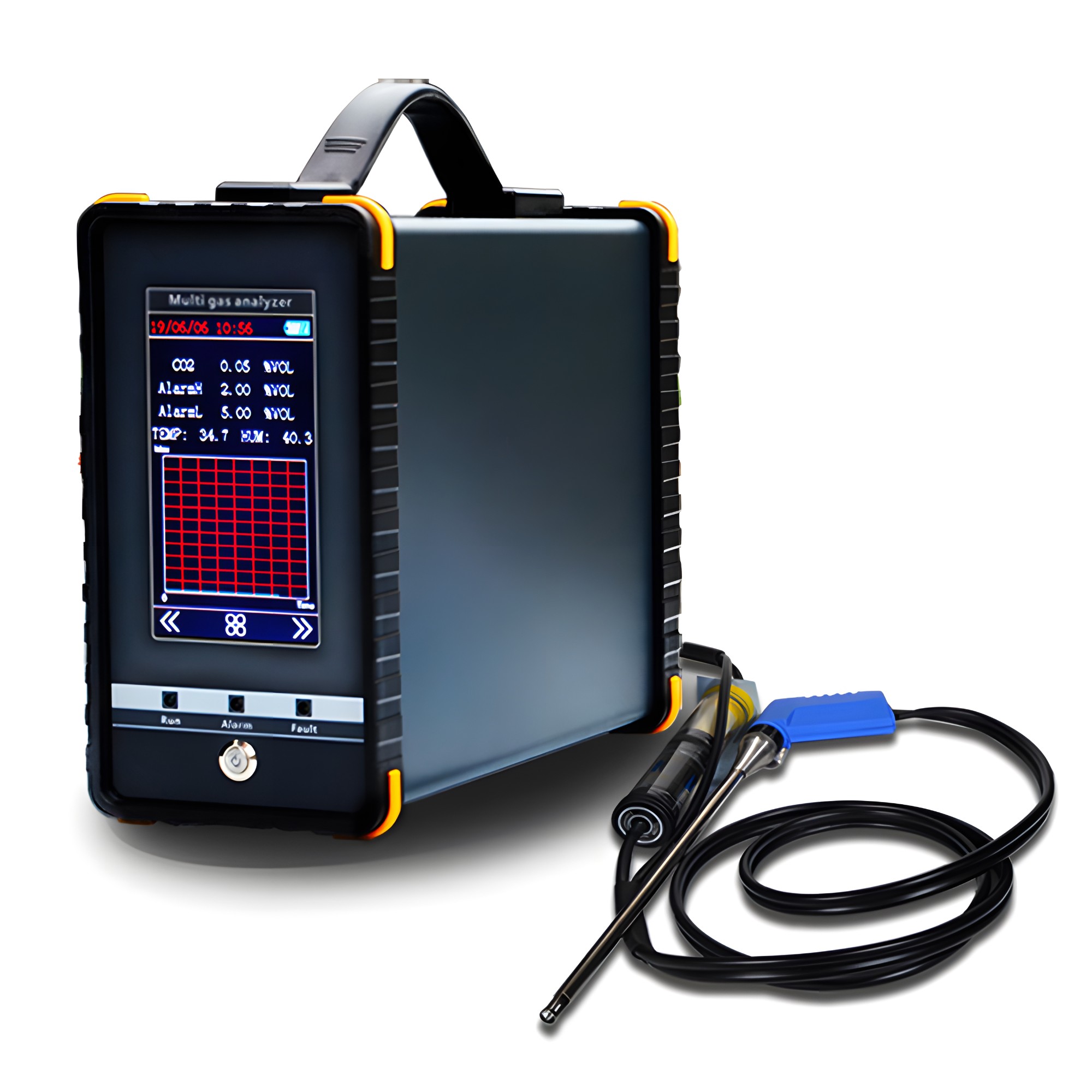

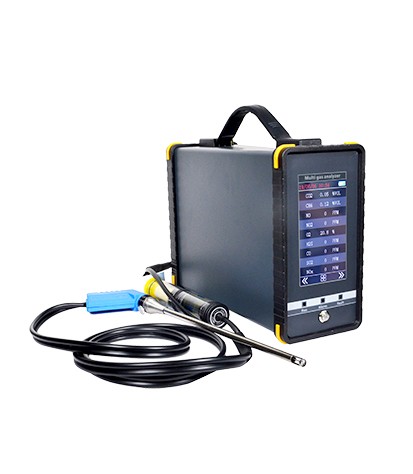

The probe function is cooling, dehumidification, and filtration. The main function of the probe is pretreatment. The probe can be connected to any portable or fixed gas detector. Flue gas multi gas analyzer

Place of usage:

Industrial waste gas analyzer
Boiler, chimney, kiln, rotary furnace, cement kiln, kiln gas analyzer

Technical Parameters

Product name	multi-gas analyzer
Product model	S360
Product specification	according to the type of gas being measured
Sampling mode:	built-in pump suction type
Response time	≤30s
Indication error	≤3%FS
Work environment	temperature -10℃～55℃；Relativehumidity：≤93%(non condensing)
Storage environment	Temperature: -10℃ ~ 55℃; Relative humidity: ≤93%(no condensation)
Preheating time	≤90s
Indication mode	LCD color touch LCD display
Charging time	no less than 10 hours
Continuous working time	no less than 15 hours
Battery specification:	DC7.2 v-26ah lithium ion rechargeable battery
Weight	about 4.75kg
Size	293x110x210(mm)
