S311 portable gas detector
|
Display mode |
liquid crystal display |
|
Response time |
<10s |
|
Charged battery |
3.7V-1700mAh lithium ion battery |
|
Weight |
380g |
|
Dimensions |
226mm * 68mm * 45mm |
We're here to help:Easy ways to get the answers you need.
Description

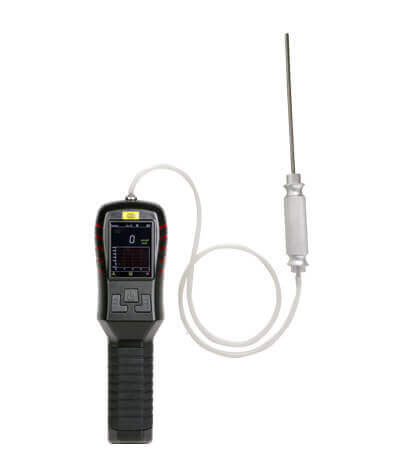

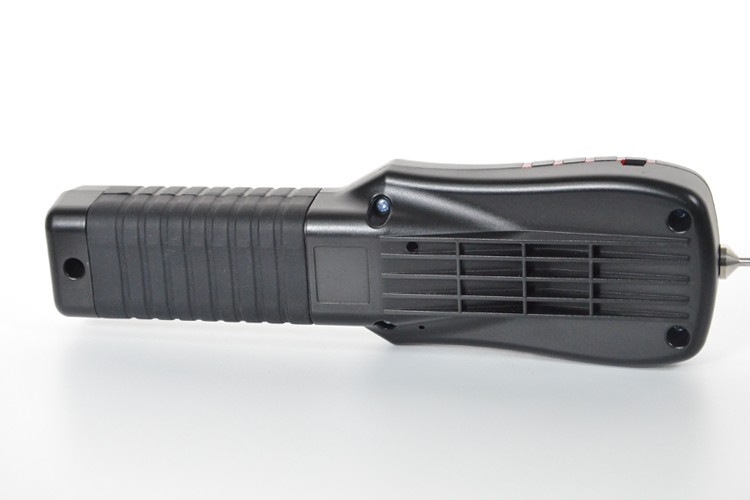

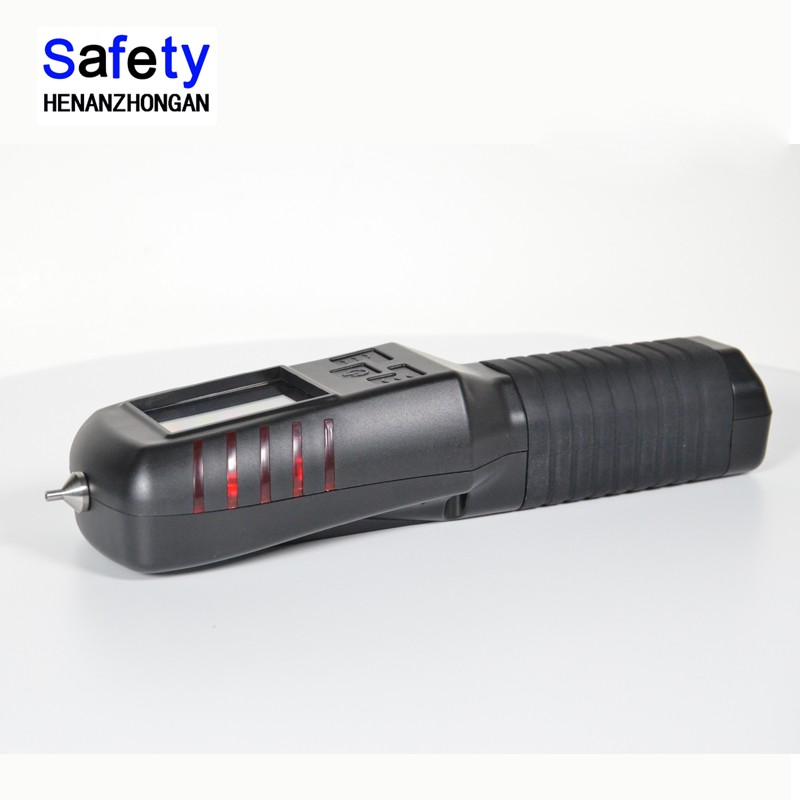

S311 is a pump type single gas detector with high sensitivity.The detection principle of semiconductor or poisonous gas is adopted, which is more suitable to find and detect the location of leakage gas.Compact size, simple operation, easy to carry, can also be accompanied by flexible probe and sampling handle, the hand feels very comfortable.
Detection gas: methane, natural gas, ammonia gas, hydrogen gas, propane, acetone, gasoline, coolant, ethanol, oxide, hydrogen sulfide, paint, thinner, industrial solvent, alcohol, gas fuel and other toxic and harmful gases.
Please choose the gas you want to detect from the below gas list;
|
Gas detected |
Measuring Range |
Optional Range |
Resolution Ratio |
Response Time |
|
LEL -combustible gas |
0-100%LEL |
0-100%VOL（Infrared or catalytic ） |
1%LEL/1%vol |
≤10s |
|
carbon monoxide |
0-1000PPm |
0-500/2000/5000PPm |
0.1/1PPm |
≤10s |
|
TVOC |
0-100PPM |
0-100PPM |
0.1PPm/1PPM |
≤15s |
|
hydrogen |
0-100%LEL |
0-1000PPM |
1%LEL/1PPM |
≤15s |
|
natural gas |
0-100%LEL |
0-100%LEL |
1%LEL |
≤10s |
|
Oxygen-O2 |
0-30%VOL |
0-30%、0-100%VOL |
0.1%vol |
≤10s |
|
ozone |
0-10PPm |
0-20、100PPm |
0.01PPm/0.1PPM |
≤15s |
|
hydrogen sulfide-H2S |
0-100PPm |
0-50、200、1000PPm |
1/0.1PPm |
≤10s |
|
Methane-CH4 |
0-100%LEL |
0-100%VOL |
1%LEL/1%vol |
≤10s |
|
fluorine |
0-10PM |
0-1、10PPM |
1/0.1PPm |
≤15s |
|
hydrogen chloride |
0-20PPm |
0-20/50PPm/100PPM |
0.01/0.1PPm |
≤15s |
|
Nitrogen-N2 |
0-30%VOL |
0-30%VOL、100%VOL |
0.1%LEL/1PPM |
≤10s |
|
hydrogen |
0-100%LEL |
0-1000PPm |
1%LEL/0.1PPm |
≤15s |
|
chlorine |
0-20PPm |
0-10、100PPm |
0.1PPm |
≤15s |
|
ammonia gas |
0-100PPm |
0-50、500、1000PPm |
1/0.1PPm |
≤15s |
|
oxynitride |
0-20PPm |
0-50、1000PPm |
0.1/1PPm |
≤15s |
Functions Features
- Color LCD Display
- Sensor Calibration-free, Original Imported Sensor
- Rapid Detection of Gas Leakage Points

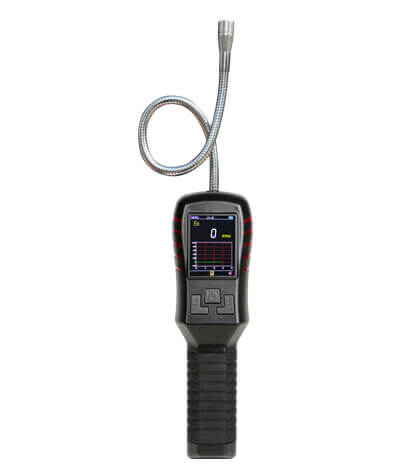

- Flexible probe with adjustable sensitivity can be selected.
- Low Voltage Alarm and Automatic Shutdown
- Sensor fault detection and alarm
- Fast preheating, fast response time
- Audio Alarm Signal with Variation of Frequency with Concentration
- Alarm value can be set.
Technical Parameters
|
Security level |
Ex ia IIB T3 Gb |
|
Using the environment |
temperature - 20 ℃ ~ 60 ℃; Humidity: no more than 95%RH(no condensation) |
|
Storage environment: temperature |
- 40 ℃ ~ 70 ℃; Humidity: no more than 95%RH(no condensation) |
|
Warmup time |
< 30s |
|
Response time |
<10s |
|
Display mod |
liquid crystal display |
|
Charged battery |
3.7V-1700mAh lithium ion battery |
|
Work time |
>8h (combustible), 300 hours (toxic) |
|
Weight |
380g |
|
Dimensions |
226mm * 68mm * 45mm |
|
Auditing standards |
GB15322-2003 |
