Detection principle | Electrochemical, catalytic combustion, infrared, semiconductor, heat conduction, PID photoion, etc. |
Sampling method | Natural diffusion |
Power supply | AC220V |
Explosion-proof method | Flameproof type |
Mobile/whatsapp: +86-13333857585
Email: [email protected]
Detection principle | Electrochemical, catalytic combustion, infrared, semiconductor, heat conduction, PID photoion, etc. |
Sampling method | Natural diffusion |
Ambient temperature | -40℃ to 70℃(combustible gas), -20℃ to 50℃(toxic gases0 |
Relative humidity | ≤ 93% |
Explosion-proof method | Flameproof type |
Power supply | AC220V |

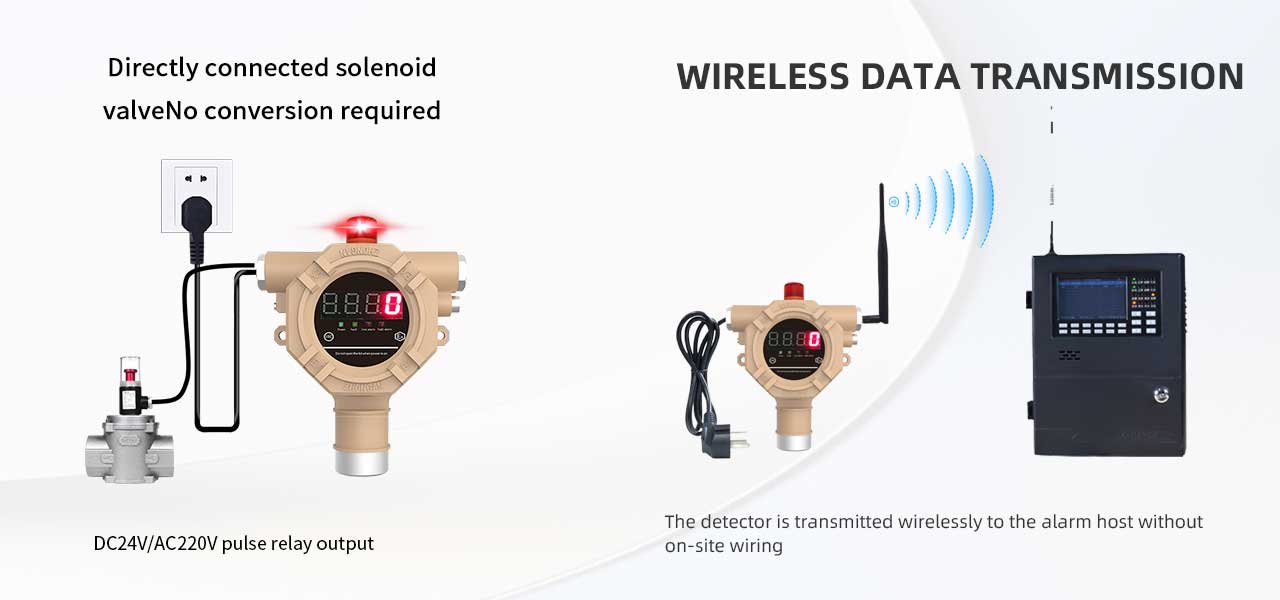

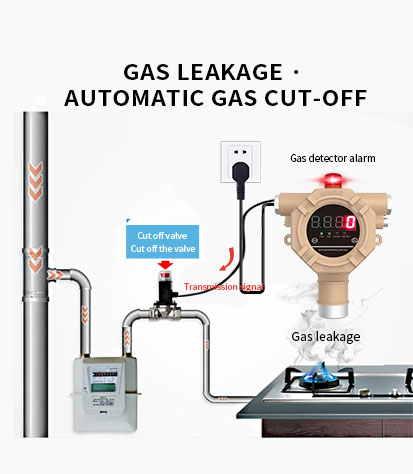

Switch quantity | Two sets of pulse relay outputs (adjustable for connecting to the fan) |
Power consumption | ≤ 5W |
Whole machine weight | ≤ 1000g |
Pressure limit | 86kPa to 106kPa |
Explosion-proof mark | Ex ia IIC T6 Ga |
Explosion-proof certificate number | CLEx24.1033X |
Explosion-proof grade | IP66 |
Common Gas Parameter listing | ||||
Gas detected | Measuring Range | Optional Range | Resolution Rat | Response Time |
LEL -combustible gas | 0-100%LEL | 0-100%VOL(Infrared or catalytic ) | 1%LEL/1%vol | ≤10s |
carbon monoxide | 0-1000PPm | 0-500/2000/5000PPm | 0.1/1PPm | ≤10s |
TVOC | 0-100PPM | 0-100PPM | 0.1PPm/1PPM | ≤15s |
hydrogen | 0-100%LEL | 0-1000PPM | 1%LEL/1PPM | ≤15s |
natural gas | 0-100%LEL | 0-100%LEL | 1%LEL | ≤10s |
Oxygen-O2 | 0-30%VOL | 0-30%、0-100%VOL | 0.1%vol | ≤10s |
ozone | 0-10PPm | 0-20、100PPm | 0.01PPm/0.1PPM | ≤15s |
hydrogen sulfide-H2S | 0-100PPm | 0-50、200、1000PPm | 1/0.1PPm | ≤10s |
Methane-CH4 | 0-100%LEL | 0-100%VOL | 1%LEL/1%vol | ≤10s |
fluorine | 0-10PM | 0-1、10PPM | 1/0.1PPm | ≤15s |
hydrogen chloride | 0-20PPm | 0-20/50PPm/100PPM | 0.01/0.1PPm | ≤15s |
Nitrogen-N2 | 0-30%VOL | 0-30%VOL、100%VOL | 0.1%LEL/1PPM | ≤10s |
hydrogen | 0-100%LEL | 0-1000PPm | 1%LEL/0.1PPm | ≤15s |
chlorine | 0-20PPm | 0-10、100PPm | 0.1PPm | ≤15s |
ammonia gas | 0-100PPm | 0-50、500、1000PPm | 1/0.1PPm | ≤15s |
oxynitride | 0-20PPm | 0-50、1000PPm | 0.1/1PPm | ≤15s |
methanal | 0-20PPm | 0-50、100PPm | 1/0.1PPm | ≤15s |
sulfur dioxide | 0-20PPm | 0-50、1000PPm | 0.1/1PPm | ≤15s |
nitric oxide | 0-250PPm | 0-500、1000PPm | 1PPm | ≤15s |
nitrogen dioxide | 0-20PPm | 0-50、1000PPm | 0.1/1PPm | ≤15s |
phosphine | 0-20PPm | 0-20、100PPm | 0.1PPm | ≤15s |
acrylonitrile | 0-100PPM | 0-100PPm | 0.1/1PPm | ≤15s |
carbon dioxide | 0-5000PPm | 0-1%/5%/10%VOL(Infrared ) | 1PPM/0.01%VOL | ≤15s |
hydrogen fluoride | 0-10PPm | 0-1、10、50、100PPM | 0.01/0.1PPm | ≤15s |
Xylene/methylbenzene | 0-20PPm | 0-5、10、50、100PPm | 0.01/0.1PPm | ≤15s |
oxirane | 0-100PPm | 0-100PPm | 1/0.1PPm | ≤15s |
For other gases and measuring ranges, please contact us directly! |
