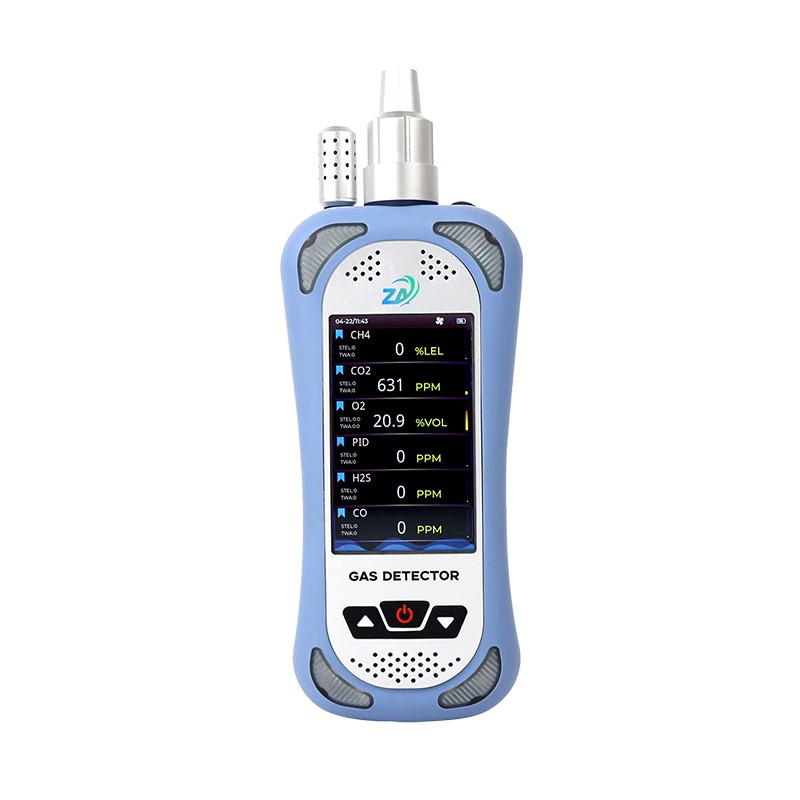

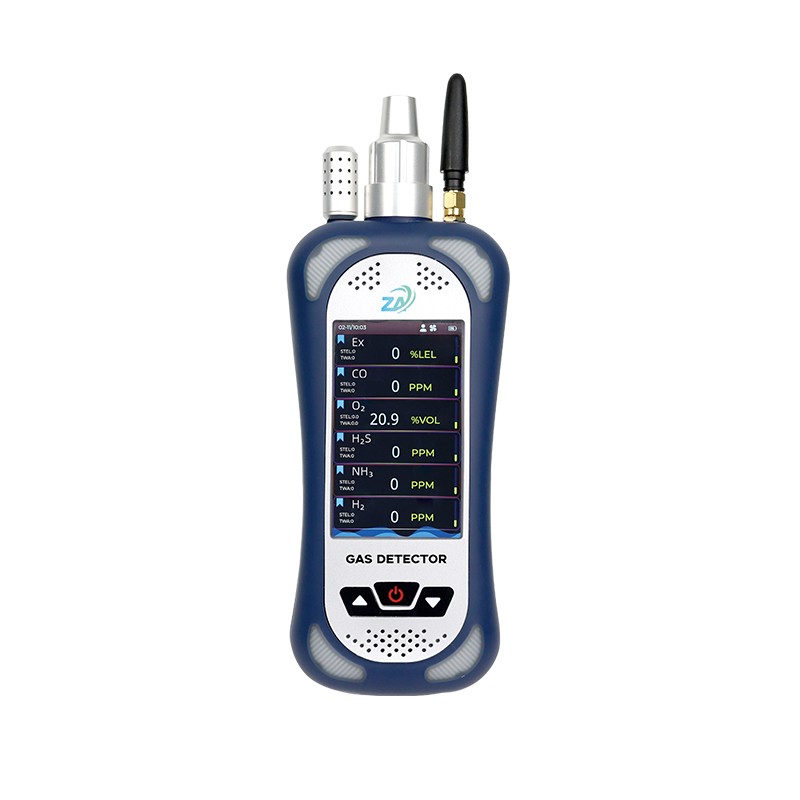

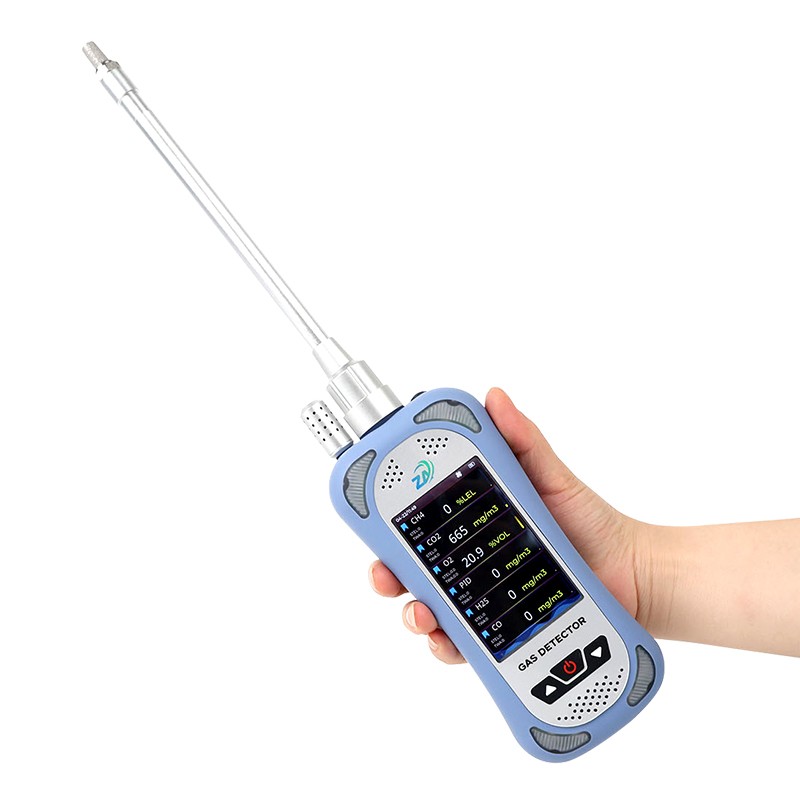

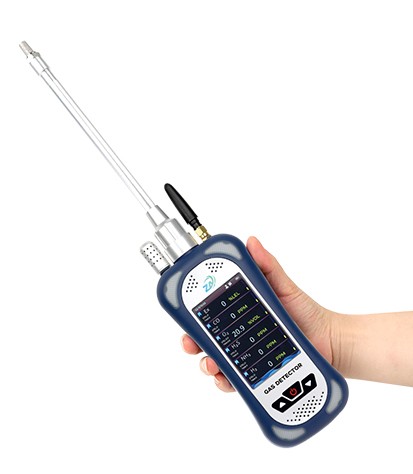

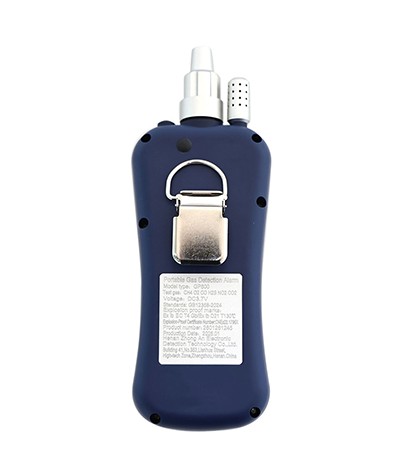

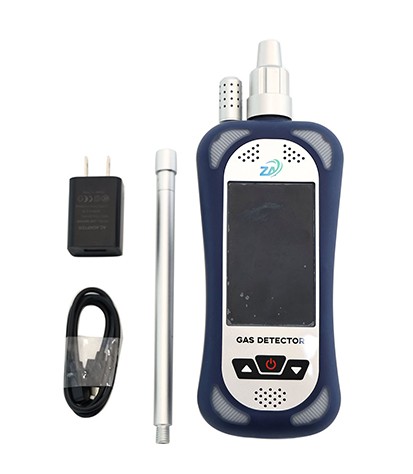

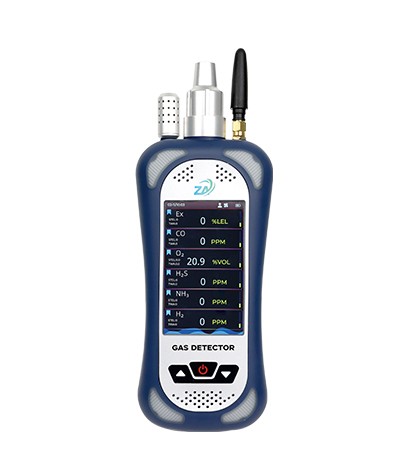

VOC PID Gas Detector Portable Photoionization Detector GSS-GP600

Detection gas	flammable/toxic and harmful gases
Measuring range	(0~ 100%)LEL; -****PPM
Detection principle	catalysis; electrochemistry; semiconductor; infrared; PID
Detection method	Built-in pump suction type

Mobile/whatsapp: +86-13333857585

Email: [email protected]

We're here to help:Easy ways to get the answers you need.

Description Functions Features Technical Parameters Get In Touch

Description

GSS-GP600 VOC PID Gas Detector Portable Photoionization Detector adopts dot matrix display technology and Chinese and English interface switching. It can detect a variety of flammable and toxic and harmful gases at the same time. It can be replaced with different sensor types anytime and anywhere, and the detection results are displayed on the screen at the same time. Using modular sensor elements, they can be replaced anytime and anywhere. The built-in pump-type gas detector has a color LCD display and the module sensor can be replaced with different sensor types at will, and the detection results are displayed on the screen at the same time.

Functions Features

Color LCD display
Can be interconnected with confined space probes and portable products
Support Beidou GPRS positioning
Under voltage alarm, fault alarm; fall alarm, call for help alarm, - key to call for help
Multiple alarm mode settings: low alarm, high alarm, interval alarm, TWA, STEL, OL alarm
Display real-time concentration, alarm status, communication status, power and other information
Automatic switching between Chinese and English interfaces
The detector has built-in Hongmeng system
The detector has a walkie-talkie function
Multi-level calibration, automatic zero tracking
Factory settings can be restored, and concentration calibration misoperations are automatically identified and prevented

Technical Parameters

Detection gas	flammable/toxic and harmful gases
Measuring range	(0~ 100%)LEL; -****PPM
Detection principle	catalysis; electrochemistry; semiconductor; infrared; PID
Detection method	Built-in pump suction type
Accuracy	+3%FS
Display	LCD liquid crystal display
Alarm method	sound and light vibration alarm

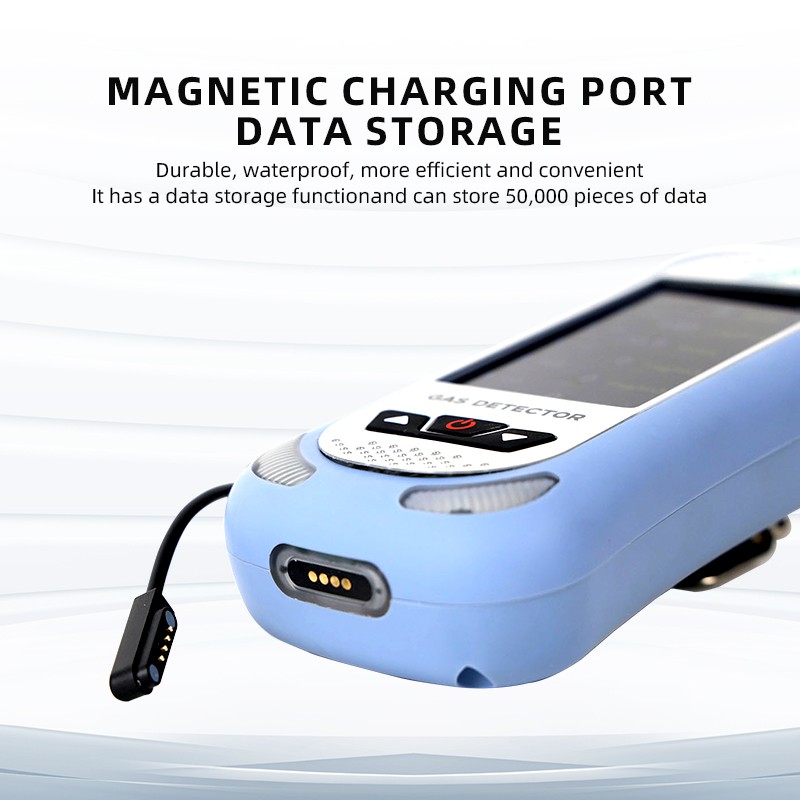

Charging	Magnetic charging method
Language	Automatic switching between Chinese and English
Relative humidity	< <93%
Use time	more than 10 hours (combustible)
Protection level	IP68
Communication method	infrared, Bluetooth, lora and other wireless communication methods
Data storage	store 100,000 pieces of data
Optional function	supports IoT transmission (optional),Support intercom function (optional)

Common Gas Parameter listing
Gas detected	Measuring Range	Optional Range	Resolution Rat	Response Time
LEL -combustible gas	0-100%LEL	0-100%VOL（Infrared or catalytic ）	1%LEL/1%vol	≤10s
carbon monoxide	0-1000PPm	0-500/2000/5000PPm	0.1/1PPm	≤10s
TVOC	0-100PPM	0-100PPM	0.1PPm/1PPM	≤15s
hydrogen	0-100%LEL	0-1000PPM	1%LEL/1PPM	≤15s
natural gas	0-100%LEL	0-100%LEL	1%LEL	≤10s
Oxygen-O2	0-30%VOL	0-30%、0-100%VOL	0.1%vol	≤10s
ozone	0-10PPm	0-20、100PPm	0.01PPm/0.1PPM	≤15s
hydrogen sulfide-H2S	0-100PPm	0-50、200、1000PPm	1/0.1PPm	≤10s
Methane-CH4	0-100%LEL	0-100%VOL	1%LEL/1%vol	≤10s
fluorine	0-10PM	0-1、10PPM	1/0.1PPm	≤15s
hydrogen chloride	0-20PPm	0-20/50PPm/100PPM	0.01/0.1PPm	≤15s
Nitrogen-N2	0-30%VOL	0-30%VOL、100%VOL	0.1%LEL/1PPM	≤10s
hydrogen	0-100%LEL	0-1000PPm	1%LEL/0.1PPm	≤15s
chlorine	0-20PPm	0-10、100PPm	0.1PPm	≤15s
ammonia gas	0-100PPm	0-50、500、1000PPm	1/0.1PPm	≤15s
oxynitride	0-20PPm	0-50、1000PPm	0.1/1PPm	≤15s
methanal	0-20PPm	0-50、100PPm	1/0.1PPm	≤15s
sulfur dioxide	0-20PPm	0-50、1000PPm	0.1/1PPm	≤15s
nitric oxide	0-250PPm	0-500、1000PPm	1PPm	≤15s
nitrogen dioxide	0-20PPm	0-50、1000PPm	0.1/1PPm	≤15s
phosphine	0-20PPm	0-20、100PPm	0.1PPm	≤15s
acrylonitrile	0-100PPM	0-100PPm	0.1/1PPm	≤15s
carbon dioxide	0-5000PPm	0-1%/5%/10%VOL(Infrared )	1PPM/0.01%VOL	≤15s
hydrogen fluoride	0-10PPm	0-1、10、50、100PPM	0.01/0.1PPm	≤15s
Xylene/methylbenzene	0-20PPm	0-5、10、50、100PPm	0.01/0.1PPm	≤15s
oxirane	0-100PPm	0-100PPm	1/0.1PPm	≤15s
For other gases and measuring ranges, please contact us directly!
