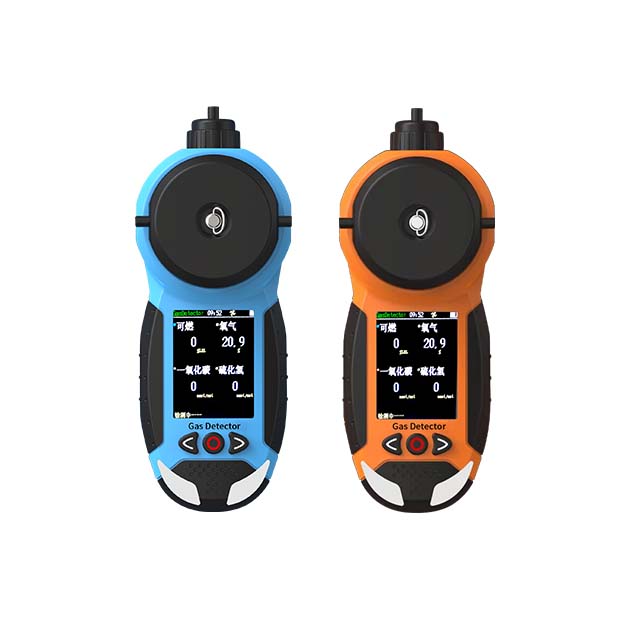

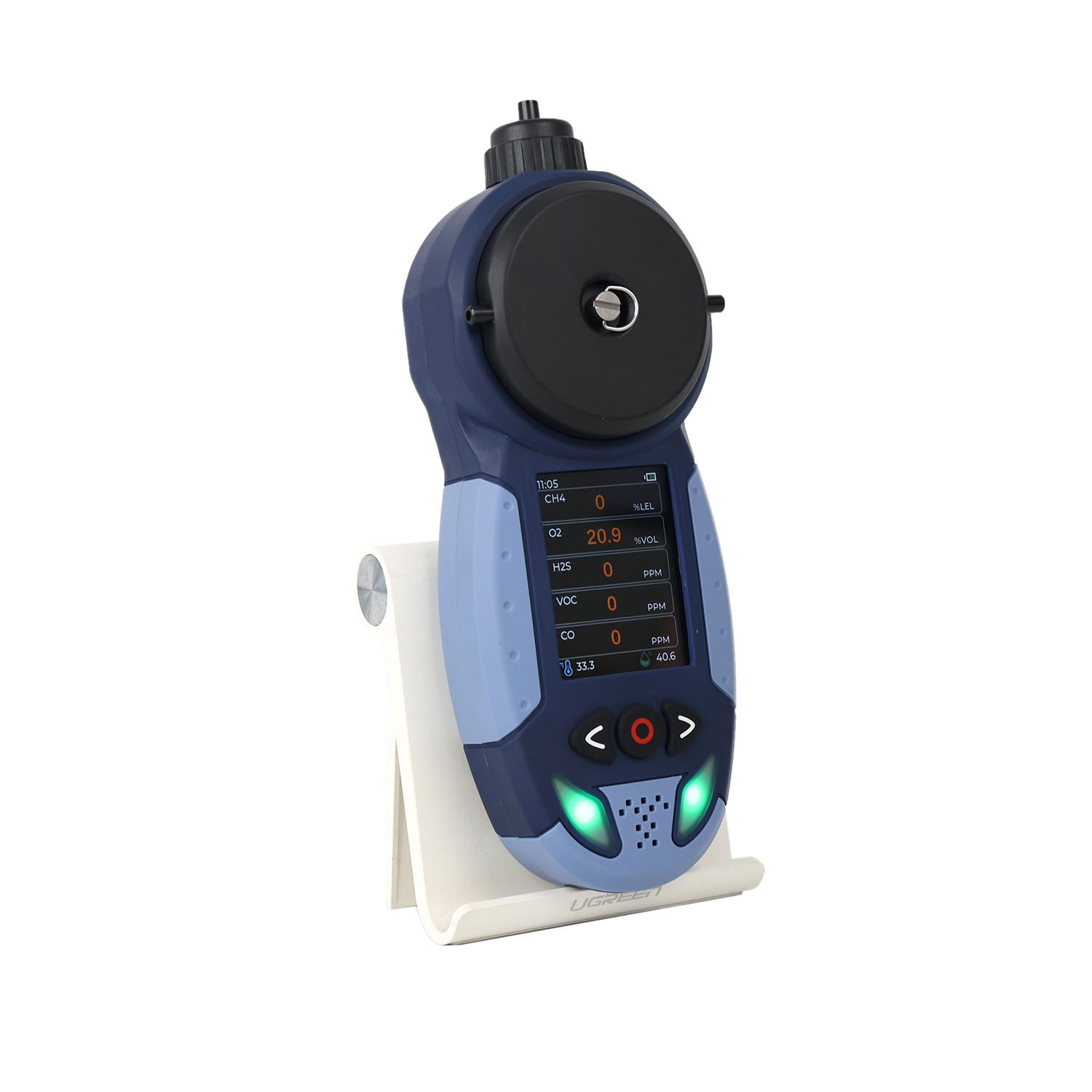

Built-in Pumping 4 in 1 Gas Detector GSS-GP300

Detection gas	combustible/ toxic and harmful gas
Measurement range	( 0~100%) LEL; 0- * * * PPM

Mobile/whatsapp: +86-13333857585

Email: [email protected]

We're here to help:Easy ways to get the answers you need.

Description Functions Features Technical Parameters Get In Touch

Description

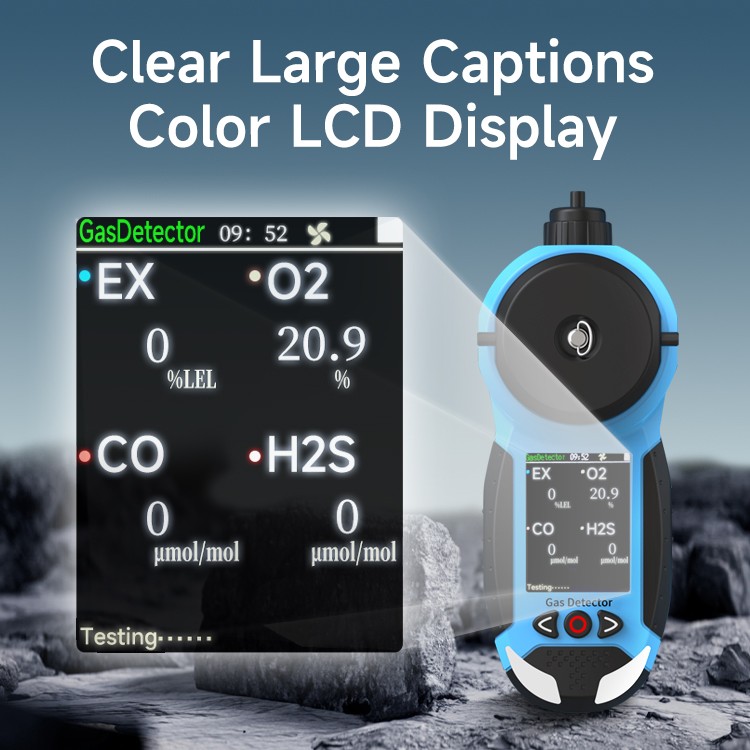

ZhongAn GSS-GP300 Built-in Pumping 4 in 1 gas detector has a color LCD screen display, and can simultaneously detect four gases including combustible, O2, CO and H2S,etc. The detection results are displayed on the screen at the same time. For the standard USB interface can be used for charging and data transmission as well as querying alarm results.

Functions Features

Simple user interface, large screen Chinese interface operation
Charging level display, low potential warning indication
Can be interconnected with confined space probes and portable products
Support for Beidou GPRS positioning

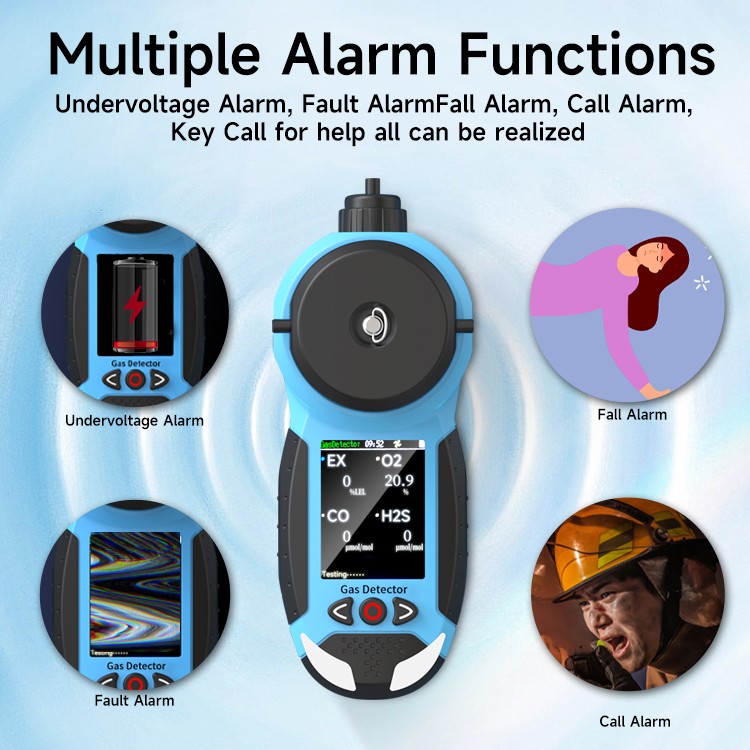

Under voltage alarm and fault alarm; Fall alarm, call for help alarm, - key call for help
Multiple alarm mode settings: low alarm, high alarm, interval alarm, TWA, STEL, OL alarm
Display real-time concentration, alarm status, communication status, electricity level and other information
Automatic switching between Chinese and English interfaces
Multi level calibration, automatic zero tracking
The detector is equipped with a built-in Hongmeng system

Technical Parameters

Detection gas	combustible/ toxic and harmful gas
Measurement range	( 0~100%) LEL; 0- * * * PPM
Detection principle	PID;catalysis; Electrochemistry; Semiconductor; Infrared
Detection method	built-in pump suction type
Accuracy	± 3% FS
Protection level	IP68
Display	LCD liquid crystal display
Alarm method	sound, light, vibration alarm
Charging	Magnetic suction charging method
Language	Automatic switching between English and others
Relative humidity	<93%
Usage time	More than 10 hours (combustible gas)
Communication methods	wireless communication methods such as infrared, Bluetooth, Lora, etc
Data storage	storing 100000 pieces of data

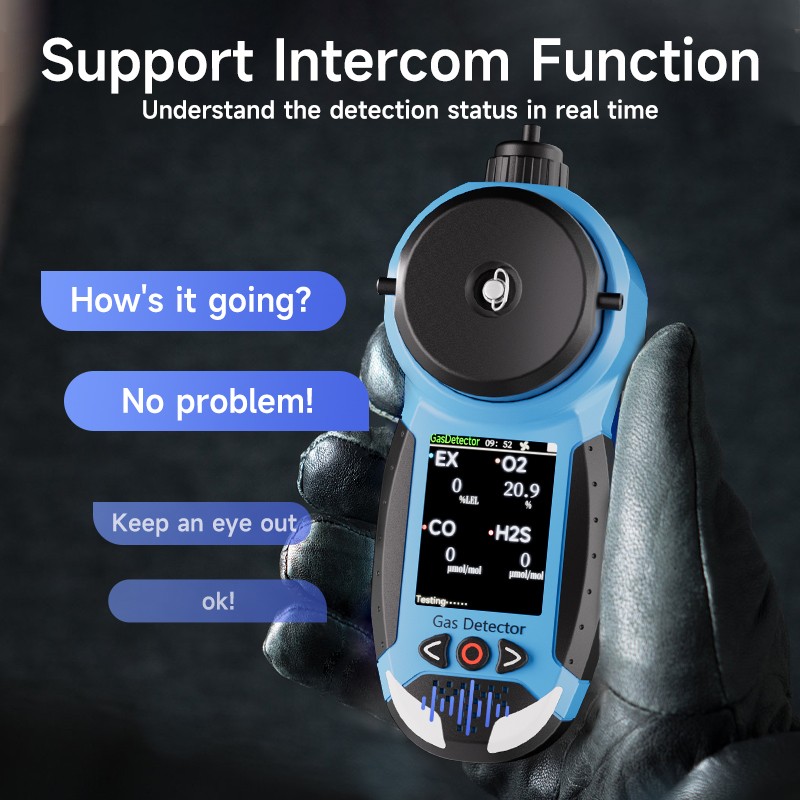

Optional function	supports IoT transmission (optional),Support for intercom function (optional)

Common Gas Parameter listing
Gas detected	Measuring Range	Optional Range	Resolution Rat	Response Time
LEL -combustible gas	0-100%LEL	0-100%VOL（Infrared or catalytic ）	1%LEL/1%vol	≤10s
carbon monoxide	0-1000PPm	0-500/2000/5000PPm	0.1/1PPm	≤10s
TVOC	0-100PPM	0-100PPM	0.1PPm/1PPM	≤15s
hydrogen	0-100%LEL	0-1000PPM	1%LEL/1PPM	≤15s
natural gas	0-100%LEL	0-100%LEL	1%LEL	≤10s
Oxygen-O2	0-30%VOL	0-30%、0-100%VOL	0.1%vol	≤10s
ozone	0-10PPm	0-20、100PPm	0.01PPm/0.1PPM	≤15s
hydrogen sulfide-H2S	0-100PPm	0-50、200、1000PPm	1/0.1PPm	≤10s
Methane-CH4	0-100%LEL	0-100%VOL	1%LEL/1%vol	≤10s
fluorine	0-10PM	0-1、10PPM	1/0.1PPm	≤15s
hydrogen chloride	0-20PPm	0-20/50PPm/100PPM	0.01/0.1PPm	≤15s
Nitrogen-N2	0-30%VOL	0-30%VOL、100%VOL	0.1%LEL/1PPM	≤10s
hydrogen	0-100%LEL	0-1000PPm	1%LEL/0.1PPm	≤15s
chlorine	0-20PPm	0-10、100PPm	0.1PPm	≤15s
ammonia gas	0-100PPm	0-50、500、1000PPm	1/0.1PPm	≤15s
oxynitride	0-20PPm	0-50、1000PPm	0.1/1PPm	≤15s
methanal	0-20PPm	0-50、100PPm	1/0.1PPm	≤15s
sulfur dioxide	0-20PPm	0-50、1000PPm	0.1/1PPm	≤15s
nitric oxide	0-250PPm	0-500、1000PPm	1PPm	≤15s
nitrogen dioxide	0-20PPm	0-50、1000PPm	0.1/1PPm	≤15s
phosphine	0-20PPm	0-20、100PPm	0.1PPm	≤15s
acrylonitrile	0-100PPM	0-100PPm	0.1/1PPm	≤15s
carbon dioxide	0-5000PPm	0-1%/5%/10%VOL(Infrared )	1PPM/0.01%VOL	≤15s
hydrogen fluoride	0-10PPm	0-1、10、50、100PPM	0.01/0.1PPm	≤15s
Xylene/methylbenzene	0-20PPm	0-5、10、50、100PPm	0.01/0.1PPm	≤15s
oxirane	0-100PPm	0-100PPm	1/0.1PPm	≤15s
For other gases and measuring ranges, please contact us directly!

Get In Touch

Please feel free to submit your inquiry information to us! our sales manager will contact with you as soon as possible.

S360 portable multi gas analyzer

S316 pump suction gas detector is a multi-in-one gas detector, which can continuously measure combustible, O2, CO, H2S and other toxic gases in the ambient air.It can detect up to five gases at once.The waterproof design of the meter is combined with a rubber ...

S316 Pump suction type gas detection alarm

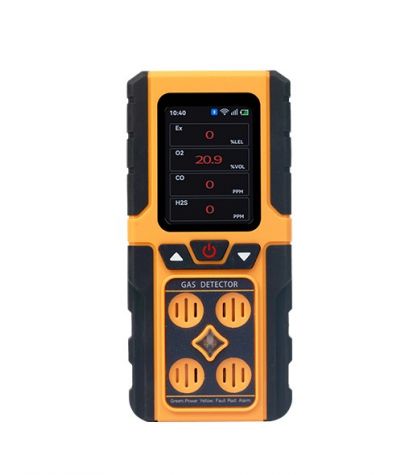

The BTYQ-A116 portable gas detector is an industrial high-sensitivity, wide-range gas leak detector. It is suitable for gas leak rescue in explosion-proof places, underground pipelines or mines and other places. It can effectively ensure that the life safety o...

BTYQ-A116 Portable Gas Detector

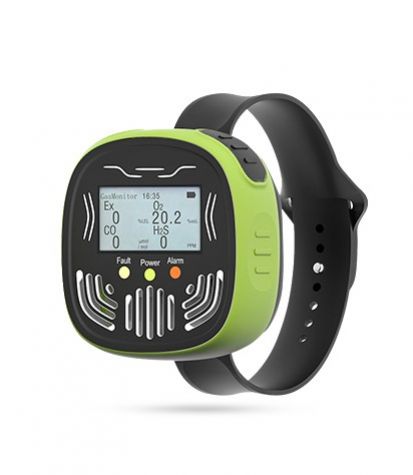

Our ZhongAn wristband 4 in 1 portable gas detector CQH200 adopts LCD screen display mode for detection. it can be interconnected with confined space gas detectors and portable gas detectors, and supports same-machine interconnection.
