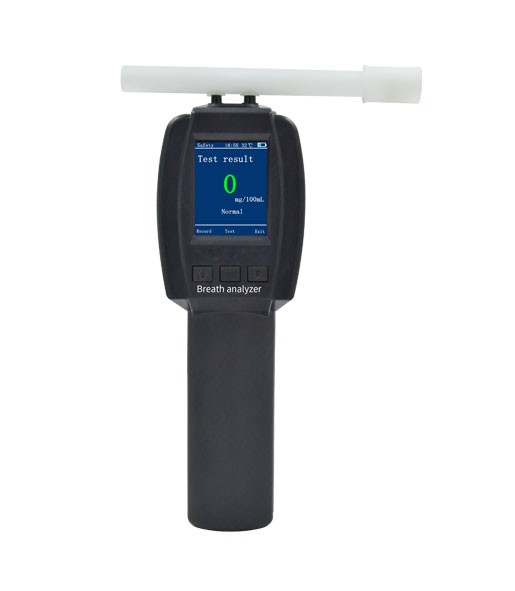

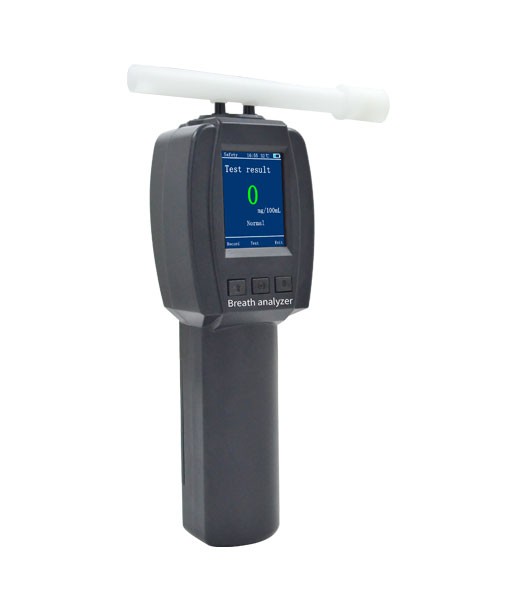

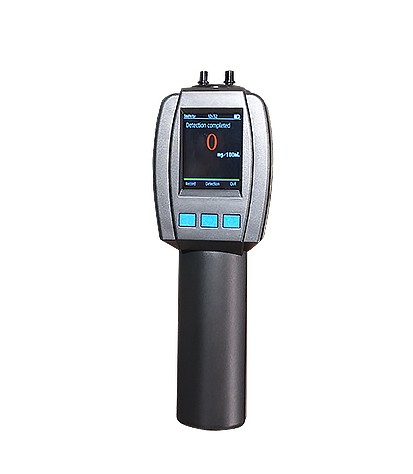

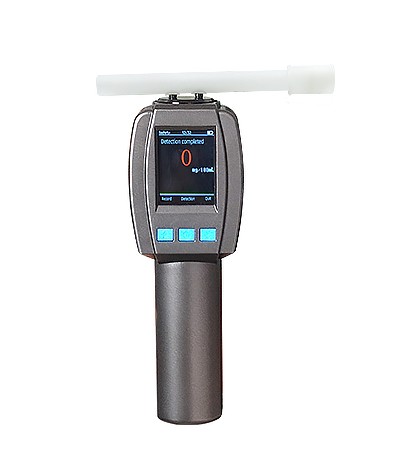

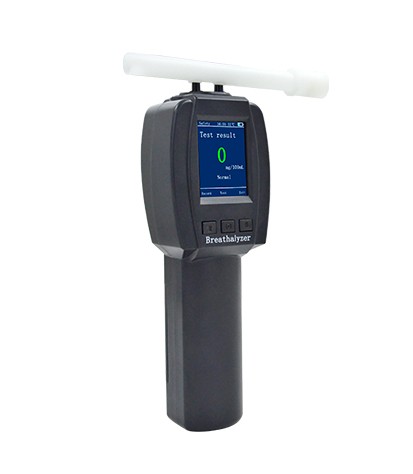

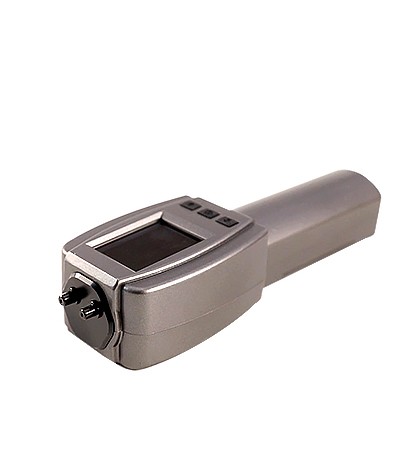

ZM500 Exhaled gas alcohol detector

Sensor type	Electrochemical fuel cell type alcohol sensor
Measuring range	0 ～ 220mg / 100ml
Blowing Distance	≤5 cm
Detection Time	Adjustable from 3 to 15 seconds

Mobile/whatsapp: +86-13333857585

Email: [email protected]

We're here to help:Easy ways to get the answers you need.

Description Functions Features Technical Parameters Get In Touch

Description

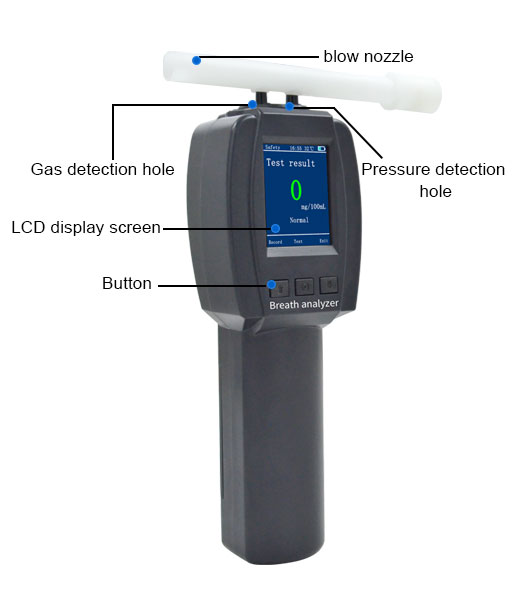

Model ZM500 is an exhaled gas alcohol detector. The core part of this instrument adopts advanced electrochemical alcohol sensor, which can quickly check the alcohol content in the exhumed gas, and has strong anti-interference ability; ZM500 has a simple keyboard, menu operation and excellent human-computer interaction interface, making the operation more simple and convenient; Color LCD makes the interface more beautiful and clear.

Functions Features

Bar - type appearance design, beautiful image
One-time backflow prevention, blocking, blowout preventer design
With active testing, passive testing, continuous screening mode
The instrument adopts advanced ultra-low power consumption microprocessing controller
LCD color liquid crystal display, beautiful and clear
Provide real-time time display function
It has two alarm functions of drinking and drunkenness, blowing and interrupting the alarm and refusing to test the alarm
Under voltage, automatic shutdown without operation
Alarm point adjustable, test unit can switch
The test information has large storage capacity, and can store the results no less than 100 times, which is convenient for query

Henan Zhong An Electronic Detection Technology CO.,LTD.

Technical Parameters

Detection Method	Pump suction
Sensor Type	Electrochemical fuel cell type alcohol sensor
Detection Gas	Alcohol
Measurement Range	0 to 220 mg/100mL
Blowing Distance	≤5 cm
Detection Time	Adjustable from 3 to 15 seconds
Working Humidity	15 to 93% RH
Response Time	≤2 seconds
Indication Error	≤±5 mg/100mL
Indication Methods	Indicator light, sound, vibration alarm
Baton Mode	Indicator light always on/flashing
Operating Voltage	DC 3.7V lithium battery, 2000mAh
Power-saving Mode	Automatic shutdown after 3 minutes in standby without baton mode
Charging Time	≤6 hours
Standby Time	Not less than 8 hours (non-alarm state)
Sensor Life	2 years (electrochemical)
Dimensions	383mm x 66mm x 47mm (L x W x H)
Weight	Approximately 300g
