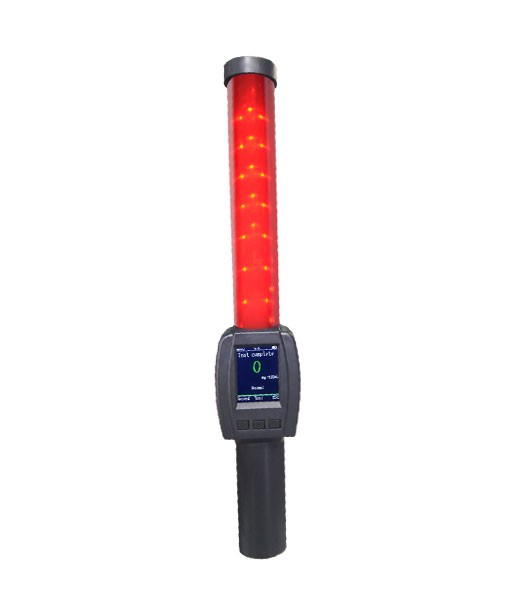

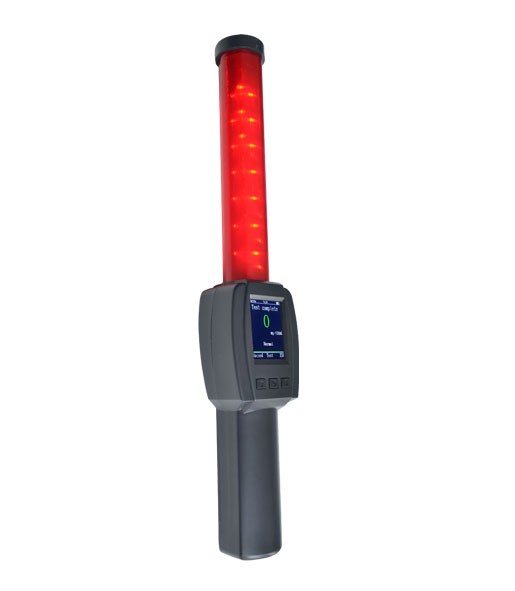

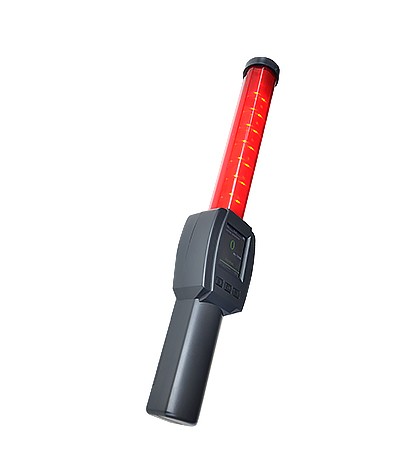

ZM2100 is a newly developed rod pump suction rapid inspection wine inspection instrument. The core component of this instrument adopts high-tech electrochemical alcohol sensor, which can quickly check the alcohol content in the exhaled gas, and has strong anti-interference ability; the simplified keyboard, menu operation and very good human-computer interaction interface possessed by ZM-2100 make the operation It is more concise and convenient; the color LCD screen display makes the interface more beautiful and clear; the high-brightness alarm light indication is more convenient to use; the non-contact air inlet design ensures the health and safety of the testee.
Functions Features
The main function
Stick appearance design, beautiful image, no need to blow mouth
Continuous and fast automatic detection, no need to press the button to complete the test
Fast analysis technology, results in one second
Matrix alarm light design, the results are clear at a glance
With flashlight lighting function, suitable for night operation (optional)
Non-contact pump suction type, more environmentally friendly, more hygienic and safe
The instrument adopts advanced ultra-low power micro-processing controller
LCD color liquid crystal display, beautiful and clear
Provide real-time time display function
Two-level audible and visual alarm information, the alarm type displayed on the screen (voice alarm (optional))
Under voltage, no operation automatic shutdown
The alarm point is adjustable, the test unit can be switched
Large storage of test information, can store no less than 100 times of storage results, easy to query
Technical Parameters
Detection Method
Pump suction
Sensor Type
Electrochemical fuel cell type alcohol sensor
Detection Gas
Alcohol
Measurement Range
0 to 220 mg/100mL
Blowing Distance
≤5 cm
Detection Time
Adjustable from 3 to 15 seconds
Working Humidity
15 to 93% RH
Response Time
≤2 seconds
Indication Error
≤±5 mg/100mL
Indication Methods
Indicator light, sound, vibration alarm
Baton Mode
Indicator light always on/flashing
Operating Voltage
DC 3.7V lithium battery, 2000mAh
Power-saving Mode
Automatic shutdown after 3 minutes in standby without baton mode
Charging Time
≤6 hours
Standby Time
Not less than 8 hours (non-alarm state)
Sensor Life
2 years (electrochemical)
Dimensions
383mm x 66mm x 47mm (L x W x H)
Weight
Approximately 300g
