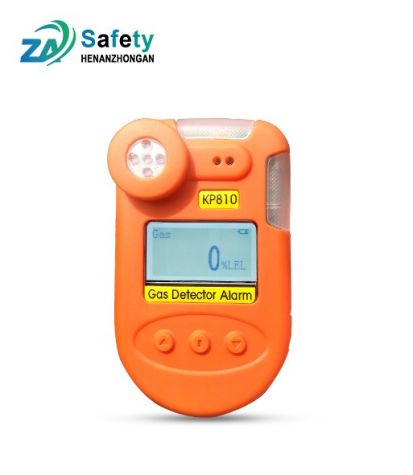

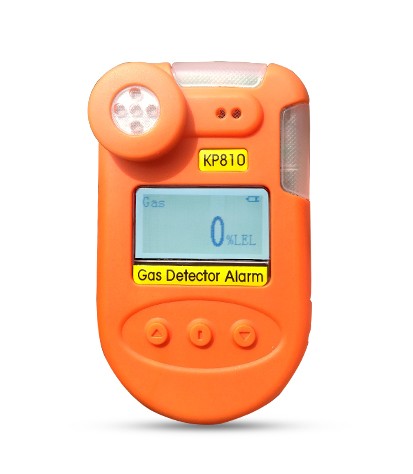

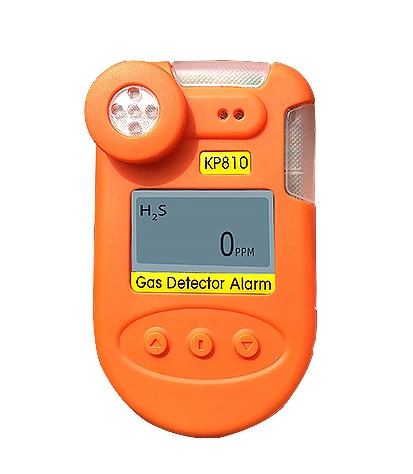

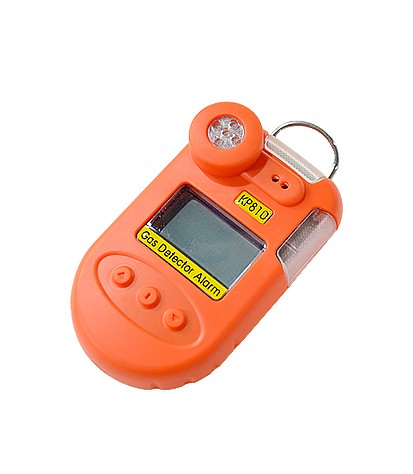

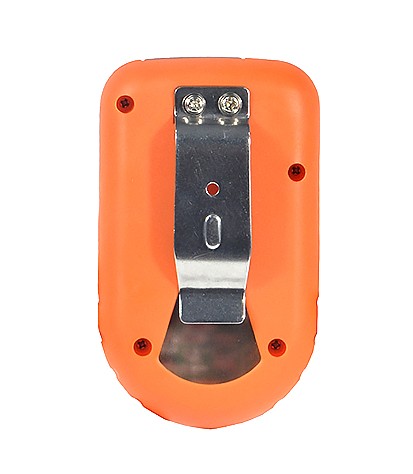

KP810 features a user-friendly all-English operation interface. It is a high-cost-performance waterproof single gas detector meticulously designed for you by our company. This device employs internationally renowned sensors, boasting high sensitivity, stability, and reliability. The waterproof single gas detector is widely applicable in various settings where the concentration of toxic and harmful gases needs to be detected, including oil extraction, smelting, chemical industry, municipal services, sewage treatment, power generation, gas, mining, tunnel construction, firefighting, warehousing, papermaking, pharmaceuticals, brewing, and many others
Functions Features
Technical Parameters
Test gas
Combustible and toxic gases
Detection mode
Natural diffusion
Detection principle
Semiconductor/catalysis/electrochemistry
scope of test
See Schedule
Display
LCD digital display of gas type /gas concentration/ status
Response time
T90<10s
Indication mode
LCD display real-time concentration
Alarm indication
Light emitting diode, sound, vibration
Working environment temperature
-10℃～55℃，Humidity<93%RH no condensation
Power
3.7V 1700mA rechargeable lithium battery
Grade of protection
IP65
Weight
Around 132g (including battery and accessories)

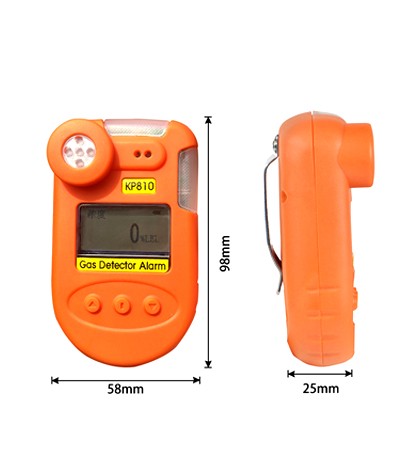

Size
100mm*58mm*30mm
Explosion-proof mark
Ex ia IIC T4 Ga;
Explosion proof No
CLEx24.1020
Common Gas Parameter listing
Gas detected
Measuring Range
Optional Range
Resolution Rat
Response Time
LEL -combustible gas
0-100%LEL
0-100%VOL（Infrared or catalytic ）
1%LEL/1%vol
≤10s
carbon monoxide
0-1000PPm
0-500/2000/5000PPm
0.1/1PPm
≤10s
TVOC
0-100PPM
0-100PPM
0.1PPm/1PPM
≤15s
hydrogen
0-100%LEL
0-1000PPM
1%LEL/1PPM
≤15s
natural gas
0-100%LEL
0-100%LEL
1%LEL
≤10s
Oxygen-O2
0-30%VOL
0-30%、0-100%VOL
0.1%vol
≤10s
ozone
0-10PPm
0-20、100PPm
0.01PPm/0.1PPM
≤15s
hydrogen sulfide-H2S
0-100PPm
0-50、200、1000PPm
1/0.1PPm
≤10s
Methane-CH4
0-100%LEL
0-100%VOL
1%LEL/1%vol
≤10s
fluorine
0-10PM
0-1、10PPM
1/0.1PPm
≤15s
hydrogen chloride
0-20PPm
0-20/50PPm/100PPM
0.01/0.1PPm
≤15s
Nitrogen-N2
0-30%VOL
0-30%VOL、100%VOL
0.1%LEL/1PPM
≤10s
hydrogen
0-100%LEL
0-1000PPm
1%LEL/0.1PPm
≤15s
chlorine
0-20PPm
0-10、100PPm
0.1PPm
≤15s
ammonia gas
0-100PPm
0-50、500、1000PPm
1/0.1PPm
≤15s
oxynitride
0-20PPm
0-50、1000PPm
0.1/1PPm
≤15s
methanal
0-20PPm
0-50、100PPm
1/0.1PPm
≤15s
sulfur dioxide
0-20PPm
0-50、1000PPm
0.1/1PPm
≤15s
nitric oxide
0-250PPm
0-500、1000PPm
1PPm
≤15s
nitrogen dioxide
0-20PPm
0-50、1000PPm
0.1/1PPm
≤15s
phosphine
0-20PPm
0-20、100PPm
0.1PPm
≤15s
acrylonitrile
0-100PPM
0-100PPm
0.1/1PPm
≤15s
carbon dioxide
0-5000PPm
0-1%/5%/10%VOL(Infrared )
1PPM/0.01%VOL
≤15s
hydrogen fluoride
0-10PPm
0-1、10、50、100PPM
0.01/0.1PPm
≤15s
Xylene/methylbenzene
0-20PPm
0-5、10、50、100PPm
0.01/0.1PPm
≤15s
oxirane
0-100PPm
0-100PPm
1/0.1PPm
≤15s
For other gases and measuring ranges, please contact us directly!
