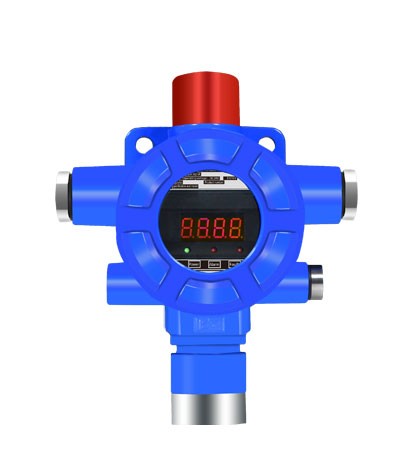

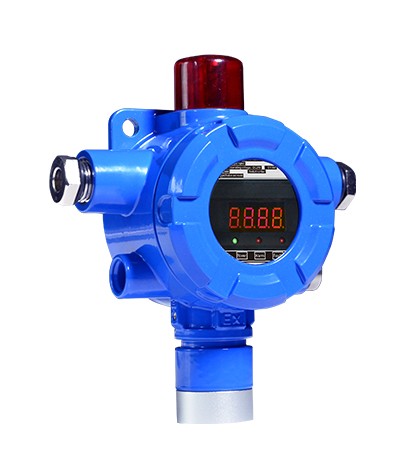

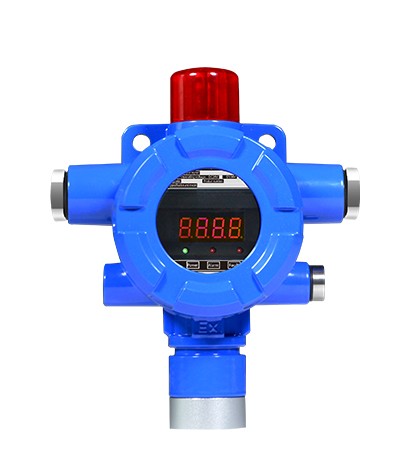

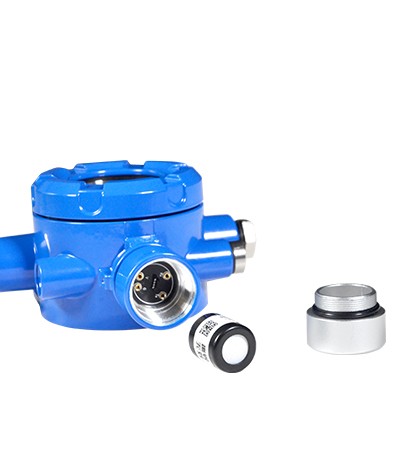

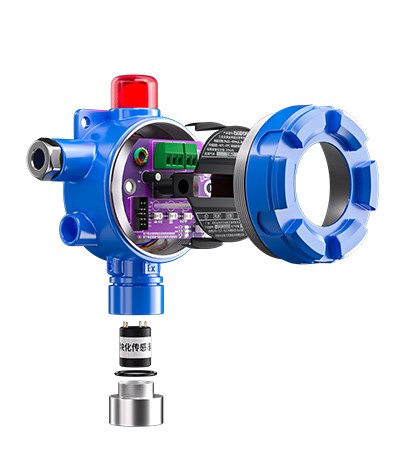

GTYQ-QD6100 Fixed gas detector
| Detected gases | Combustible/toxic and harmful gases |
| Detection method | Natural diffusion |
| Detection range | (3 - 100)%LEL, (0 - 30)%VOL, (0 - ***)ppm |
| Detection principle | Catalysis; Electrochemistry; Semiconductor; Infrared; Laser; PID |
Mobile/whatsapp: +86-13333857585
Email: [email protected]
We're here to help:Easy ways to get the answers you need.
Description
The GTYQ-QD6100 point-type gas detector is a new type of gas detection instrument produced by our company. This machine adopts high-performance catalytic combustion gas-sensitive components and microcontroller technology, combined with sophisticated SMD process manufacturing. It has the advantages of good repeatability, temperature and humidity characteristics, long service life, and convenient operation. The GTYQ-QD6100 product is suitable for gases in commercial or industrial environments. The point-type gas detector converts the gas concentration signal in the air into a digital signal for display, and adopts a three-wire (4-20)mA current signal output mode, four-wire or two-wire digital signal output for remote transmission. It has the characteristics of long transmission distance and good anti-interference performance. The point-type gas detector is suitable for industrial sites with gases such as oil refineries, chemical plants, liquefied gas stations, gas-fired boiler rooms, refueling and gas filling stations, and spray painting rooms to carry out gas safety detection and alarm.
Functions Features
- High detection accuracy, adjustable range.
- Long service life, high sensitivity, low drift, and stable and reliable operation.
- Self-detection of sensor faults, two-level concentration alarm, with relay output function.
- Digital display of gas concentration and working status on LCD or digital tube.
- Has temperature compensation and automatic zero-point correction functions.
- 4-20mA standard signal output or RS485 digital output, can be uploaded to DCS and PLC systems.
- Infrared remote control mode. The detector can be adjusted without opening the cover, which is safe and convenient.
- Adopts flameproof design and is suitable for dangerous conditions in zones 1 and 2.
Technical Parameters
| Detected gases | Combustible/toxic and harmful gases |
| Detection method | Natural diffusion |
| Detection range | (3 - 100)%LEL, (0 - 30)%VOL, (0 - ***)ppm |
| Detection principle | Catalysis; Electrochemistry; Semiconductor; Infrared; Laser; PID |
| Alarm set value | 20%LEL (combustible) |
| Response time | Combustible: < 30s; Toxic: < 60s |
| Working temperature | -40℃ to +70℃ (combustible); -20℃ to +50℃ (toxic gas) |
| Relative humidity | ≤ 93%RH |

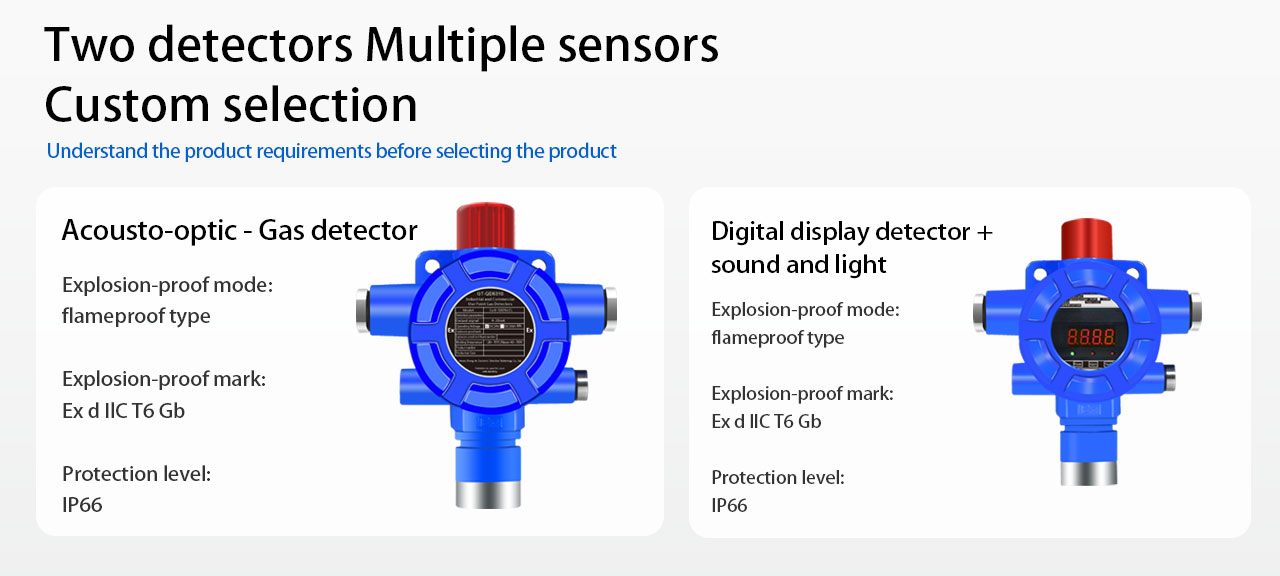

| Explosion-proof method | Flameproof type |
| Cable used | Three-wire system: RVVP > 3x1.5mm2, Four-bus: RVVP > 4x1.5mm2, Two-bus: RVVP > 2x1.5mm2 |
| Application place | Used in dangerous places with explosive combustible gases of IA - IC grades and temperature groups of T1 - T6 |
| Whole machine weight | ≤1000g |

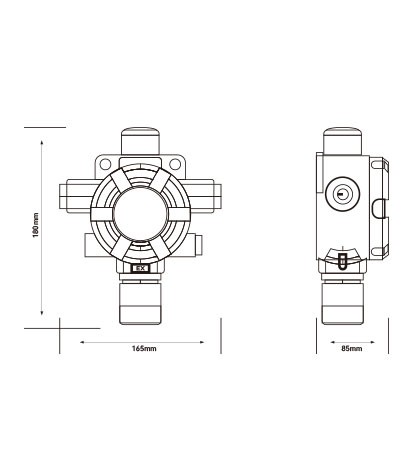

| Size | (183 X 155 X 76)mm |
| Pressure limit | 86KPa - 106KPa |
| Protection level | IP66 |
| Power supply | DC24V(1 ± 10)% |
| Power consumption | ≤3W |
| Explosion-proof mark | Ex d IICT6 Gb/Ex tD A21 IP66 T80°C |
| Explosion-proof certificate number | CNEx22.0747X |
| Common Gas Parameter listing | ||||
| Gas detected | Measuring Range | Optional Range | Resolution Rat | Response Time |
| LEL -combustible gas | 0-100%LEL | 0-100%VOL（Infrared or catalytic ） | 1%LEL/1%vol | ≤10s |
| carbon monoxide | 0-1000PPm | 0-500/2000/5000PPm | 0.1/1PPm | ≤10s |
| TVOC | 0-100PPM | 0-100PPM | 0.1PPm/1PPM | ≤15s |
| hydrogen | 0-100%LEL | 0-1000PPM | 1%LEL/1PPM | ≤15s |
| natural gas | 0-100%LEL | 0-100%LEL | 1%LEL | ≤10s |
| Oxygen-O2 | 0-30%VOL | 0-30%、0-100%VOL | 0.1%vol | ≤10s |
| ozone | 0-10PPm | 0-20、100PPm | 0.01PPm/0.1PPM | ≤15s |
| hydrogen sulfide-H2S | 0-100PPm | 0-50、200、1000PPm | 1/0.1PPm | ≤10s |
| Methane-CH4 | 0-100%LEL | 0-100%VOL | 1%LEL/1%vol | ≤10s |
| fluorine | 0-10PM | 0-1、10PPM | 1/0.1PPm | ≤15s |
| hydrogen chloride | 0-20PPm | 0-20/50PPm/100PPM | 0.01/0.1PPm | ≤15s |
| Nitrogen-N2 | 0-30%VOL | 0-30%VOL、100%VOL | 0.1%LEL/1PPM | ≤10s |
| hydrogen | 0-100%LEL | 0-1000PPm | 1%LEL/0.1PPm | ≤15s |
| chlorine | 0-20PPm | 0-10、100PPm | 0.1PPm | ≤15s |
| ammonia gas | 0-100PPm | 0-50、500、1000PPm | 1/0.1PPm | ≤15s |
| oxynitride | 0-20PPm | 0-50、1000PPm | 0.1/1PPm | ≤15s |
| methanal | 0-20PPm | 0-50、100PPm | 1/0.1PPm | ≤15s |
| sulfur dioxide | 0-20PPm | 0-50、1000PPm | 0.1/1PPm | ≤15s |
| nitric oxide | 0-250PPm | 0-500、1000PPm | 1PPm | ≤15s |
| nitrogen dioxide | 0-20PPm | 0-50、1000PPm | 0.1/1PPm | ≤15s |
| phosphine | 0-20PPm | 0-20、100PPm | 0.1PPm | ≤15s |
| acrylonitrile | 0-100PPM | 0-100PPm | 0.1/1PPm | ≤15s |
| carbon dioxide | 0-5000PPm | 0-1%/5%/10%VOL(Infrared ) | 1PPM/0.01%VOL | ≤15s |
| hydrogen fluoride | 0-10PPm | 0-1、10、50、100PPM | 0.01/0.1PPm | ≤15s |
| Xylene/methylbenzene | 0-20PPm | 0-5、10、50、100PPm | 0.01/0.1PPm | ≤15s |
| oxirane | 0-100PPm | 0-100PPm | 1/0.1PPm | ≤15s |
| For other gases and measuring ranges, please contact us directly! | ||||
