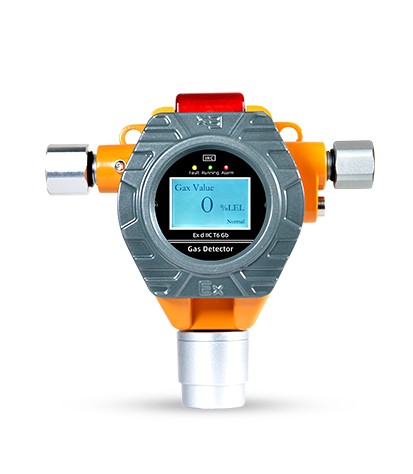

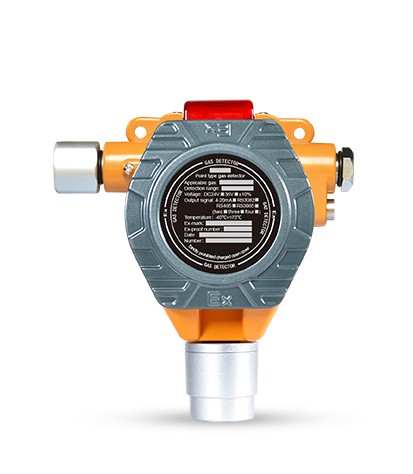

Zhongan S103 point four-wire gas detector

Detection gas	combustible/toxic and harmful gas (see attached table)
Detection method	natural diffusion
Detection principle	catalysis; electrochemistry; semiconductor; infrared
Detection range	(0~100%) LEL; 0-****PPM

Mobile/whatsapp: +86-13333857585

Email: [email protected]

We're here to help:Easy ways to get the answers you need.

Description Functions Features Technical Parameters Get In Touch

Description

Zhongan S103 integrated point gas detector can meet the sound and light alarm prompt of gas detection site, and display the real-time monitoring of the gas concentration in the field. The infrared remote control is used for on-site debugging, and the parameters can be set without opening the cover.

Zhongan S103 type point gas detector can convert the concentration signal of air leakage gas into electrical signal for remote transmission. The instrument adopts the digital output mode of four buses, which has the advantages of long transmission distance and anti-interference. The meter is customized for wireless transmission and can be used independently. It has passive output point output or switch output and other functions.

Functions Features

Henan Zhong An Electronic Detection Technology CO.,LTD.

Technical Parameters

Detection gas	combustible/toxic and harmful gas (see attached table)
Detection method	natural diffusion
Detection principle	catalysis; electrochemistry; semiconductor; infrared
Detection range	(0~100%) LEL; 0-****PPM
Resolution	1% LEL; 1PPM/0.1PPM

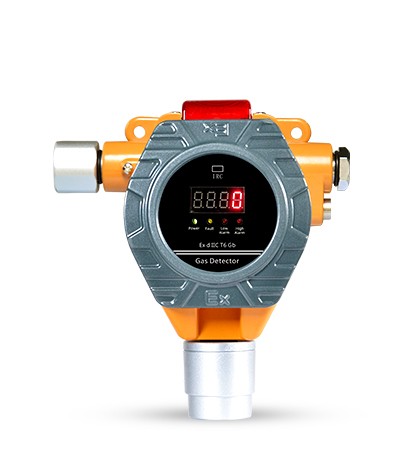

Display	LED display digital
Response time	Flammable: <15s; toxicity: <60s
Working environment	Temperature: -20℃-60℃; Humidity: <95%RH
Battery	DC24V
Alarm	sound and light alarm
Response time	flammable: <15s; toxicity: <60s
Working environment	temperature: -20℃-60℃; humidity: <95%RH
Debugging method	manipulator
Output signal	Four bus RS485
Power consumption	≤3W
Explosion-proof method	flameproof
size	(182×175×73)mm instrument
Instrument weight	1500g

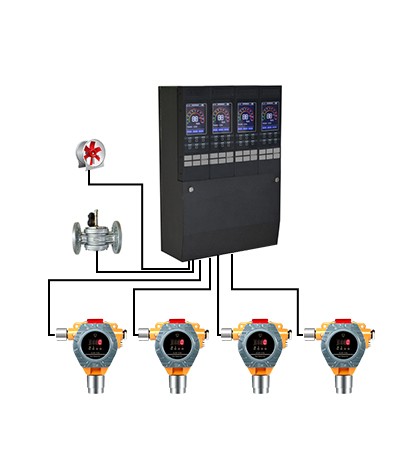

Maximum distance between detector and host	≤1000m

Common Gas Parameter listing
Gas detected	Measuring Range	Optional Range	Resolution Rat	Response Time
LEL -combustible gas	0-100%LEL	0-100%VOL（Infrared or catalytic ）	1%LEL/1%vol	≤10s
carbon monoxide	0-1000PPm	0-500/2000/5000PPm	0.1/1PPm	≤10s
TVOC	0-100PPM	0-100PPM	0.1PPm/1PPM	≤15s
hydrogen	0-100%LEL	0-1000PPM	1%LEL/1PPM	≤15s
natural gas	0-100%LEL	0-100%LEL	1%LEL	≤10s
Oxygen-O2	0-30%VOL	0-30%、0-100%VOL	0.1%vol	≤10s
ozone	0-10PPm	0-20、100PPm	0.01PPm/0.1PPM	≤15s
hydrogen sulfide-H2S	0-100PPm	0-50、200、1000PPm	1/0.1PPm	≤10s
Methane-CH4	0-100%LEL	0-100%VOL	1%LEL/1%vol	≤10s
fluorine	0-10PM	0-1、10PPM	1/0.1PPm	≤15s
hydrogen chloride	0-20PPm	0-20/50PPm/100PPM	0.01/0.1PPm	≤15s
Nitrogen-N2	0-30%VOL	0-30%VOL、100%VOL	0.1%LEL/1PPM	≤10s
hydrogen	0-100%LEL	0-1000PPm	1%LEL/0.1PPm	≤15s
chlorine	0-20PPm	0-10、100PPm	0.1PPm	≤15s
ammonia gas	0-100PPm	0-50、500、1000PPm	1/0.1PPm	≤15s
oxynitride	0-20PPm	0-50、1000PPm	0.1/1PPm	≤15s
methanal	0-20PPm	0-50、100PPm	1/0.1PPm	≤15s
sulfur dioxide	0-20PPm	0-50、1000PPm	0.1/1PPm	≤15s
nitric oxide	0-250PPm	0-500、1000PPm	1PPm	≤15s
nitrogen dioxide	0-20PPm	0-50、1000PPm	0.1/1PPm	≤15s
phosphine	0-20PPm	0-20、100PPm	0.1PPm	≤15s
acrylonitrile	0-100PPM	0-100PPm	0.1/1PPm	≤15s
carbon dioxide	0-5000PPm	0-1%/5%/10%VOL(Infrared )	1PPM/0.01%VOL	≤15s
hydrogen fluoride	0-10PPm	0-1、10、50、100PPM	0.01/0.1PPm	≤15s
Xylene/methylbenzene	0-20PPm	0-5、10、50、100PPm	0.01/0.1PPm	≤15s
oxirane	0-100PPm	0-100PPm	1/0.1PPm	≤15s
For other gases and measuring ranges, please contact us directly!
