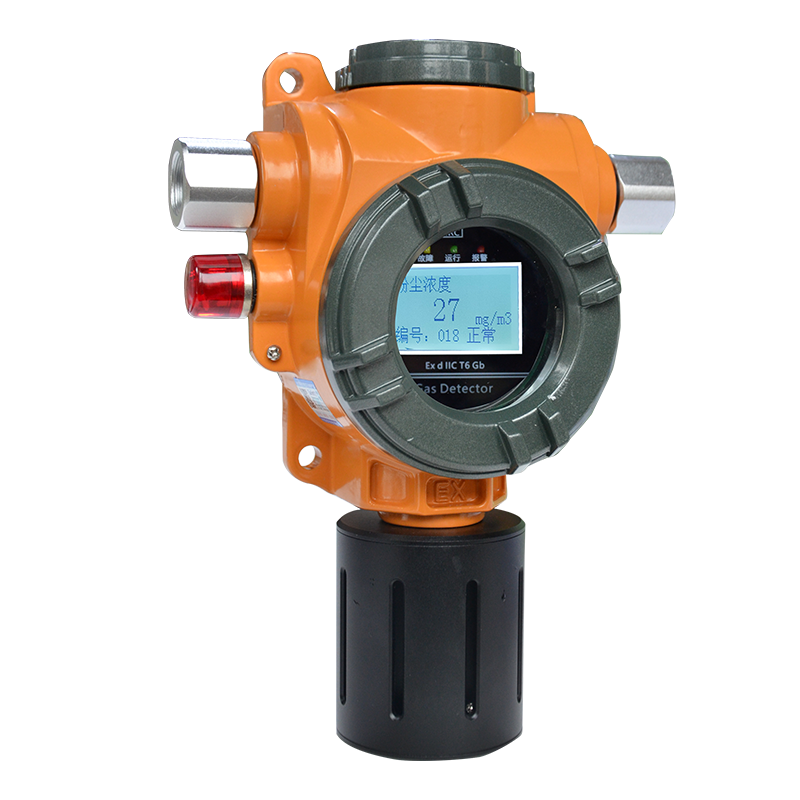

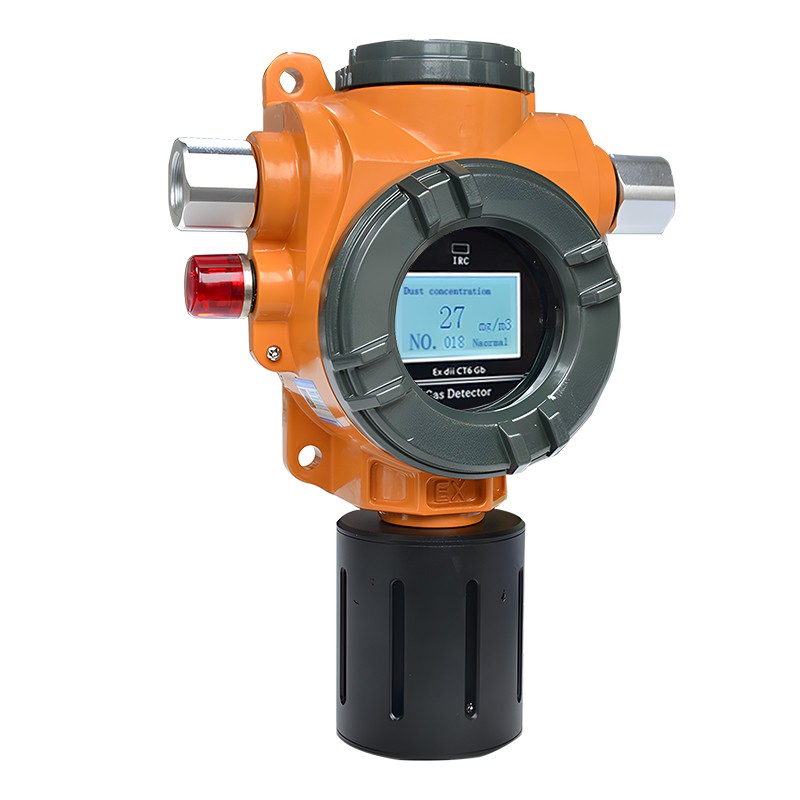

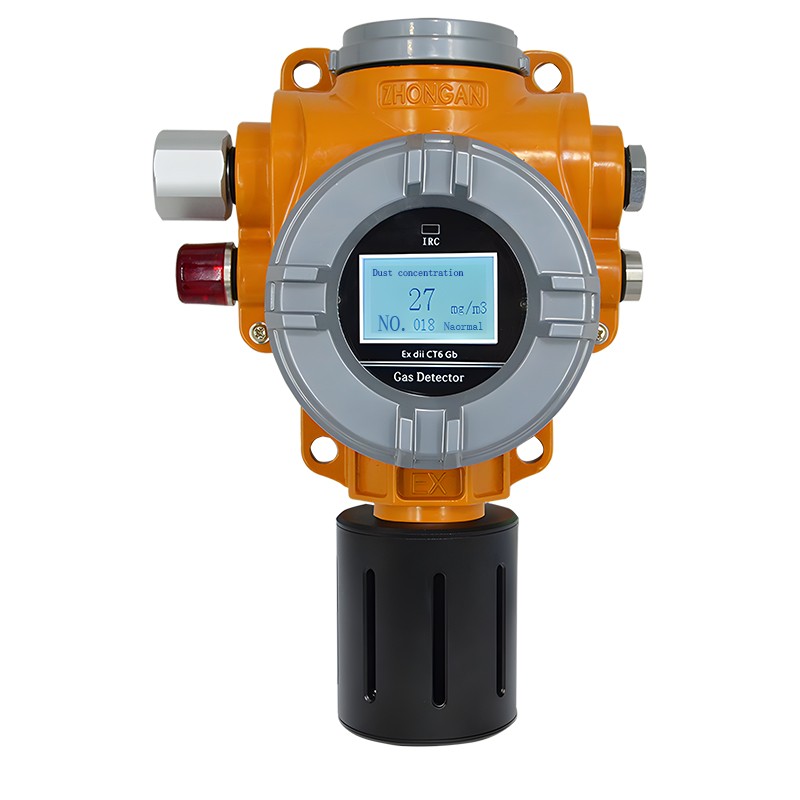

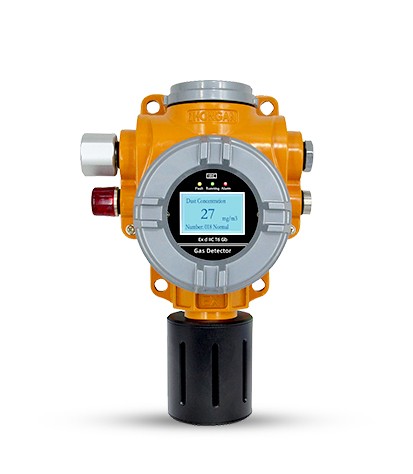

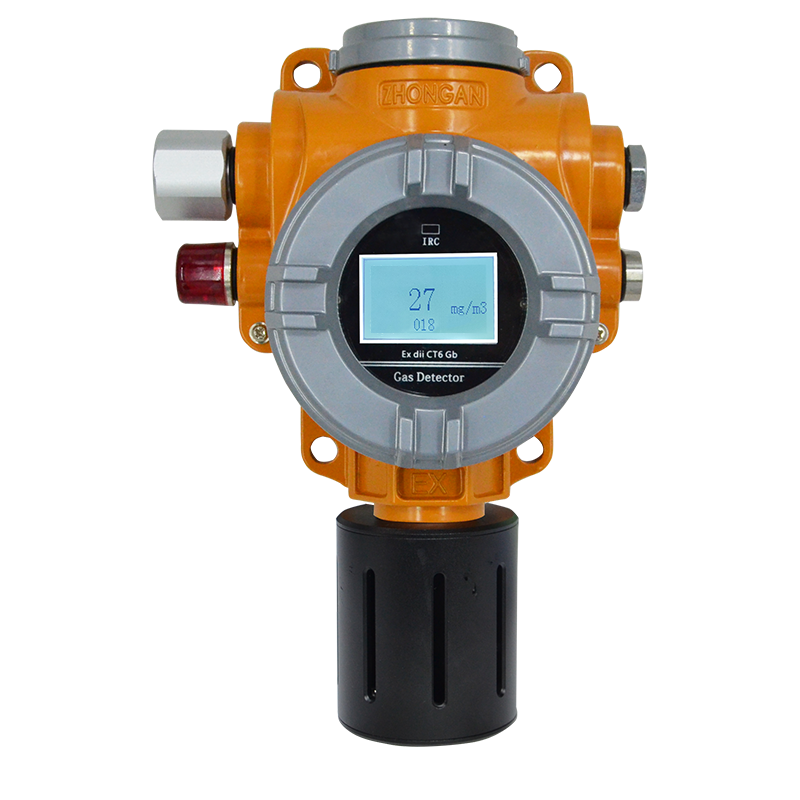

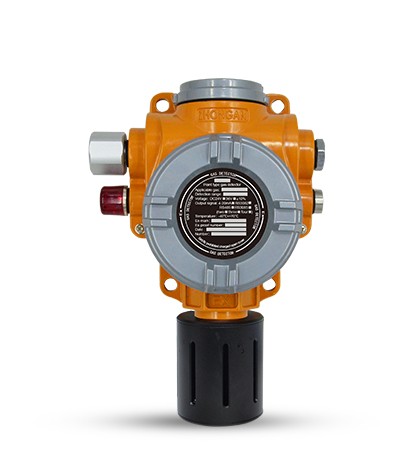

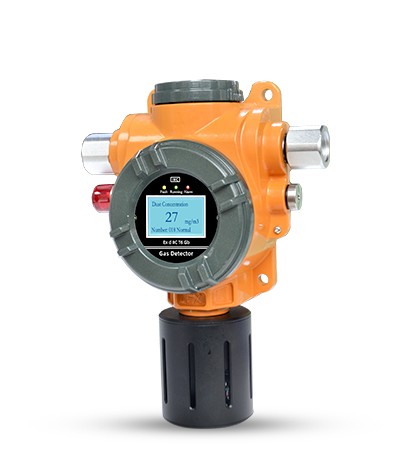

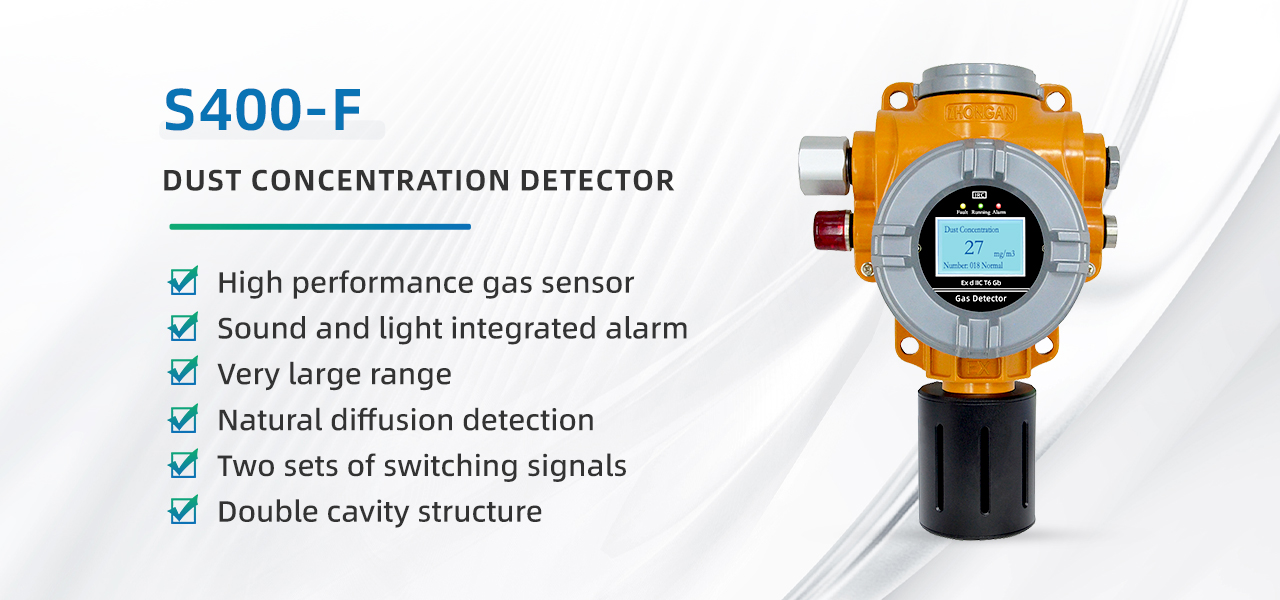

S400-F Laser Dust Sensor

Detection principle	principle of light scattering laser
Detection gas	dust
Sample mode	pump suction type
Measuring range	1ug/m3～1000ug/m3 (common range) 1mg/m3～1000mg/m3 (high range) PM2.5 PM10 PM1 (above ranges are selectable in the spot)
Resolution ratio	1mg/m3 or 1ug/m3

Mobile/whatsapp: +86-13333857585

Email: [email protected]

We're here to help:Easy ways to get the answers you need.

Description Functions Features Technical Parameters Get In Touch

Description

S400-F dust measuring instrument adopt infrared detection principle or laser detection principle, can transmit dust particles in the working environment as electrical signals over a long distance and transmit a signal to a secondary instrument. The sensor can upload computer directly or connect to DCS system.

S400-F dust measuring instrument both live deep indicator sound and spot flashing indicator light. And it can monitor dust concentration simultaneously.

S400-F dust measuring instrument can adopt in chemical plant, smelting paper mill, milling plant, coal mining plant, pharmaceutical workshop, oil refining, mining power, fire control municipal and communication industry which need prevent dust and explosion industrial environment.

Functions Features

Henan Zhong An Electronic Detection Technology CO.,LTD.

Technical Parameters

Detection principle	Principle of light scattering laser
Detection gas	Dust
Sample mode	pump suction type
Measuring range	1ug/m3～1000ug/m3 (common range) 1mg/m3～1000mg/m3 (high range) PM2.5 PM10 PM1 (above ranges are selectable in the spot)
Resolution ratio	1mg/m3 or 1ug/m3
Respond time	≤30s
Working voltage	DC24V±10%
Power dissipation	≤3W
Output signals	4～20mA or RS485
Relative humidity	≤93%;
Pressure	86 kPa～110kPa
Status indication	LCD
Debug mode	remote control
Working environment	-20℃～50℃
Anti-hazard classification	Ex ia IIC T6 Ga
Levels of protection	IP65
Explosion-proof certificate number	CLEx24.1033X
Size	25cm×19cm×9cm

Get In Touch

Please feel free to submit your inquiry information to us! our sales manager will contact with you as soon as possible.

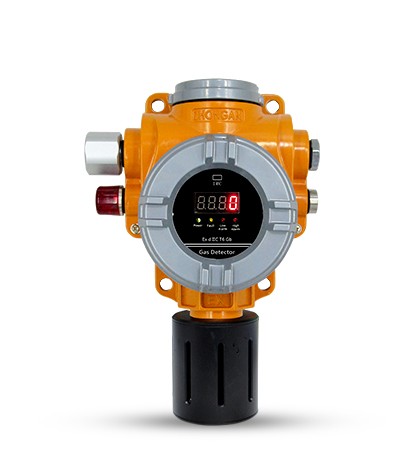

S400-W fixed gas detector + mobile battery
