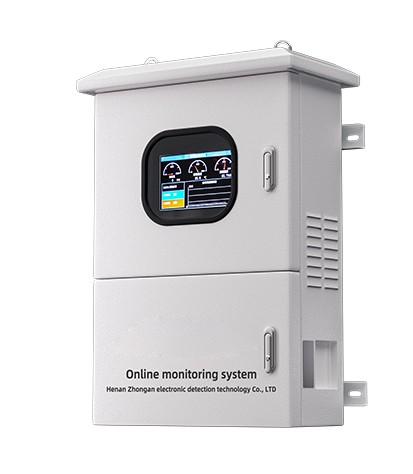

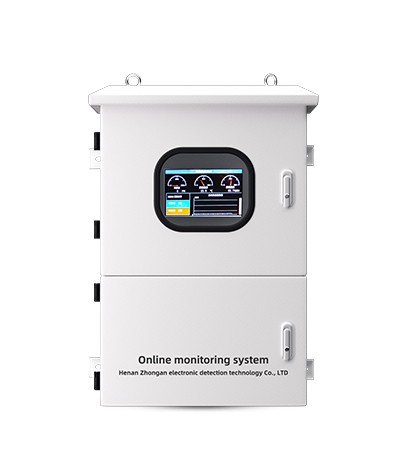

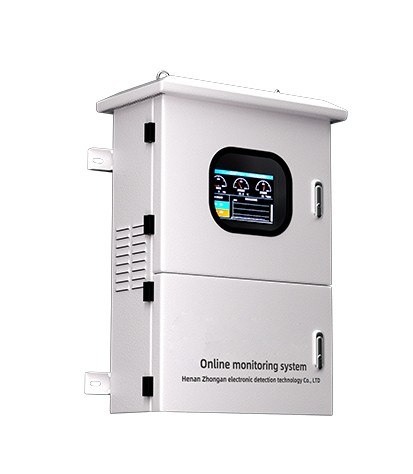

S400-T Online monitoring system (explosion-proof type)

Detection principle	High Precision PID Photoion
Gas detected	VOCS、O2, NH3 etc
Sampling mode	Pump-suction measurement
Detection range	0～10、200、2000、10000ppm，can be customized
Resolution ratio	0.01ppm（0～100 ppm）；0.1ppm（0～1000 ppm）；1ppm（>1000ppm）

Mobile/whatsapp: +86-13333857585

Email: [email protected]

We're here to help:Easy ways to get the answers you need.

Description Functions Features Technical Parameters Get In Touch

Description

The S400-T VOCS on-line filtration monitoring system can be used to detect VOCS gas concentration, Once the gas concentration exceeds the standard, it will alarm and prompt. It can accurately detect VOCS gas concentration and display real-time concentration value and standard signal output on site. It has the advantages of stable signal, high sensitivity and accuracy. Flameproof wiring mode is suitable for all kinds of dangerous places.

Functions Features

Henan Zhong An Electronic Detection Technology CO.,LTD.

Technical Parameters

Detection principle	High Precision PID Photoion
Gas detected	VOCS gas
Sampling mode	Pump-suction measurement
Detection range	0～10、200、2000、10000ppm，can be customized
Resolution ratio	0.01ppm（0～100 ppm）；0.1ppm（0～1000 ppm）；1ppm（>1000ppm）
Response time	T90≤30S
Environment temperature	(-10-55)℃, Pretreatment system need to be customized or selected for higher temperature environments
Power	AC220V±10% 50Hz
Output signal	4~20mA, Bus RS485-RTU (can be uploaded to environmental protection department for communication with digitizer)
Relative humidity	≤95%RH(Non-condensation place), Pretreatment system need to be customized or selected for use in higher humidity environments
Explosive proof mode	Flameproof (customized)
Ingress protection	IP65
Alarm mode	Sound and light alarm, alarm point can be set

Get In Touch

Please feel free to submit your inquiry information to us! our sales manager will contact with you as soon as possible.

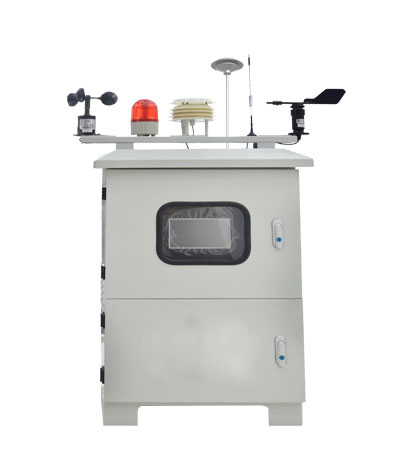

S320 Integrated Air Quality Monitor
