Output signal |
70 ± 250 nA / ppm |
Typical Baseline Range (pure air) |
≥±2 ppm CO equivalent |
Fiter Capacity |
﹥2000 ppm hours |
T90 Response Time |
< 30 seconds |
Performance Characte ristics |
|
Output signal |
70 ± 250 nA / ppm |
Typical Baseline Range (pure air) |
≥±2 ppm CO equivalent |
Fiter Capacity |
﹥2000 ppm hours |
T90 Response Time |
< 30 seconds |

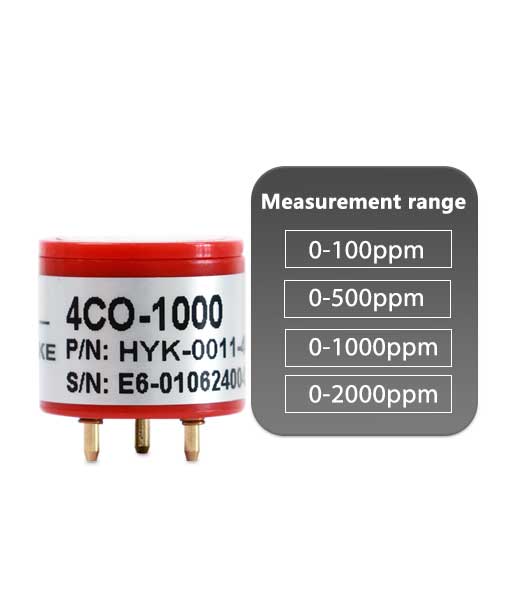

Measurement Range |
0 - 2000 ppm |
Maximum Overload |
5000 ppm |
Linearity |
Linear up 2000ppm |
Repeatability |
< ±2% CO equivalent |
Recommended Load Resistor |
10 ohms |
Resolution (Electronics dependent) |
< 0.5 ppm typical |
Environmental |
|
Temperature Range Continuous |
-30oC to +50oC |
Pressure Range |
800 to 1200 mbar |
Operating Humidity Range |
15% to 90% RH |
Lifetime |
|
Long Term Output Drift |
< 5% per annum |
Recommended Storage Temp |
0oC to 20oC |
Expected Operating Life |
> 24 months in air |
Standard Warranty |
24 months from date of dispatch |
Intrinsic Safety Da ta |
|
Maximum at 2000 ppm |
0.3 mA |
Maximum o/c Voltage |
1.3 V |
Maximum s/c Current |
<1.0 A |
