The product on the basis of the original handheld Internet of things, smart helmet interconnection, background data accurate positioning, monitoring; Can improve the security industry data iot, multi-dimensional monitoring interconnection, data centralized monitoring; The functions of walkie-talkie, positioning, gas (toxic and harmful, combustible monitoring, etc.) are integrated for real-time online monitoring and early warning of the working environment during the operation of employees to ensure the safety of employees.
Functions Features
Technical Parameters
Product Model

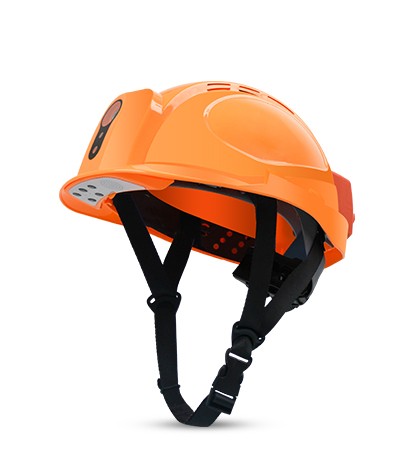

SGH001

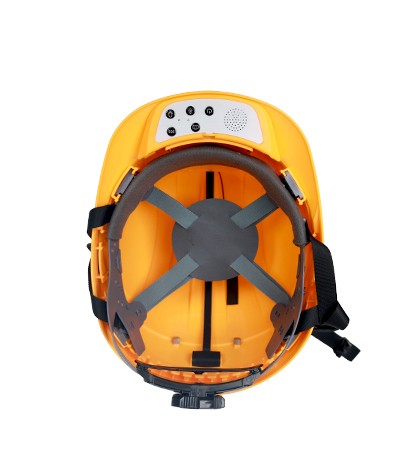

Shock-absorbing Lining
Effectively disperses impact force and protects the head
HD Camera
Real-time upload of video data, one-touch capture and upload to the cloud platform

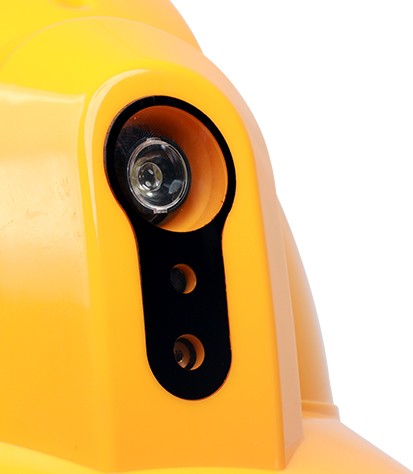

LED Lighting
High-power lighting

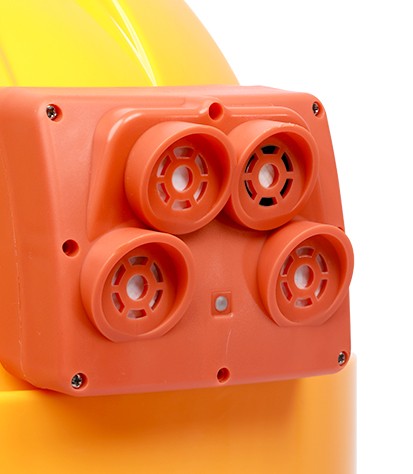

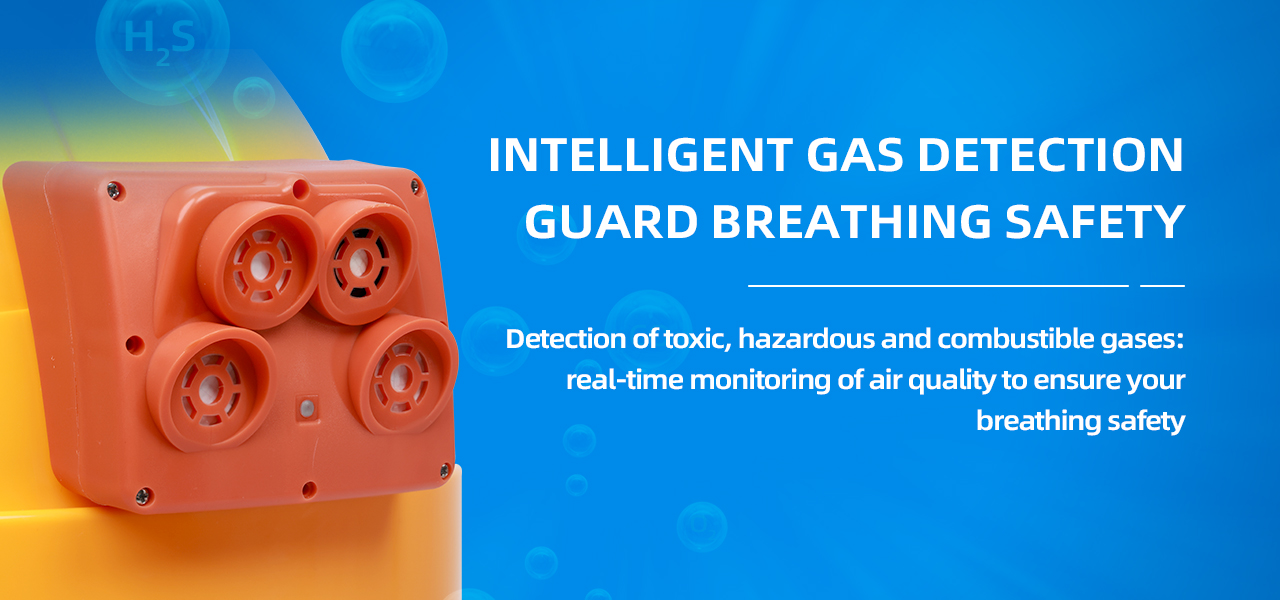

Gas Detection
Can detect toxic, harmful, flammable and other gases

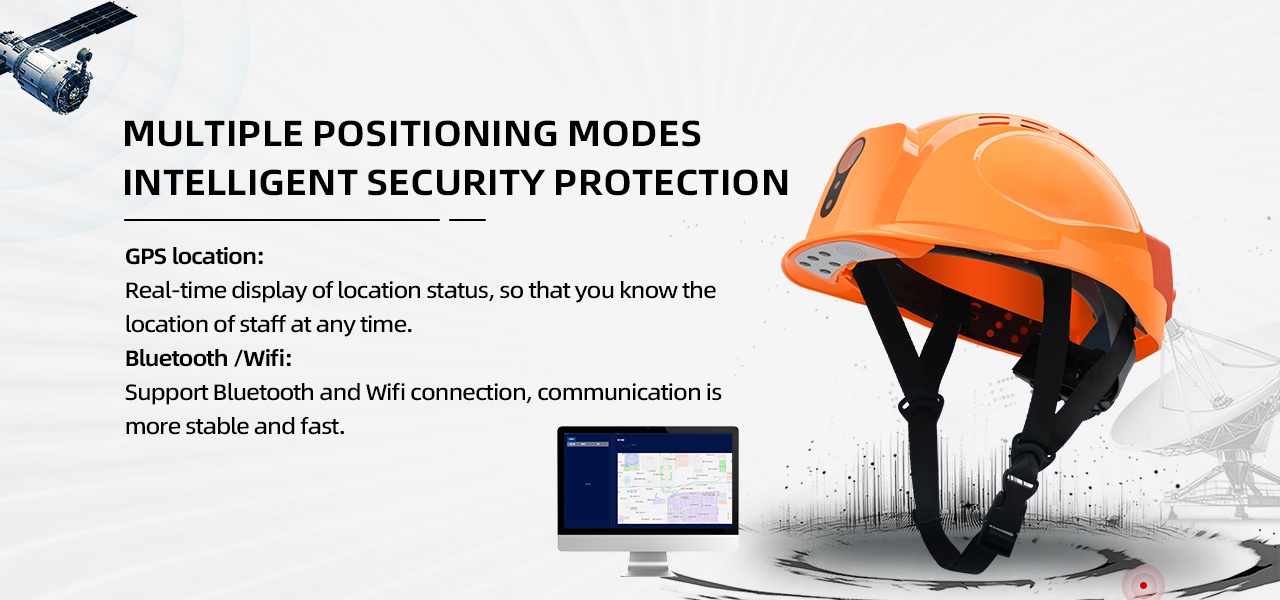

Personnel Positioning
Supports real-time positioning of personnel

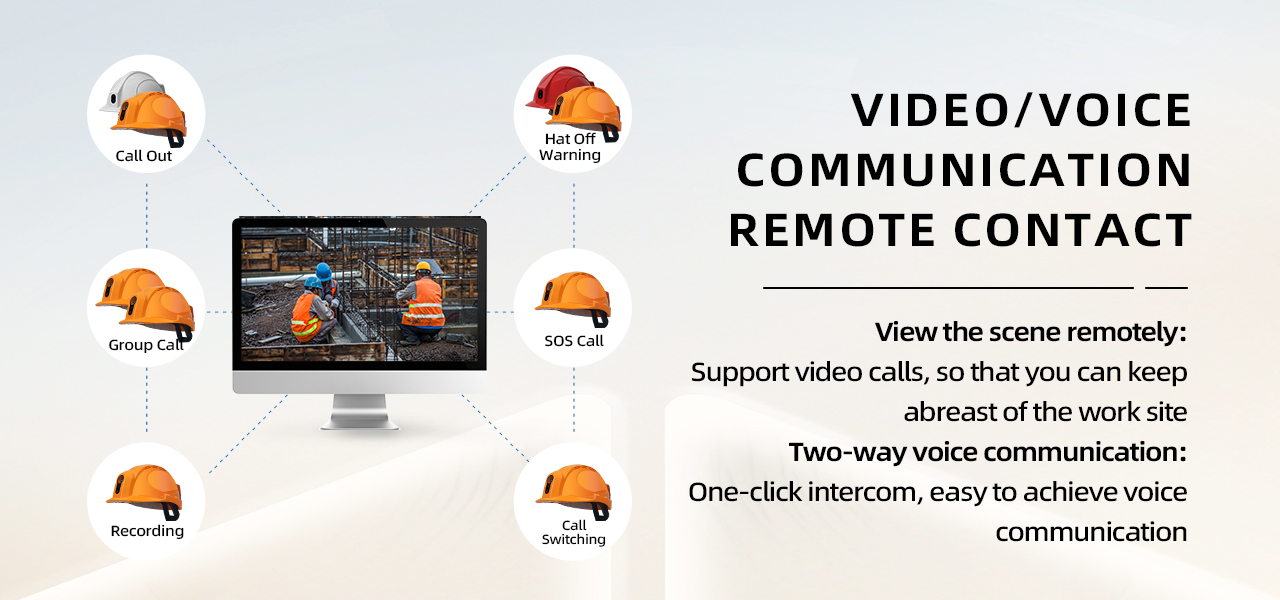

Video/Voice
Remotely view the on-site situation and realize two-way voice communication
One-touch Alarm
Upload SOS request, request video call
Common Gas Parameter listing
Gas detected
Measuring Range
Optional Range
Resolution Rat
Response Time
LEL -combustible gas
0-100%LEL
0-100%VOL（Infrared or catalytic ）
1%LEL/1%vol
≤10s
carbon monoxide
0-1000PPm
0-500/2000/5000PPm
0.1/1PPm
≤10s
TVOC
0-100PPM
0-100PPM
0.1PPm/1PPM
≤15s
hydrogen
0-100%LEL
0-1000PPM
1%LEL/1PPM
≤15s
natural gas
0-100%LEL
0-100%LEL
1%LEL
≤10s
Oxygen-O2
0-30%VOL
0-30%、0-100%VOL
0.1%vol
≤10s
ozone
0-10PPm
0-20、100PPm
0.01PPm/0.1PPM
≤15s
hydrogen sulfide-H2S
0-100PPm
0-50、200、1000PPm
1/0.1PPm
≤10s
Methane-CH4
0-100%LEL
0-100%VOL
1%LEL/1%vol
≤10s
fluorine
0-10PM
0-1、10PPM
1/0.1PPm
≤15s
hydrogen chloride
0-20PPm
0-20/50PPm/100PPM
0.01/0.1PPm
≤15s
Nitrogen-N2
0-30%VOL
0-30%VOL、100%VOL
0.1%LEL/1PPM
≤10s
hydrogen
0-100%LEL
0-1000PPm
1%LEL/0.1PPm
≤15s
chlorine
0-20PPm
0-10、100PPm
0.1PPm
≤15s
ammonia gas
0-100PPm
0-50、500、1000PPm
1/0.1PPm
≤15s
oxynitride
0-20PPm
0-50、1000PPm
0.1/1PPm
≤15s
methanal
0-20PPm
0-50、100PPm
1/0.1PPm
≤15s
sulfur dioxide
0-20PPm
0-50、1000PPm
0.1/1PPm
≤15s
nitric oxide
0-250PPm
0-500、1000PPm
1PPm
≤15s
nitrogen dioxide
0-20PPm
0-50、1000PPm
0.1/1PPm
≤15s
phosphine
0-20PPm
0-20、100PPm
0.1PPm
≤15s
acrylonitrile
0-100PPM
0-100PPm
0.1/1PPm
≤15s
carbon dioxide
0-5000PPm
0-1%/5%/10%VOL(Infrared )
1PPM/0.01%VOL
≤15s
hydrogen fluoride
0-10PPm
0-1、10、50、100PPM
0.01/0.1PPm
≤15s
Xylene/methylbenzene
0-20PPm
0-5、10、50、100PPm
0.01/0.1PPm
≤15s
oxirane
0-100PPm
0-100PPm
1/0.1PPm
≤15s
For other gases and measuring ranges, please contact us directly!
