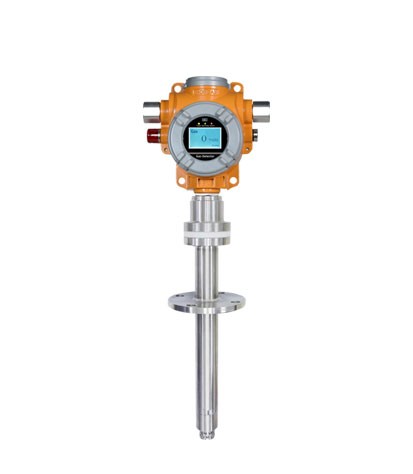

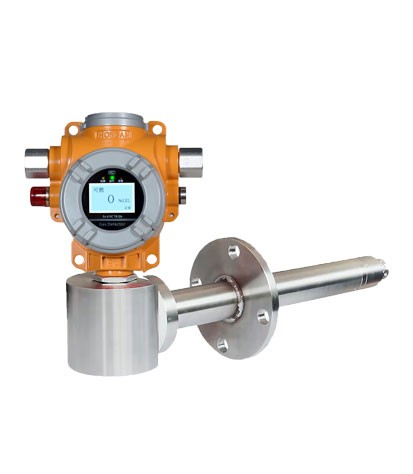

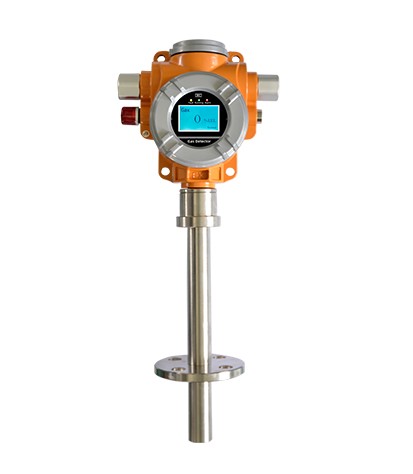

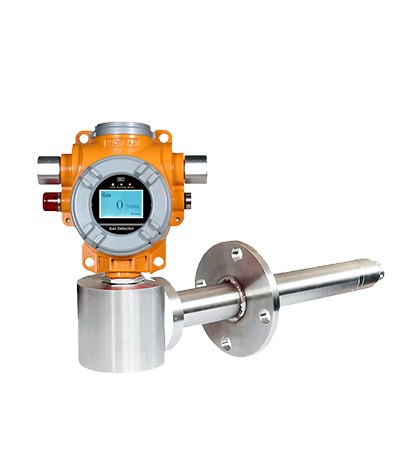

S400-G Split-type Gas Detector

Detection Principle	Catalytic combustion type; Electrochemical; Infrared
Detected Gas	Combustible gas; Liquid vapor TVOC; Toxic and harmful; Oxygen
Test Range	(0 - 100%) LEL; 0 - ****PPM
Resolution	1% LEL; 1PPM/0.1PPM

Mobile/whatsapp: +86-13333857585

Email: [email protected]

We're here to help:Easy ways to get the answers you need.

Description Functions Features Technical Parameters Get In Touch

Description

The S400-G is a smart multi-functional gas detection instrument. The instrument is manufactured by combining advanced fully automatic surface-mounting technology with high-performance detection components and computer micro-control technology. The product has functions such as on-site buzzer indication sound and on-site flashing indicator light, and displays the gas concentration at the monitoring site in real time.

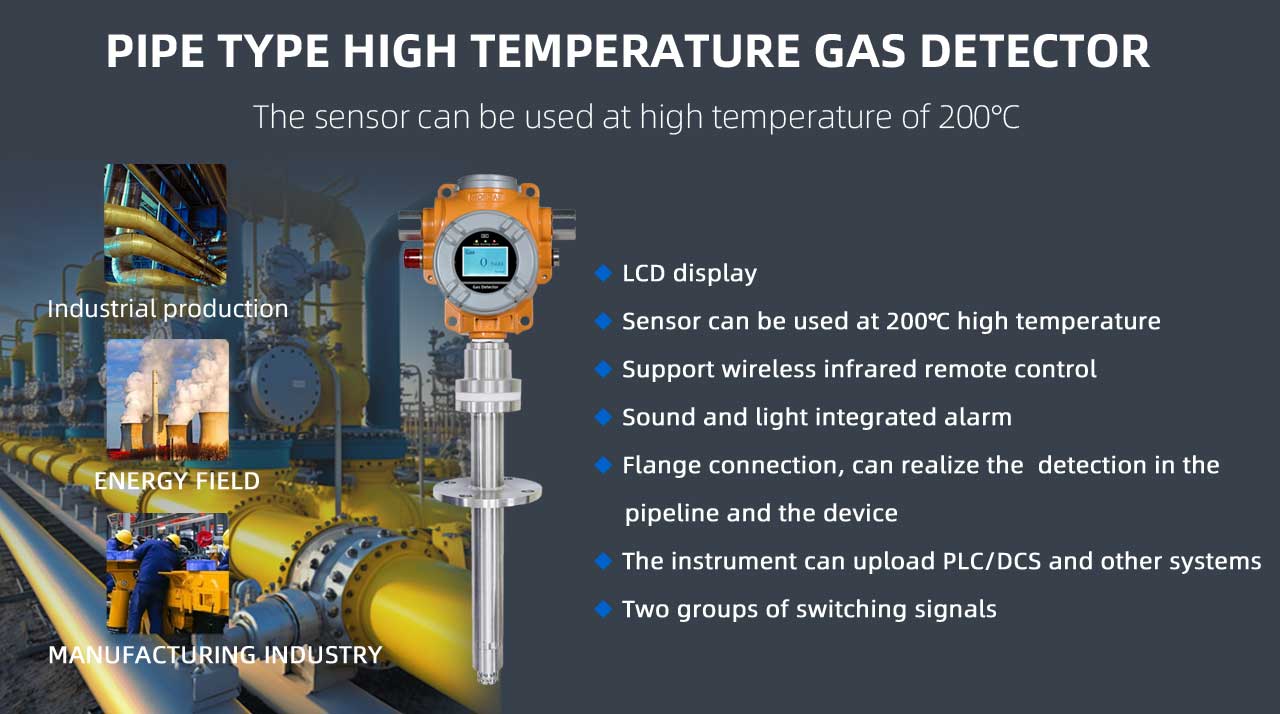

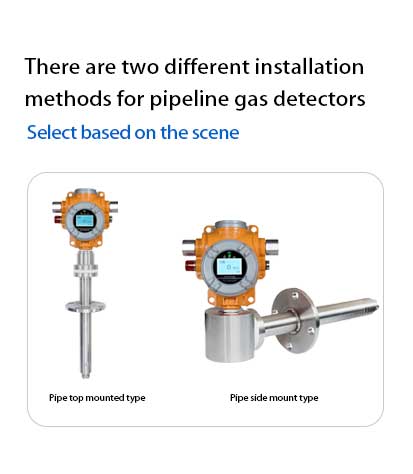

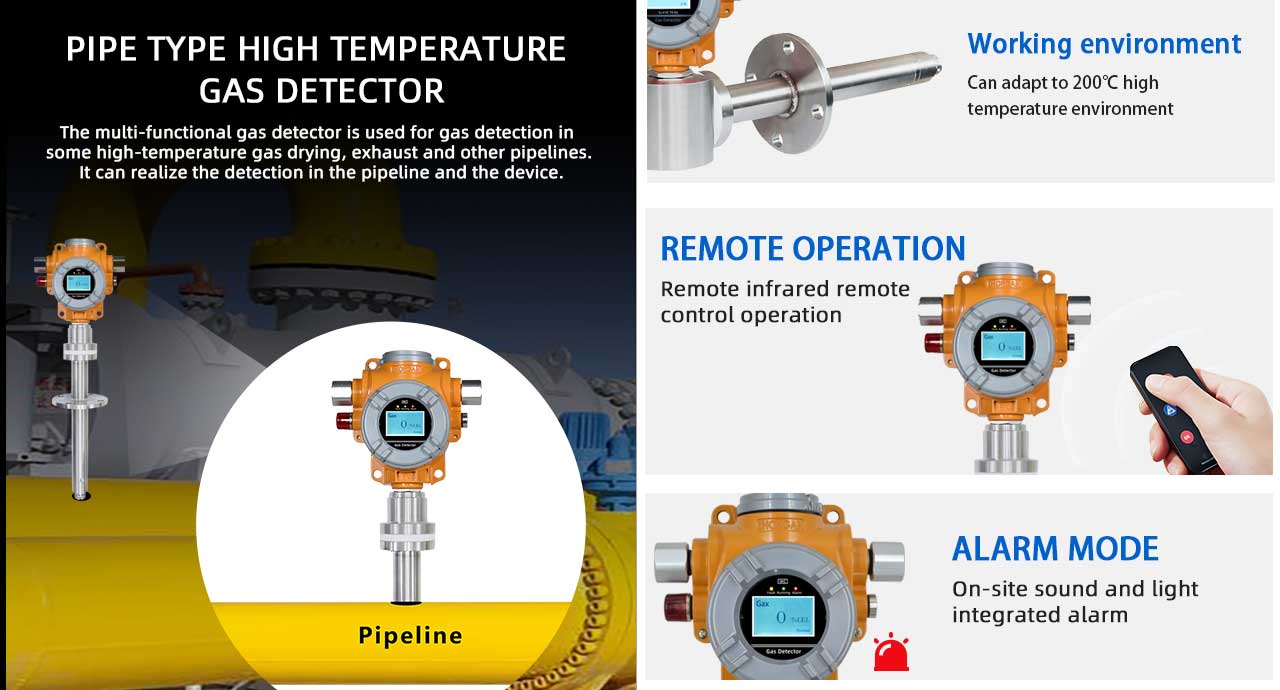

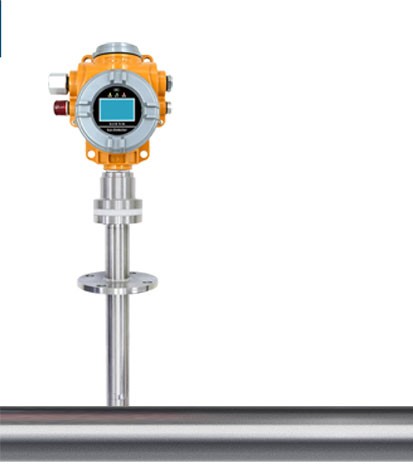

The S400-G split-type gas detector is used for gas detection in some pipes such as those for high-temperature gas drying and exhaust. It can achieve detection inside pipes and devices.

Functions Features

Henan Zhong An Electronic Detection Technology CO.,LTD.

Technical Parameters

Detection Principle	Catalytic combustion type; Electrochemical; Infrared
Detected Gas	Combustible gas; Liquid vapor TVOC; Toxic and harmful; Oxygen
Test Range	(0 - 100%) LEL; 0 - ****PPM
Resolution	1% LEL; 1PPM/0.1PPM
Measurement Error	±3% LEL of full scale
Status Indication	LCD indication
Debugging Method	Controller
Environmental Temperature	- 20℃ - 50℃
Relative Humidity	< 95%
Protection Grade	IP65
Power Supply	DC24V ± 10%
Output Signal	4 - 20mA or RS485
Installation Thread	G1/2
Cable Used	≥ 1.5mm² × 3; ≥ 1.5mm² × 4
Maximum Distance between Detector and Host	≤ 1500m
Whole Machine Weight	≤ 3000g

Common Gas Parameter listing
Gas detected	Measuring Range	Optional Range	Resolution Rat	Response Time
LEL -combustible gas	0-100%LEL	0-100%VOL（Infrared or catalytic ）	1%LEL/1%vol	≤10s
carbon monoxide	0-1000PPm	0-500/2000/5000PPm	0.1/1PPm	≤10s
TVOC	0-100PPM	0-100PPM	0.1PPm/1PPM	≤15s
hydrogen	0-100%LEL	0-1000PPM	1%LEL/1PPM	≤15s
natural gas	0-100%LEL	0-100%LEL	1%LEL	≤10s
Oxygen-O2	0-30%VOL	0-30%、0-100%VOL	0.1%vol	≤10s
ozone	0-10PPm	0-20、100PPm	0.01PPm/0.1PPM	≤15s
hydrogen sulfide-H2S	0-100PPm	0-50、200、1000PPm	1/0.1PPm	≤10s
Methane-CH4	0-100%LEL	0-100%VOL	1%LEL/1%vol	≤10s
fluorine	0-10PM	0-1、10PPM	1/0.1PPm	≤15s
hydrogen chloride	0-20PPm	0-20/50PPm/100PPM	0.01/0.1PPm	≤15s
Nitrogen-N2	0-30%VOL	0-30%VOL、100%VOL	0.1%LEL/1PPM	≤10s
hydrogen	0-100%LEL	0-1000PPm	1%LEL/0.1PPm	≤15s
chlorine	0-20PPm	0-10、100PPm	0.1PPm	≤15s
ammonia gas	0-100PPm	0-50、500、1000PPm	1/0.1PPm	≤15s
oxynitride	0-20PPm	0-50、1000PPm	0.1/1PPm	≤15s
methanal	0-20PPm	0-50、100PPm	1/0.1PPm	≤15s
sulfur dioxide	0-20PPm	0-50、1000PPm	0.1/1PPm	≤15s
nitric oxide	0-250PPm	0-500、1000PPm	1PPm	≤15s
nitrogen dioxide	0-20PPm	0-50、1000PPm	0.1/1PPm	≤15s
phosphine	0-20PPm	0-20、100PPm	0.1PPm	≤15s
acrylonitrile	0-100PPM	0-100PPm	0.1/1PPm	≤15s
carbon dioxide	0-5000PPm	0-1%/5%/10%VOL(Infrared )	1PPM/0.01%VOL	≤15s
hydrogen fluoride	0-10PPm	0-1、10、50、100PPM	0.01/0.1PPm	≤15s
Xylene/methylbenzene	0-20PPm	0-5、10、50、100PPm	0.01/0.1PPm	≤15s
oxirane	0-100PPm	0-100PPm	1/0.1PPm	≤15s
For other gases and measuring ranges, please contact us directly!
