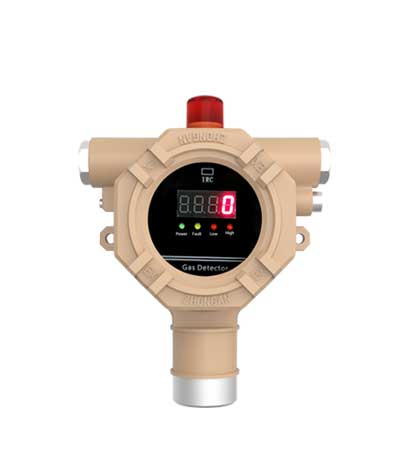

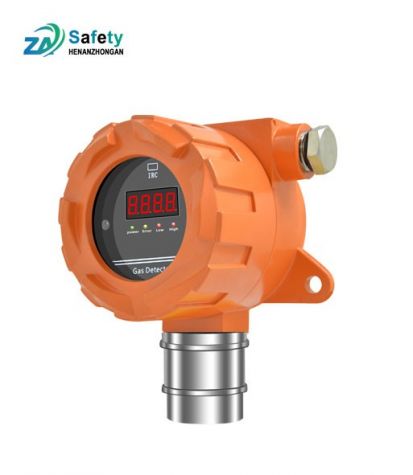

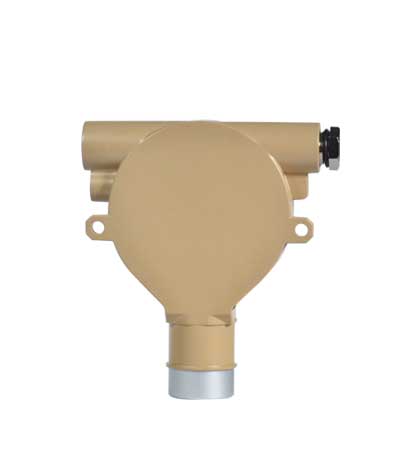

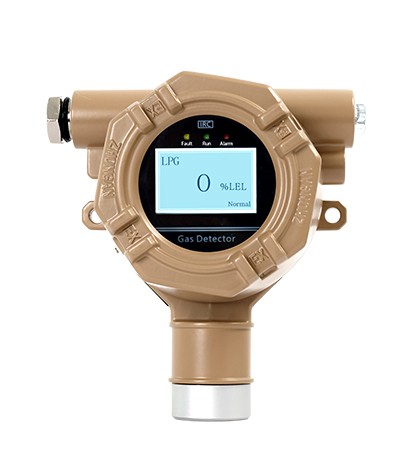

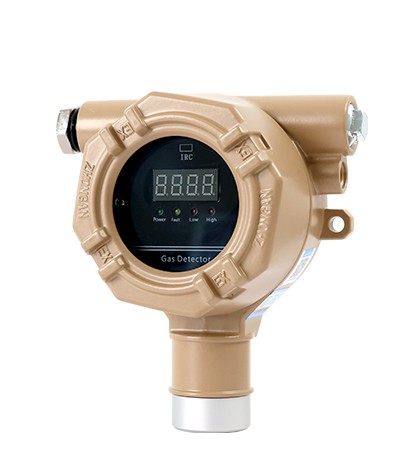

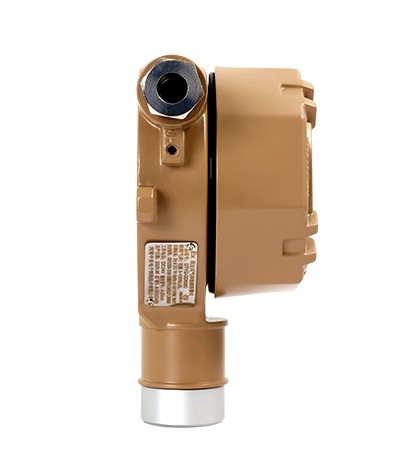

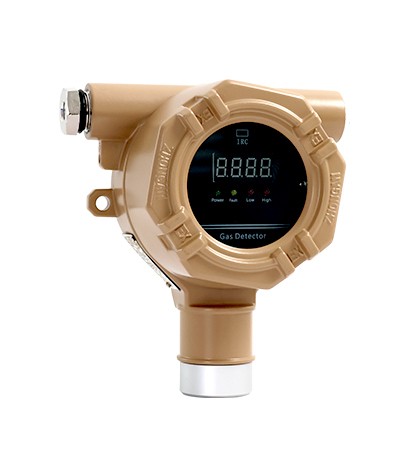

GT/GTYQ-QD6360 fixed gas detector

Sampling mode	Natural diffusion
Detection range	（3～100%）LEL；0-****PPM
Resolving	1%LEL；1PPM/0.1PPM
Measurement error	±3%LEL
Status indication	LCD

Mobile/whatsapp: +86-13333857585

Email: [email protected]

We're here to help:Easy ways to get the answers you need.

Description Functions Features Technical Parameters Get In Touch

Description

GT/GTYQ-QD6360 gas detector can be used in places where flammable and explosive gases leak and chemical plants where toxic and harmful exist. The instrument adopts international high-performance sensor technology, and the product has the advantages of stable signal and high precision.

Functions Features

Henan Zhong An Electronic Detection Technology CO.,LTD.

Technical Parameters

Detection principle	Catalytic / Electrochemical / Infrared / Laser / PID
Sampling method	Natural diffusion
Detection range	（3～100%）LEL；0-****PPM
Working power supply	DC24V ± 10

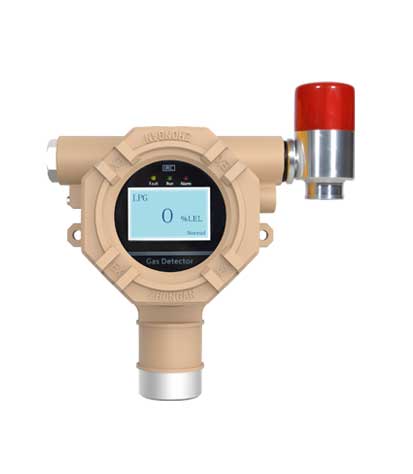

Display mode	LCD display, LED display
Output signal	Three-wire 4-20mA analog signal or four-wire RS485 output
Switch quantity	1 (normally open at the second-level alarm point)
Power consumption	≤ 3W
Debugging method	Infrared remote control
Ambient temperature	-40℃ - 70℃(combustible)、-20℃ - 50℃(toxic gas)
Relative humidity	< 93%

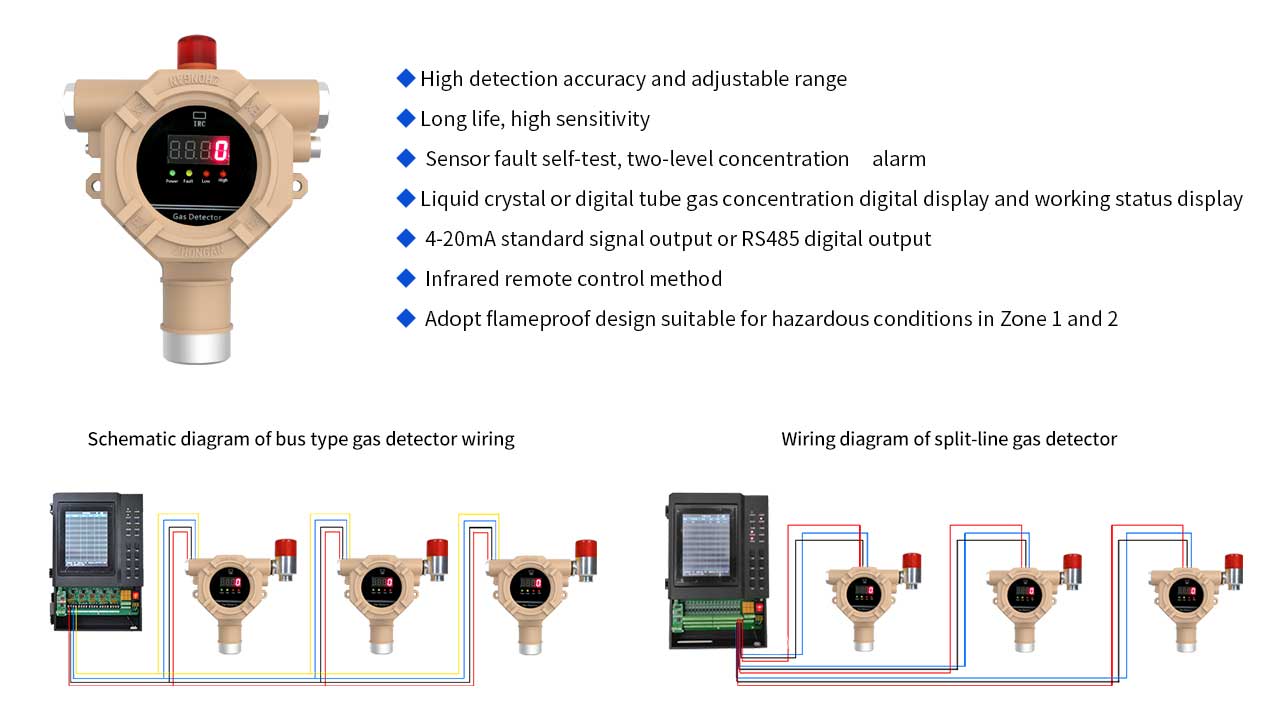

Cable requirements	1.5mm2 × 3 branch lines, 1.5mm2 × 4 buses, 2.5mm2 × 2 buses

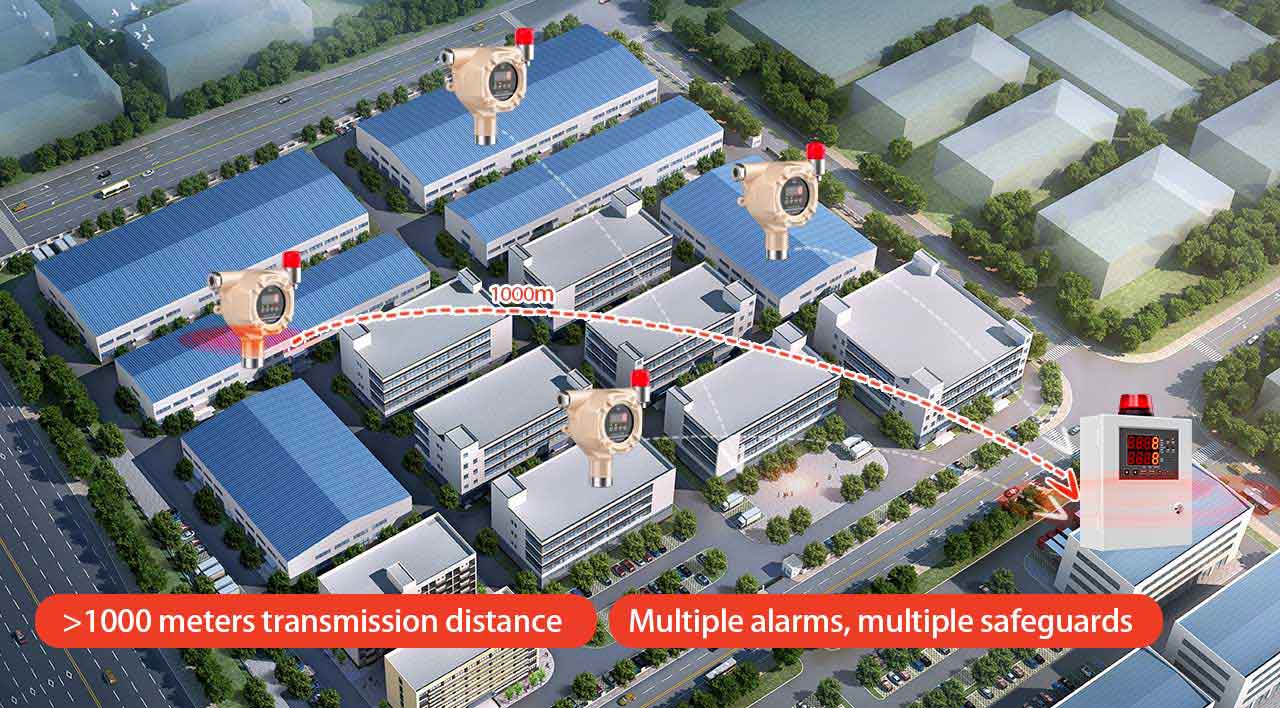

Maximum distance between detector and mainframe	≤ 1000m
Pressure limit	86kPa to 106kPa
Whole machine weight	≤ 1500g
Explosion-proof method	Flameproof type
Explosion-proof grade	Ex ia IIC T6 Ga; Ex ib IIIC T80°C Db
Explosion-proof certificate number	CLEx24.1033X

Common Gas Parameter listing
Gas detected	Measuring Range	Optional Range	Resolution Rat	Response Time
LEL -combustible gas	0-100%LEL	0-100%VOL（Infrared or catalytic ）	1%LEL/1%vol	≤10s
carbon monoxide	0-1000PPm	0-500/2000/5000PPm	0.1/1PPm	≤10s
TVOC	0-100PPM	0-100PPM	0.1PPm/1PPM	≤15s
hydrogen	0-100%LEL	0-1000PPM	1%LEL/1PPM	≤15s
natural gas	0-100%LEL	0-100%LEL	1%LEL	≤10s
Oxygen-O2	0-30%VOL	0-30%、0-100%VOL	0.1%vol	≤10s
ozone	0-10PPm	0-20、100PPm	0.01PPm/0.1PPM	≤15s
hydrogen sulfide-H2S	0-100PPm	0-50、200、1000PPm	1/0.1PPm	≤10s
Methane-CH4	0-100%LEL	0-100%VOL	1%LEL/1%vol	≤10s
fluorine	0-10PM	0-1、10PPM	1/0.1PPm	≤15s
hydrogen chloride	0-20PPm	0-20/50PPm/100PPM	0.01/0.1PPm	≤15s
Nitrogen-N2	0-30%VOL	0-30%VOL、100%VOL	0.1%LEL/1PPM	≤10s
hydrogen	0-100%LEL	0-1000PPm	1%LEL/0.1PPm	≤15s
chlorine	0-20PPm	0-10、100PPm	0.1PPm	≤15s
ammonia gas	0-100PPm	0-50、500、1000PPm	1/0.1PPm	≤15s
oxynitride	0-20PPm	0-50、1000PPm	0.1/1PPm	≤15s
methanal	0-20PPm	0-50、100PPm	1/0.1PPm	≤15s
sulfur dioxide	0-20PPm	0-50、1000PPm	0.1/1PPm	≤15s
nitric oxide	0-250PPm	0-500、1000PPm	1PPm	≤15s
nitrogen dioxide	0-20PPm	0-50、1000PPm	0.1/1PPm	≤15s
phosphine	0-20PPm	0-20、100PPm	0.1PPm	≤15s
acrylonitrile	0-100PPM	0-100PPm	0.1/1PPm	≤15s
carbon dioxide	0-5000PPm	0-1%/5%/10%VOL (Infrared )	1PPM/0.01%VOL	≤15s
hydrogen fluoride	0-10PPm	0-1、10、50、100PPM	0.01/0.1PPm	≤15s
Xylene/methylbenzene	0-20PPm	0-5、10、50、100PPm	0.01/0.1PPm	≤15s
oxirane	0-100PPm	0-100PPm	1/0.1PPm	≤15s
For other gases and measuring ranges, please contact us directly!
