Resolution |
0.1℃ |
Repeatability measurement error |
±0.2℃ |
measuring distance |
1-3CM |
measuring time |
No more than 2 seconds |
supply voltage |
9V±0.9V |
Automatic shutdown time |
10 s |
Range of measurement |
The temperature pattern is no narrower than 5-43℃ |
||
Laboratory error
(blackbody temperature) |
33.0℃~37℃ no more than 0.2℃ |
||
service life |
5 years |
|
|
1. Application of non-contact infrared electronic thermometer
measure body temperature
Temperature screening
The hospital took the patient's temperature
The station takes the temperature of the passengers

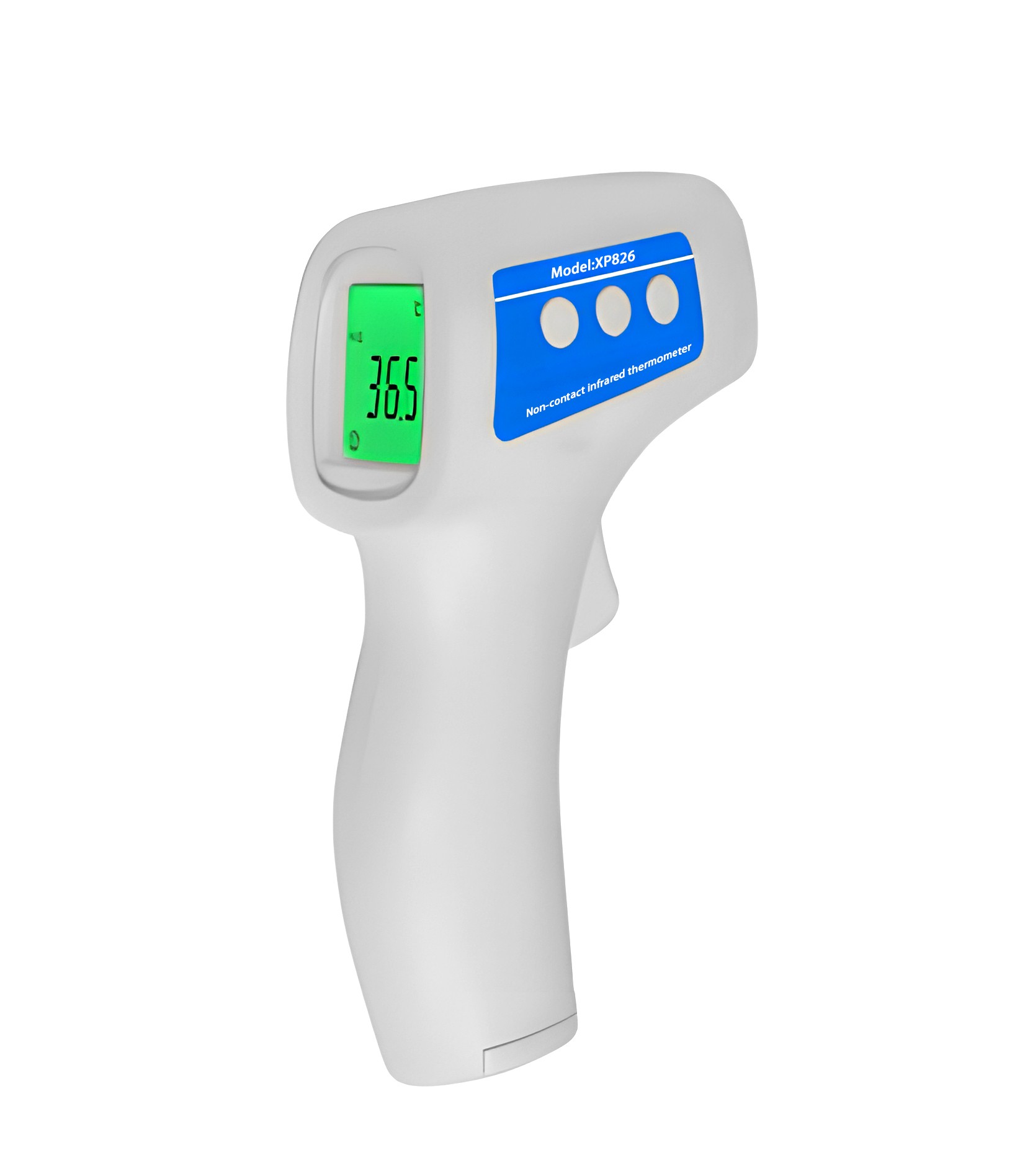

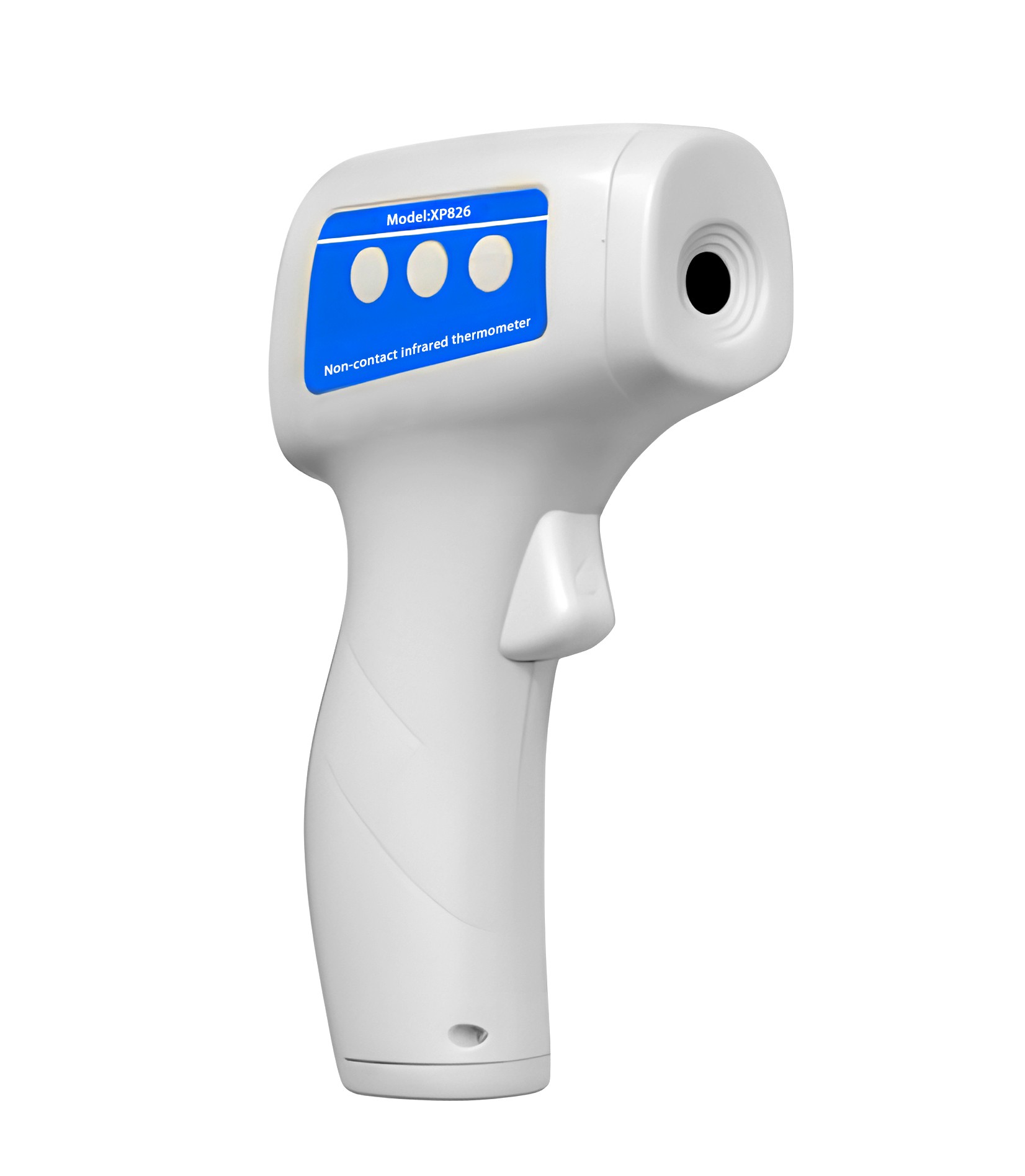

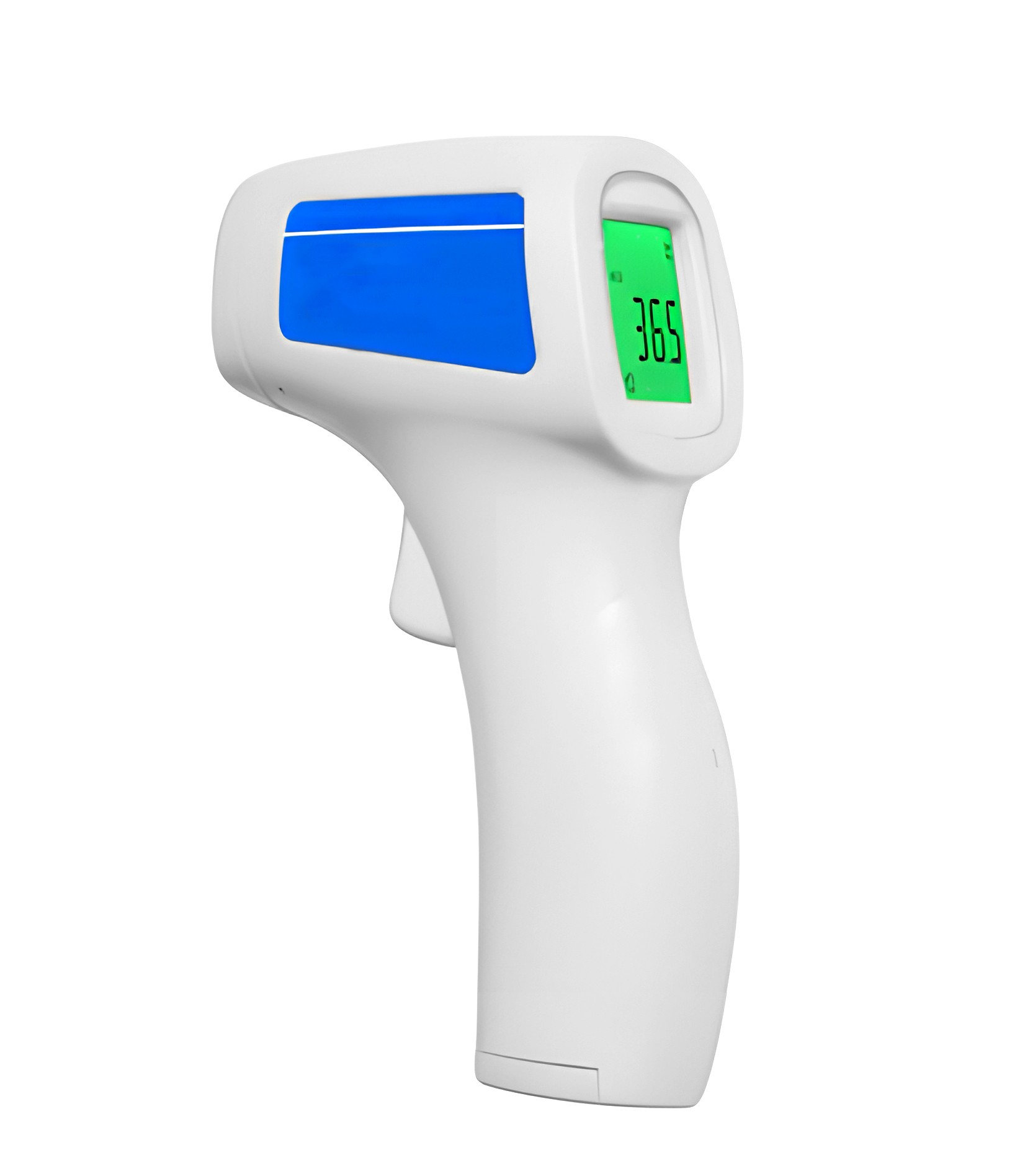

2. Product introduction
The product is a professional, convenient, rapid temperature measurement of the infrared thermometer, suitable for hospitals, families, stations, hotels, schools, kindergartens and other places to use. This product is classified according to medical devices: it belongs to class II ordinary body temperature meter for diagnosis and observation devices, and the management category is class II.
Notes
2.1 Keep your forehead dry and free of sweat when taking your body temperature, and keep your hair and other foreign bodies out of the way. It is more accurate to measure the temperature when the air is relatively stationary;
2.2 Patients and thermometers should be kept in similar indoor conditions for at least 20 minutes before use when the product is switched.In order to obtain stable and clough measurement data, when the greenhouse changes greatly, let the product and the measured person wait for 30 minutes in the same environment before using. If the ambient temperature is below 15℃, it needs to wait for 2 hours.
2.3 Please do not expose the product to the sun or contact with water to prevent damp;
3. Normal operating conditions:
3.1 Environment temperature: 10~35℃;
3.2 Relative humidity:≤85%;
3.3 Barometric pressure:76~106KPa;
3.4 Supply voltage range:DC9V±0.9V;
3.5 Applicable battery type:6F22;
4. Maintenance
4.1 The induction window is a precise part of the product and needs to be carefully protected;
4.2The lens of the sensor window is blurred and smudged. Please use a cotton swab with alcohol to wipe it clean;
4.3 If there is any problem, please contact our customer service.
Product function:
Non-contact temperature measurement
Small and portable, beautiful and delicate, easy to operate
The setting temperature of the user (for example, 37.2℃) is set for screen flash alarm
Measuring range: 32℃~45℃
Basic accuracy: ±0.3℃
Test distance: 5cm-10cm
Keeping data
Response time: 500 ms
Ambient temperature: 10℃~40℃
working current: < 30mA; standby current: < 5uA;
Resolution |
0.1℃ |
Repeatability measurement error |
±0.2℃ |
measuring distance |
1-3CM |
measuring time |
No more than 2 seconds |
supply voltage |
9V±0.9V |
Automatic shutdown time |
10 s |
Range of measurement |
The temperature pattern is no narrower than 5-43℃ |
||
Laboratory error
(blackbody temperature) |
33.0℃~37℃ no more than 0.2℃ |
||
service life |
5 years |
|
|
