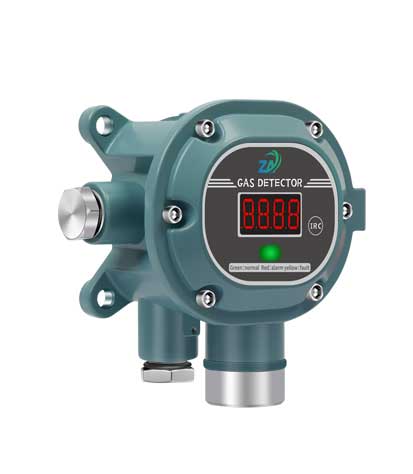

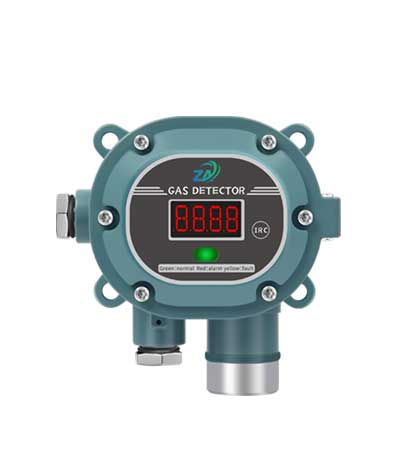

GSS-GC802 Industrial and Commercial Gas Detector

Detected Gas	Combustible/toxic and harmful gas (See attached table)
Detection Method	Natural diffusion
Detection Principle	Catalytic; Electrochemical; Semiconductor; Infrared; PID
Detection Range	0 - 100%) LEL; 0 - ****PPM

Mobile/whatsapp: +86-13333857585

Email: [email protected]

We're here to help:Easy ways to get the answers you need.

Description Functions Features Technical Parameters Get In Touch

Description

The GSS-GC802 digital display type gas detector can display the gas concentration at the monitoring site in real time. The on-site debugging adopts infrared remote control, and parameter settings can be carried out without opening the cover. The GSS-GC802 point-type gas detector can convert the concentration signal of leaked gas in the air into an electrical signal for remote transmission. The instrument adopts a total and branch compound, 4-20mA HART transmission mode, and the instrument has the advantages of long transmission distance and strong anti-interference.

Functions Features

Henan Zhong An Electronic Detection Technology CO.,LTD.

Technical Parameters

Detected Gas	Combustible/toxic and harmful gas (See attached table)
Detection Method	Natural diffusion
Detection Principle	Catalytic; Electrochemical; Semiconductor; Infrared; PID
Detection Range	0 - 100%) LEL; 0 - ****PPM
Resolution	1% LEL; 1PPM/0.1PPM
Display	LCD liquid crystal display digital
Response Time	Combustible: < 15s; Toxic: < 60s
Working Environment	- 40℃ - 70℃ (Combustible) - 20℃ - 50℃ (Toxic); Humidity: < 93% RH
Output Signal	Total and branch compound, 4 - 20mA + HART (Low alarm, high alarm, fault switch output)
Power Consumption	≤ 3W
Alarm	Sound and light alarm
Debugging Method	Controller
Explosion-proof Method	Flameproof

Common Gas Parameter listing
Gas detected	Measuring Range	Optional Range	Resolution Rat	Response Time
LEL -combustible gas	0-100%LEL	0-100%VOL（Infrared or catalytic ）	1%LEL/1%vol	≤10s
carbon monoxide	0-1000PPm	0-500/2000/5000PPm	0.1/1PPm	≤10s
TVOC	0-100PPM	0-100PPM	0.1PPm/1PPM	≤15s
hydrogen	0-100%LEL	0-1000PPM	1%LEL/1PPM	≤15s
natural gas	0-100%LEL	0-100%LEL	1%LEL	≤10s
Oxygen-O2	0-30%VOL	0-30%、0-100%VOL	0.1%vol	≤10s
ozone	0-10PPm	0-20、100PPm	0.01PPm/0.1PPM	≤15s
hydrogen sulfide-H2S	0-100PPm	0-50、200、1000PPm	1/0.1PPm	≤10s
Methane-CH4	0-100%LEL	0-100%VOL	1%LEL/1%vol	≤10s
fluorine	0-10PM	0-1、10PPM	1/0.1PPm	≤15s
hydrogen chloride	0-20PPm	0-20/50PPm/100PPM	0.01/0.1PPm	≤15s
Nitrogen-N2	0-30%VOL	0-30%VOL、100%VOL	0.1%LEL/1PPM	≤10s
hydrogen	0-100%LEL	0-1000PPm	1%LEL/0.1PPm	≤15s
chlorine	0-20PPm	0-10、100PPm	0.1PPm	≤15s
ammonia gas	0-100PPm	0-50、500、1000PPm	1/0.1PPm	≤15s
oxynitride	0-20PPm	0-50、1000PPm	0.1/1PPm	≤15s
methanal	0-20PPm	0-50、100PPm	1/0.1PPm	≤15s
sulfur dioxide	0-20PPm	0-50、1000PPm	0.1/1PPm	≤15s
nitric oxide	0-250PPm	0-500、1000PPm	1PPm	≤15s
nitrogen dioxide	0-20PPm	0-50、1000PPm	0.1/1PPm	≤15s
phosphine	0-20PPm	0-20、100PPm	0.1PPm	≤15s
acrylonitrile	0-100PPM	0-100PPm	0.1/1PPm	≤15s
carbon dioxide	0-5000PPm	0-1%/5%/10%VOL(Infrared )	1PPM/0.01%VOL	≤15s
hydrogen fluoride	0-10PPm	0-1、10、50、100PPM	0.01/0.1PPm	≤15s
Xylene/methylbenzene	0-20PPm	0-5、10、50、100PPm	0.01/0.1PPm	≤15s
oxirane	0-100PPm	0-100PPm	1/0.1PPm	≤15s
For other gases and measuring ranges, please contact us directly!

Get In Touch

Please feel free to submit your inquiry information to us! our sales manager will contact with you as soon as possible.

GT/GTYQ-S100 Point Type Gas Detector

S400 fixed Gas Detector is a multifunctional intelligent gas detection instrument, the instrument adopts high performance detection devices and micro computer control technology, and combined with automatic mount of advanced manufacturing technology, the produ...

GTYQ-S400 fixed Gas Detector（With sound and light alarm）

Detected gasesCombustible/toxic and harmful gasesDetection methodNatural diffusionDetection range(3 - 100)%LEL, (0 - 30)%VOL, (0 - ***)ppmDetection principleCatalysis; Electrochemistry; Semiconductor;

GTYQ-QD6100 Fixed gas detector

Detection principleElectrochemical, catalytic combustion, infrared, semiconductor, heat conduction, PID photoion, etc.Sampling methodNatural diffusionPower supplyAC220V ± 25%Explosion-proof met

GTYQ-QD6390 Independent gas detector

Gas detection transmitter: QD6310 gas sensing transducer can be used in inflammable and explosive gas leakage places and poisonous and harmful chemical factory, instrument adopted the latest foreign catalytic combustion sensor and its us import electrochemical...

Send E-mail:

[email protected]

Tel:

+86-13333857585

Your current location: Home > Products > Gas Monitor System > Fixed Gas Detector > GSS-GC802 Industrial and Commercial Gas Detector

Send E-mail: [email protected]

GET PRICE

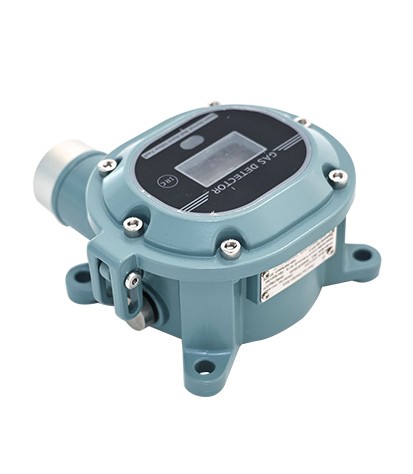

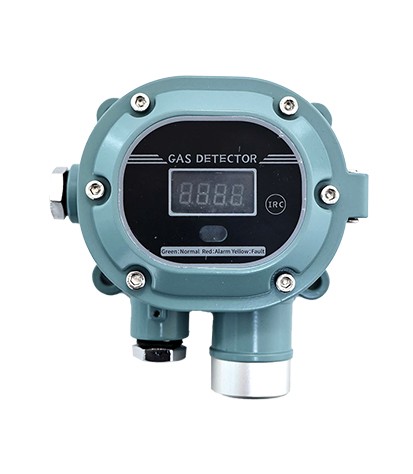

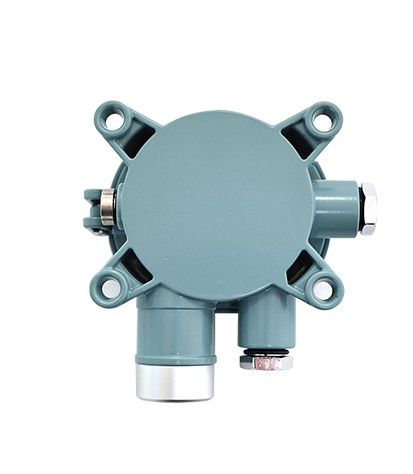

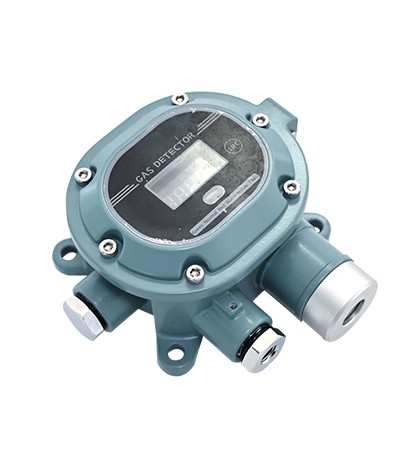

GSS-GC802 Industrial and Commercial Gas Detector
