Product model |
ZM-ZJ00 |
Sensor type |
Electrochemical alcohol sensor |
Measuring range |
0 ~ 220mg / 100ml (0 ~ 1.000mg / L) |
Warm-up time |
No warm-up required |
Response time |
the fastest result is less than 1 second |

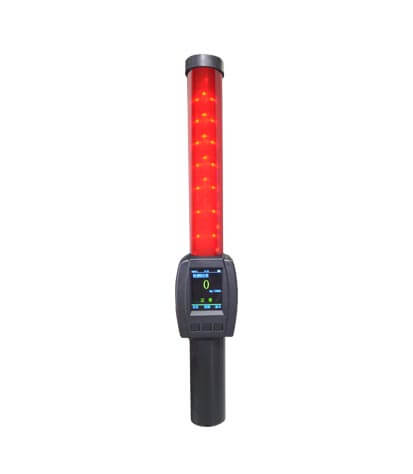

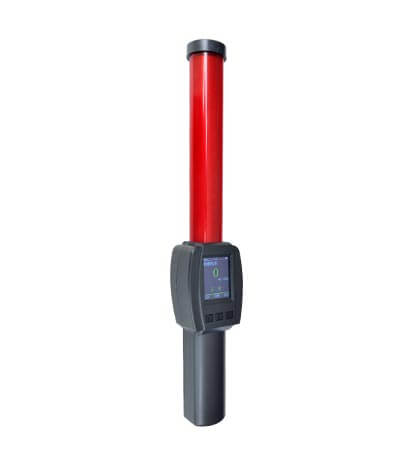

ZM-2100 is a newly developed rod pump suction rapid inspection wine inspection instrument. The core component of this instrument adopts high-tech electrochemical alcohol sensor, which can quickly check the alcohol content in the exhaled gas, and has strong anti-interference ability; the simplified keyboard, menu operation and very good human-computer interaction interface possessed by ZM-2100 make the operation It is more concise and convenient; the color LCD screen display makes the interface more beautiful and clear; the high-brightness alarm light indication is more convenient to use; the non-contact air inlet design ensures the health and safety of the testee.
Product model |
ZM-ZJ00 |
Sensor type |
Electrochemical alcohol sensor |
Measuring range |
0 ~ 220mg / 100ml (0 ~ 1.000mg / L) |
Warm-up time |
No warm-up required |
Response time |
the fastest result is less than 1 second |
Sampling method |
Air pump pumping, active continuous pumping |
Normal drinking and driving threshold |
0.090 mg / L (20mg / 100ml) |
Normal threshold for drunk driving |
0.363 mg / L (80mg / 100ml) |
Storage temperature |
-30 ℃ ~ 70 ℃ |
Working temperature |
0 ℃ ~ 50 ℃ |
Continuous working time |
hundreds of times-two thousand times (related to battery capacity) |
Host size |
L × W × H, mm: 380 × 67 × 45 |
Host weight |
about 160g |
Normal calibration period |
6 months |
Please feel free to submit your inquiry information to us! our sales manager will contact with you as soon as possible.
