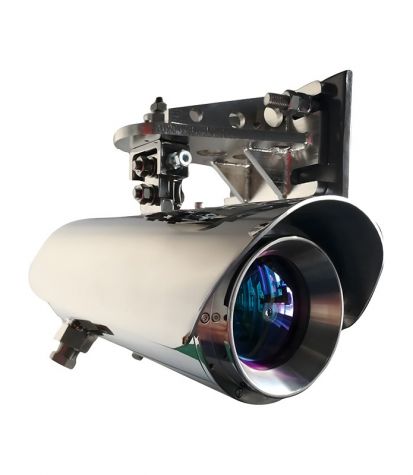

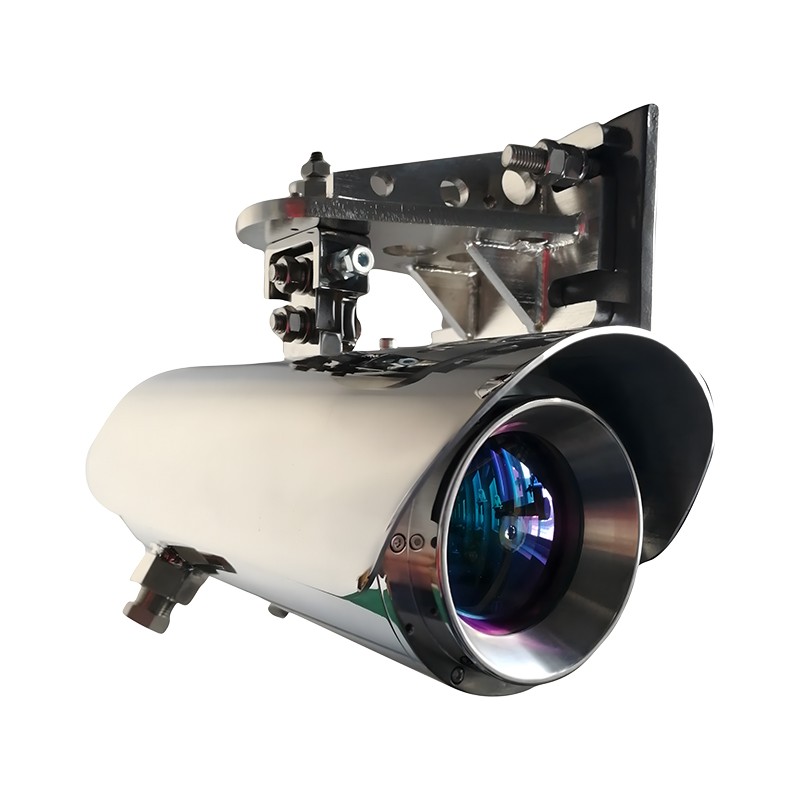

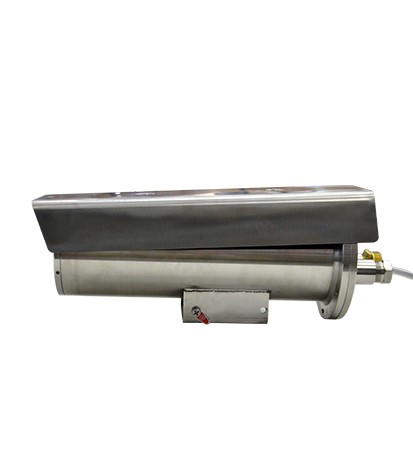

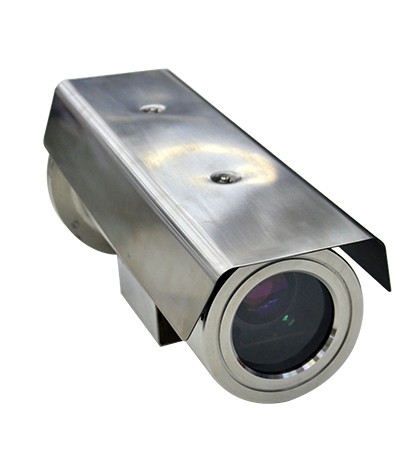

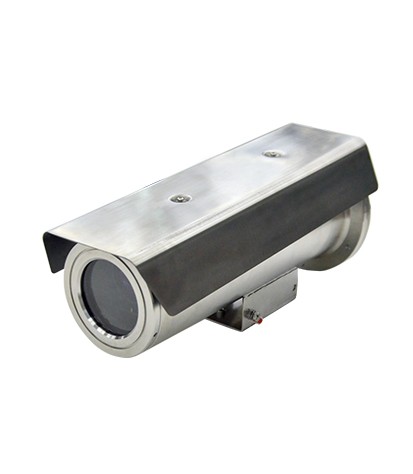

S350KS Open circuit type laser gas online monitoring system

Product Model	S350KS
Detection Principle	TDLAS
Detected Gas	CH4
Detection Range	Optional range (0 - 5000)ppm.

Mobile/whatsapp: +86-13333857585

Email: [email protected]

We're here to help:Easy ways to get the answers you need.

Description Functions Features Technical Parameters Get In Touch

Description

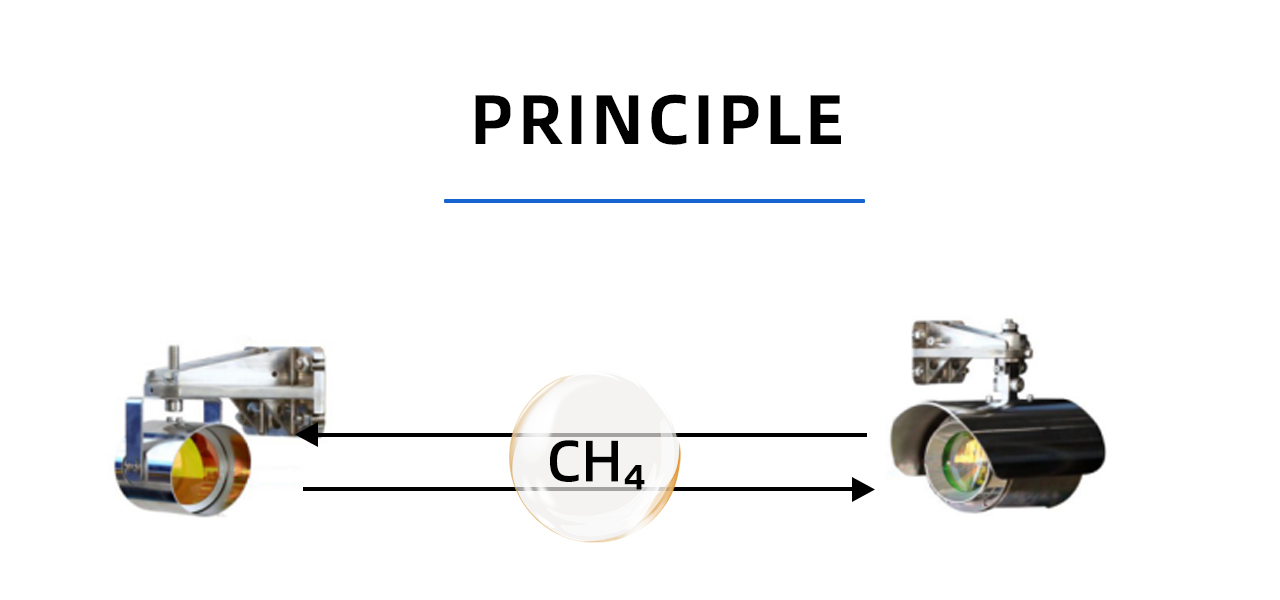

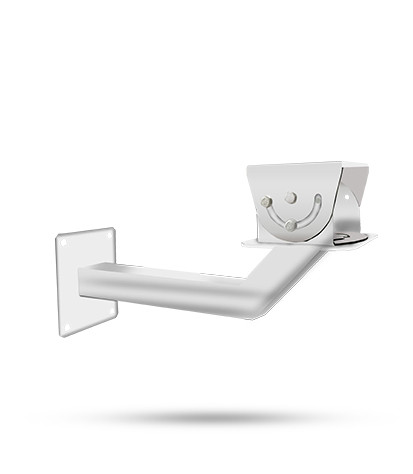

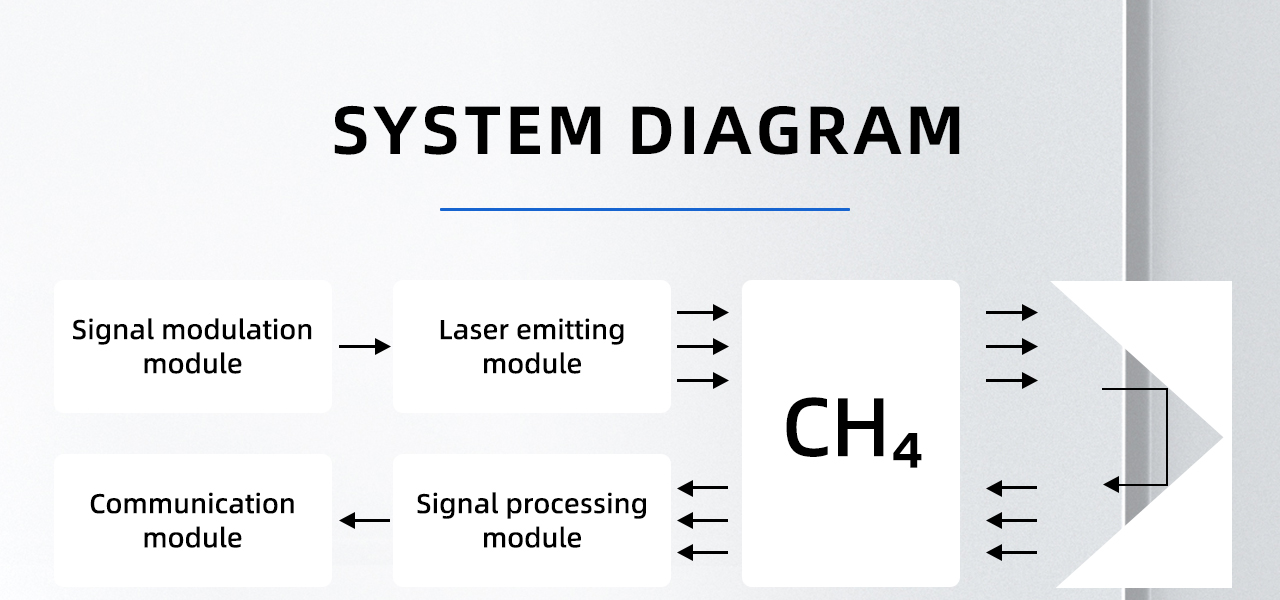

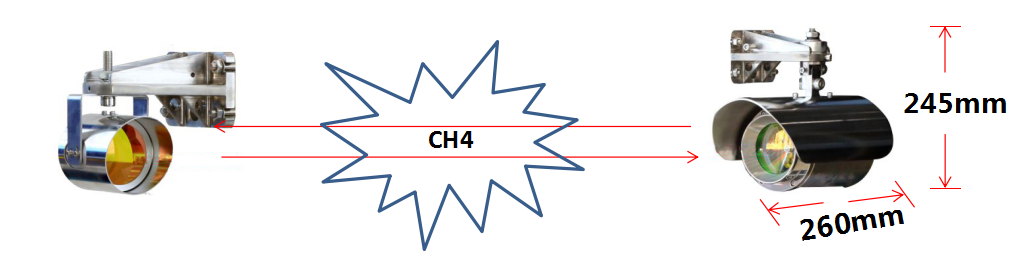

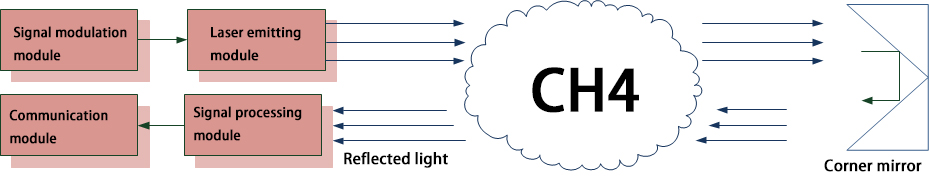

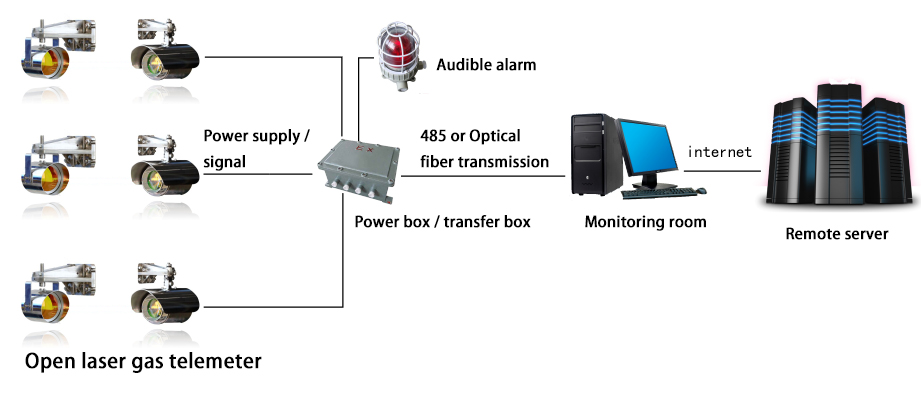

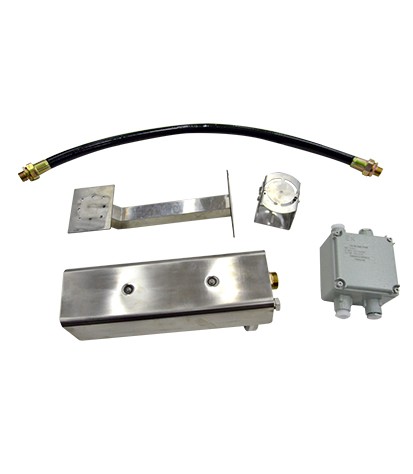

The S350KS is composed of a laser transceiver device, a reflection device, a fixed bracket, etc. It adopts the principle of laser absorption spectroscopy technology (TDLAS) to conduct long-distance real-time online monitoring of the methane gas concentration between the laser transceiver device and the reflection device, and is an instrument with functions such as signal acquisition, conversion, and transmission.

Functions Features

Henan Zhong An Electronic Detection Technology CO.,LTD.

Technical Parameters

Product Model	S350KS
Detection Principle	TDLAS
Detected Gas	CH4
Detection Range	Optional range (0 - 5000)ppm.
Sensitivity	5ppm.m
Response Time	1 second
Detection Distance	0 - 100 meters, 0 - 200 meters
Working Power Supply	DC12V - 28V

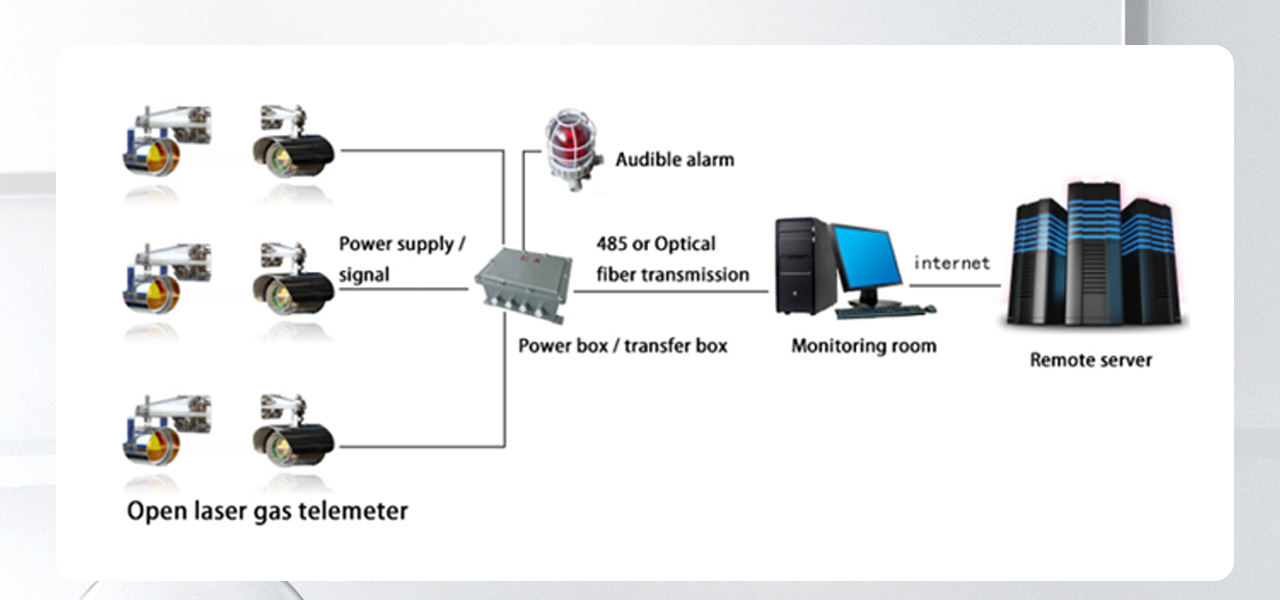

Output Signal	RS485 or 4 - 20mA
Explosion-proof Grade	Ex d IIC T6 Gb
Protection Level	IP68
Product Weight	3kg
Installation Method	Wall-mounted or 4" riser installation
Ambient Temperature	-40 to +65°C
Ambient Humidity	(0 - 90)%RH without condensation

Get In Touch

Please feel free to submit your inquiry information to us! our sales manager will contact with you as soon as possible.

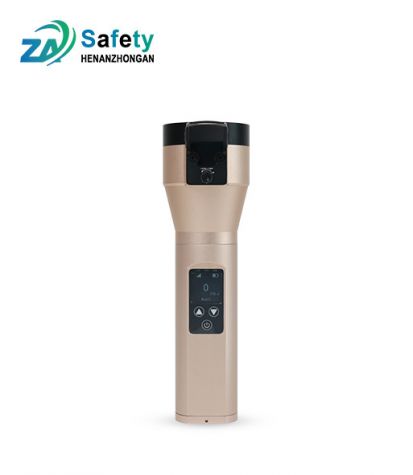

S350AS Handhold laser methane telemeter
