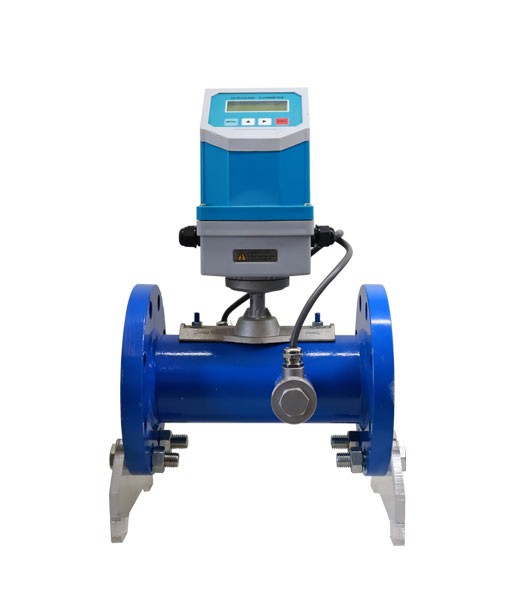

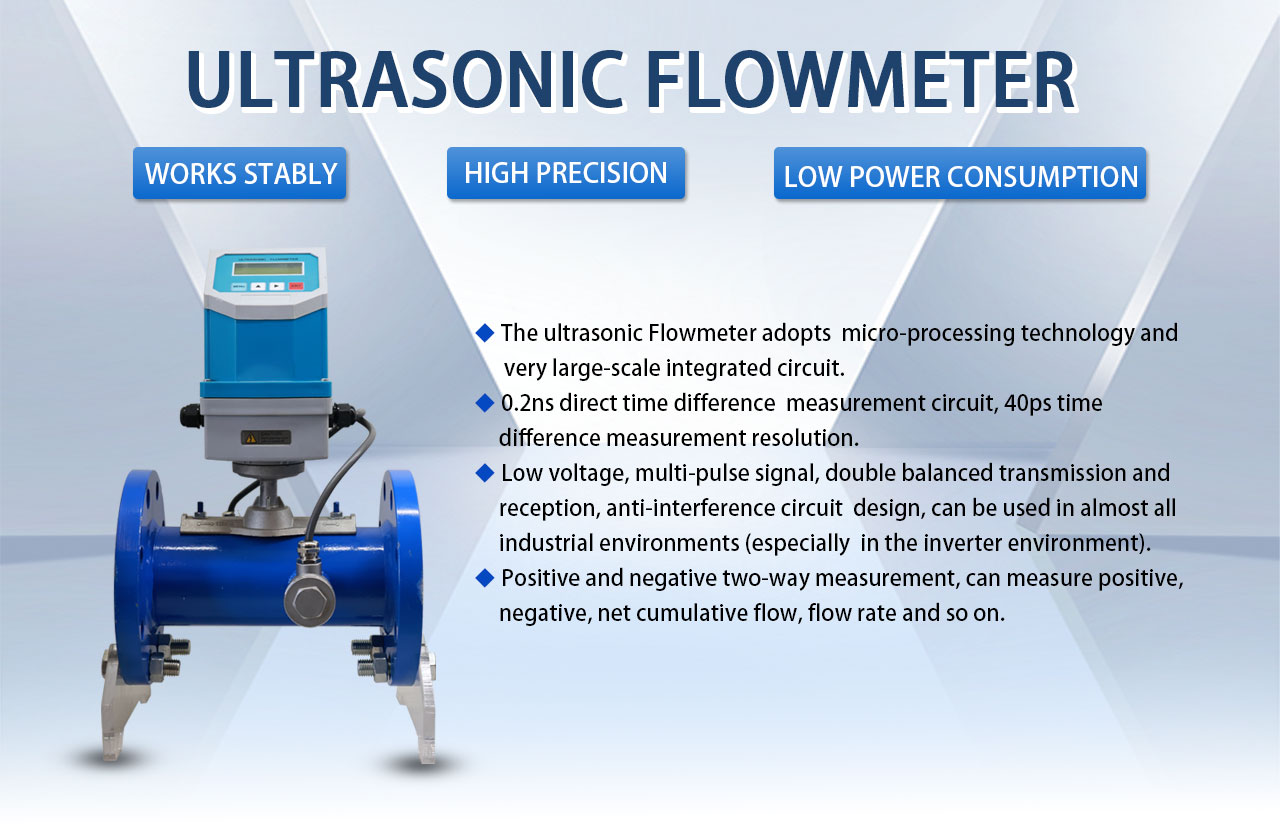

Nominal Diameter
|
DN15-DN400
|
|
Material
|
Nominal diameter
|
|
Nominal diameter ≥DN50: measuring tube body: carbon steel (stainless steel at the sensor);
|
|
Stainless steel 304, stainless steel 316 can be customized;
|
|
Implementation Standard
|
GB/T32224-2020
|
|
|
Temperature Range (℃)
|
Nominal diameter
|
|
Temperature Difference Range (k)
|
0-85 (heat gauge starting temperature difference 0.2K)
|
|
Minimum Pairing Temperature Error (℃)
|
±0.1
|
|
Maximum Allowable Working Pressure Mpa
|
1.6MPa, optional 2.5MPa.
|
|
Accuracy Level
|
Level 2
|
|
Temperature Sensor Type
|
PT1000, DIN/EC751B
|
|
Protection Level
|
IP68
|
|
Working Power Supply
|
Powered by 3.6V lithium battery, one battery can work continuously for more than 6 years
|
|
DC8-24V (requested when ordering)
|
|
AC220V, 50HZ (optional power adapter, requested when ordering)
|
|
Working Environment
|
Environment Class A Class B/C/D
|
|
Power Consumption
|
Standard state <30UA, can work continuously for more than 20 years
|
|
Communication data
|
Optical Interface
|
Baud rate 9600bps, 4800bps, 2400bps, 600bps, 300bps optional, default is 9600bps S; Using GB/T26831 protocol
|
|
RS485/M-BUS
|
Baud rate 9600bps, 4800bps, 2400bps, 600bps, 300bps optional, default is 9600bpS; Transmission distance ≤ 150m; GB/T26831
protocol, CJ/T188 protocol, ModbusRTU protocol optional, automatic identification of communication protocol,
|
|
Wireless Communication
|
Narrowband Internet of Things (NB-lot)
|
|
4G network communication
|
|

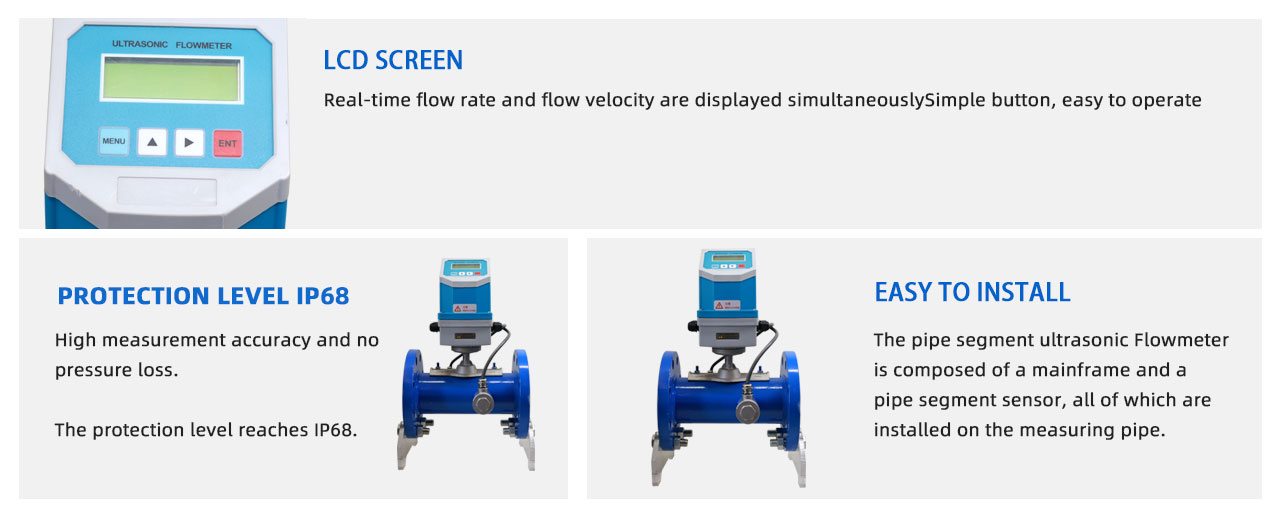

Local Display
|
Dual-line display includes 9-digit cumulative amount, 6-digit instantaneous flow, and supply and return water temperature,
temperature difference. Accumulated effective running time.
|
|
Display Resolution
|
Heat 0.1kw.h, cumulative flow 0.001㎡: temperature 0.01℃; temperature difference 0.01K
|
|
Storage Temperature
|
.-25~55
|
|
Data Storage
|
Using ferroelectric storage parameters, store heat, cumulative flow and relative time by month; automatically store the cumulative
flow of the first 31 days of the previous 32 months
|
|
Pressure Loss Level at Common Flow Rate
|
Nominal diameter
|
|
Temperature Sensor Signal Line Length (m)
|
Nominal diameter
|
|
Instrument Installation Position
|
Water supply (needed to be proposed during return water installation)
|
