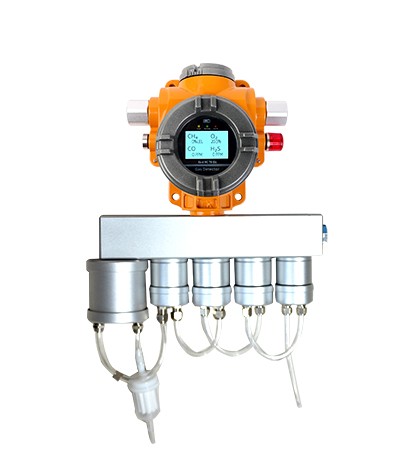

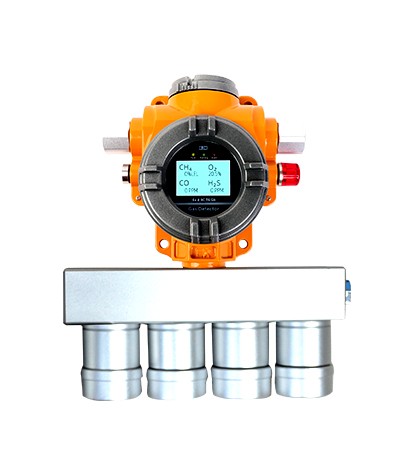

S400 Diffusive multi-in-one gas detector

Detected gas	Combustible gas/liquid vapor/TVOC/toxic and harmful gas/oxygen

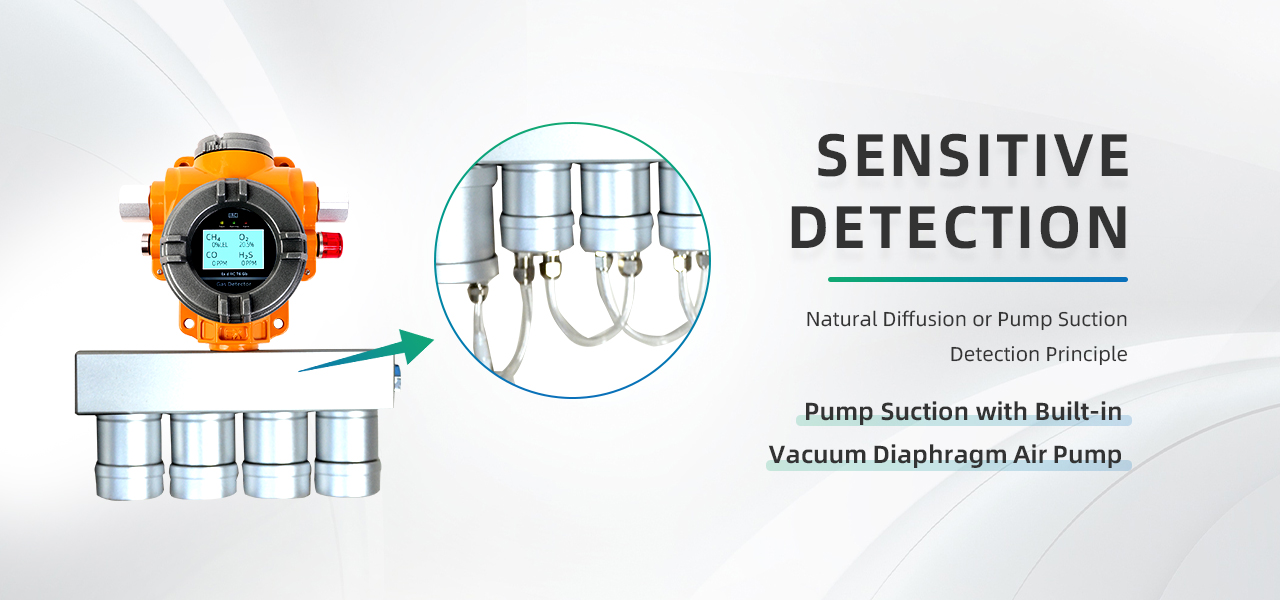

Sampling method	Natural diffusion (pump suction can be added with a pump)
Detection principle	Catalytic combustion type/electrochemical type/infrared
Testing range	(0 - 100%) LEL; 0 - **** PPM
Resolution	1% LEL; 1 PPM/0.1 PPM

Mobile/whatsapp: +86-13333857585

Email: [email protected]

We're here to help:Easy ways to get the answers you need.

Description Functions Features Technical Parameters Get In Touch

Description

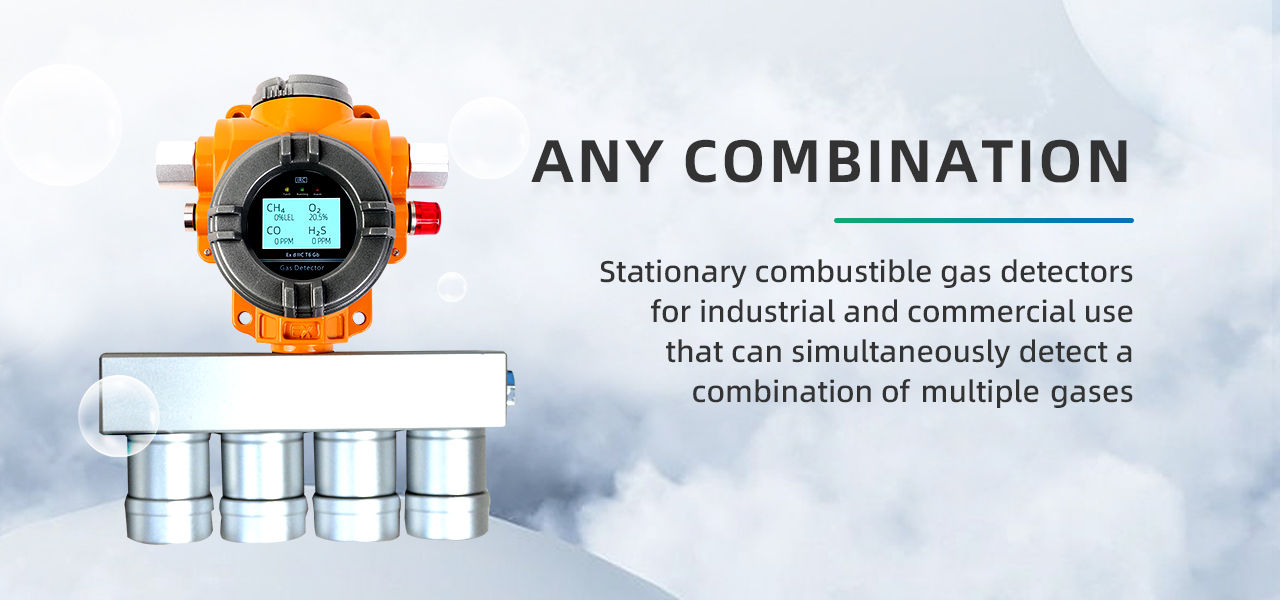

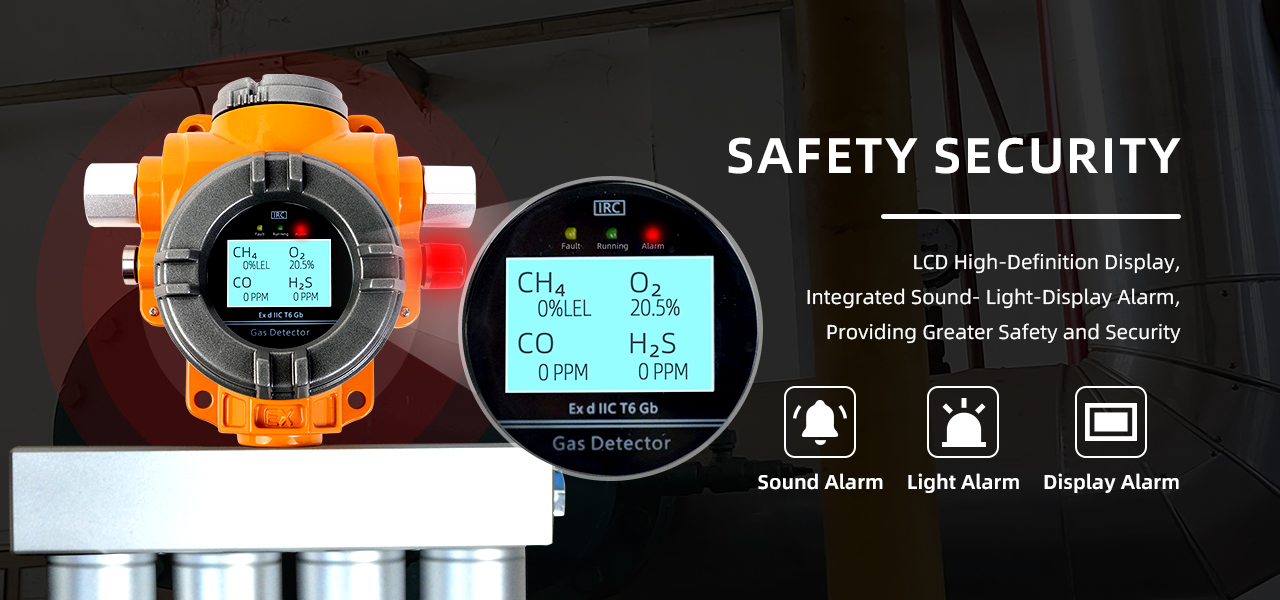

Zhong'an S400 is an intelligent multi-functional gas detection instrument. (Different gases can be combined in a four-in-one or five-in-one combination). The instrument is manufactured by using high-performance detection components, computer micro-control technology, and combining with advanced fully automatic surface mounting technology. The product has functions such as on-site buzzer indication sound, on-site flashing indicator light, etc., and displays the on-site gas concentration in real time for monitoring.

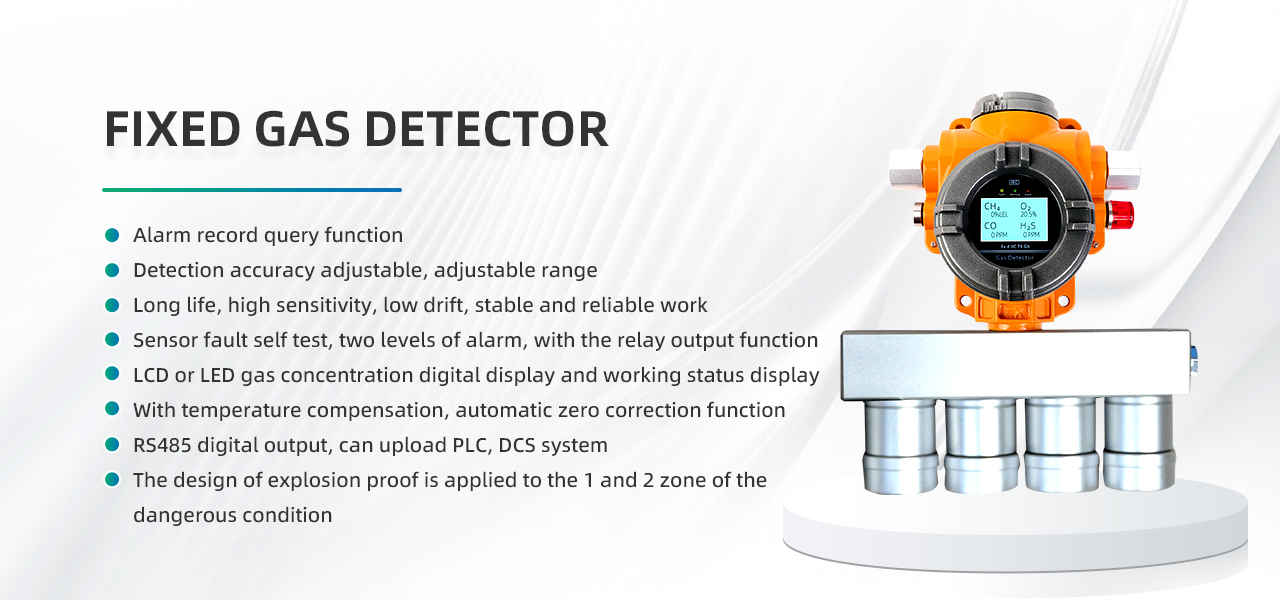

Functions Features

Henan Zhong An Electronic Detection Technology CO.,LTD.

Technical Parameters

Detected gas	Combustible gas/liquid vapor/TVOC/toxic and harmful gas/oxygen
Sampling method	Natural diffusion (pump suction can be added with a pump)
Detection principle	Catalytic combustion type/electrochemical type/infrared
Testing range	(0 - 100%) LEL; 0 - **** PPM
Resolution	1% LEL; 1 PPM/0.1 PPM
Display	LCD display
Debugging method	Controller
Measurement error	±3% LEL of full scale
Power supply	DC24V ± 10%
Output signal	RS485
Ambient temperature	-20°C - 50°C (indoor); -40°C - 70°C (outdoor)
Relative humidity	< 95%
Response time	< 20s
Recovery time	< 30s
Explosion-proof grade	Ex d ⅡC T6 Gb
Protection grade	IP65
Installation thread	G1/2
Used cable	≥ 1.5mm2 × 3; ≥ 1.5mm2 × 4;
Maximum distance	≤ 1500m
Whole machine weight	≤ 2000g

Common Gas Parameter listing
Gas detected	Measuring Range	Optional Range	Resolution Rat	Response Time
LEL -combustible gas	0-100%LEL	0-100%VOL（Infrared or catalytic ）	1%LEL/1%vol	≤10s
carbon monoxide	0-1000PPm	0-500/2000/5000PPm	0.1/1PPm	≤10s
TVOC	0-100PPM	0-100PPM	0.1PPm/1PPM	≤15s
hydrogen	0-100%LEL	0-1000PPM	1%LEL/1PPM	≤15s
natural gas	0-100%LEL	0-100%LEL	1%LEL	≤10s
Oxygen-O2	0-30%VOL	0-30%、0-100%VOL	0.1%vol	≤10s
ozone	0-10PPm	0-20、100PPm	0.01PPm/0.1PPM	≤15s
hydrogen sulfide-H2S	0-100PPm	0-50、200、1000PPm	1/0.1PPm	≤10s
Methane-CH4	0-100%LEL	0-100%VOL	1%LEL/1%vol	≤10s
fluorine	0-10PM	0-1、10PPM	1/0.1PPm	≤15s
hydrogen chloride	0-20PPm	0-20/50PPm/100PPM	0.01/0.1PPm	≤15s
Nitrogen-N2	0-30%VOL	0-30%VOL、100%VOL	0.1%LEL/1PPM	≤10s
hydrogen	0-100%LEL	0-1000PPm	1%LEL/0.1PPm	≤15s
chlorine	0-20PPm	0-10、100PPm	0.1PPm	≤15s
ammonia gas	0-100PPm	0-50、500、1000PPm	1/0.1PPm	≤15s
oxynitride	0-20PPm	0-50、1000PPm	0.1/1PPm	≤15s
methanal	0-20PPm	0-50、100PPm	1/0.1PPm	≤15s
sulfur dioxide	0-20PPm	0-50、1000PPm	0.1/1PPm	≤15s
nitric oxide	0-250PPm	0-500、1000PPm	1PPm	≤15s
nitrogen dioxide	0-20PPm	0-50、1000PPm	0.1/1PPm	≤15s
phosphine	0-20PPm	0-20、100PPm	0.1PPm	≤15s
acrylonitrile	0-100PPM	0-100PPm	0.1/1PPm	≤15s
carbon dioxide	0-5000PPm	0-1%/5%/10%VOL(Infrared )	1PPM/0.01%VOL	≤15s
hydrogen fluoride	0-10PPm	0-1、10、50、100PPM	0.01/0.1PPm	≤15s
Xylene/methylbenzene	0-20PPm	0-5、10、50、100PPm	0.01/0.1PPm	≤15s
oxirane	0-100PPm	0-100PPm	1/0.1PPm	≤15s
For other gases and measuring ranges, please contact us directly!
