Carbon Monoxide Gas Sensor

The sensor types provided by Intech Sensing Technology Co., Ltd. include infrared gas sensors, laser methane gas sensors, electrochemical gas sensors, semiconductor gas sensors, catalytic combustion gas sensors, thermal conductivity gas sensors, hot wire gas sensors, trace dust gas sensors, PID photoionization gas sensors, smoke sensors, TVOC gas sensors, large particle dust gas sensors, sensors and their sensor modules can be used to detect up to more than 200 gases.

Mobile/whatsapp: +86-13333857585

Email: [email protected]

We're here to help:Easy ways to get the answers you need.

Description Functions Features Technical Parameters Get In Touch

Description

Henan Zhong An Electronic Detection Technology CO.,LTD.

Functions Features

Product introduction: High-quality industrial-grade gas sensor, suitable for portable/fixed gas detectors

Main features: high stability, fast response and recovery time, strong environmental adaptability, low methanol cross-sensitivity.

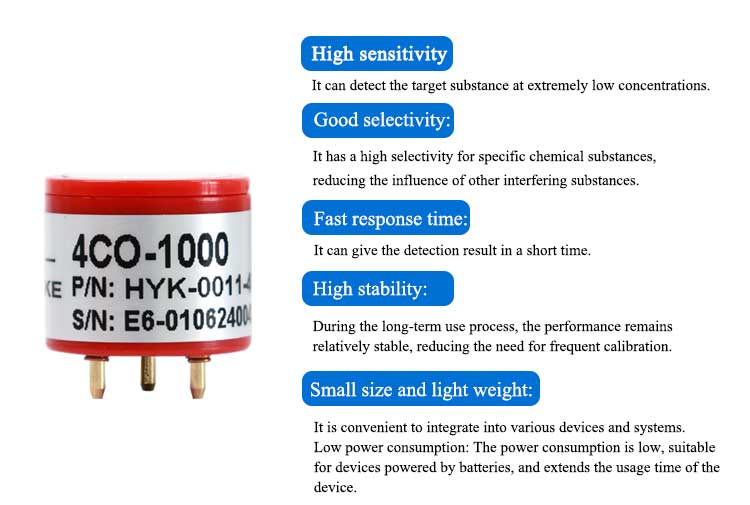

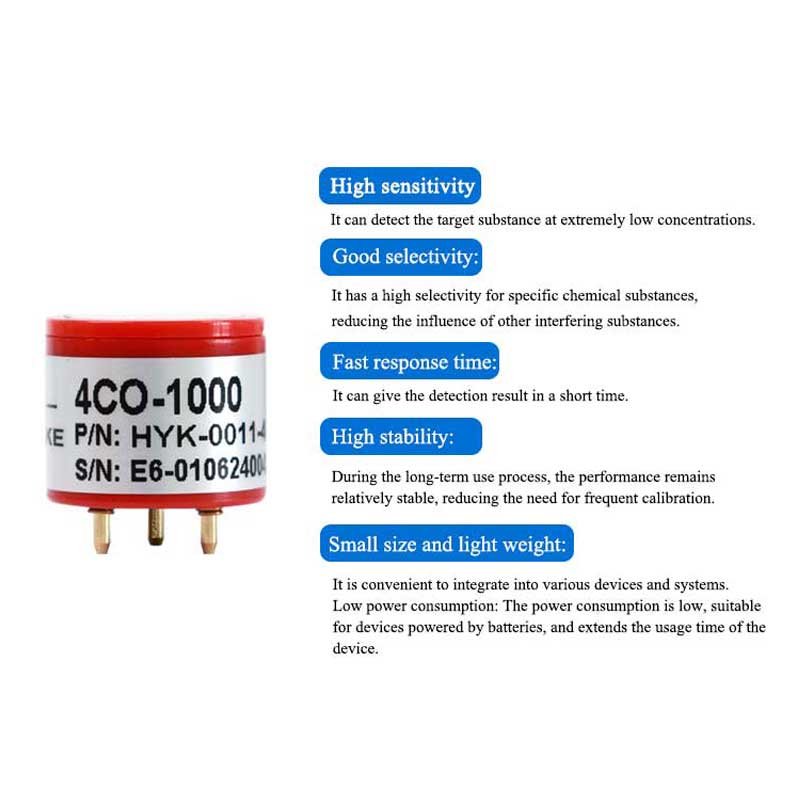

Product features:

●Good long-term stability

●High consistency and high precision

●Fast response speed

●Strong anti-cross interference ability,

●Good linearity

●Strong adaptability to harsh environments

Technical Parameters

Detection gas	Carbon monoxide CO
Sensitivity	70±20nA/ppm
Typical baseline range (pure air)	±2ppm CO equivalent
T90 response time	<30 seconds
Range	0-2000ppm
Maximum load	5000ppm
Linear range	0-2000ppm
Repeatability	+2%ppm CO equivalent
Recommended load resistance	10Ω
Operating temperature range	-30- + 50°C
Pressure range	800-1 200mbar
Humidity range	1 5% - 95%RH
Long-term output drift	< 5% per year
Storage temperature	0- -20℃
Expected working life	> 24 months
Warranty period	12 months
2000ppm maximum current	0.3mA
Maximum 0/C voltage	1.3V
Maximum S/C current	< 1A

Get In Touch

Please feel free to submit your inquiry information to us! our sales manager will contact with you as soon as possible.
