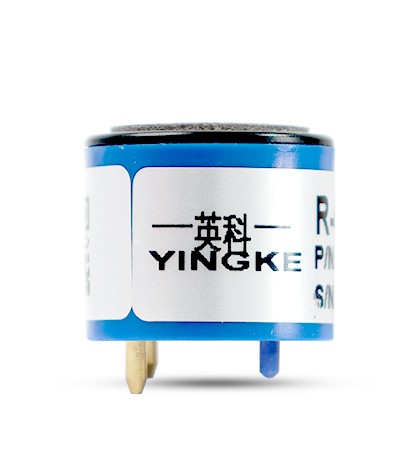

R-4OX Industrial Oxygen Sensor

Long Term Output Drift	< 5% per annum
Recommended Storage Temp	0℃to 20℃
Expected Operating Life	> 24 months in air
Standard Warranty	24 months from date of dispatch

Mobile/whatsapp: +86-13333857585

Email: [email protected]

We're here to help:Easy ways to get the answers you need.

Description Functions Features Technical Parameters Get In Touch

Description

The R-40X electrochemical oxygen sensor utilizes the electro-chemical activity of the gas under measurement to undergo elec-trochemical oxidation or reaction inside it, thereby converting the content of the gas under measurement into a current (or voltage) signal output to distinguish the composition and concentration of the gas.

Functions Features

Henan Zhong An Electronic Detection Technology CO.,LTD.

Technical Parameters

Lifetime Details

Long Term Output Drift	< 5% per annum
Recommended Storage Temp	0℃to 20℃
Expected Operating Life	> 24 months in air
Standard Warranty	24 months from date of dispatch

Intrinsic Safety Data

Maximum current in normal operation (pure O2)	0.01 A
Maximum o/c Voltage (10 to 100% O2)	0.9 V
Maximum s/c Current (10 to 100% O2)	0.5 A

Erformance Characteristics

Output signal	0.10 ± 0.03 mA
Zero Current (Offset)	< 0.6% vol. O2
T90 Response Time	< 15 seconds
Measurement Range	0 - 25% Oxygen
Maximum Overload	30% Oxygen
Linearity	Linear
Recommended Load Resistor	100 ohms

Environmental Details

Temperature Range Continuous	-30℃to +50℃
Pressure Range	800 to 1200 mbar
Operating Humidity Range	5% to 95% RH

Henan Zhong An Electronic Detection Technology CO.,LTD.

Toxic gases at TLV levels will have no cross-sensitivity effect on oxygen sensors. At very high levels (i.e. percent levels), highly oxidising gases (e.g. ozone, chlorine) will interfere to the extent of their oxygen equivalent, but most other commonly occurring gases will have no effect.

Important Note:

Acid gases such as CO2 and SO2 will be absorbed by the electrolyte and tend to increase the flux of oxygen to the electrode. This gives an enhanced oxygen signal of approximately 0.3% of signal per 1% CO2.Oxygen sensors are not suitable for continuous operation in concentrations of CO2 above 25%.
All performance data is based on conditions at 20℃, 50%RH and 1 atm, using recommended circuitry.

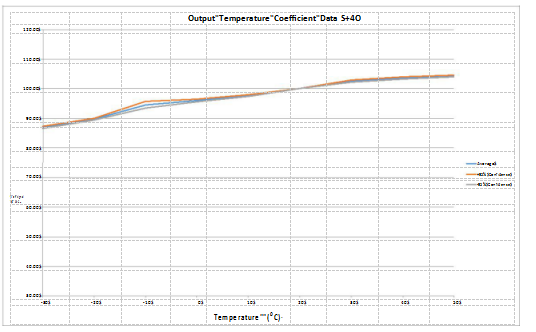

Sensor performance is temperature dependent, and please Contact us for temperature performance other than 20℃.
