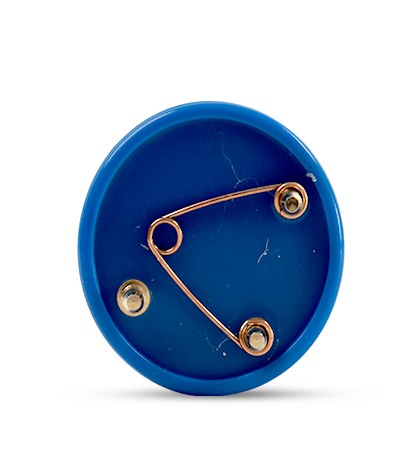

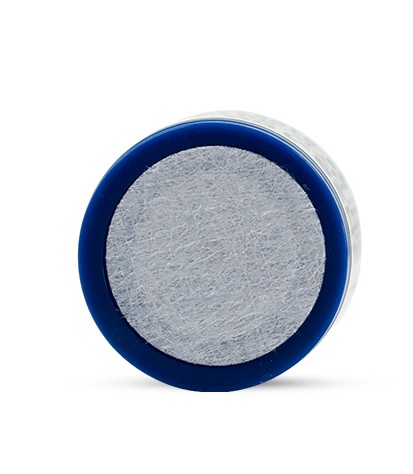

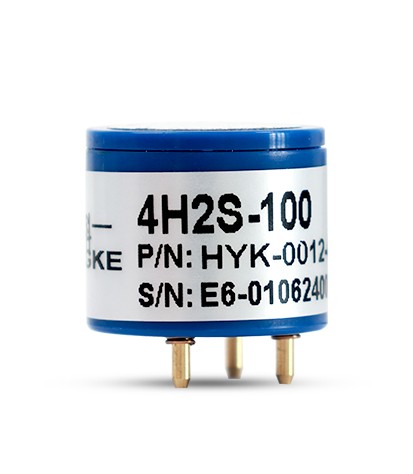

4H2S-100 Industrial H2S Sensor

Range	0-100PPM
Maximum Overload	500PPM
Output Signal	0.7±0.25μA/ppm
Response Time	≤ 30 s
Resolution	1PPM

Mobile/whatsapp: +86-13333857585

Email: [email protected]

We're here to help:Easy ways to get the answers you need.

Description Functions Features Technical Parameters Get In Touch

Description

The 4H2S-100 electrochemical Hydrogen sulfide sensor utilizes the electrochemical activity of the gas under measurement to undergo electrochemical oxidation or reaction inside it, thereby converting the content of the gas under measurement into a current (or voltage) signal output to distinguish the composition and concentration of the gas.

Functions Features

Henan Zhong An Electronic Detection Technology CO.,LTD.

Technical Parameters

Range	0-100PPM
Maximum Overload	500PPM
Output Signal	0.7±0.25μA/ppm
Response Time	≤ 30 s
Resolution	1PPM
BiasVoltage	0 mV
Linearity	Linear
Long-termOutput Drift	<15% perannum
Repeatability	<±2%
Temperature Range Continuous	-30 ℃ ~ 50 ℃
Pressure Range	800-1200mbar
Operating Humidity Range	15% ~ 90%RH (non-condensing）
RecommendedStorageTemp	0℃ ~ 20℃
Expected LifeTime	24 months inair
Warranty	12 months
Maximumat 2000PPM	< 0.3 mA
MaximumO/CVoltage	1.3V
MaximumS/C Current	<1.0A
Recommended Load Resistor	10

Henan Zhong An Electronic Detection Technology CO.,LTD.
