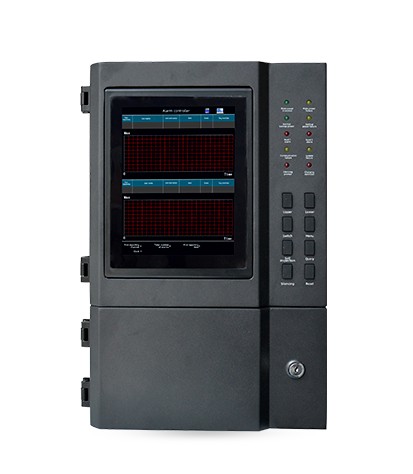

Display mode

8-inch color touch screen LCD operation

Display mode

Output mode: passive switch, RS485 (optional),RS485 (optional), Ethernet port (optional)

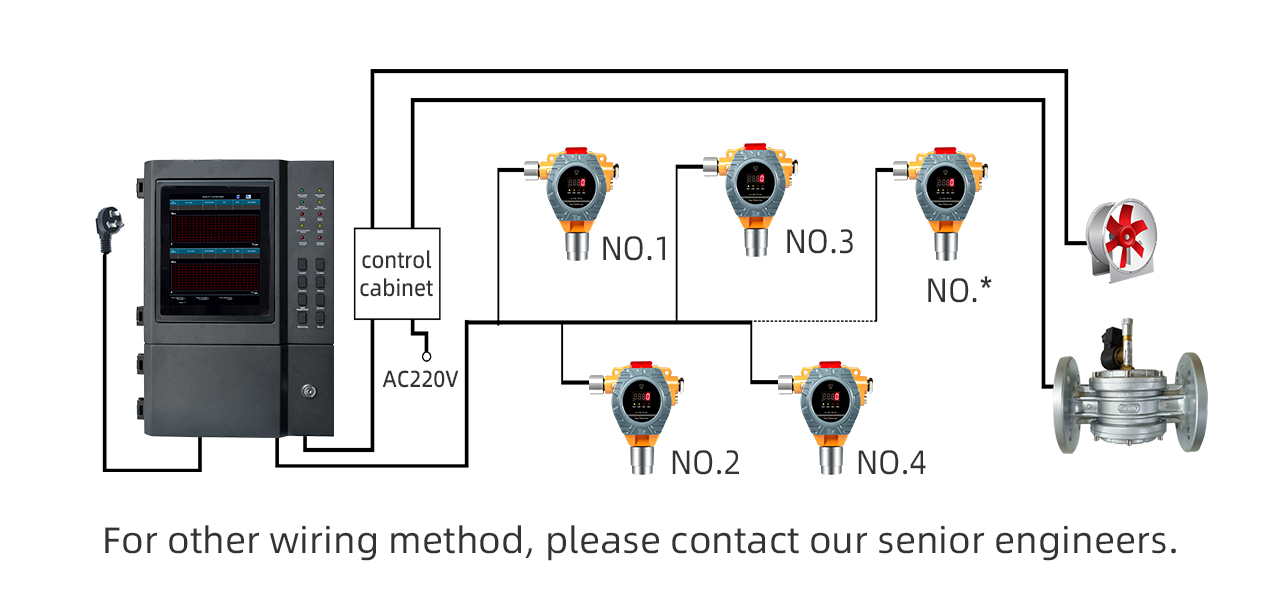

Alarm output

built-in 6 sets of programmable external control output,Contact capacity 2A/DC24V or 1A/AC220V

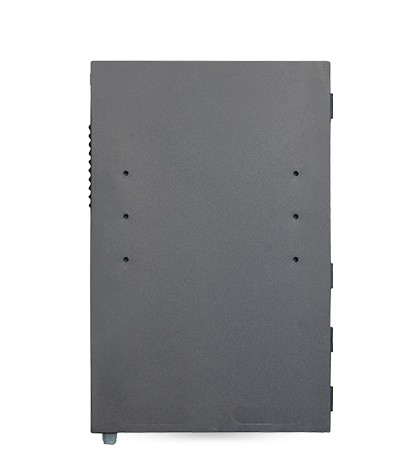

Installation method:

fixed installation on site, wall-mounted

Network capacity

S8600: 150 RS485 outputs

Alarm mode

sound and light alarm

Alarm point

two-level alarm, freely set by the user

Power supply voltage

AC220V±10% 50HZ

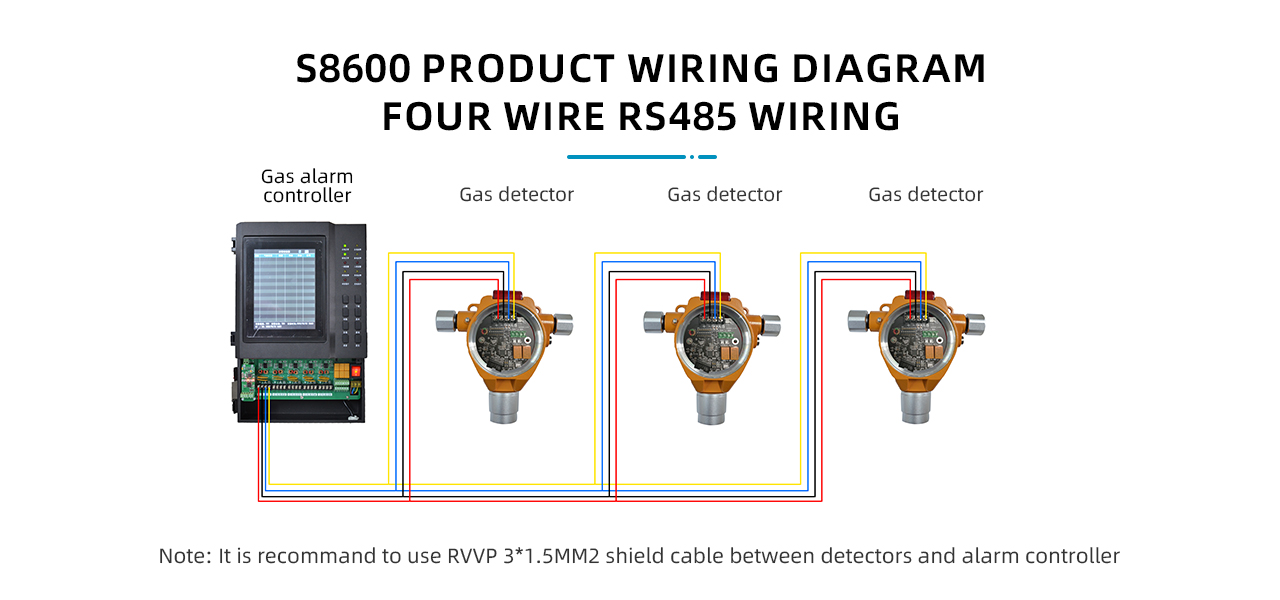

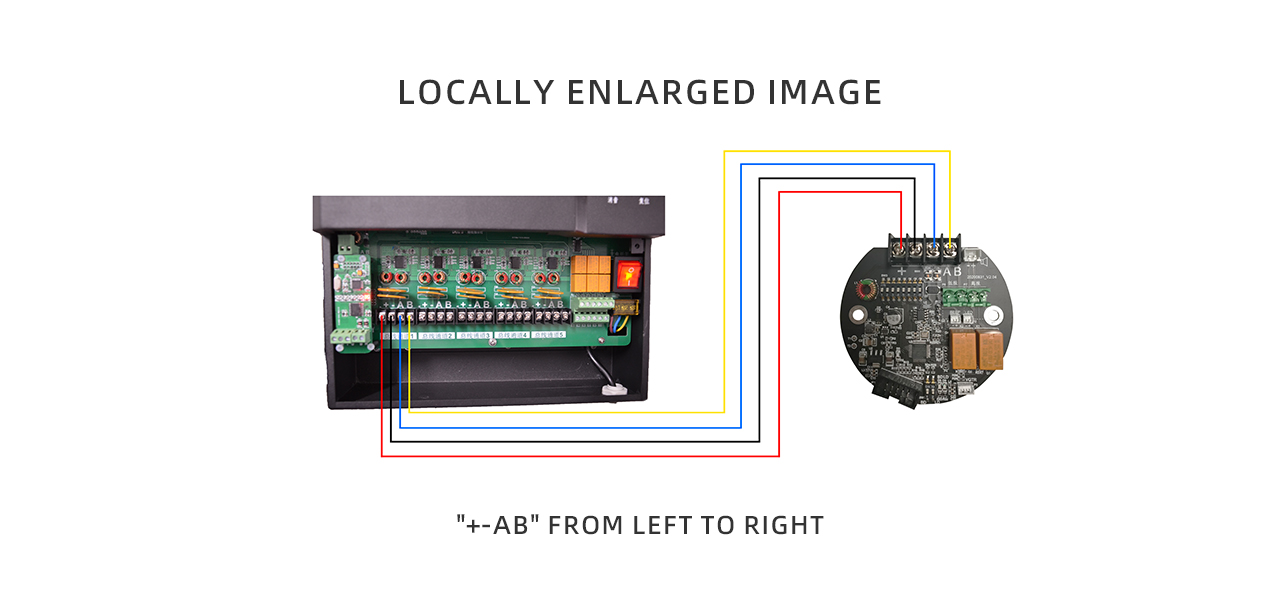

Signal input

digital RS485

Relay capacity

3A

Working temperature

-10 ℃-55 ℃

Working humidity

<95%RH

Storage temperature

(-10-50)℃

Pressure range:

(86-106)KPa

Cable requirements:

 RVVP 4×1.5mm2

Transmission distance

≤1500m

Appearance size

(420×270×102)mm

Machine weight

8.5kg

Other accessories

standard installation hanging plate and Ф8 anchor expansion bolt
