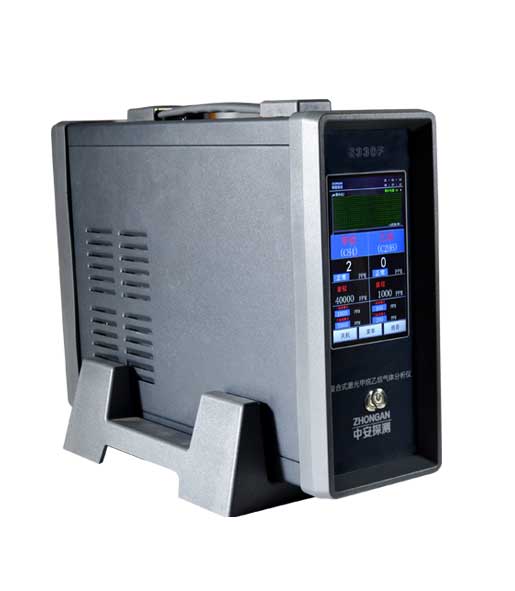

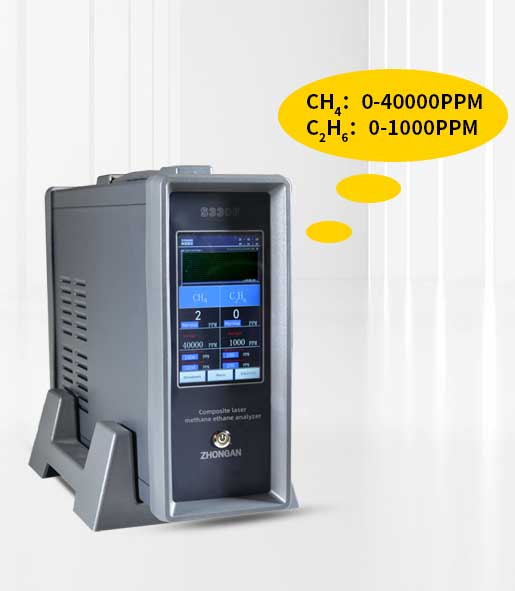

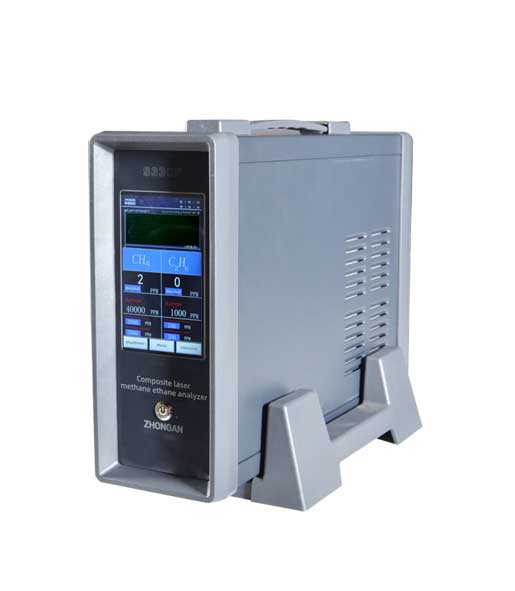

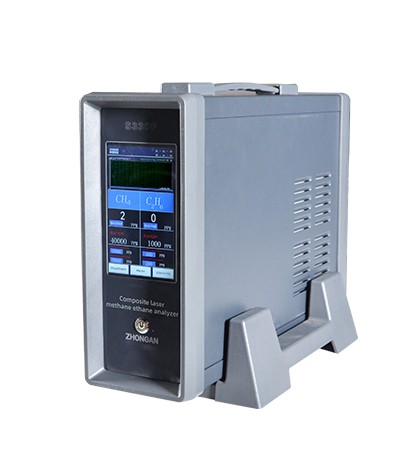

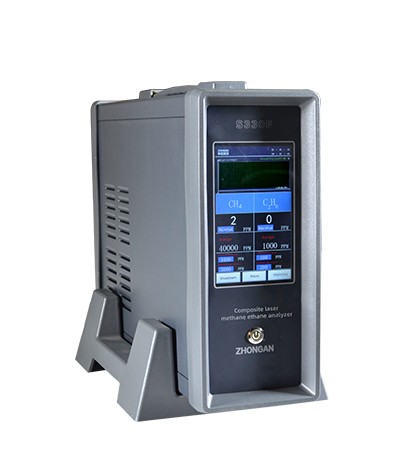

S330F portable methane ethane identifier

Detected Gas	Methane: 0 - 40000 PPM ； Ethane: 0 - 1000 PPM
Resolution	1 PPM
Detection Method	Built-in pump suction type
Battery Voltage	12V 4.6AH lead-acid battery supply

Mobile/whatsapp: +86-13333857585

Email: [email protected]

We're here to help:Easy ways to get the answers you need.

Description Functions Features Technical Parameters Get In Touch

Description

The S330F Methane and Ethane Identifier is an advanced gas inspection device developed by our company.

It adopts optical and laser noncontact analysis technology and can identify the components of leaked gas onsite.

It helps inspectors distinguish between natural gas and biogas.

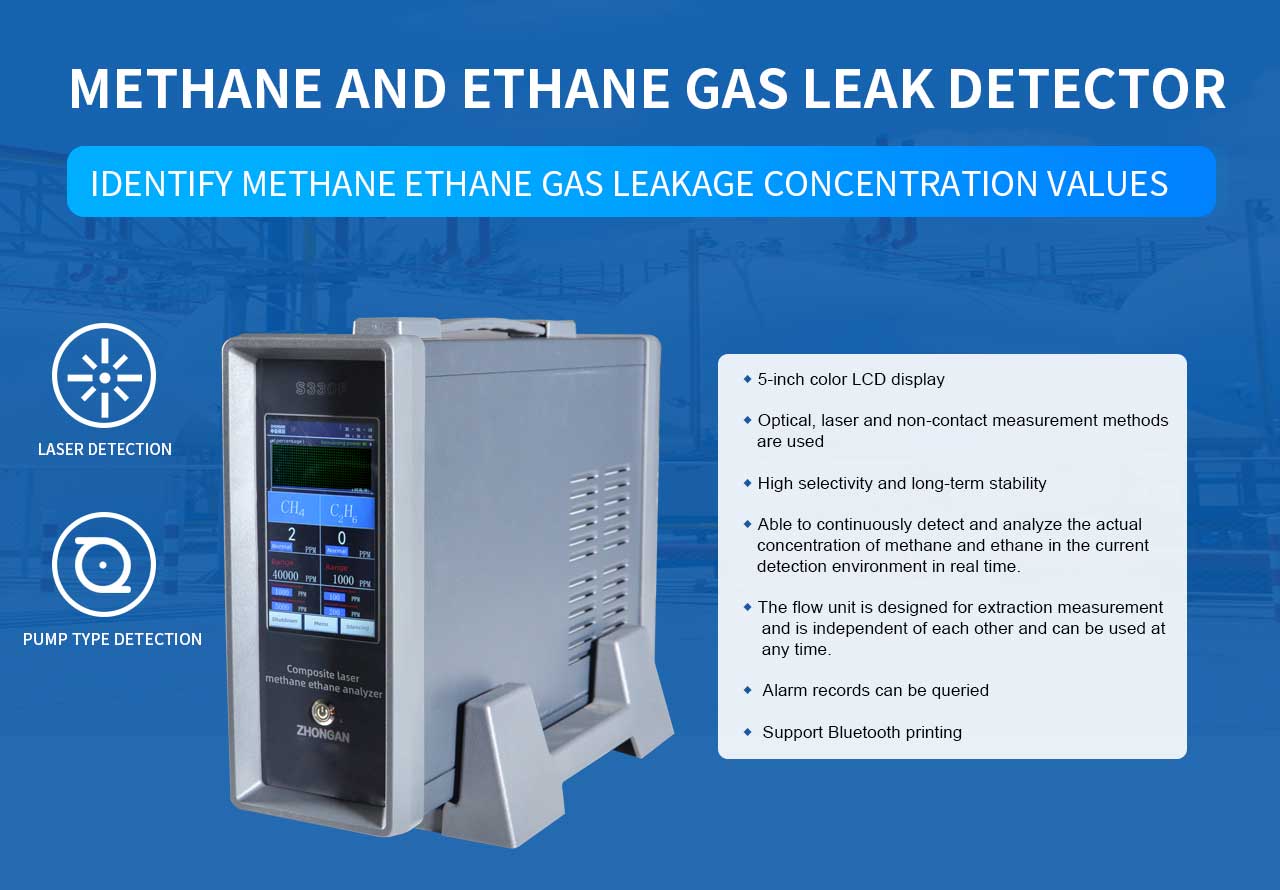

Functions Features

5-inch color LCD screen, all-Chinese operation interface, convenient human-computer interaction interface.
Adopts optical, laser and non-contact measurement methods, with high selectivity and long-term stability.
Can continuously detect and real-time analyze the actual concentration values of methane and ethane in the current detection environment.
he circulation unit is designed for extraction measurement and is independent of each other, and can be used at any time.
Special vehicle-mounted digital signal processing unit, running drift compensation algorithm to provide reliable and stable measurement data.
Compact design method combines methane detection and ethane detection. Reduces product power consumption and extends detection time.
Alarm records can be queried.
Supports Bluetooth printing.

Henan Zhong An Electronic Detection Technology CO.,LTD.

Technical Parameters

Detected Gas	Methane: 0 - 40000 PPM ； Ethane: 0 - 1000 PPM
Resolution	1 PPM
Detection Method	Built-in pump suction type
Battery Voltage	12V 4.6AH lead-acid battery supply
Detection Principle	Laser type
Working Environment	-10℃ to 55℃
Relative Humidity	≤ 93% (no condensation)
Warm-up Time	≤ 30s
Charging Time	7 hours
Working Time	More than 8 hours
Instrument Weight	About 5kg
Instrument Size	293mm × 110mm × 210mm
