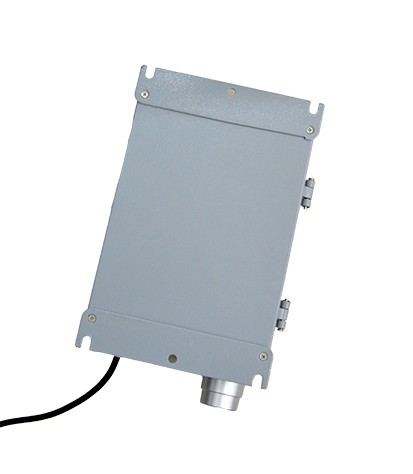

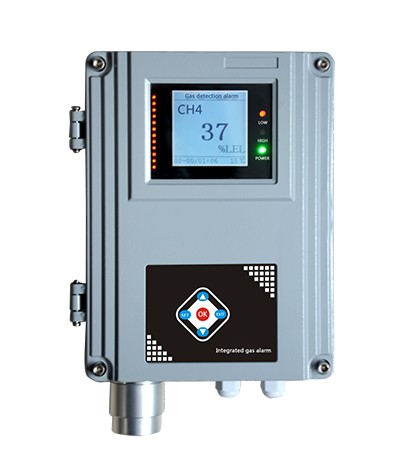

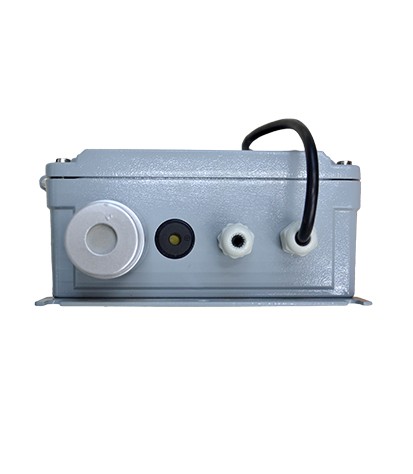

QD6380II Single-point wall-mounted gas detector

Detection of gases	toxic gases, flammable gases
Display mode	LCD
Sampling mode	natural diffusion
Detection principle	electrochemical
response time	＜30S

Mobile/whatsapp: +86-13333857585

Email: [email protected]

We're here to help:Easy ways to get the answers you need.

Description Functions Features Technical Parameters Get In Touch

Description

QD6380ⅡSingle-point wall-mounted gas detector is mainly used for gas detection and alarm in industrial field non explosion proof occasions. The instrument adopts imported sensor, high accuracy and good l inearity, and liquid crystal display gas concentration is measured, and the installation is convenient.

QD6380ⅡSingle-point wall-mounted gas detector has the structure to prevent dust and water, and can work in harsh environment.

Functions Features

Using imported gas sensor, with good accuracy and linearity
Chinese interface operation
Can enter the 1-4 road RS485 interface（option）
1 way 4-20mA input or RS485 input
Set high and low alarm point freely
Audible and visual alarm
With RS485 output, can be connected with the controller of the company
One way alarm control switch output
Waterproof and dust proof structure design
With a password management function, the important operation requires password authentication
Time display function
1-4 bus alarm controller, with bus upload, with sound and light alarm

Technical Parameters

Detection of gases	toxic gases, flammable gases
Display mode	LCD
Sampling mode	natural diffusion
Detection principle	electrochemical
response time	＜30S
Load resistance	（4-20）mA：≤100Ω
check the accuracy	±3%F.S
recovery time	＜60S
working temperature	-20℃～50℃
relative humidity	≤90%RH
Temperature error	±3℃
Working power supply	AC220V±10%
output signal	4-20mA or RS48（chooes）
Power waste	≤3W
Transmit distance	≤1000m
Cable dimension	≥RVVP31.5mm2 ； ≥RVVP41.5mm2
Shell material	Aluminum
size	L248W182H82mm
