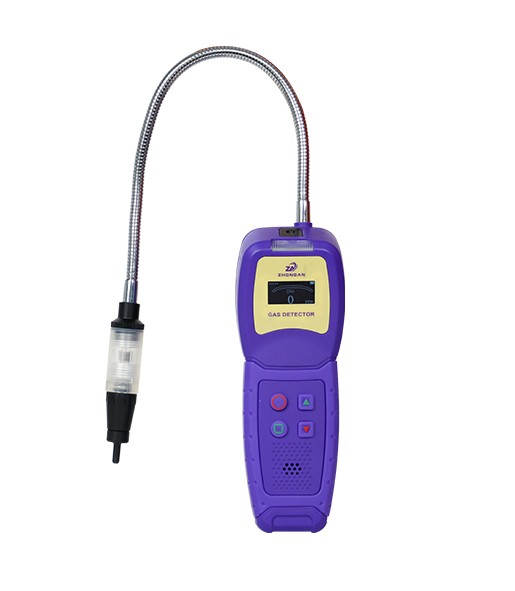

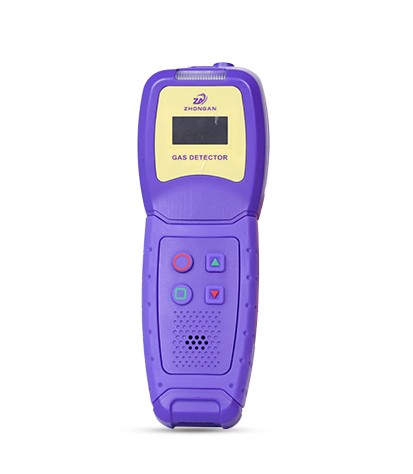

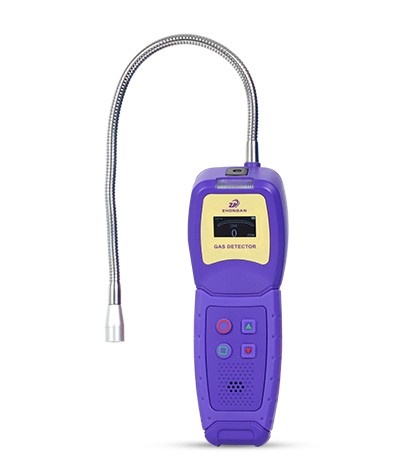

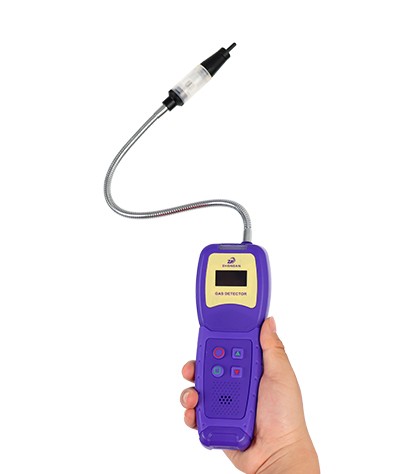

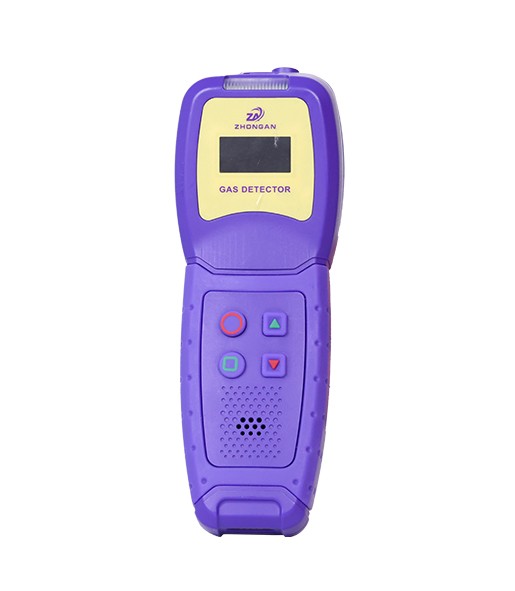

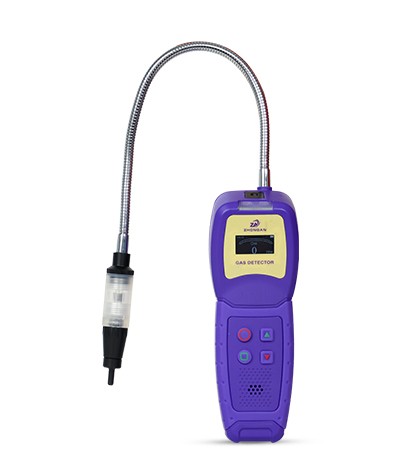

Portable gas detector alarm BTYQ-A217

Product name	Portable gas detector alarm
Product specification	According to the type of gas being measured
Sampling mode	Pump suction or natural diffusion

Mobile/whatsapp: +86-13333857585

Email: [email protected]

TAG: combustible gas detector H2S detector portable single gas detector gas detector

We're here to help:Easy ways to get the answers you need.

Description Functions Features Technical Parameters Get In Touch

Description

This portable gas detector is a high-sensitivity industrial gas detector. It is suitable for gas concentration detection in industrial and commercial locations such as gas stations, chemical workshops, hazardous chemical warehouses, petrochemical plants, and laboratories. It effectively protects the lives of workers and prevents damage to production equipment. This product can detect different gases depending on the sensor type. It is compact, easy to operate, portable, and vibration-resistant. The product uses high-resolution dot-matrix LCD technology for a more intuitive and clear display.

The detector can use either pump-suction or natural diffusion detection methods. The sensitive element uses a high-quality gas sensor with excellent sensitivity and repeatability. The instrument is controlled by an embedded microcomputer, making it simple to operate, feature-rich, highly reliable, and possessing multiple adaptive capabilities. Its compact and aesthetically pleasing portable design makes it easy to use on the go. The detector's shell is made of high-strength engineering plastic and composite anti-slip rubber, offering high strength, a good feel, and is waterproof, dustproof, and explosion-proof.

TAG: combustible gas detector H2S detector portable single gas detector gas detector

Functions Features

The BTYQ-A217 is a high-sensitivity gas leak detection alarm device designed for accurate and reliable monitoring in environments such as gas pipeline networks, municipal corridors, laboratories, hospitals, and schools.

It supports different gas detection applications by interchangeable sensors and is available in three versions:

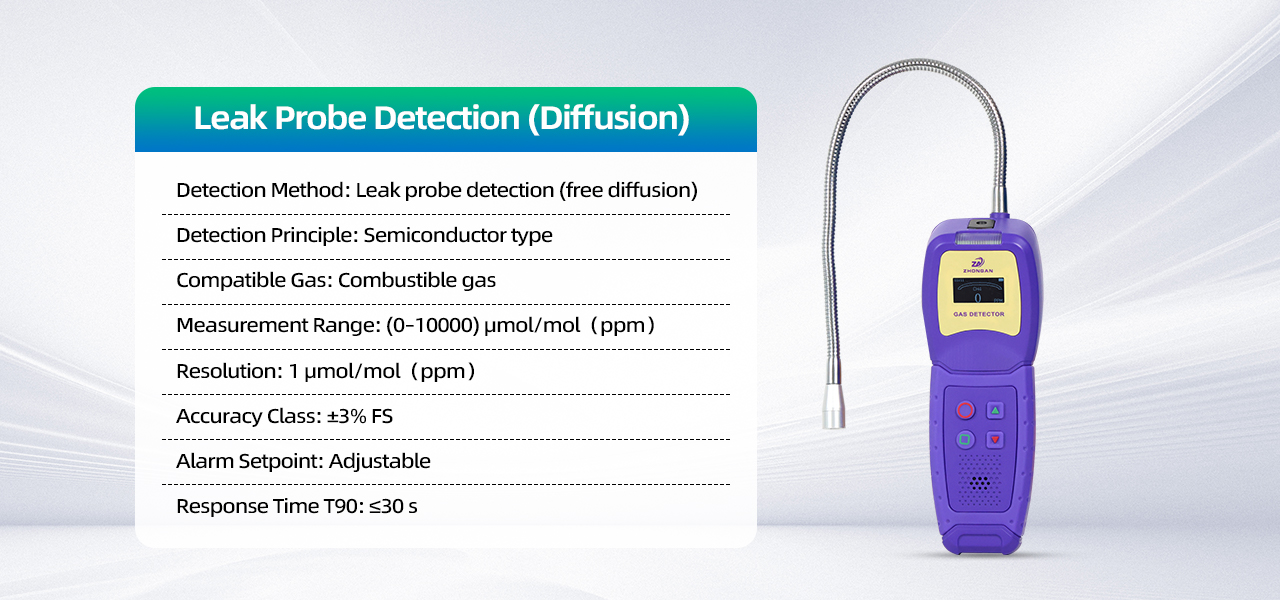

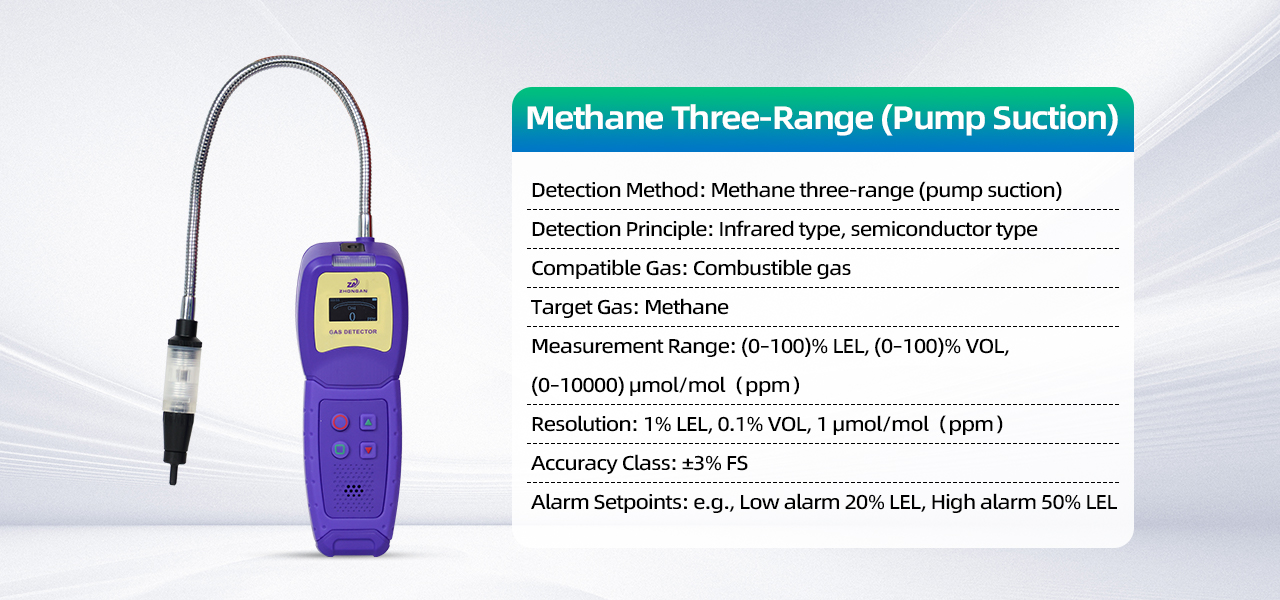

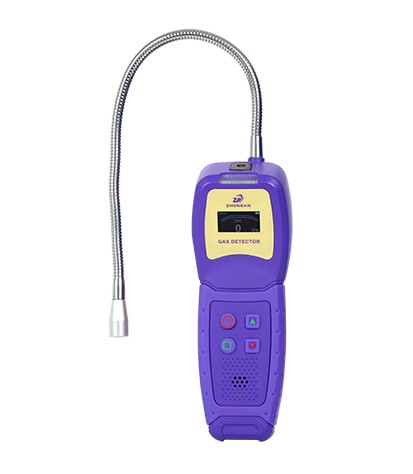

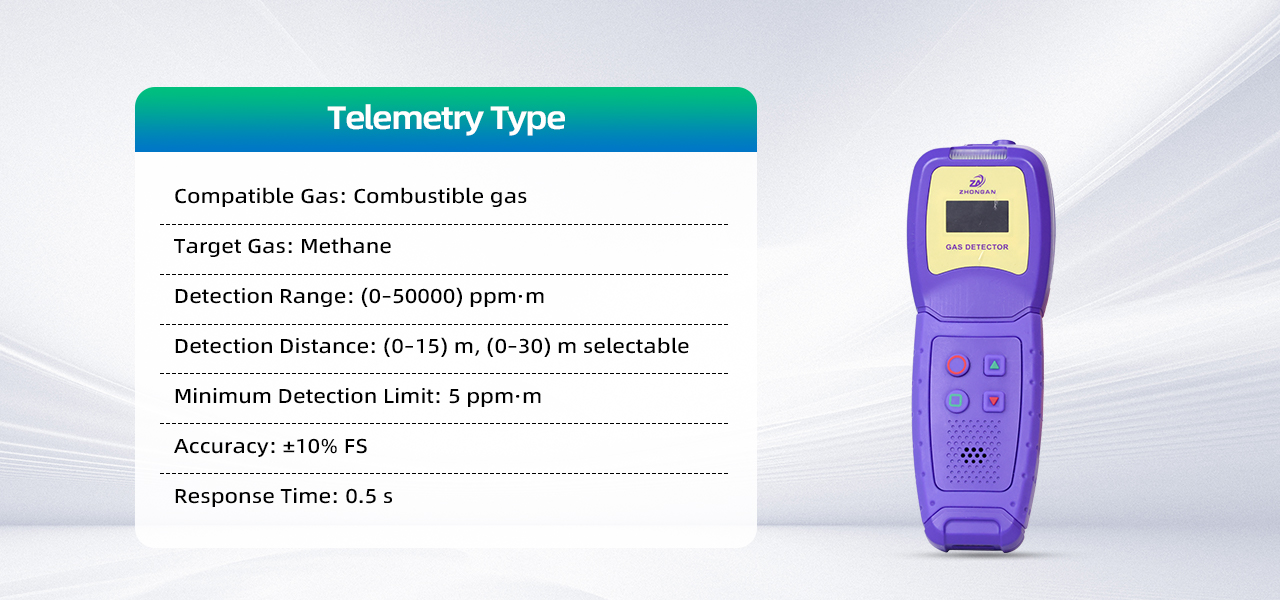

Probe Type (diffusion), Methane Multi-Range (pump type), and Telemetry Model.

High-Sensitivity Detection

Quickly identifies gas leak points for rapid response
Interchangeable sensors for multi-gas detection flexibility

Safety & Alarm System

Audible and visual alarms for real-time hazard alerts
Low battery warning and automatic shutdown under low voltage
Sensor fault detection and power-on self-test

Easy Operation

Zero calibration for quick and efficient setup
User-friendly design for simple operation

Data & Storage

Stores up to 30,000 alarm records
Easy access for data review and traceability

Convenient Design

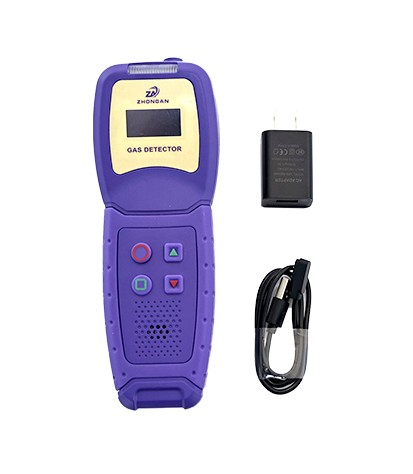

Magnetic charging port for easy and secure connection
Supports multi-language interface switching

Accurate, reliable, and versatile—BTYQ-A217 ensures efficient gas leak detection across diverse applications.

TAG: combustible gas detector H2S detector portable single gas detector gas detector

Technical Parameters

Detectable Gases: Combustible and toxic gases

Sampling Method: Pump-assisted or natural diffusion

Display Method: LCD display

Ambient Temperature: -10℃ to +55℃

Relative Humidity: (20～93)% (non-condensing)

Power Supply Voltage: DC 3.7 V

Battery Type: 104050

Battery Capacity: 3000 mAh lithium-ion rechargeable battery

Charging Time: <5 h

Operating Time: ≥8 h (continuous)

Product Weight: Approx. 265 g

Pressure Limit: 86kPa～106kPa

Dimensions: L 168 mm × W 67 mm × H 61 mm

Common Gas Parameter listing
Gas detected	Measuring Range	Optional Range	Resolution Rat	Response Time
LEL -combustible gas	0-100%LEL	0-100%VOL（Infrared or catalytic ）	1%LEL/1%vol	≤10s
carbon monoxide	0-1000PPm	0-500/2000/5000PPm	0.1/1PPm	≤10s
TVOC	0-100PPM	0-100PPM	0.1PPm/1PPM	≤15s
hydrogen	0-100%LEL	0-1000PPM	1%LEL/1PPM	≤15s
natural gas	0-100%LEL	0-100%LEL	1%LEL	≤10s
Oxygen-O2	0-30%VOL	0-30%、0-100%VOL	0.1%vol	≤10s
ozone	0-10PPm	0-20、100PPm	0.01PPm/0.1PPM	≤15s
hydrogen sulfide-H2S	0-100PPm	0-50、200、1000PPm	1/0.1PPm	≤10s
Methane-CH4	0-100%LEL	0-100%VOL	1%LEL/1%vol	≤10s
fluorine	0-10PM	0-1、10PPM	1/0.1PPm	≤15s
hydrogen chloride	0-20PPm	0-20/50PPm/100PPM	0.01/0.1PPm	≤15s
Nitrogen-N2	0-30%VOL	0-30%VOL、100%VOL	0.1%LEL/1PPM	≤10s
hydrogen	0-100%LEL	0-1000PPm	1%LEL/0.1PPm	≤15s
chlorine	0-20PPm	0-10、100PPm	0.1PPm	≤15s
ammonia gas	0-100PPm	0-50、500、1000PPm	1/0.1PPm	≤15s
oxynitride	0-20PPm	0-50、1000PPm	0.1/1PPm	≤15s
methanal	0-20PPm	0-50、100PPm	1/0.1PPm	≤15s
sulfur dioxide	0-20PPm	0-50、1000PPm	0.1/1PPm	≤15s
nitric oxide	0-250PPm	0-500、1000PPm	1PPm	≤15s
nitrogen dioxide	0-20PPm	0-50、1000PPm	0.1/1PPm	≤15s
phosphine	0-20PPm	0-20、100PPm	0.1PPm	≤15s
acrylonitrile	0-100PPM	0-100PPm	0.1/1PPm	≤15s
carbon dioxide	0-5000PPm	0-1%/5%/10%VOL(Infrared )	1PPM/0.01%VOL	≤15s
hydrogen fluoride	0-10PPm	0-1、10、50、100PPM	0.01/0.1PPm	≤15s
Xylene/methylbenzene	0-20PPm	0-5、10、50、100PPm	0.01/0.1PPm	≤15s
oxirane	0-100PPm	0-100PPm	1/0.1PPm	≤15s
For other gases and measuring ranges, please contact us directly!
