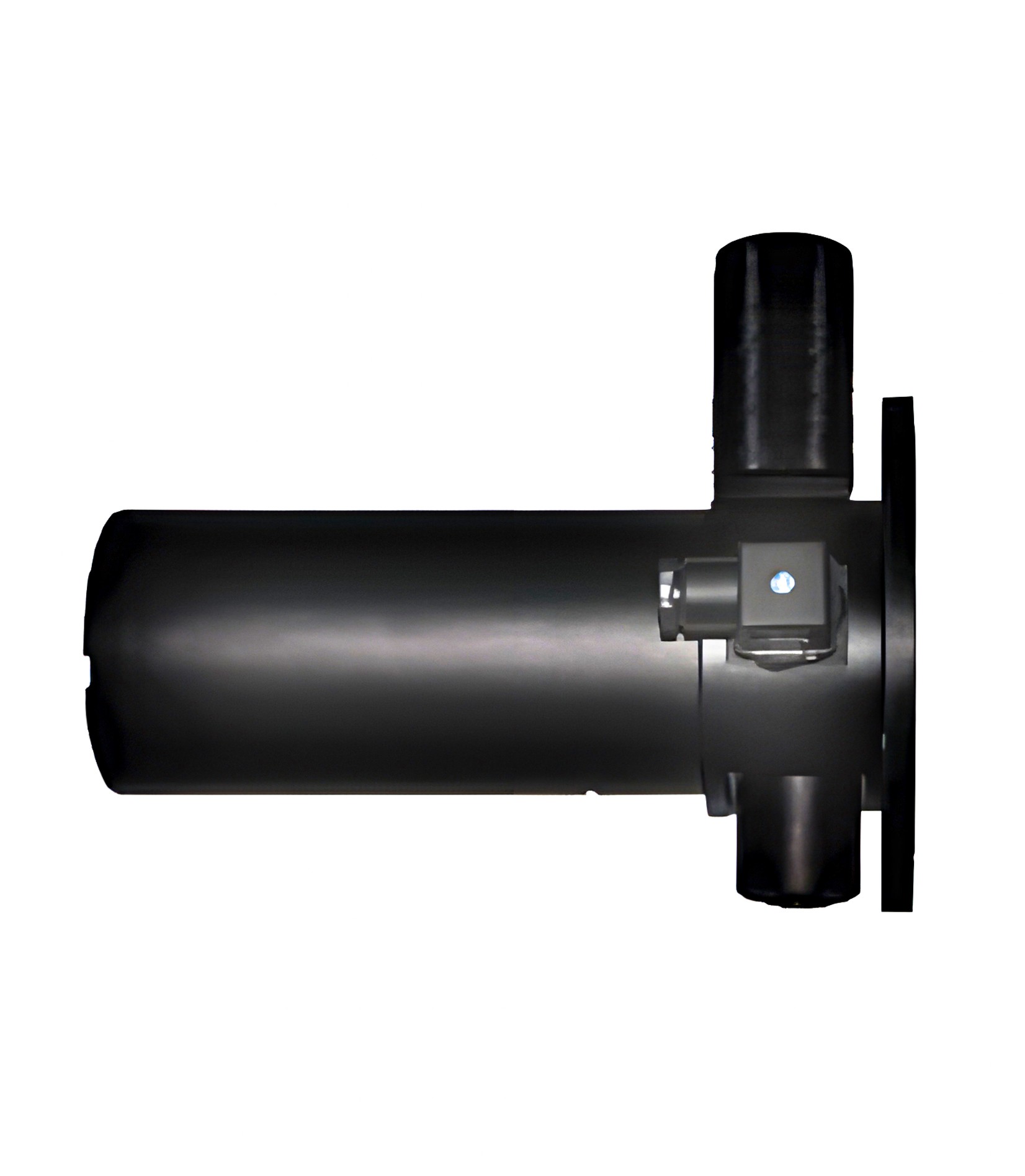

S600 system principle and composition on the principle of back scattering, host including laser light source and power control unit, photoelectric sensor and small signal preprocessing unit scattered light receiving unit display and input unit output drive unit 650 nm of main control unit from the laser beam with a tiny Angle into the emission source, a laser beam scattered light with the soot particle interactions, the backscattering light by accepting part system into the sensor into electrical signal processing circuit realization of photoelectric conversion of laser light source modulation signal demodulation power control of V/I conversion functionThe whole system consists of the main engine and the calibration system, the connection accessories of the purge system and the rainproof box. Due to the different requirements on the site, only the main engine is needed on many occasions. Therefore, the main engine and the rainproof box with air filter are composed of the common standard configuration
Mobile/whatsapp: +86-13333857585
Email: [email protected]
Measuring range |
0-25-50-100-500-1000-2000mg/m3
(you can choose any set range) |
environ mental requirements |
temperature:-40℃~65℃
relative humidity0-100% R. H. |
measureme nt error |
±2%F.S./24h |
size/weight |
160×160×250mm/4kg |
zero drift |
±2%F.S./ 24h |
Medium conditions |
up to 300℃( highTemperature needcustomized) |
range drift |
±2%F.S./ 24h |
Signal output |
(4~20)mA |
Linear error |
±2%F.S./ 24h |
Maximum output load |
500Ω |
resolution |
1mg/m3 |
Power dissipation |
MAX5 W |
Applicable flue diameter
|
1~20m |
power supply
|
DC24V |
