Detection range: varies by gas type
Resolution: Different gas types have different resolutions
Applicable gases: combustible, toxic, oxygen
Detection principles: catalytic, infrared, electrochemical, PID, semiconductor
Alarm thresholds: Different gases require different alarm thresholds.
Display error: ≤±5%FS
Response time: T90<30s (flammable)
Display mode: LCD
Working environment: Temperature (-20 to 50)℃; Humidity (20 to 95)%RH, no condensation
Operating voltage: DC3.7V (rechargeable) / DC3.6V (battery-powered)
Battery capacity: 2000mAh (rechargeable) / 5200mAh (battery)
Working hours: <24 hours continuously
Explosion-proof certificate number: CCRI 24.2663X
Explosion-proof rating: Ex ia ⅡC T4 Ga/ Ex ia ⅢC T200130℃ Da
Protection rating: IP68
Email: [email protected]

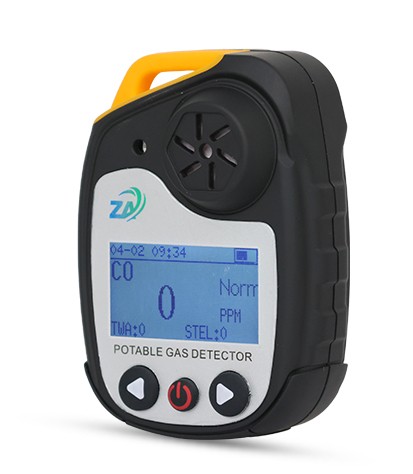

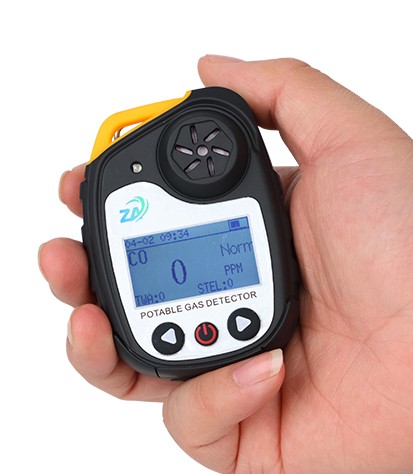

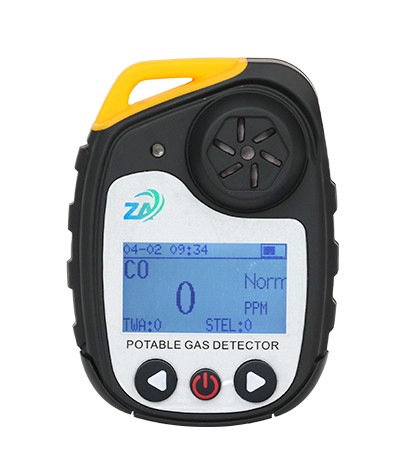

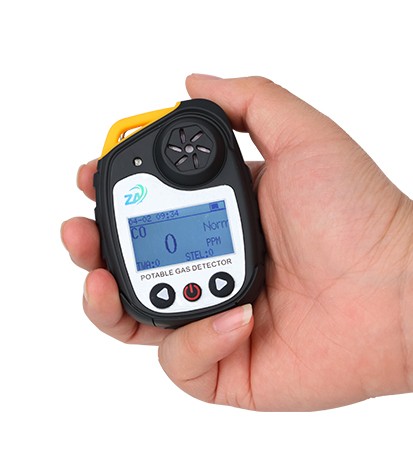

The A115 Portable Gas Detection Alarm is an intrinsically safe device designed for continuous leakage gas concentration monitoring. Ideal for explosion-proof environments, underground pipelines, and mining operations, it ensures the safety of personnel and protects production equipment. Utilizing natural diffusion detection technology with high-performance gas sensors, this portable detector delivers exceptional sensitivity and repeatability. Its embedded microcomputer control system offers user-friendly operation, comprehensive functionality, and high reliability, featuring multiple adaptive capabilities. The intuitive dot-matrix LCD display provides clear visualization, while its compact and aesthetically designed housing ensures portability. Constructed from high-strength engineering plastic with anti-slip rubber composite, the device combines durability, comfort, and resistance to water, dust, and explosion hazards.
The BTYMQ-A115 is a low-power, high-sensitivity portable gas detector designed for industrial safety applications. Powered by a disposable battery with a lifespan of 2–5 years, it ensures long-term, maintenance-free operation in environments such as gas stations, chemical plants, hazardous material storage, petrochemical sites, and laboratories.
High-quality gas sensors with excellent sensitivity and repeatability
Supports detection of various gases via interchangeable sensors
Natural diffusion sampling for stable and accurate monitoring
Powered by a non-rechargeable battery with up to 2–5 years service life
Ideal for long-term continuous monitoring with minimal maintenance
Triple alarm: sound, light, and vibration
Fault alarm for enhanced reliability
Multiple alarm modes: Low, High, TWA, STEL
Multi-level calibration with automatic zero tracking
Intelligent system to prevent calibration errors
Chinese/English interface switching and flexible unit selection
Stores up to 60,000 records
Bluetooth communication (optional) for wireless data access
Compact and lightweight, easy to carry

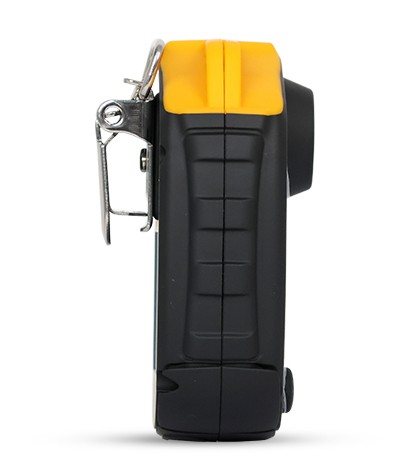

High-strength housing with anti-slip rubber coating
Waterproof, dustproof, and explosion-proof for harsh environments

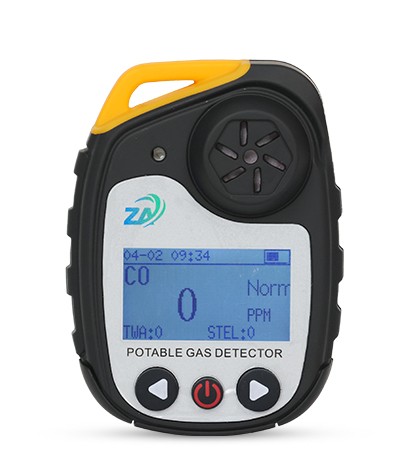

High-resolution dot matrix LCD for clear data display
Long-lasting, reliable, and easy to use—BTYMQ-A115 is built for continuous industrial gas safety monitoring.
| Common Gas Parameter listing | ||||
| Gas detected | Measuring Range | Optional Range | Resolution Rat | Response Time |
| LEL -combustible gas | 0-100%LEL | 0-100%VOL(Infrared or catalytic ) | 1%LEL/1%vol | ≤10s |
| carbon monoxide | 0-1000PPm | 0-500/2000/5000PPm | 0.1/1PPm | ≤10s |
| TVOC | 0-100PPM | 0-100PPM | 0.1PPm/1PPM | ≤15s |
| hydrogen | 0-100%LEL | 0-1000PPM | 1%LEL/1PPM | ≤15s |
| natural gas | 0-100%LEL | 0-100%LEL | 1%LEL | ≤10s |
| Oxygen-O2 | 0-30%VOL | 0-30%、0-100%VOL | 0.1%vol | ≤10s |
| ozone | 0-10PPm | 0-20、100PPm | 0.01PPm/0.1PPM | ≤15s |
| hydrogen sulfide-H2S | 0-100PPm | 0-50、200、1000PPm | 1/0.1PPm | ≤10s |
| Methane-CH4 | 0-100%LEL | 0-100%VOL | 1%LEL/1%vol | ≤10s |
| fluorine | 0-10PM | 0-1、10PPM | 1/0.1PPm | ≤15s |
| hydrogen chloride | 0-20PPm | 0-20/50PPm/100PPM | 0.01/0.1PPm | ≤15s |
| Nitrogen-N2 | 0-30%VOL | 0-30%VOL、100%VOL | 0.1%LEL/1PPM | ≤10s |
| hydrogen | 0-100%LEL | 0-1000PPm | 1%LEL/0.1PPm | ≤15s |
| chlorine | 0-20PPm | 0-10、100PPm | 0.1PPm | ≤15s |
| ammonia gas | 0-100PPm | 0-50、500、1000PPm | 1/0.1PPm | ≤15s |
| oxynitride | 0-20PPm | 0-50、1000PPm | 0.1/1PPm | ≤15s |
| methanal | 0-20PPm | 0-50、100PPm | 1/0.1PPm | ≤15s |
| sulfur dioxide | 0-20PPm | 0-50、1000PPm | 0.1/1PPm | ≤15s |
| nitric oxide | 0-250PPm | 0-500、1000PPm | 1PPm | ≤15s |
| nitrogen dioxide | 0-20PPm | 0-50、1000PPm | 0.1/1PPm | ≤15s |
| phosphine | 0-20PPm | 0-20、100PPm | 0.1PPm | ≤15s |
| acrylonitrile | 0-100PPM | 0-100PPm | 0.1/1PPm | ≤15s |
| carbon dioxide | 0-5000PPm | 0-1%/5%/10%VOL(Infrared ) | 1PPM/0.01%VOL | ≤15s |
| hydrogen fluoride | 0-10PPm | 0-1、10、50、100PPM | 0.01/0.1PPm | ≤15s |
| Xylene/methylbenzene | 0-20PPm | 0-5、10、50、100PPm | 0.01/0.1PPm | ≤15s |
| oxirane | 0-100PPm | 0-100PPm | 1/0.1PPm | ≤15s |
| For other gases and measuring ranges, please contact us directly! | ||||
